HP Agilent Keysight, 83752A

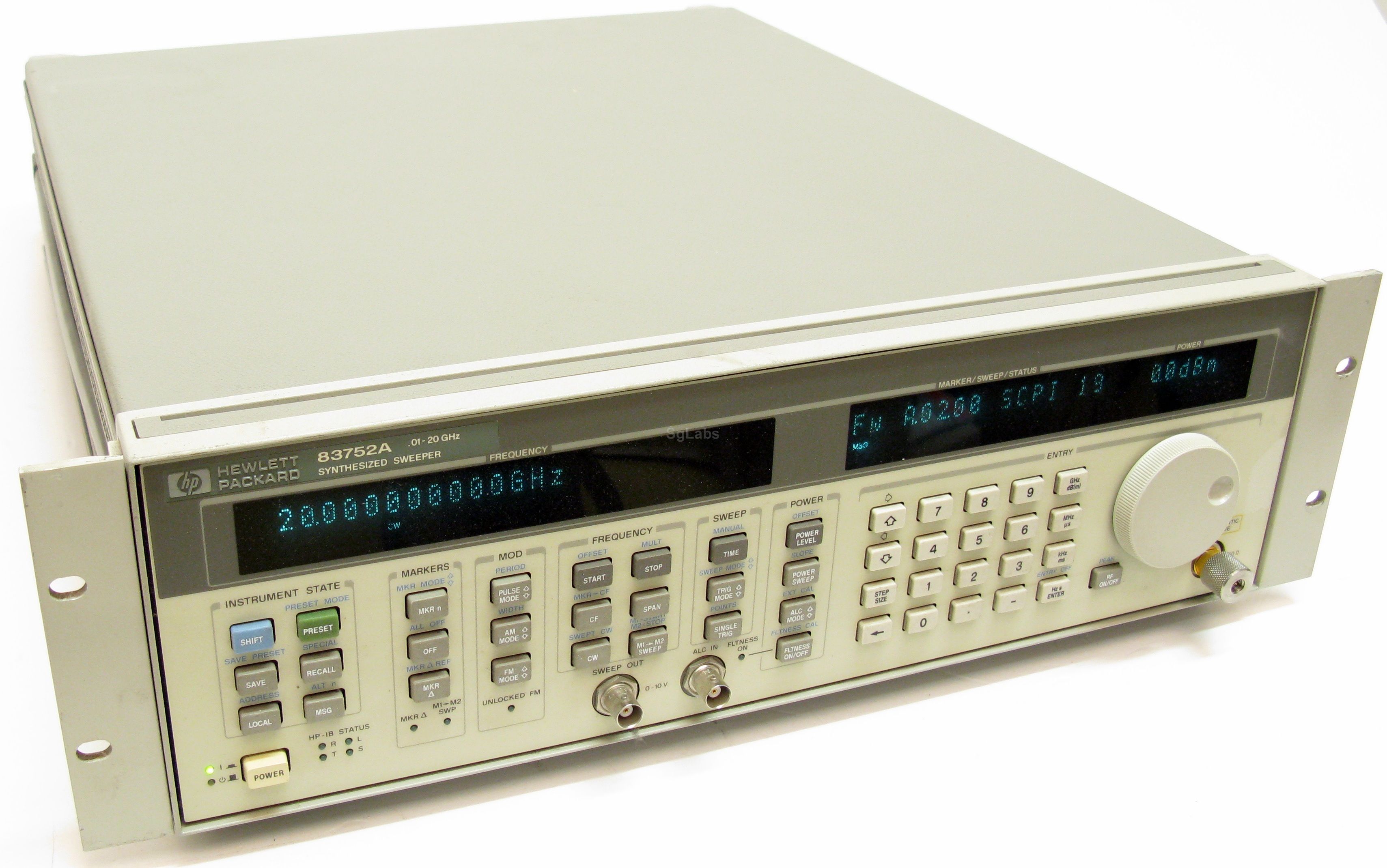

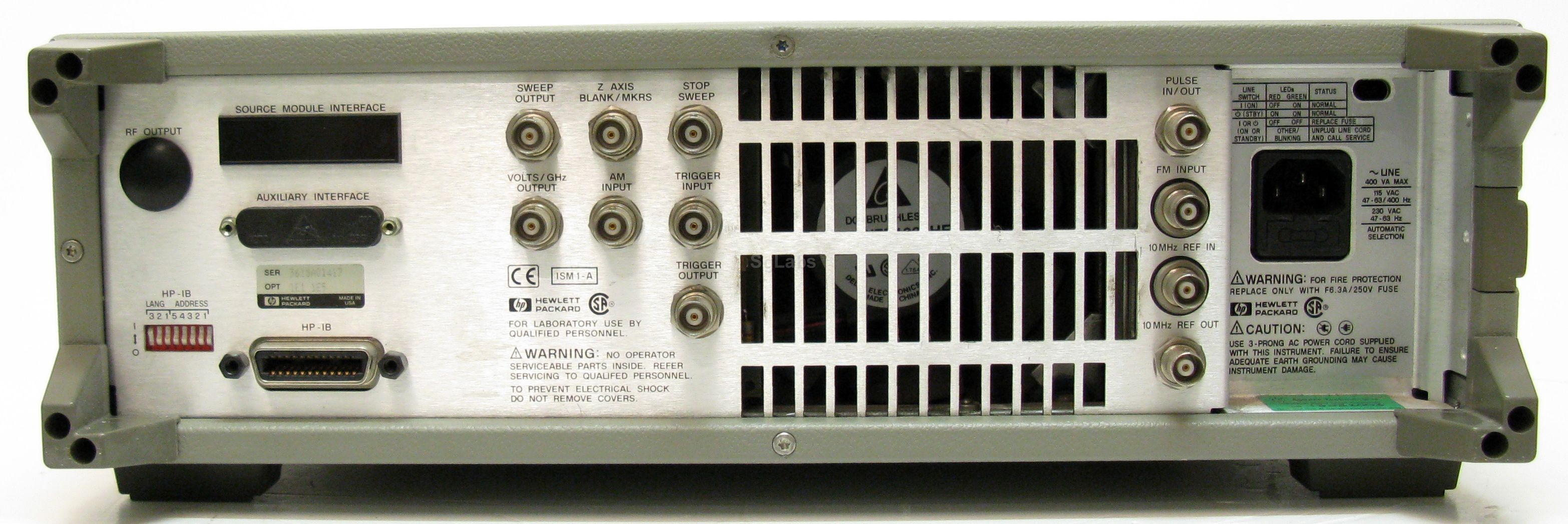

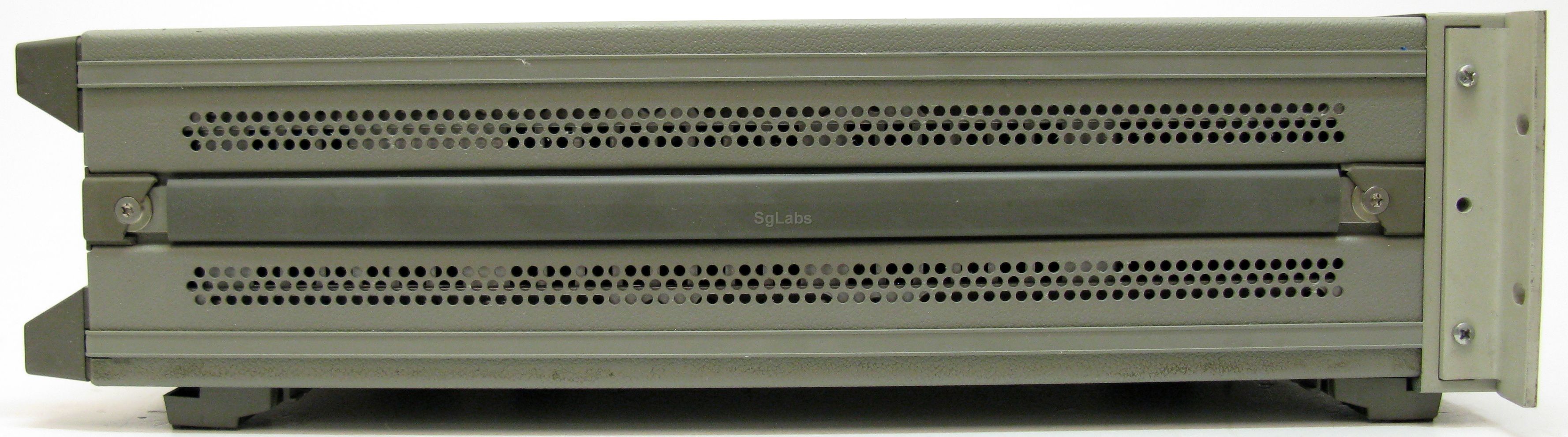

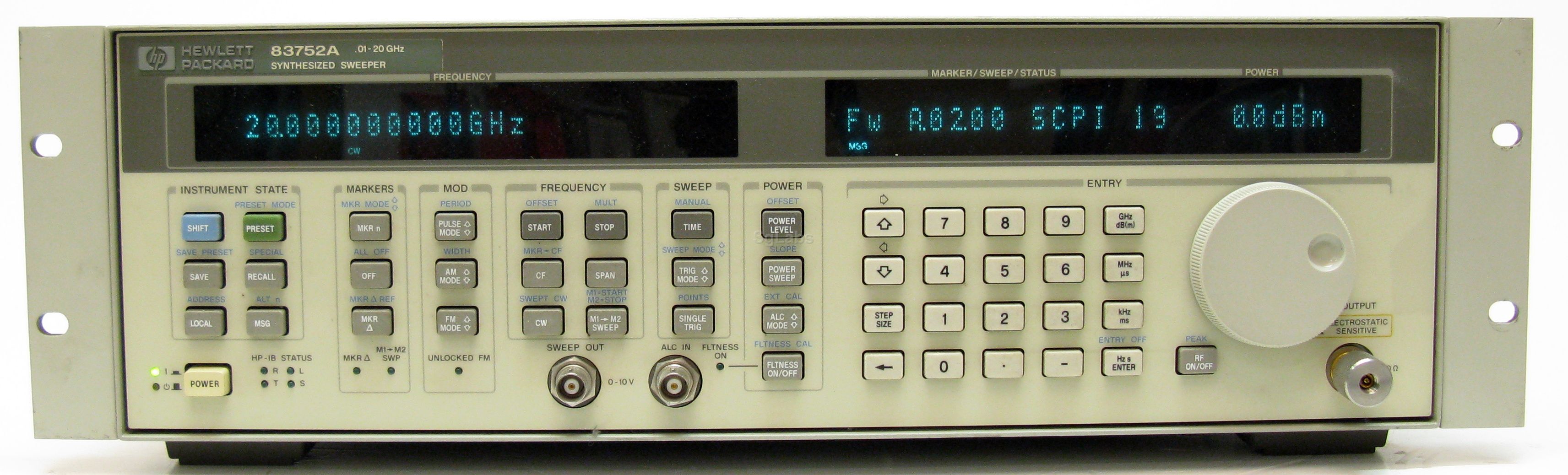

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 83752A sweeper brings outstanding synthesized performance to the component-test marketplace. It delivers the best performance for the price in general purpose benchtop, swept test or scalar applications. This sweeper provides superior accuracy and stability while maintaining the speed of an analog source. Fully synthesized CW, stepped and ramp sweep modes are available in broadband and narrowband operation. The synthesis capability is particularly useful for the characterization of narrowband devices, in which the frequency instabilities of open-loop sources become most apparent. Excellent output power flatness and accuracy can be translated to the input port of the device under test with the power flatness correction feature of this source.

  • Fully phase locked analog sweep for accuracy and speed
  • Flat and accurate output power to characterize the linear response of the test device
  • Offset frequency sweep for mixer test
  • Keysight 8350 programming mode for backwards compatibility
Features
  • Frequency Range: 0.01-20 GHz
  • Modulations: AM-FM-Pulse
  • Max Output Power: 10 dBm
  • Min Output Power: -15 dBm (-85 dBm Opt.1E1)
  • Sweep, CW
  • Frequency risolution: 1 Hz

Description of possible options:

  • 1E1: Step Attenuator
  • 1E4: Rear panel RF output
  • 1E5: High stability time base
  • 1ED: N-RF output
  • 1EE: 3,5mm RF output
  • Max frequency: 20 GHz
  • Minimum Frequency: 10 MHZ
  • Modulation: AM-FM-Pulse
  • Mainframe series: yes
  • Max. Output level: +10 dBm
  • Min. output level: -15 dBm (-85 dBm Opt.1E1)
  • Resolution: 1 Hz
