HP Agilent Keysight, 6627A

You are here: Power Supply (DC) » Multiple output

HP Agilent Keysight, 6627A

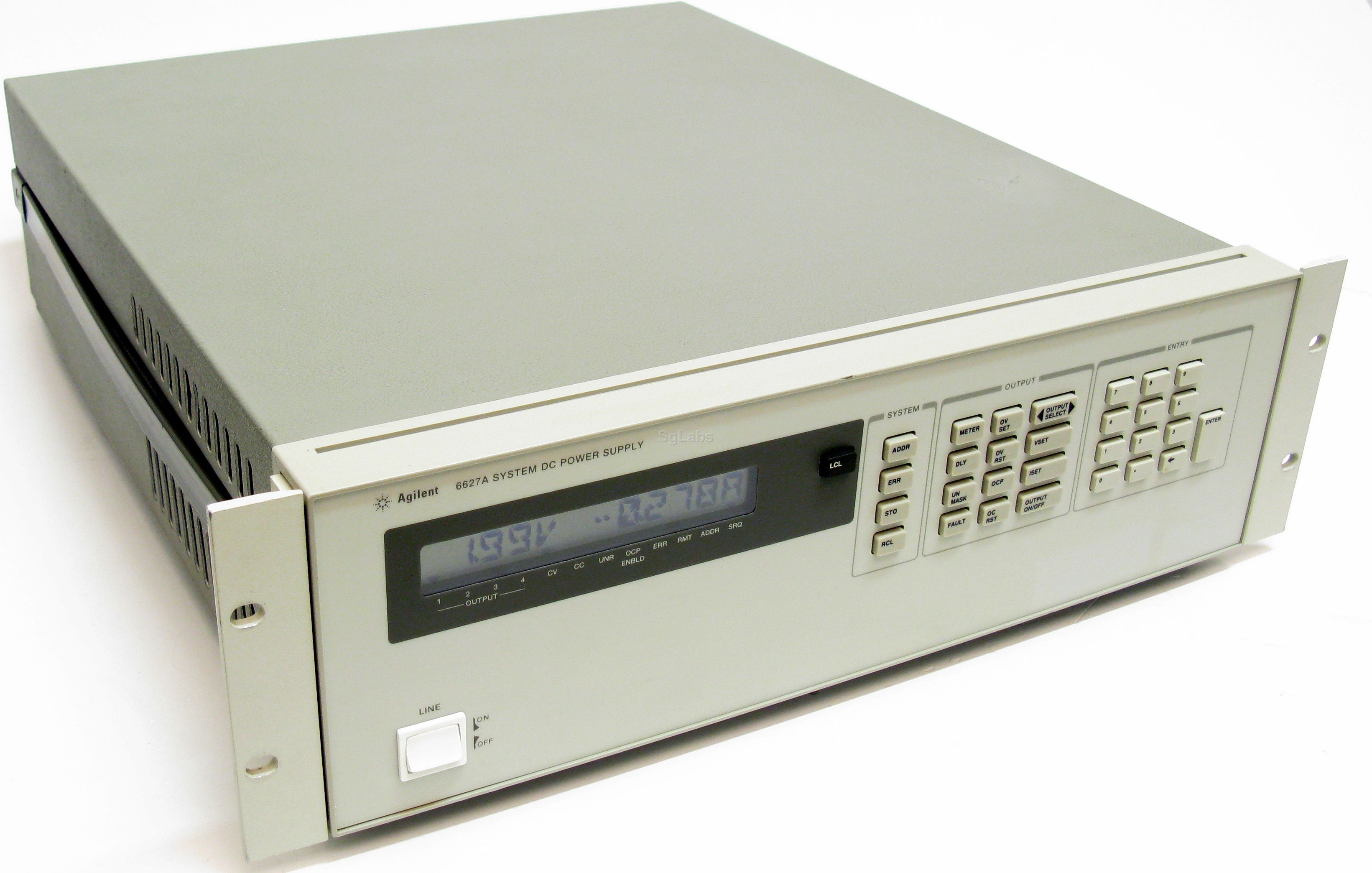

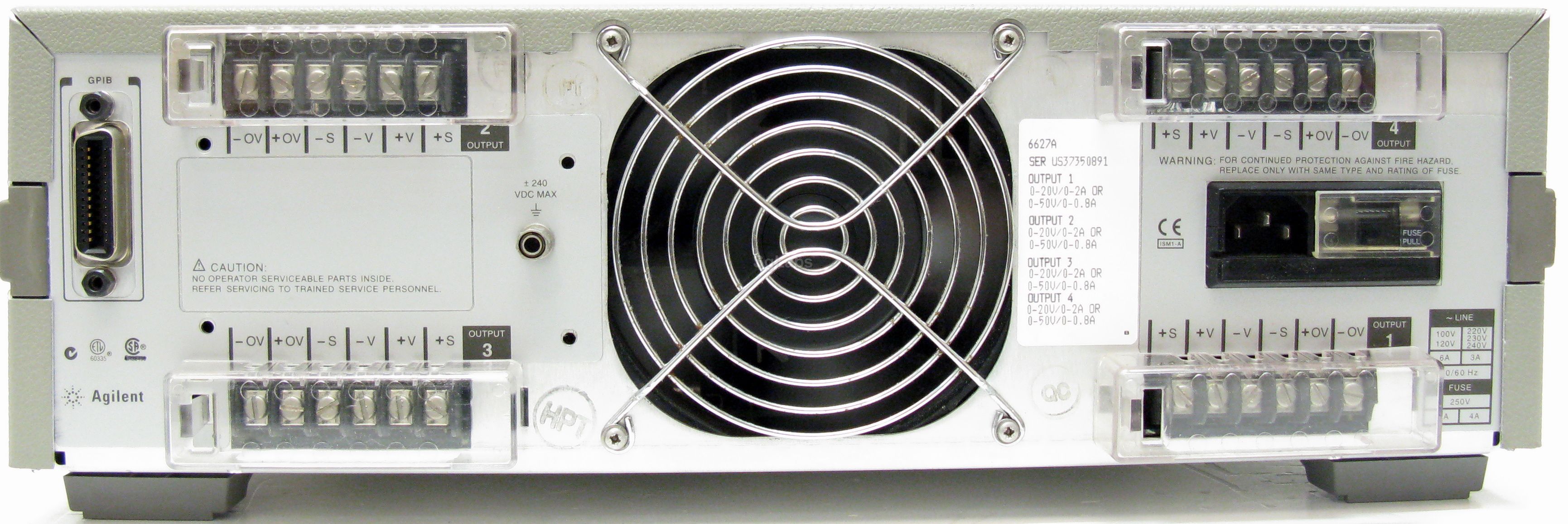

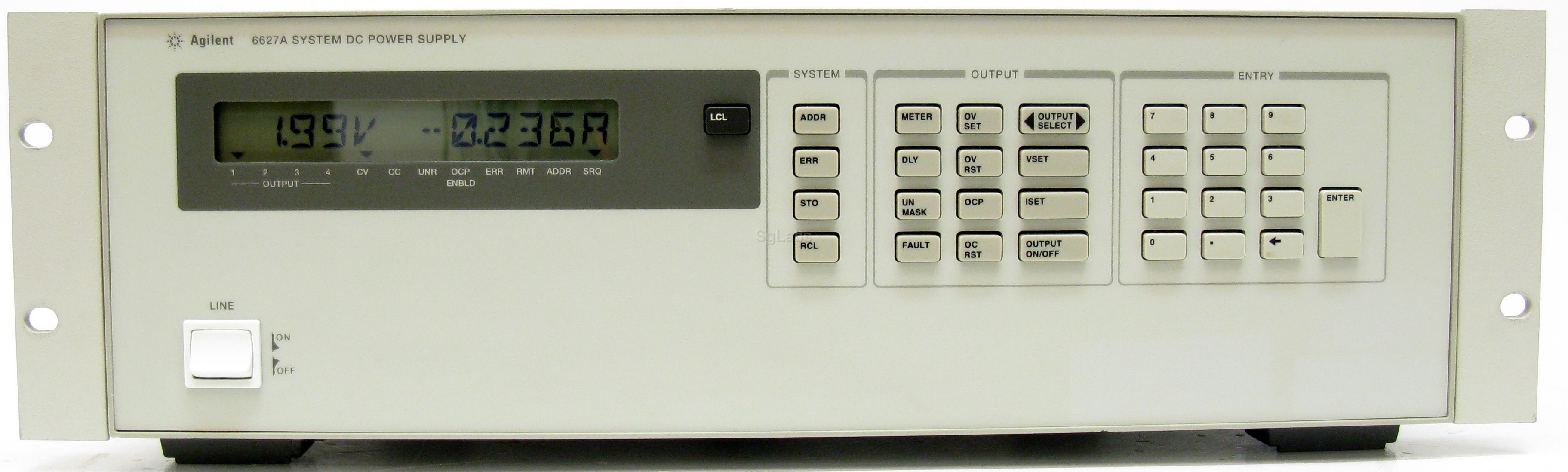

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Keysight high performance DC power supplies offer spec and accuracy for test optimization. The precision multiple output, 40W - GPIB 6627A provide fast, low-noise outputs; dual-range, precision low current measurement; built-in measurements and advanced programmable features; and protection features to ensure DUT safety.

The Keysight 40W, four-output 6627A is a versatile solution to help improve system accuracy and reduce test time in a 3U high package.


Output ratings (4 outputs)

  • Low-range volts, amps: 0 to 20 V, 0 to 2 A
  • High range volts, amps: 0 to 50 V, 0 to 0.8 A

Programming accuracy at 25°C ±5°C (4 outputs each)

  • Voltage: 0.06% + 50 mV
  • Current: 0.16% + 20 mA

Ripple & noise (20 Hz to 20 MHz) 4 outputs

  • Voltage rms: 500 µV
  • Peak-to-peak: 3 mV
  • Current rms: 1 mA
  • Max current: 2A
  • Display: LCD
  • Interface: GPIB
  • Max. Voltage: 50V
  • Min. Voltage: 0 V
