HP Agilent Keysight 6541A 160 Watt Power Supply 8V 20A

You are here: Power Supply (DC) » Single output

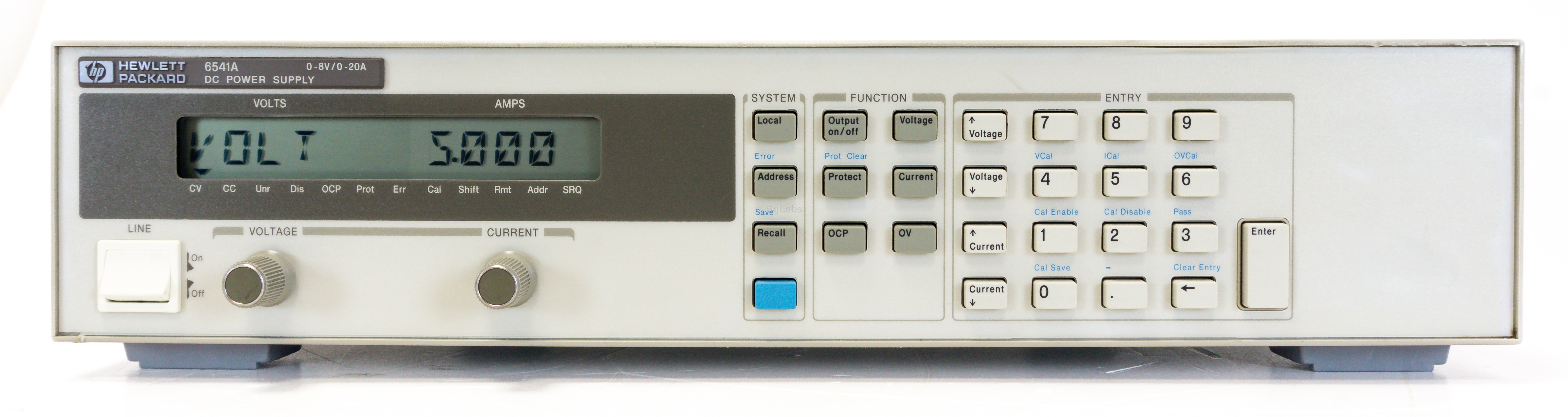

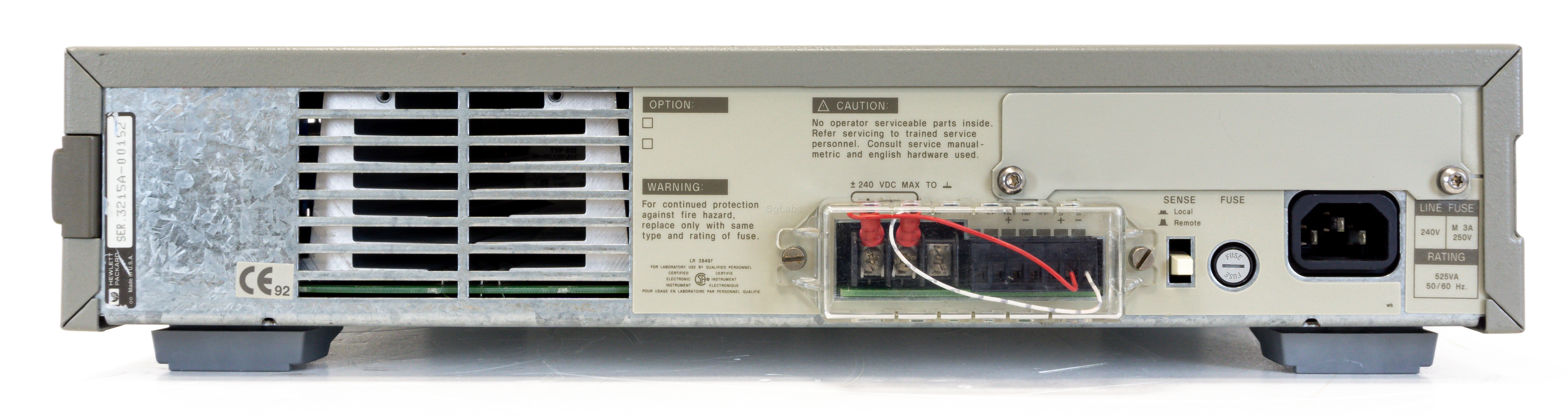

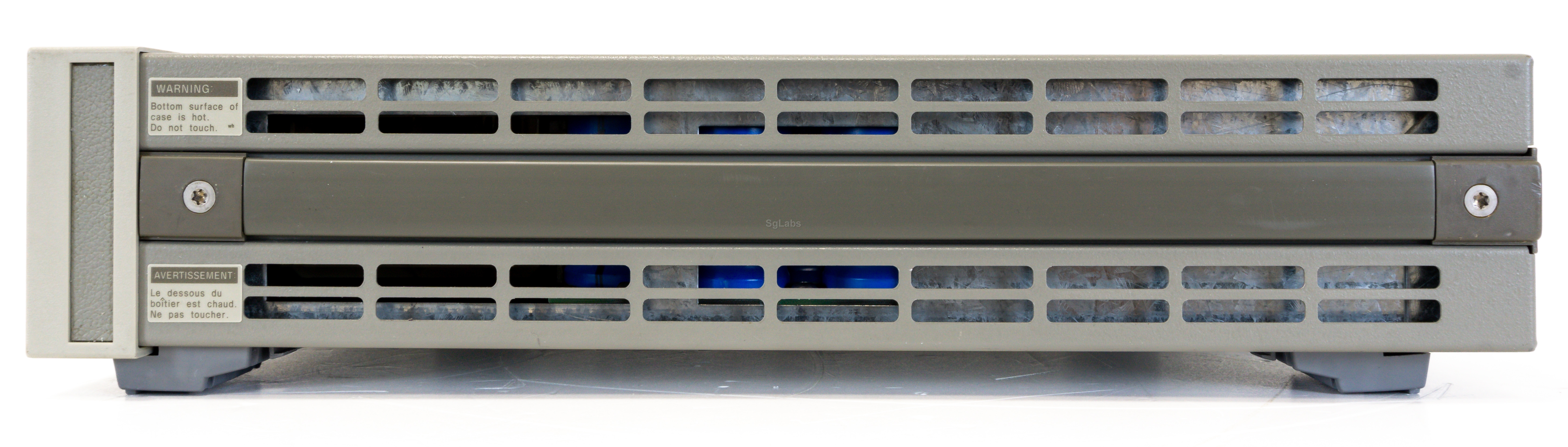

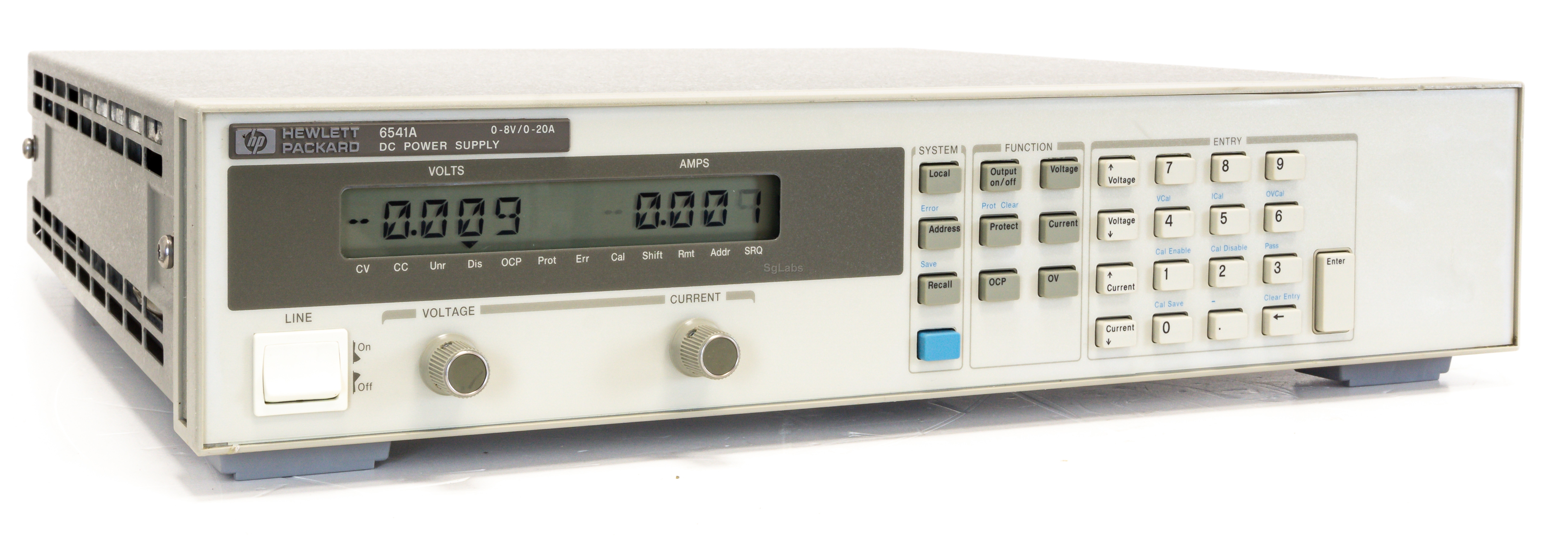

HP Agilent Keysight 6541A 160 Watt Power Supply 8V 20A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 200 W, 6541A-6545A provide front panel and analog control of output voltage and current; fast, low-noise outputs; fan-speed control to minimize acoustic noise; and protection features to ensure DUT safety.

The Keysight 160W, no interface, single output 6541A is a reliable supply with clean output to ensure accurate measurements, and offers the right mix of performance and functionality for general purpose applications on the bench or in analog-controlled systems.

Features

Output Ratings

  • Output Voltage: 0 to 8 V
  • Output Current: (40° C) 0 to 20 A
  • Maximum Current (50° C/55° C): 18 A/17 A

Programming Accuracy at 25°C ±5°C

  • Voltage 0.06% + 5 mV
  • Current 0.14% + 26 mA

Ripple & Noise from 20 Hz to 20 MHz

  • Voltage rms: 300 µV
  • Peak-to-Peak: 3 mV
  • Current rms: 10 mA
  • Max current: 20 A
  • Display: LCD
  • Max. Voltage: 8V
  • Min. Voltage: 0V
Price
 € 250,00
