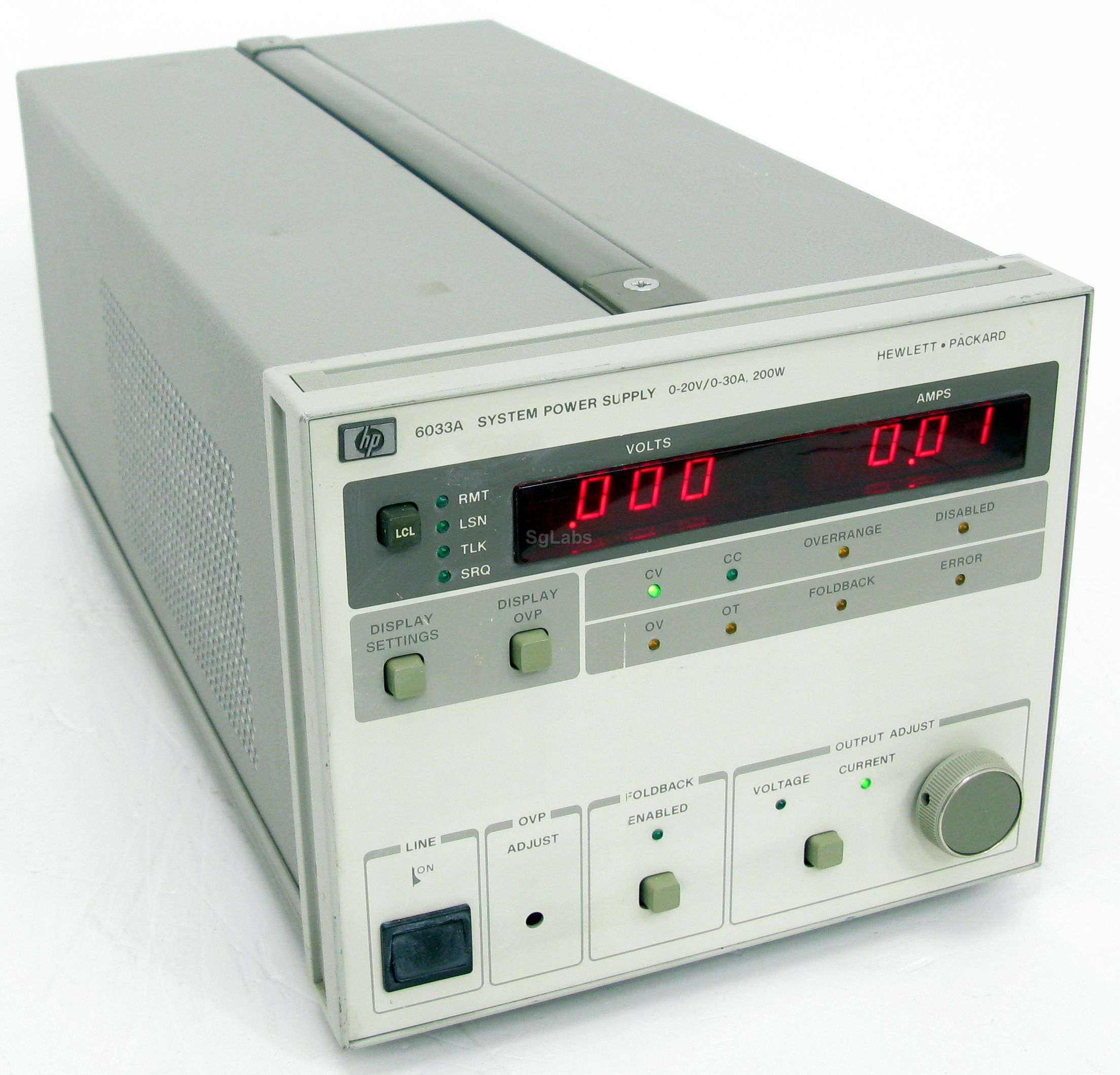

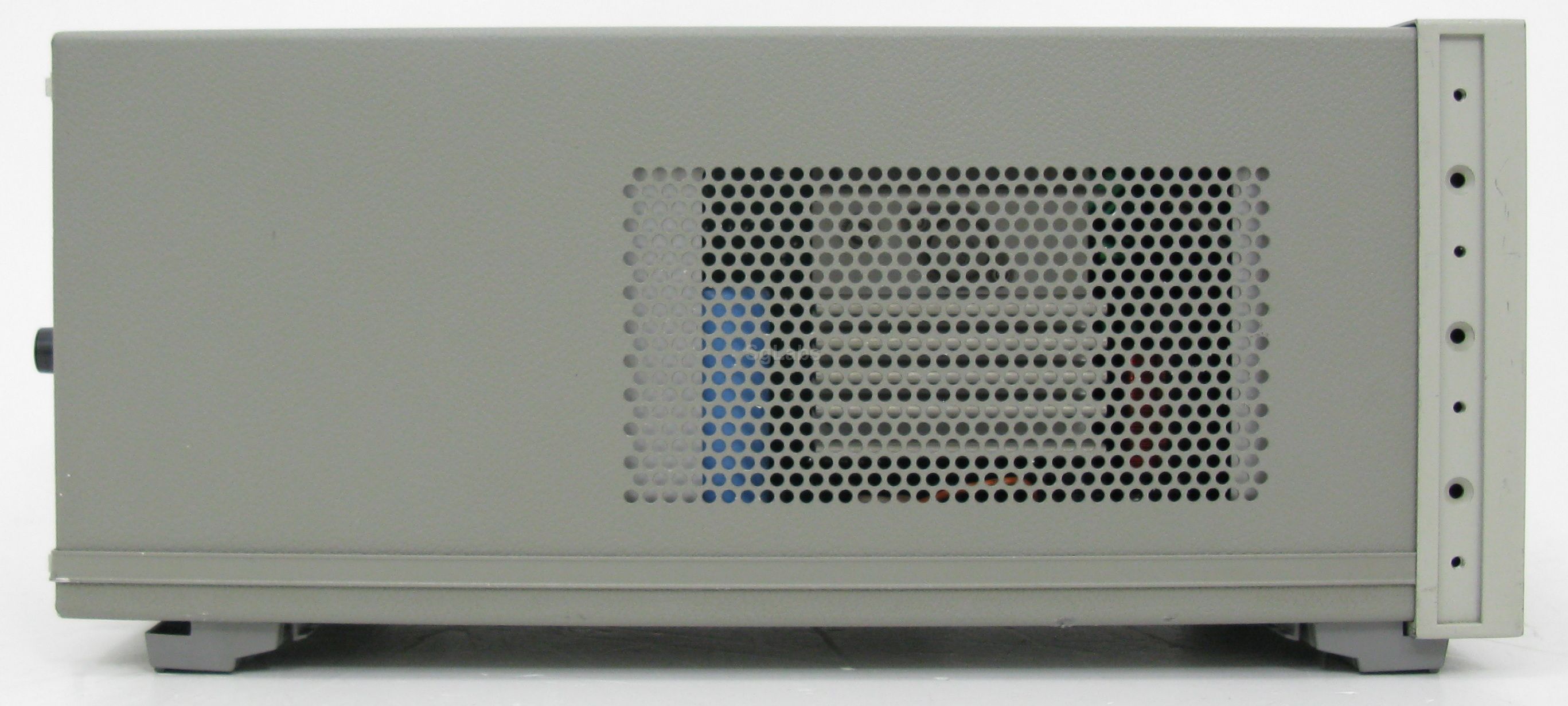

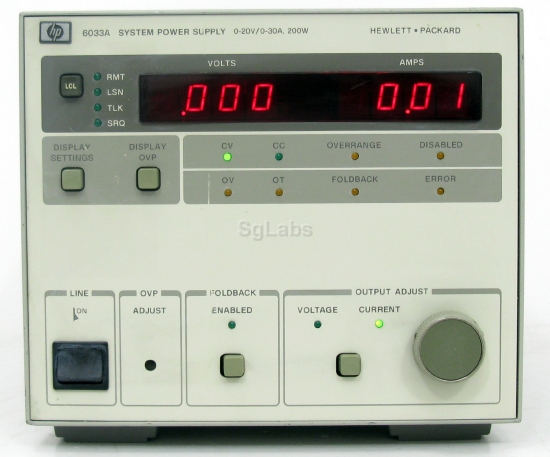

HP Agilent 6033A System Autoranging DC Power Supply 20V 30A 240W

You are here: Power Supply (DC) » Single output

HP Agilent 6033A System Autoranging DC Power Supply 20V 30A 240W
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Keysight basic DC power supplies offer essential features for a tight budget. The single-output, autoranging 200 W and 1000 W GPIB 6030A-6033A, 6035A, and 6038A provide analog/resistance control of output voltage and current; series and auto-parallel connections of multiple supplies; and built-in measurements and advanced programmable features. The Keysight 240W, single-output 6033A is an efficient solution for large demanding test systems that saves rack space and reduces system complexity.


Output ratings

  • Voltage: 0 to 20 V
  • Current: 0 to 30 A
  • Power: 240 W
  • Autoranging output V1,I1: 20V - 10A; V2,I2: 14V - 17,2A; V3,I3: 6,7V - 30A

Programming accuracy at 25°C ±5°C

  • Voltage: 0.035%, +9 mV
  • Current: 0.15%, +20 mA

Ripple & noise 20 Hz to 20 MHz

  • Voltage rms: 3 mV
  • Voltage Peak-to-Peak: 30 mV
  • Current rms: 30 mA

Readback Accuracy at 25°C ±5°C

  • Voltage: 0.07%, +6 mV
  • Current: 0.3%, +25 mA
  • Max current: 30A
  • Interface: GPIB
  • Max. Voltage: 20V
 € 290,00
