HP Agilent Keysight, 54624A

You are here: Oscilloscope » Digital

HP Agilent Keysight, 54624A

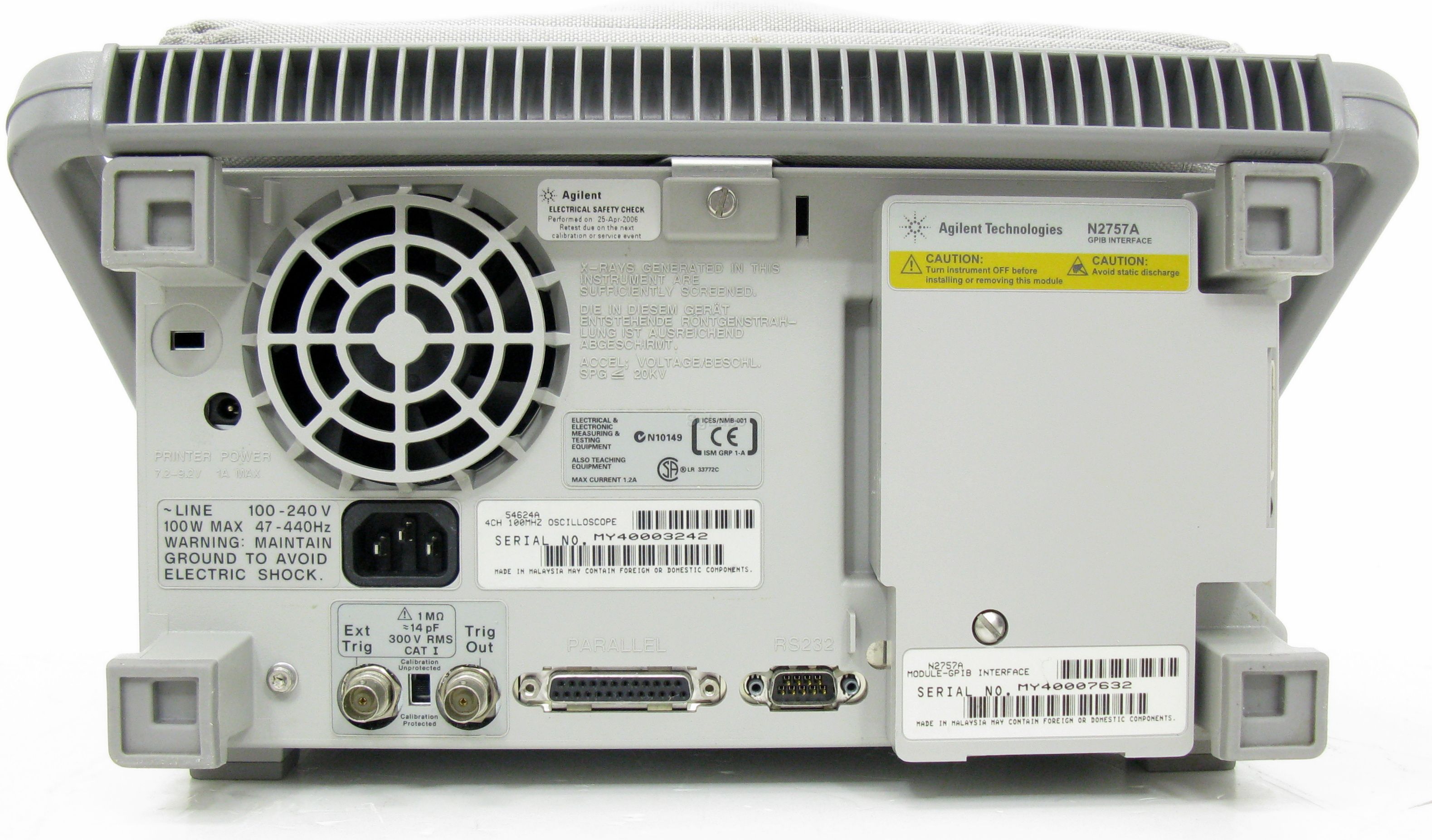

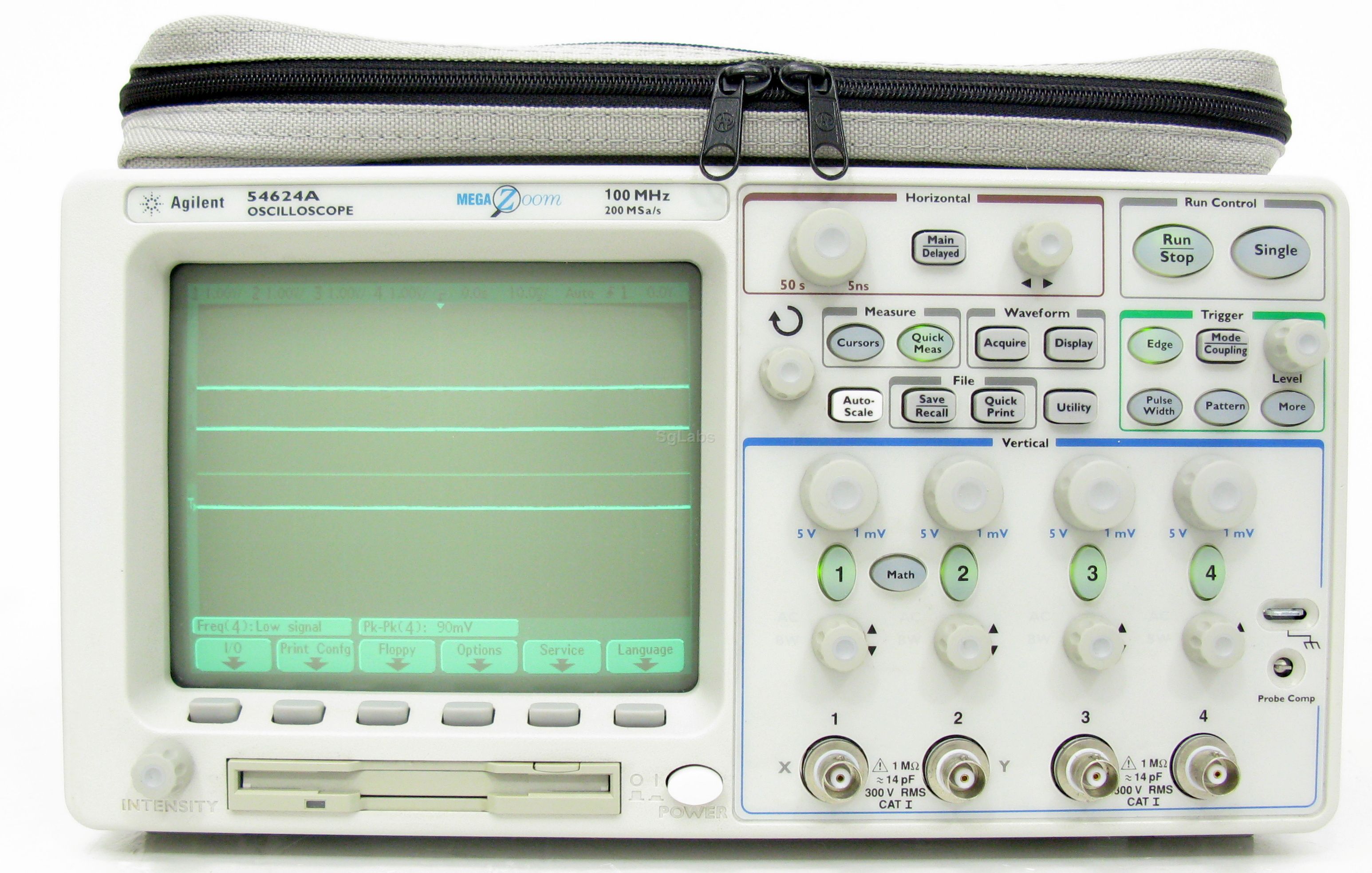

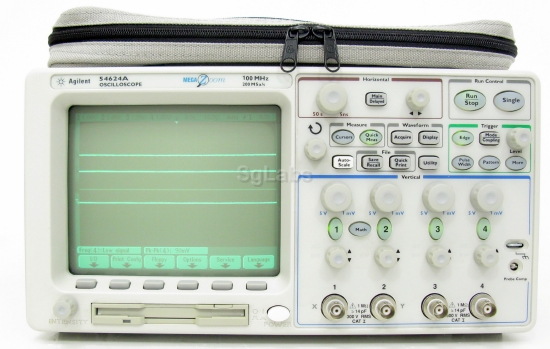

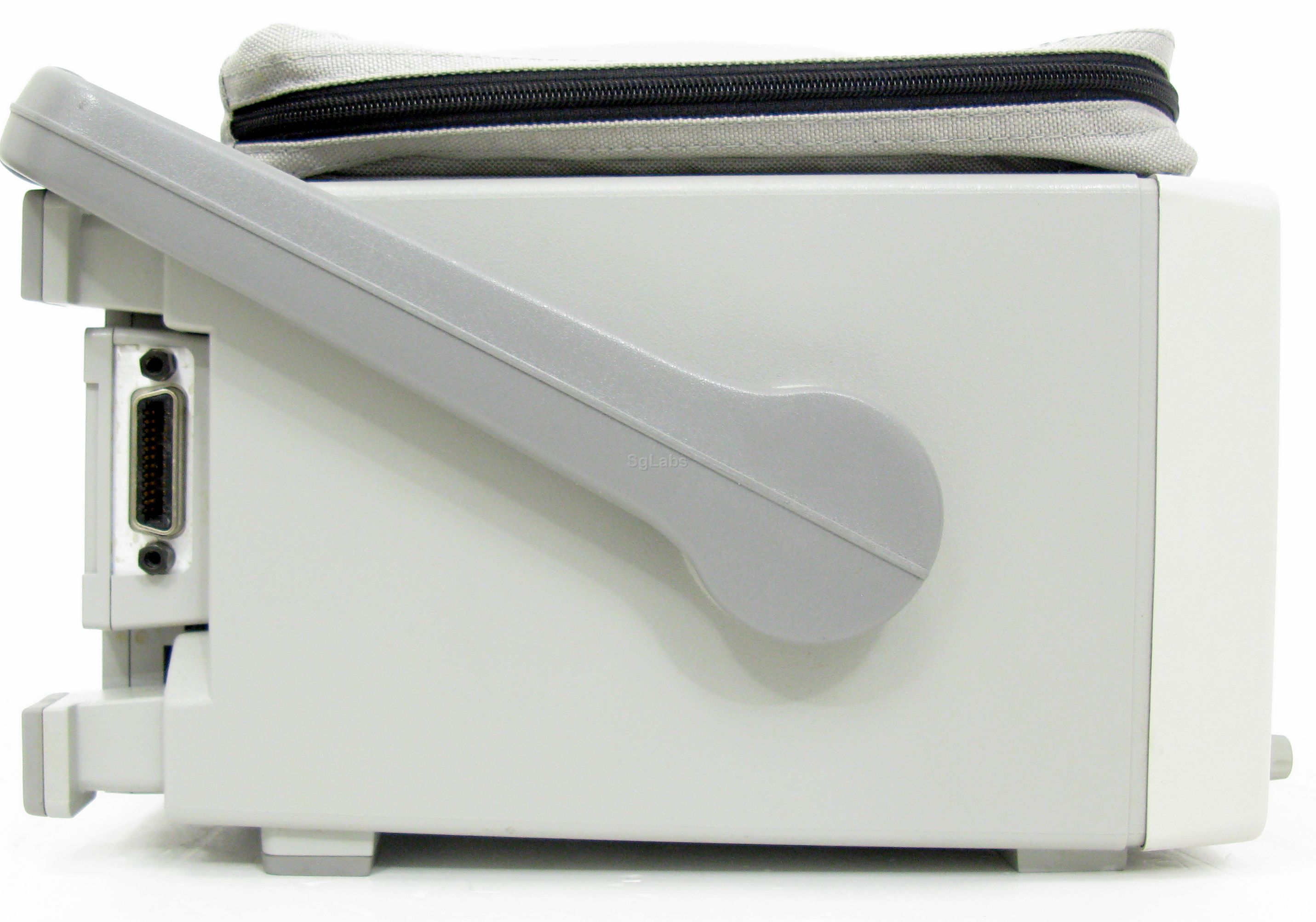

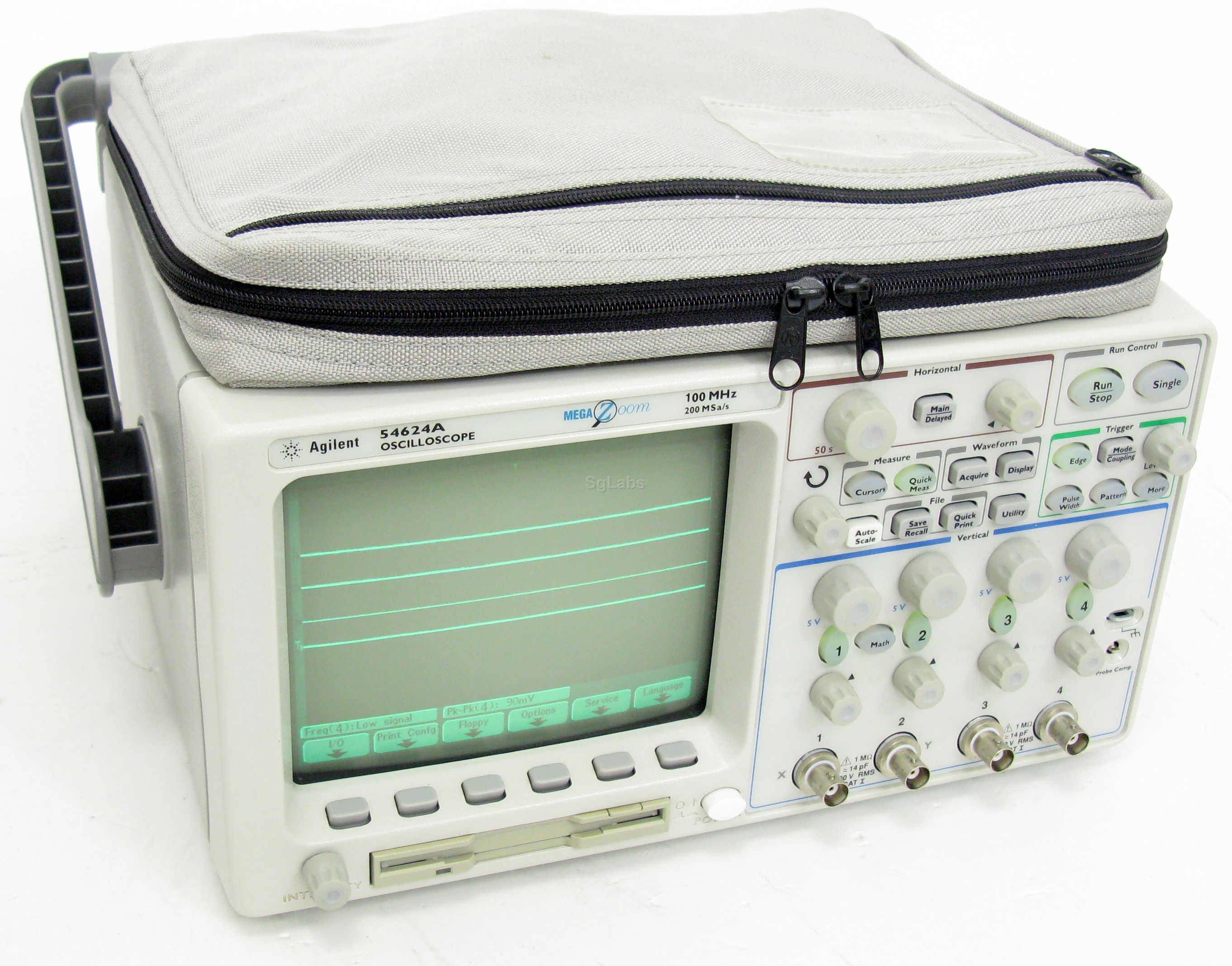

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 54624A 100 MHz Oscilloscope will give you the channel count and measurement power you need, including MegaZoom deep memory, high definition display and flexible triggering, especially if your designs include heavy analog content. Whether you're testing designs with four inputs, such as anti-lock brakes, or monitoring multiple outputs of a power supply, the four-channel model helps you get your debug and verification done with ease.

  • Enhanced serial triggering capabilities and integrated 5-digit frequency counter measurement.
  • Lower cost deep memory 4-channel scope on the market
  • Unique 4-channel model
  • 100 MHz, 200 MSa/s
  • 2 MB of MegaZoom deep memory per channel
  • Patented high-definition display
  • Flexible triggering including I²C, SPI, CAN and USB
  • 100-MHz Bandwidth
  • 4 channels
  • Channels: 4
  • BandWidth: 100MHz
  • Sampling: 200 MSa/s
