HP Agilent Keysight 16802A Logic Analyzer 250 MHz

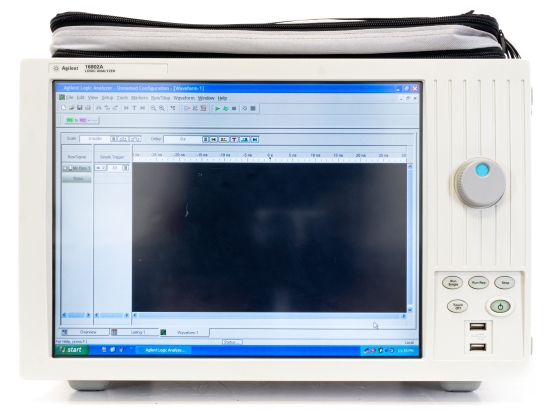

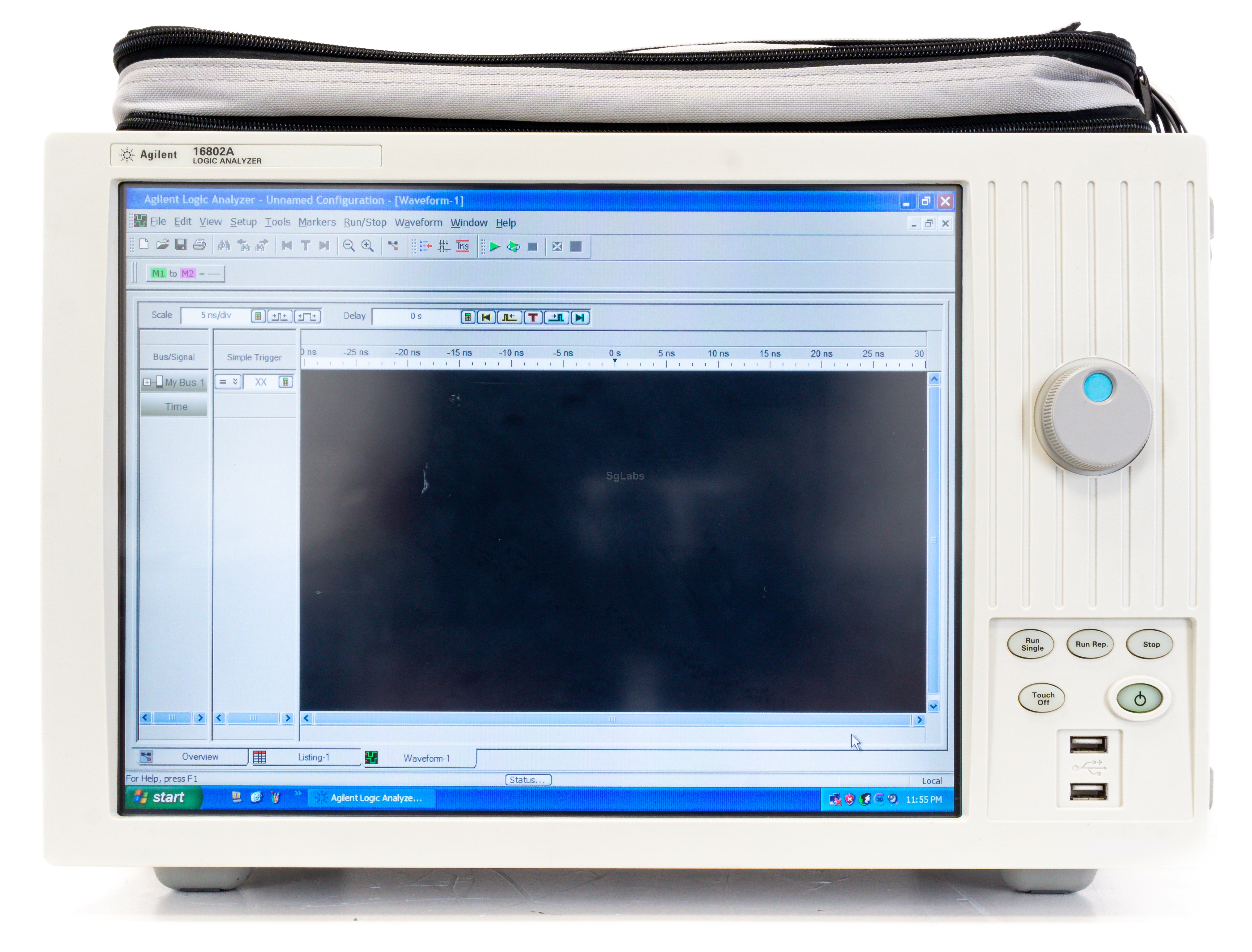

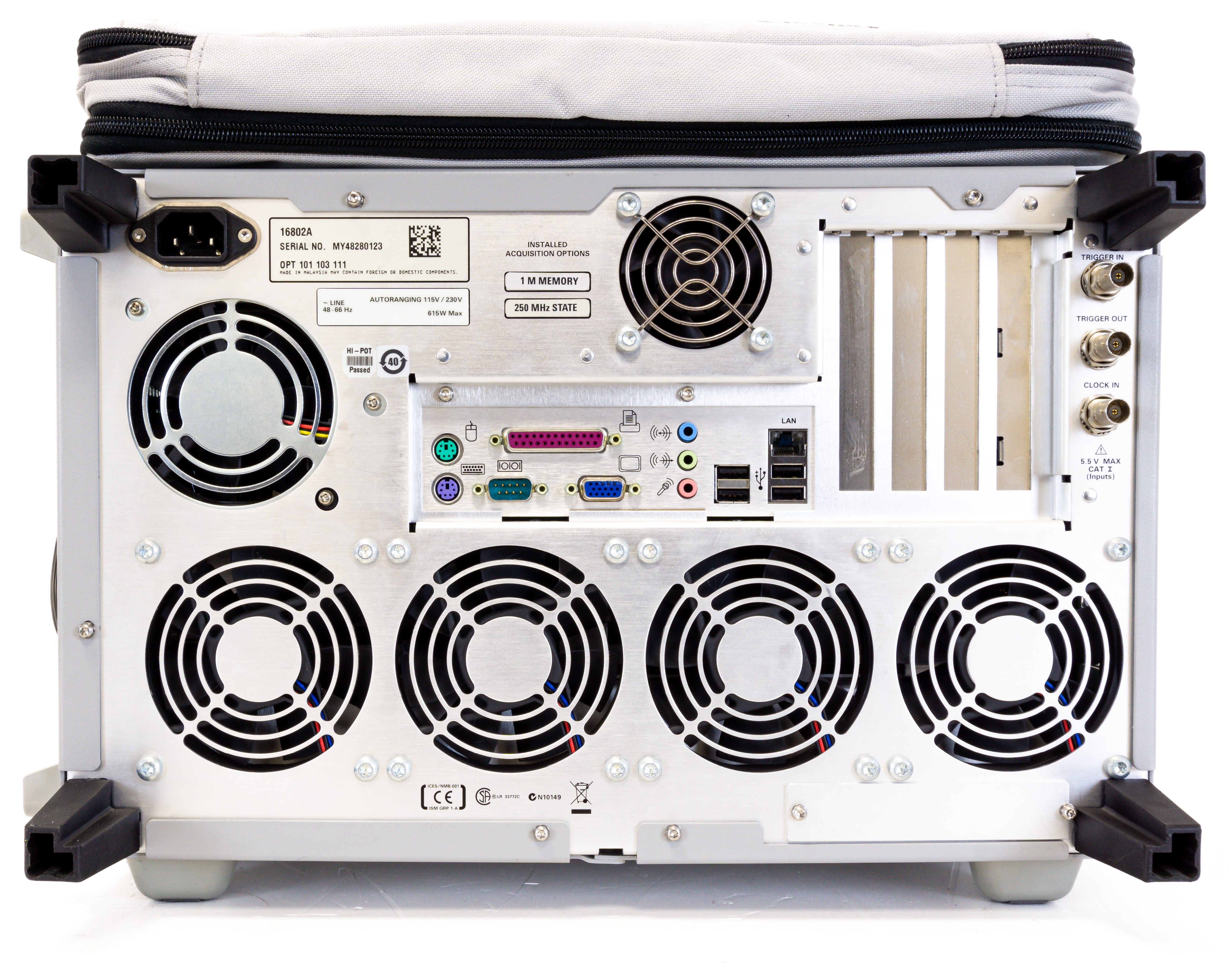

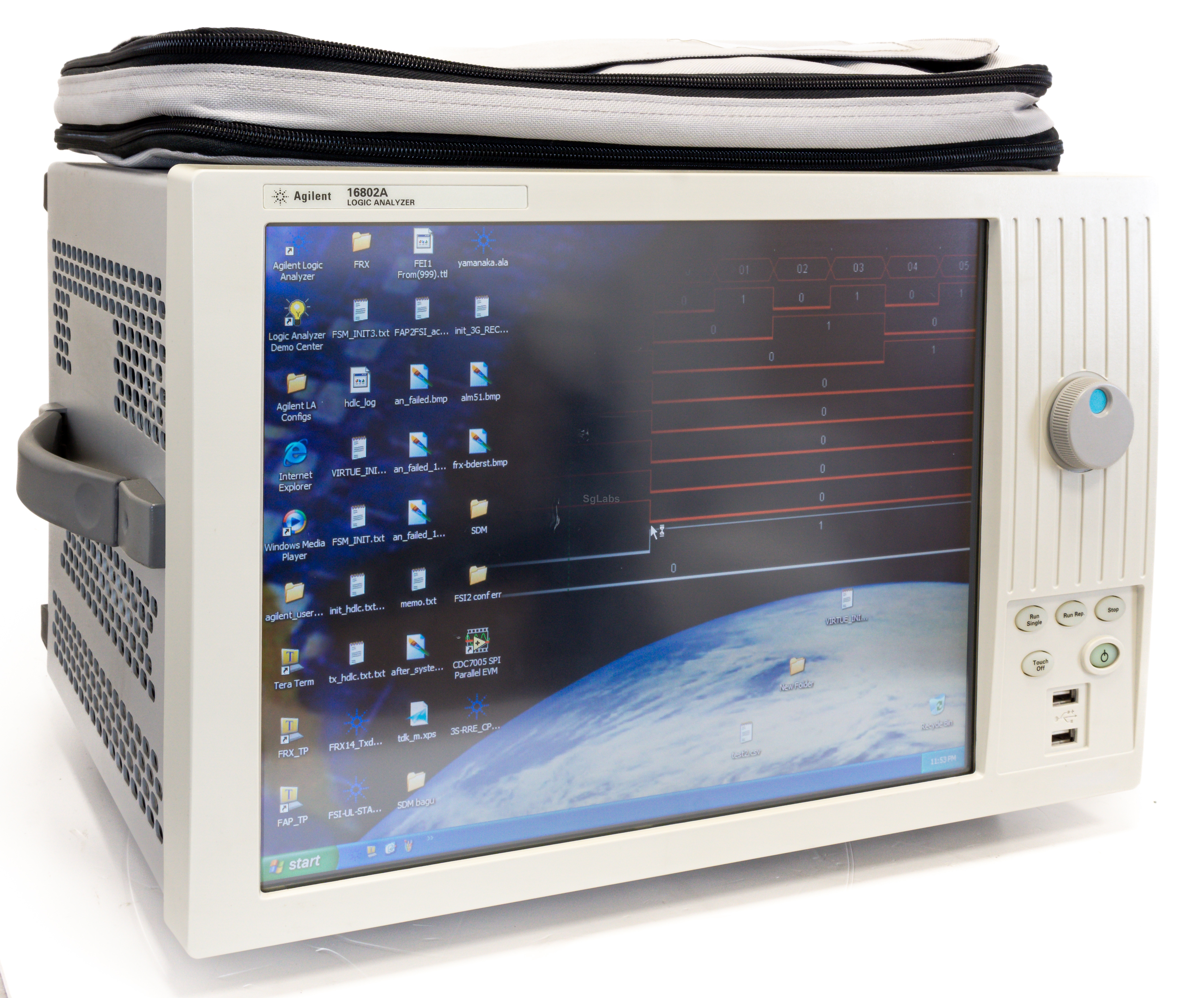

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 16802A is a 68 channel Logic Analyzer from Agilent. A logic analyzer is a type of electronic test equipment that engineers use to capture and display signals from a digital circuit or system. Logic analyzers are useful for measuring data, such as state machine traces, timing diagrams, and protocol decodes. When an engineer needs to view the timing relationship between multiple signals, he or she will use a logic analyzer for signal monitoring over time.
Features
Additional Features:
  • Logic analyzer configuration
    • 15-inch (38.1 cm) color display with touch screen available
    • 68-channel portable logic analyzer with up to 32 M acquisition memory depth, equivalent model with built-in pattern generator
    • Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)
  • Timing analysis (asynchronous sampling)
    • 4 GHz (250 ps) timing zoom with 64 K memory
    • 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
    • 500 MHz transitional timing
  • State analysis (synchronous sampling)
    • State clock rates up to 450 MHz
    • Data rates: up to 500 Mb/s
    • Automated threshold/sample position setup for accurate measurements on high-speed buses
    • Simultaneous eye diagrams on all channels identify problem signals quickly
  • Configuration considerations
    • Selectable memory depths: 1 M, 4 M, 16 M, 32 M

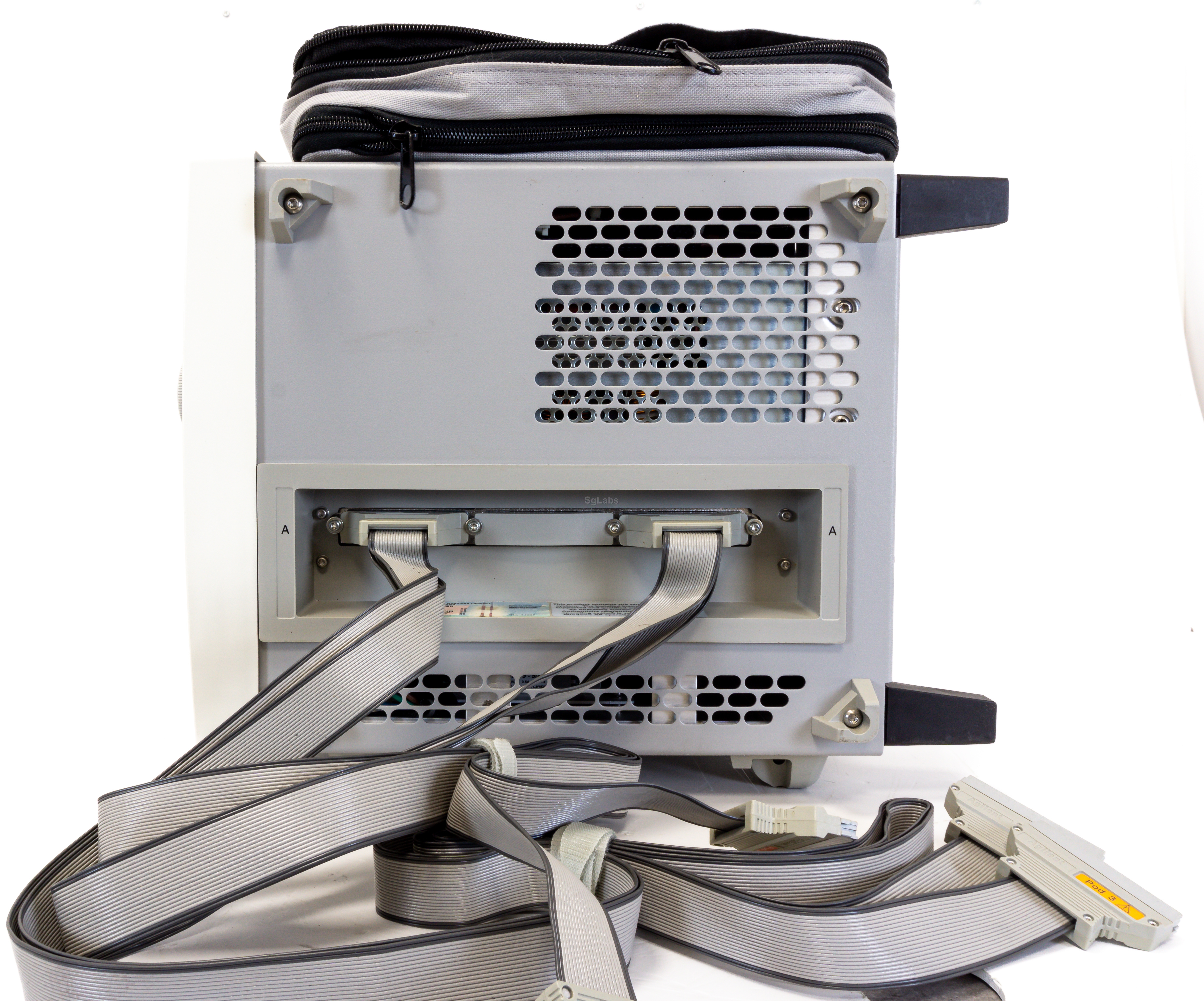

    • Compatible with 40-pin logic analyzer probes. Probes are ordered separately.
  • Memory: 1 M
  • Channels: 68
Price
 € 2.200,00
