HP Agilent Keysight 11941A Close Field Probe
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

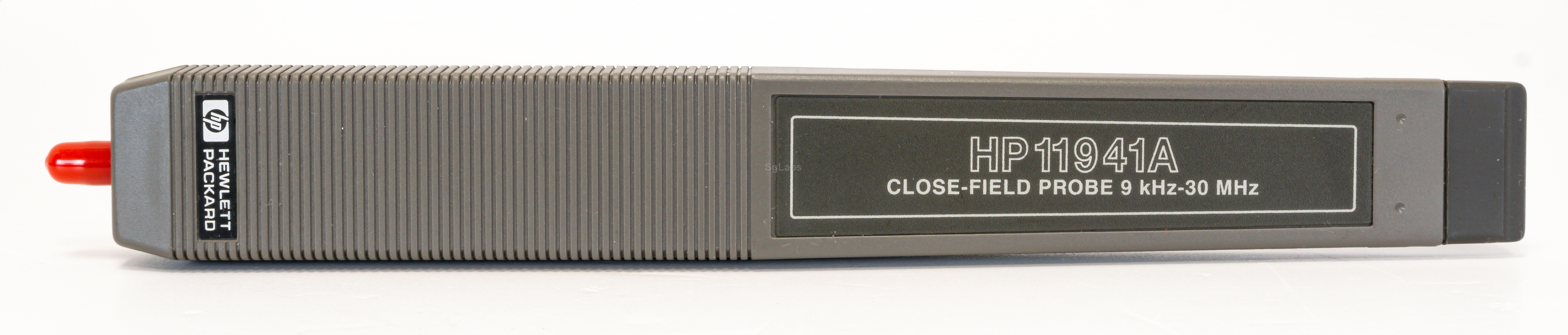

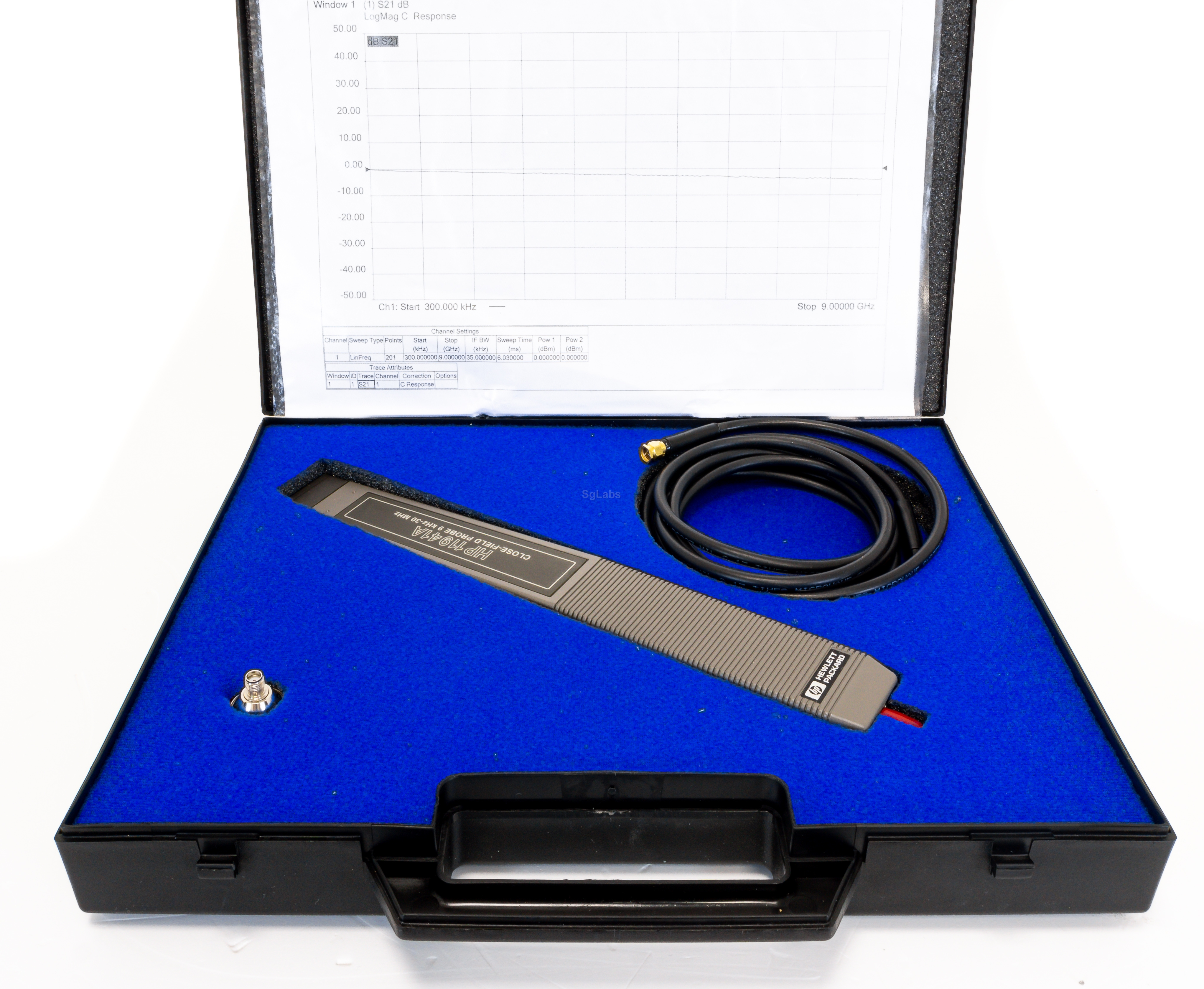

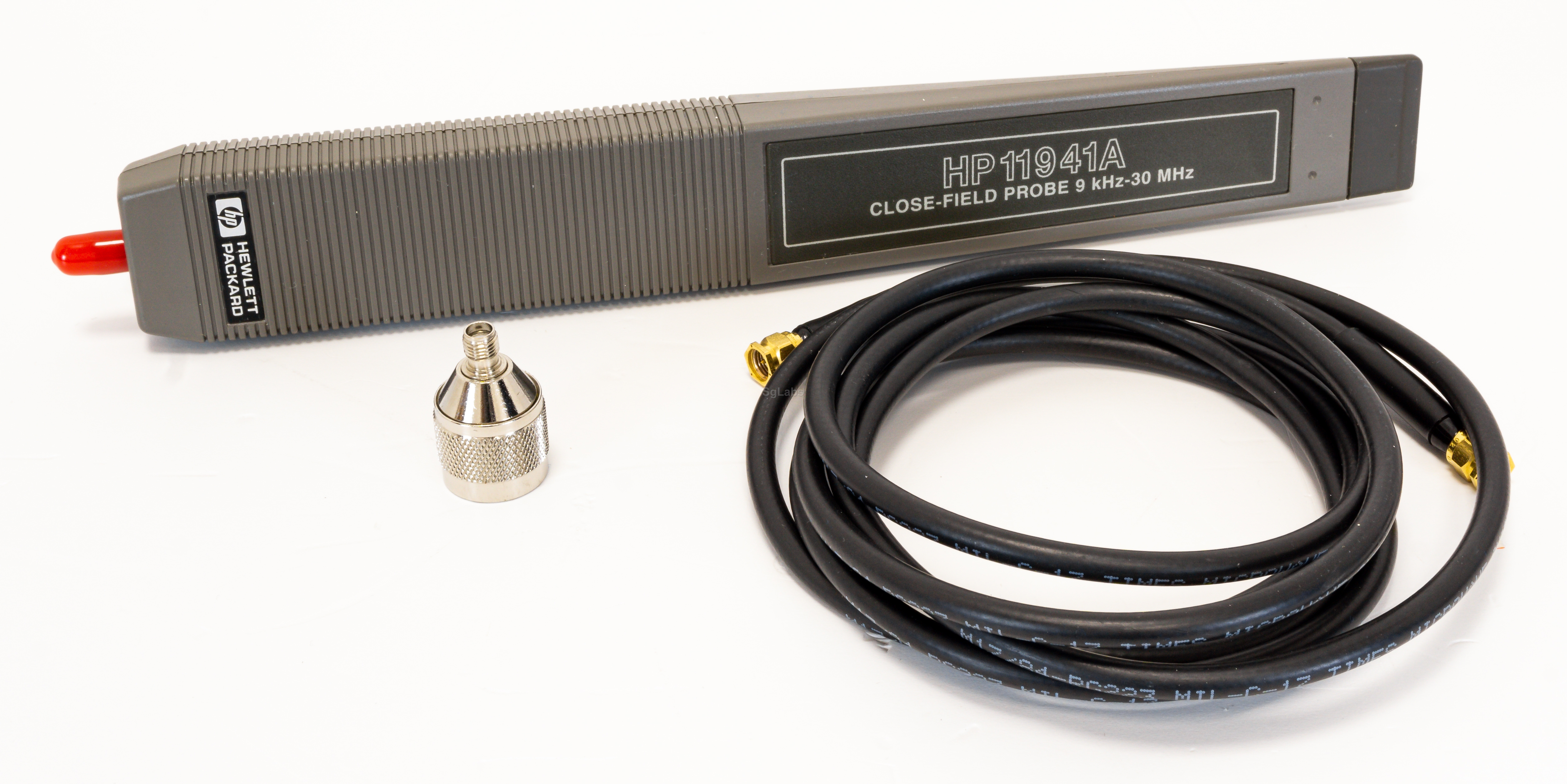

The Keysight 11941A is a hand-held probe specially designed to measure magnetic field radiation from surface currents, slots, cable, and ICs for EMC diagnostic and troubleshooting measurements. Its unique design results in a high level of electric field rejection. This significantly reduces errors allowing calibrated and repeatable measurements. Each probe is calibrated and comes with a two-meter, RG-223 coaxial cable, an SMA (f) to Type-N (m) adapter, and an SMA (f) to BNC (m) adapter.
Features
  • High level of electric field rejection
  • Allows calibrated and repeatable measurements
  • Maximum Input Power: 0.5 watts
  • Temperature Range: Variation over 0 °C to +40 °C
  • Dielectric Breakdown: ±1 kV, typical
  • Connector Type: SMA, replaceable barrel
  • VSWR: < 3:1

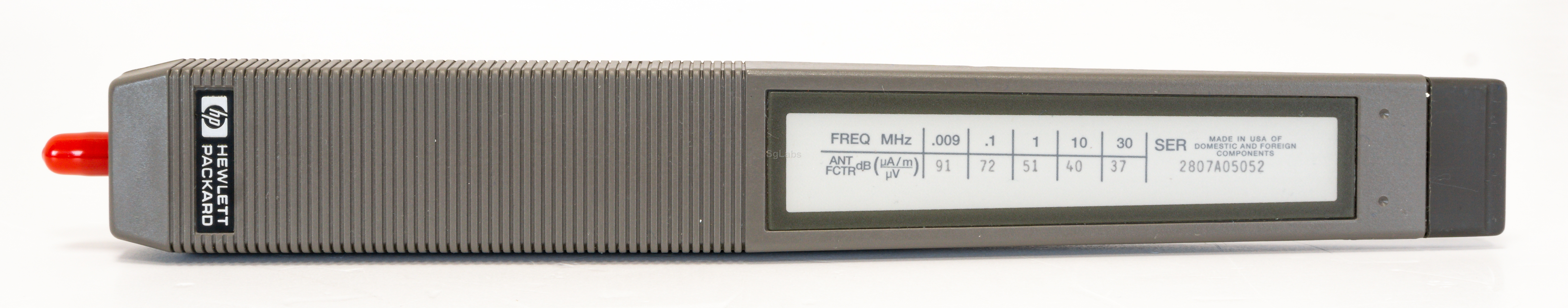

  • Antenna Factor Accuracy: Individually calibrated to within ±2 dB in a 377 ohm field impedance
  • Connector: SMA
  • Max. Frequency: 30 MHz
  • Min. Frequency: 9 kHz
  • VSWR / RL: < 3:1
