HP Agilent Keysight 11692D Dual Directional Coupler 2 - 18 GHz

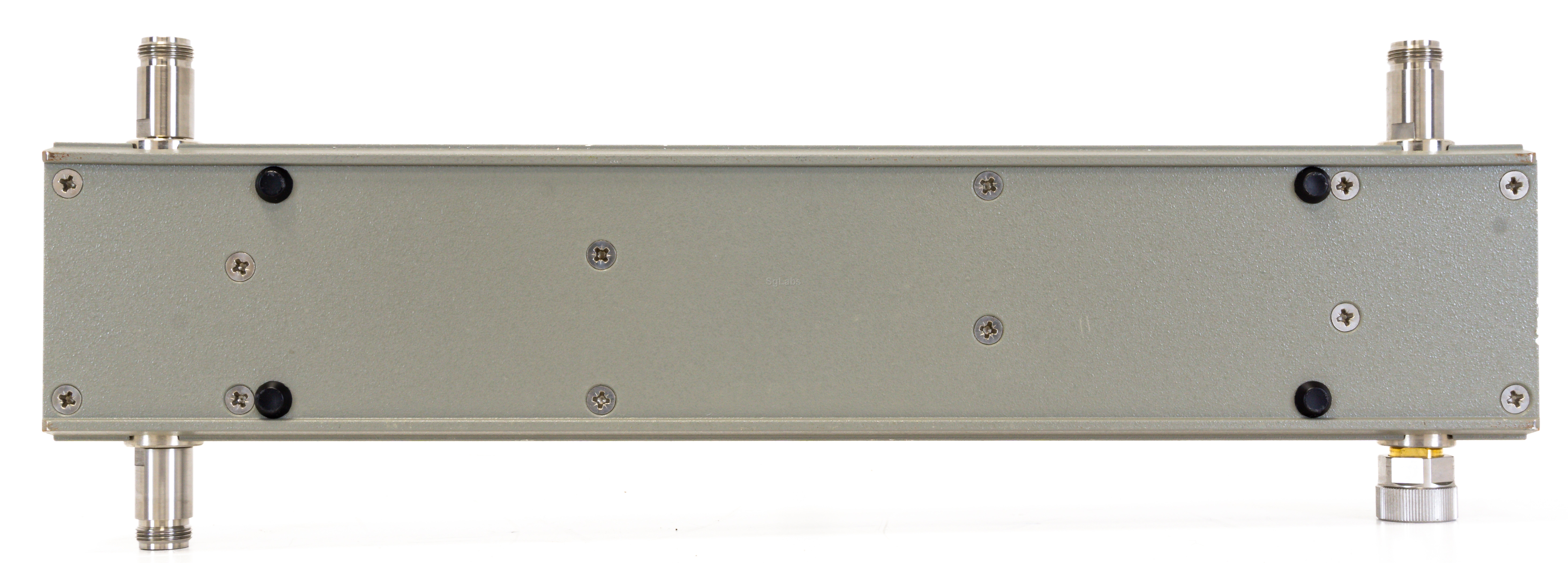

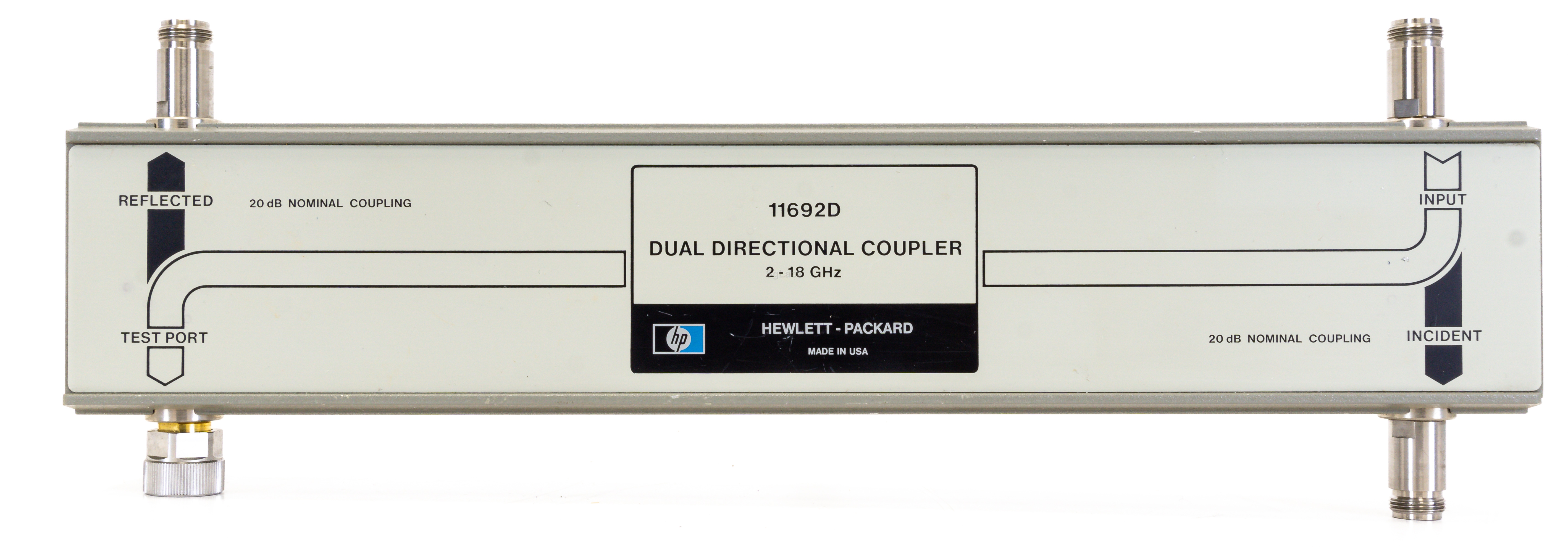

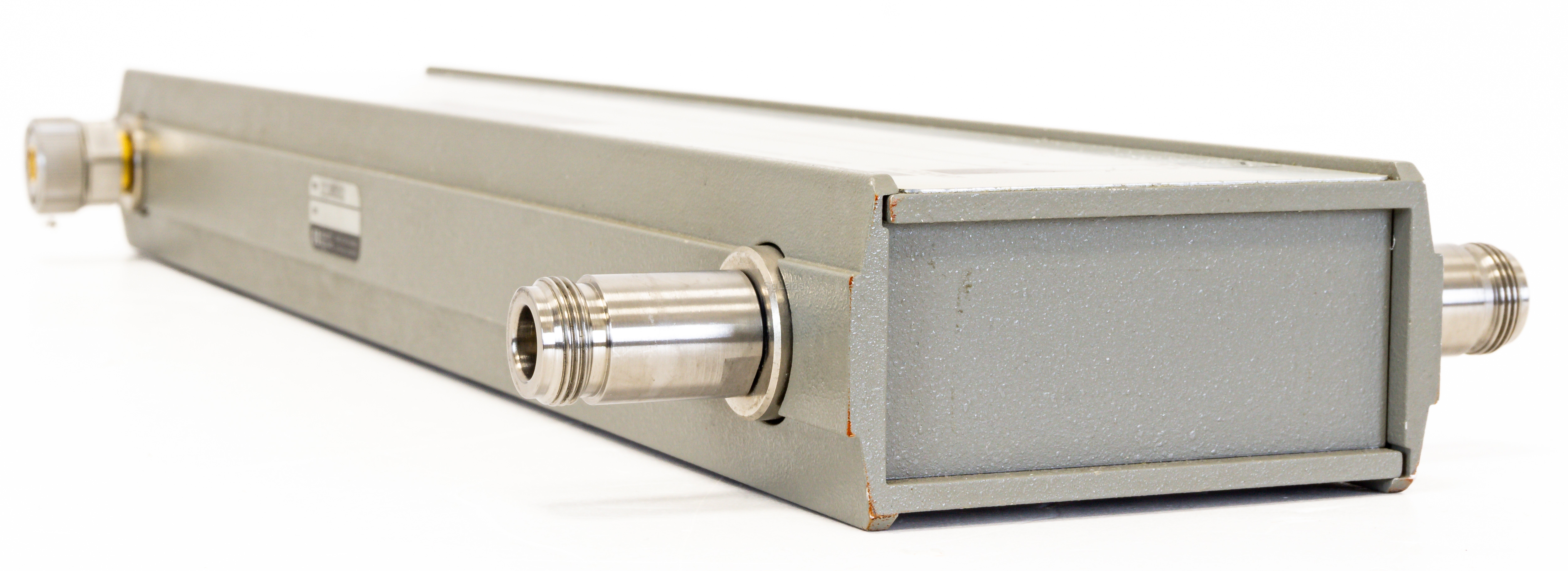

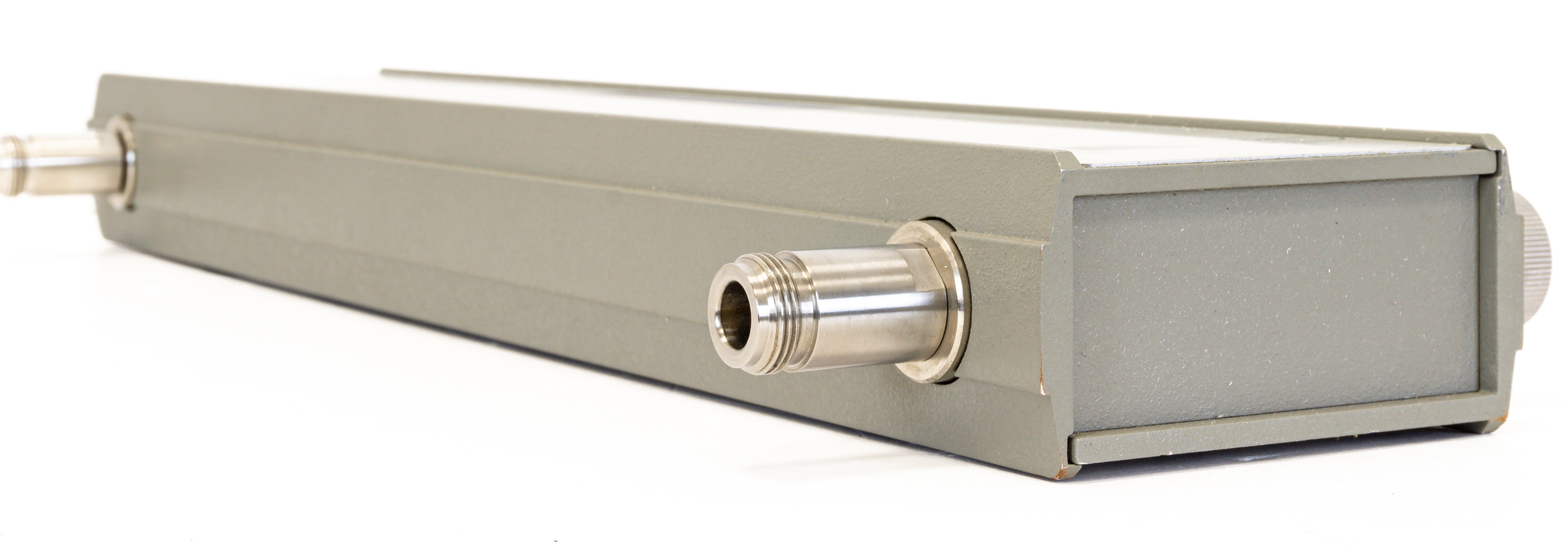

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 11692D is a dual-directional coupler for 2 to 18 GHz with a 20 dB coupling factor. With 30 dB directivity to 8 GHz and 26 dB to 18 GHz, it is useful for broadband reflectometry. It features many connector options to match test device requirements. The dual couplers make it possible to measure both reflection and transmission parameters of a device under test at one time.
Features
  • Wide frequency coverage simplifies testing
  • High directivity
  • Ideal for leveling broadband sources
  • Frequency Range: 2 to 18 GHz
  • Nominal Coupling: 20 dB
  • Max. Coupling Variation: ±1 dB incident to test port
  • Min. Directivity : 2 to 8 GHz: 30 dB, 18 to 18 GHz: 26 dB, 24 dB with Type-N connector on the test port (11692D) or on the input port (11691D)
  • SWR Primary Line Max. (50 Ohm Nom.): 2 to 12.4 GHz: 1.3, 12.4 to 18 GHz: 1.4
  • Connector: N
  • Max. Frequency: 18 GHz
  • Min. Frequency: 2 GHz
