HP Agilent Keysight, 8753ES opt.011

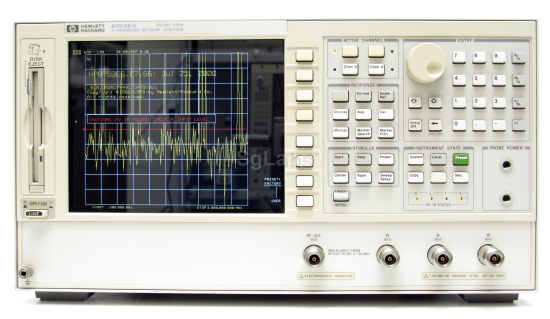

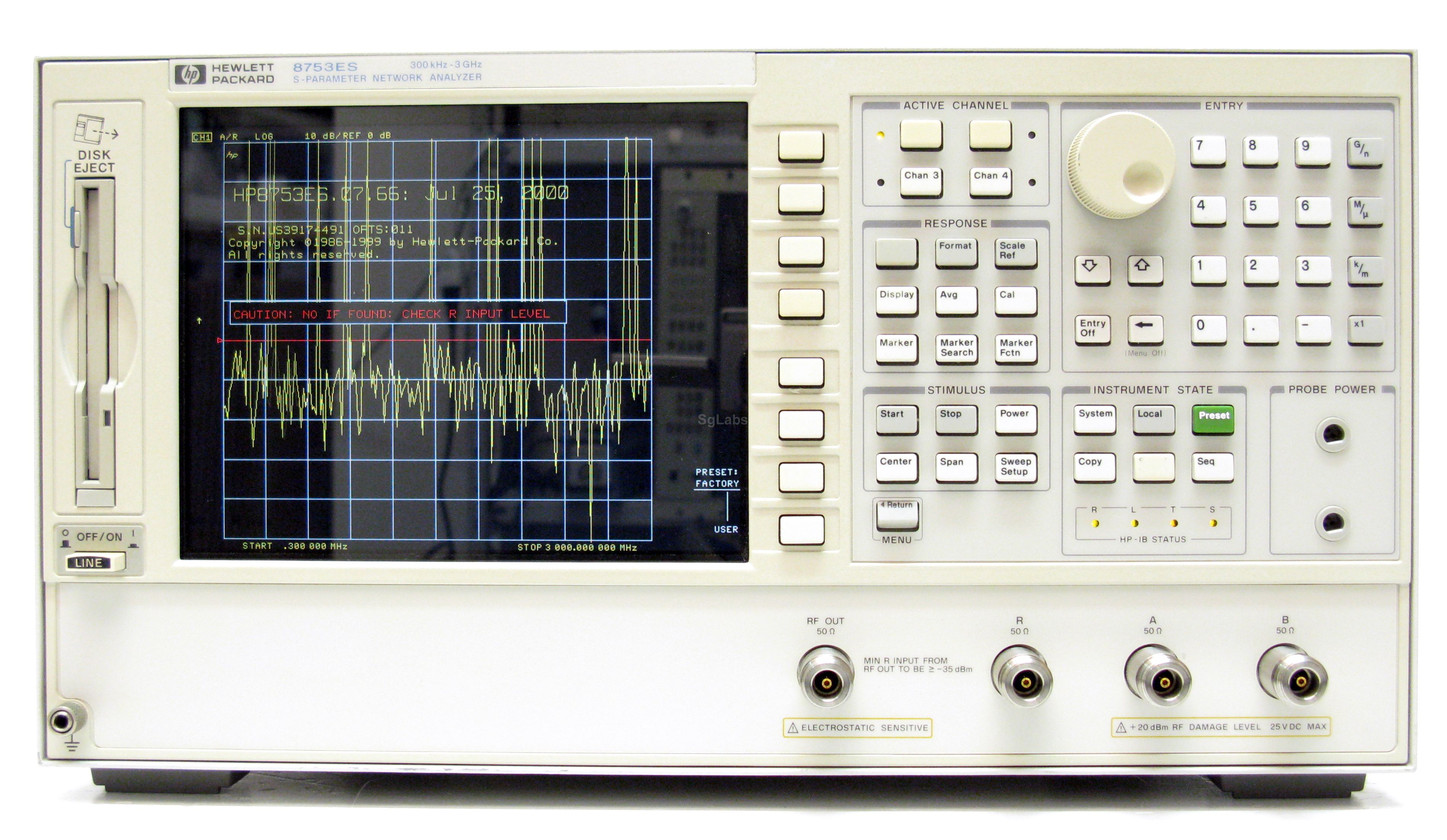

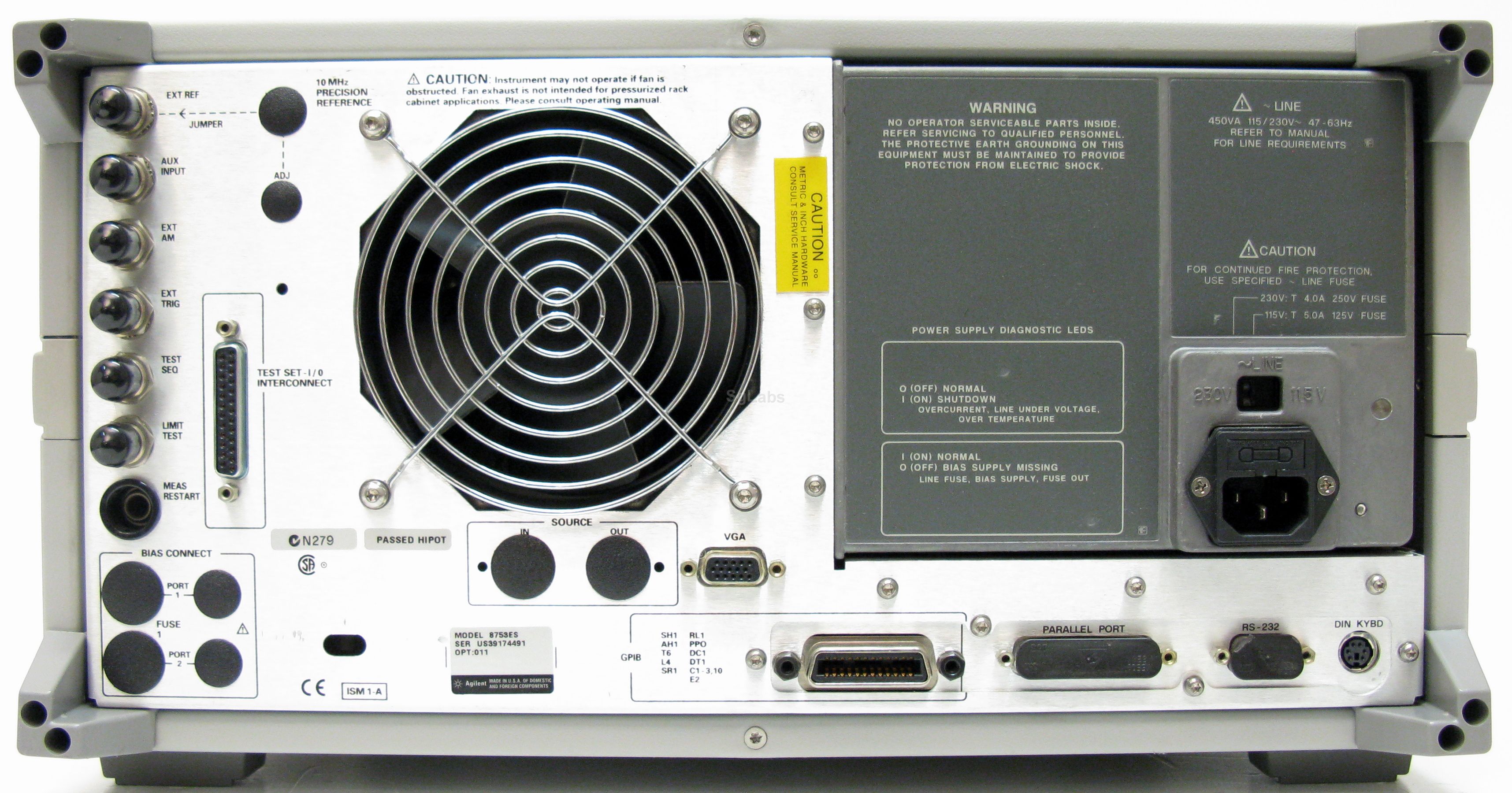

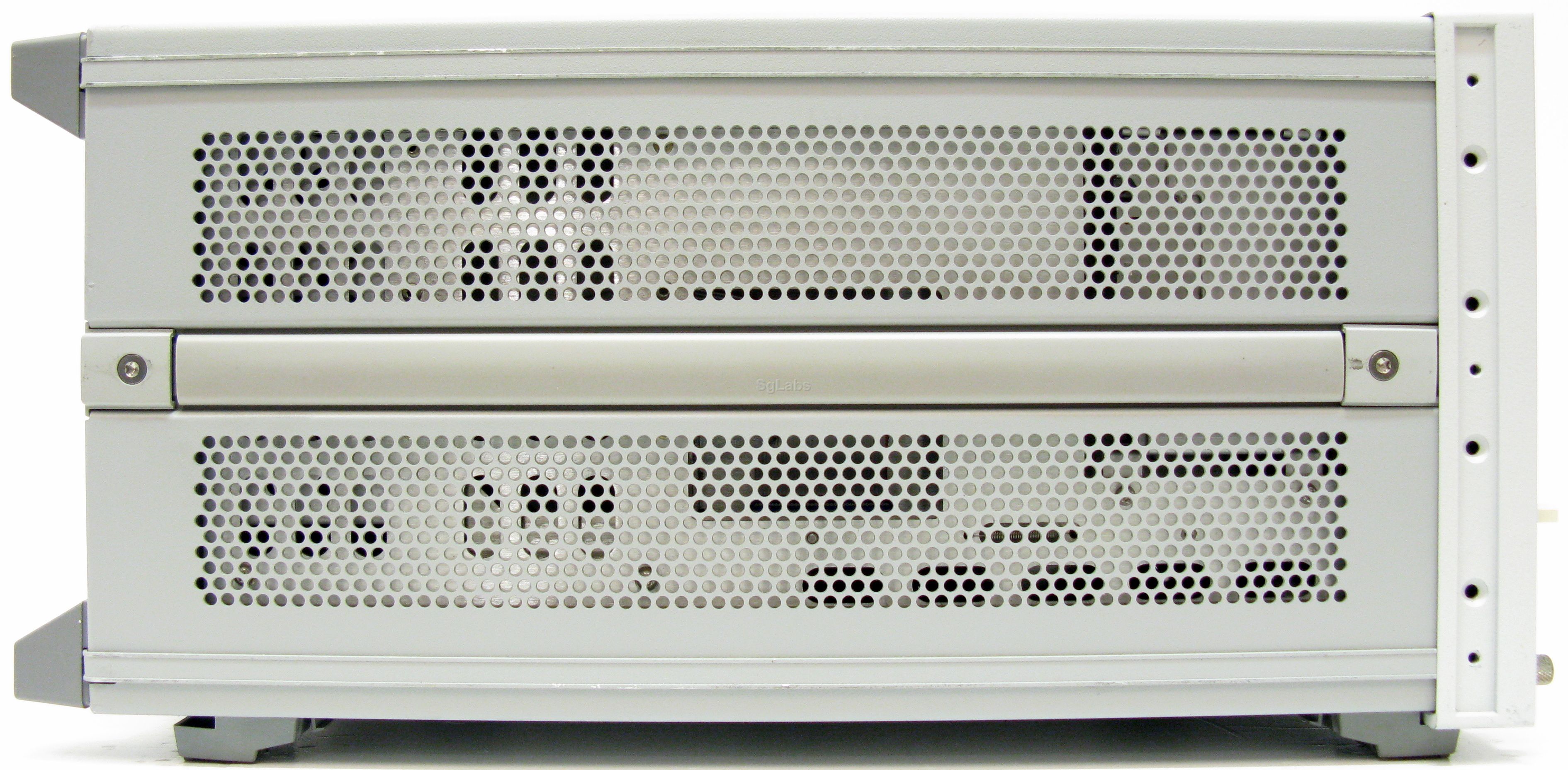

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Agilent HP 8753ES RF Vector Network Analyzer features a built-in 50-ohm or 75-ohm S-parameter test set providing a full range of magnitude and phase measurements. Full two-port error correction capability provides the highest level of accuracy and the S-parameter test set provides the convenience of making both forward and reverse sweep measurements without reversing the device under test. Frequency range is 30kHz to 3GHz with a 1Hz resolution.

Note - Option 011 deletes the built-in S-Parameter test set.

This allows the flexibility to be paired with either the 85046A for 50 Ohm measurements, or the 85047A for 75 ohm measurements. It's also possible to use with ATN-4111A S-Parameter Test Set (HP N4113A)
  • Frequency Accuracy +/- 10 ppm
  • Frequency Range 30 kHz - 3 GHz
  • Frequency Resolution 1 Hz
  • Output Impedance 50 ohms
  • Output Power Range -85 dBm - +10 dBm
  • Output Resolution 1.0 dB
  • Opt.011: deletes the built-in S-Parameter test set.
  • Connector: N
  • Directivity: 40-50 dB depends on frequency range
  • Max. Frequency: 3 GHz, 6 GHz with op 006
  • Min. Frequency: 30 kHz
  • Channels: 2
  • Test set: No with Opt.011
