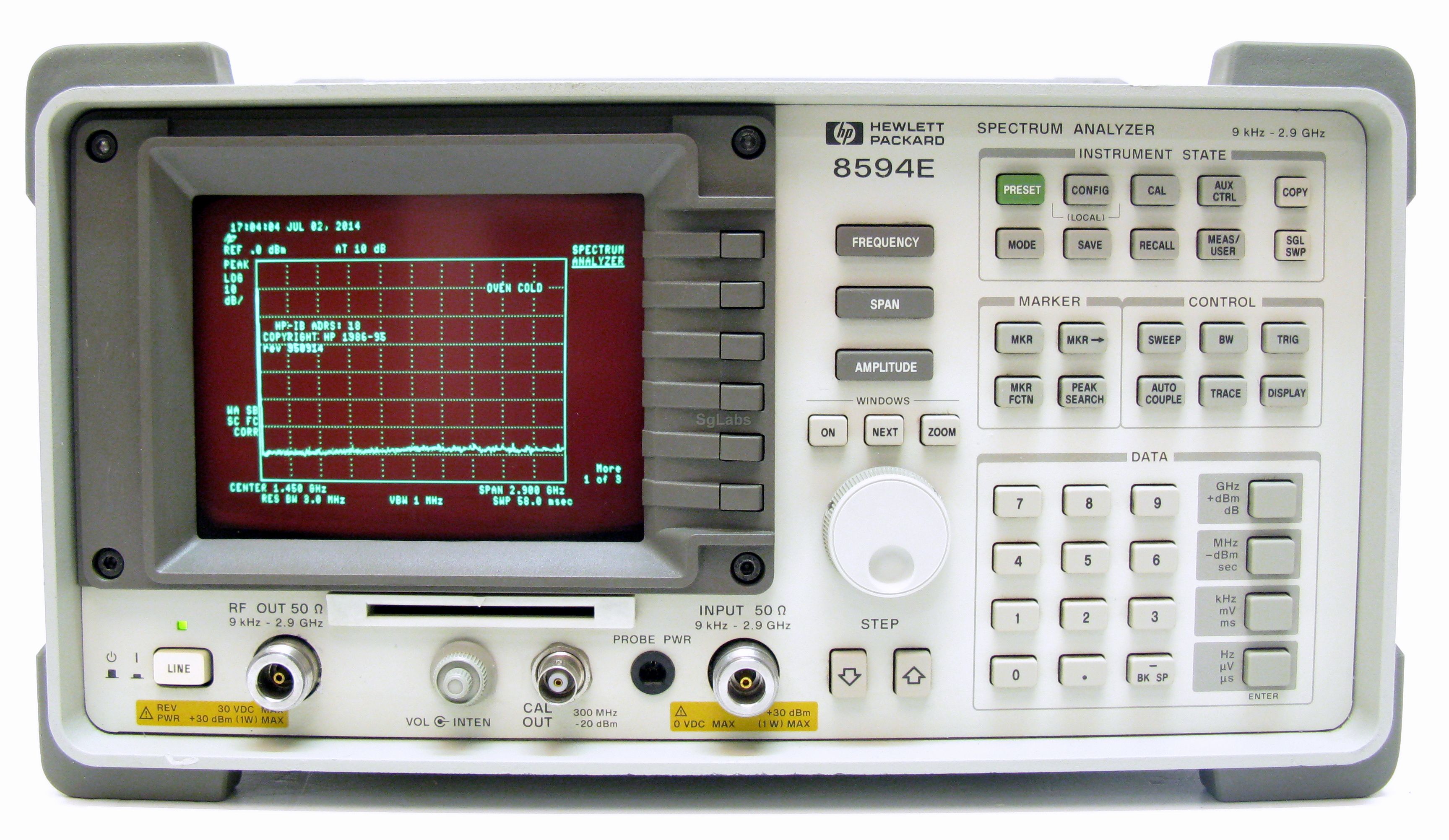

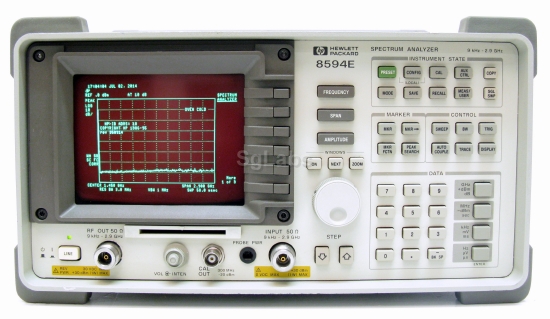

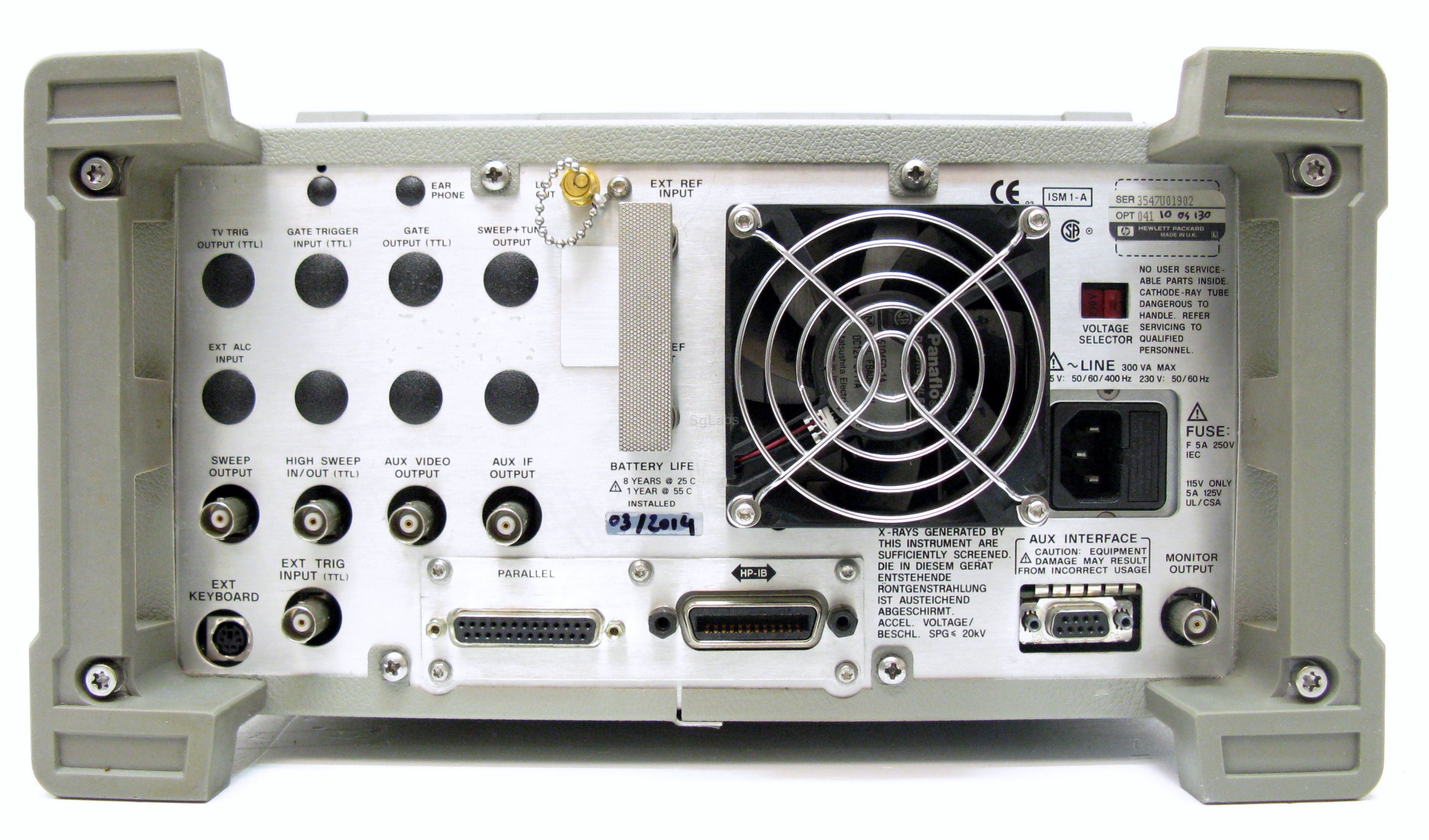

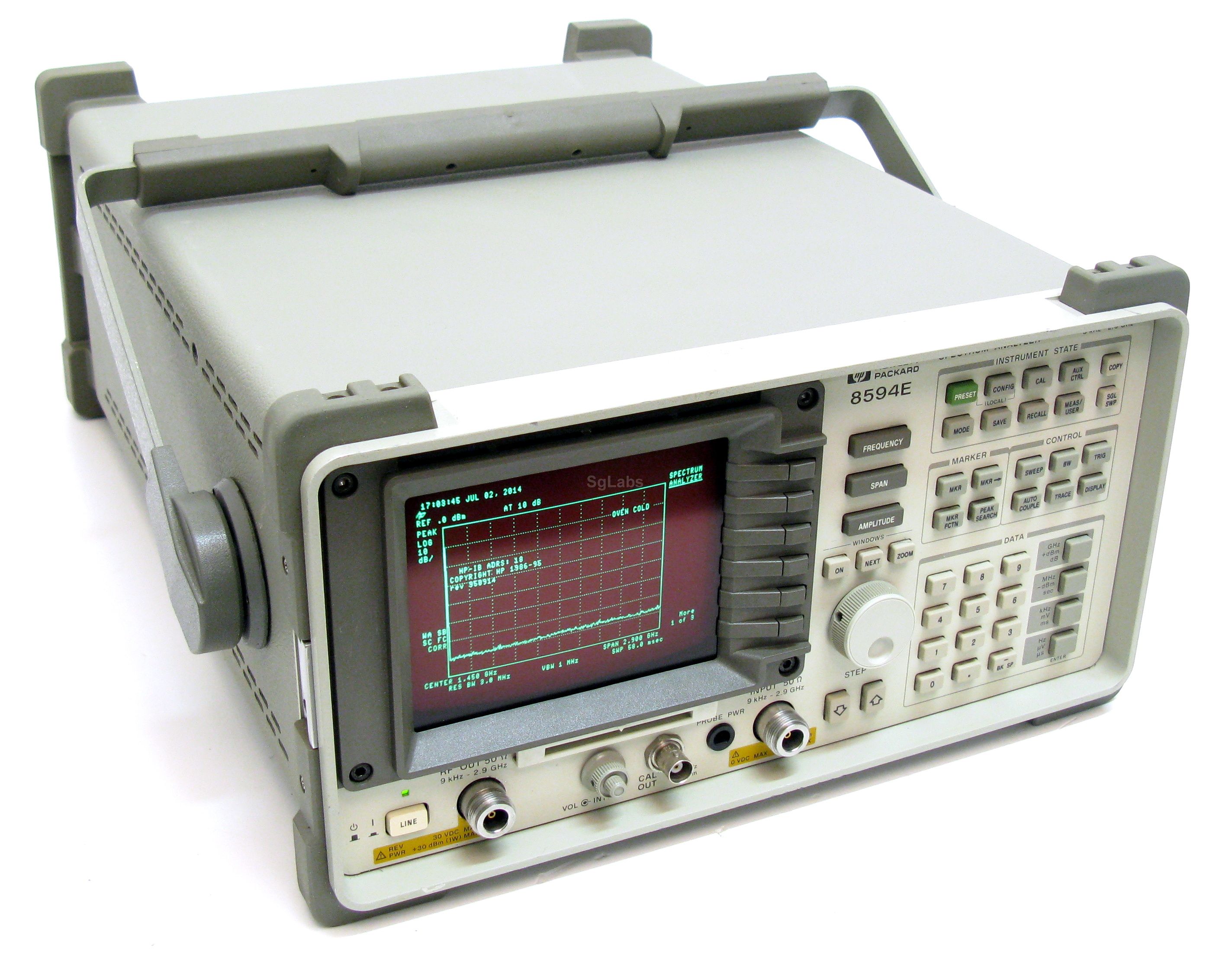

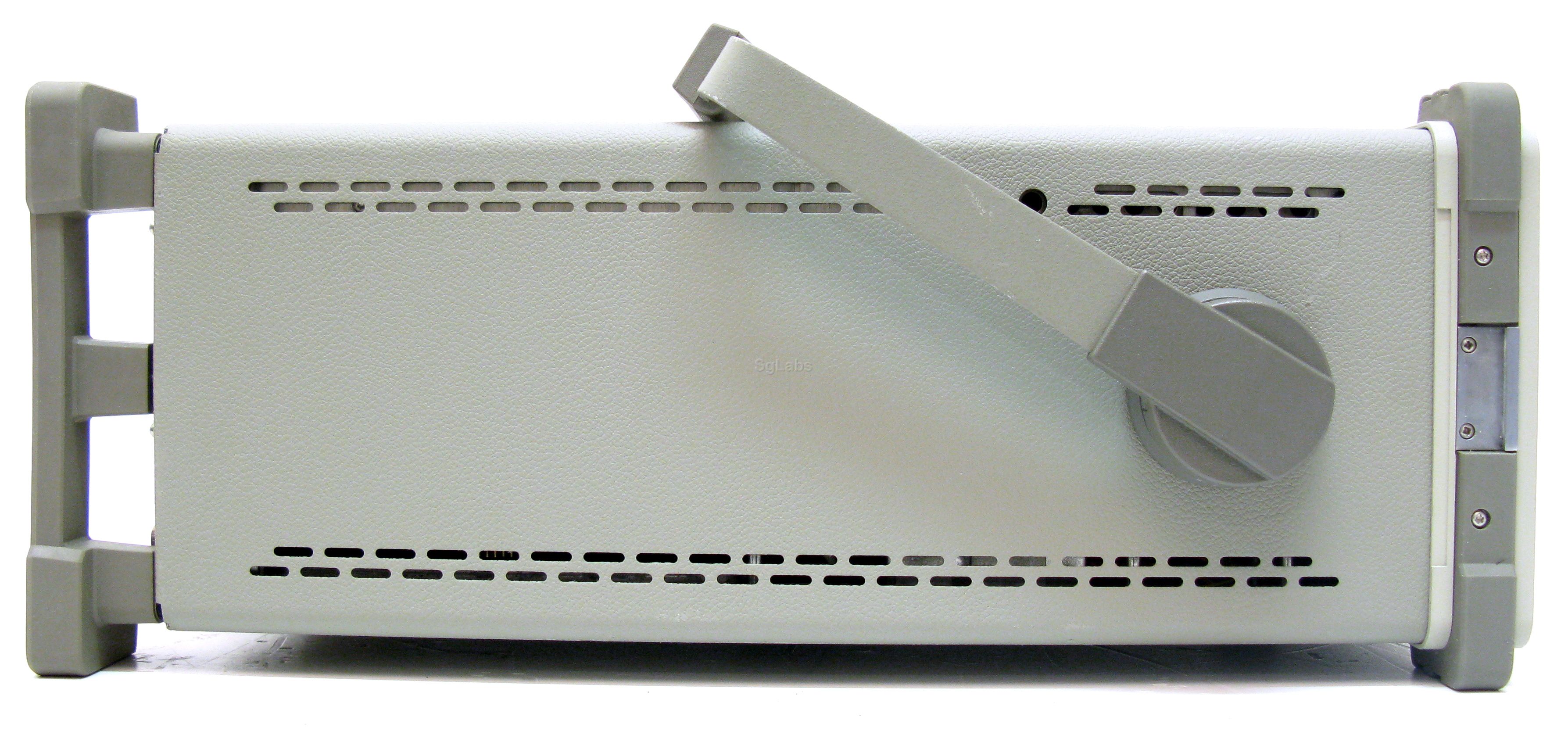

HP Agilent Keysight, 8594E Opt.010
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 8594E spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Agilent 8594E. The CRT displays received signal strength (y-axis) against frequency ( x-axis).

Some applications for Agilent 8594E Spectrum Analyzers include Site Monitoring: Verify that the frequency and signal strength of your transmitter is accurate. Interference: Before a system is installed you use a Agilent 8594E spectrum analyzer to verify that the frequencies (you plan to use) are not occupied or if the presence of a very strong signal will interfere with your new setup. Interference can be created by a number of different situations. Other tests that utilize the Agilent 8594E spectrum analyzer features include antenna isolation, co-channel interference, adjacent channel power, occupied bandwidth, intermodulation, microwave or satellite antenna alignment, and characterization of components.

  • Frequency range 9 kHz- 2.9 GHz
  • Max resolution RBW 1 kHZ, EMI filter 9kHz, 120kHz
  • Sweep time from 20ms to 100 s

Option 010: Tracking generator

  • Frequency range 9 kHz- 2.9 GHz
  • Output Level from -1 to -66 dBm
  • Display: CRT
  • Max. Frequency: 2.9 GHz
  • Min. Frequency: 9 kHz
  • Min. Resolution: 1 KHz (30 Hz opt.130)
  • Tracking generator: Opt.010
 € 1.900,00
