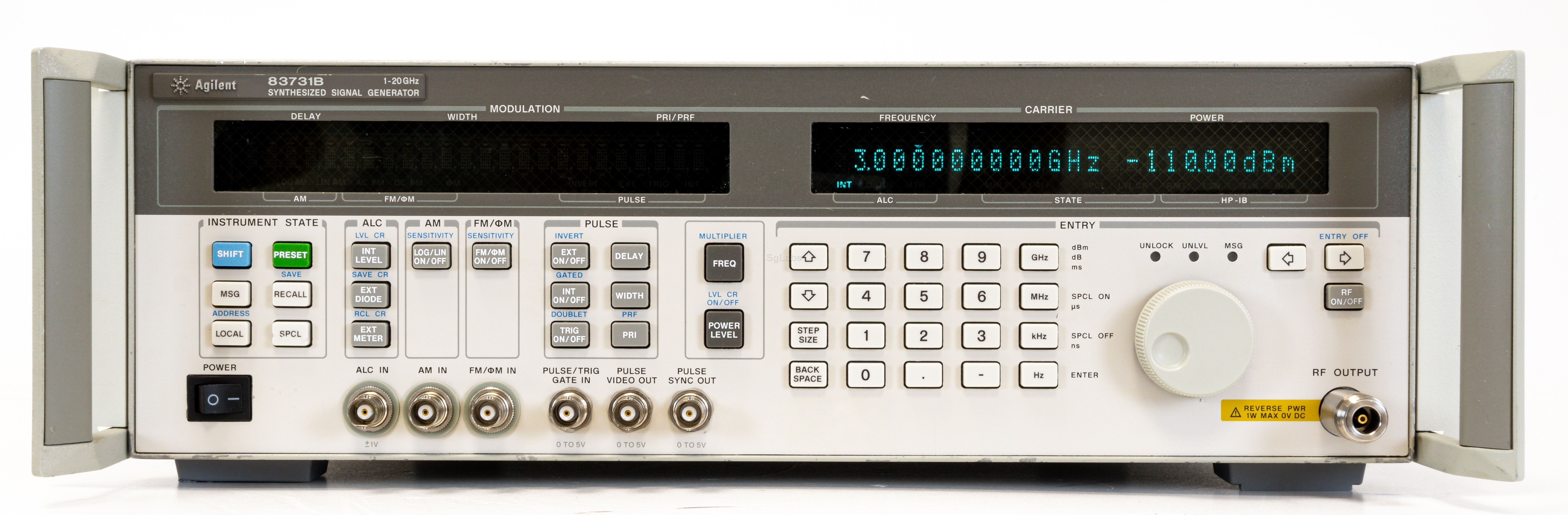

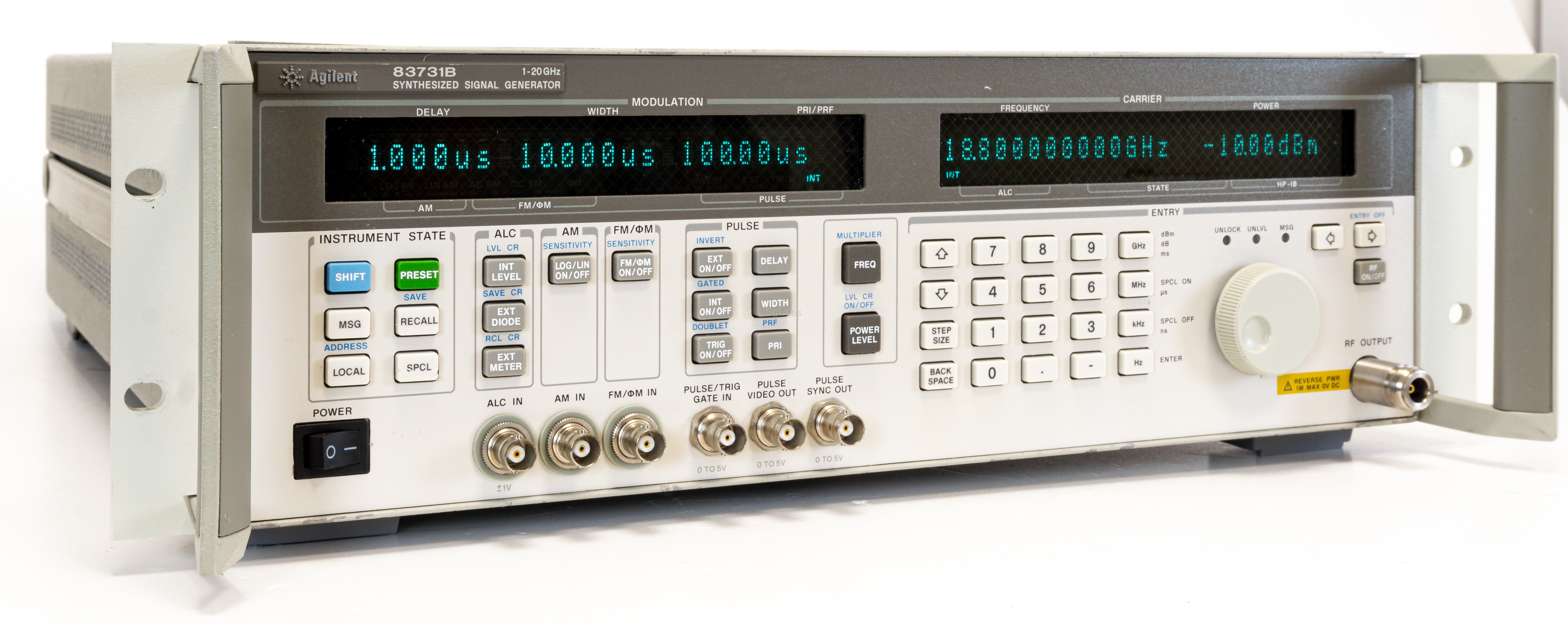

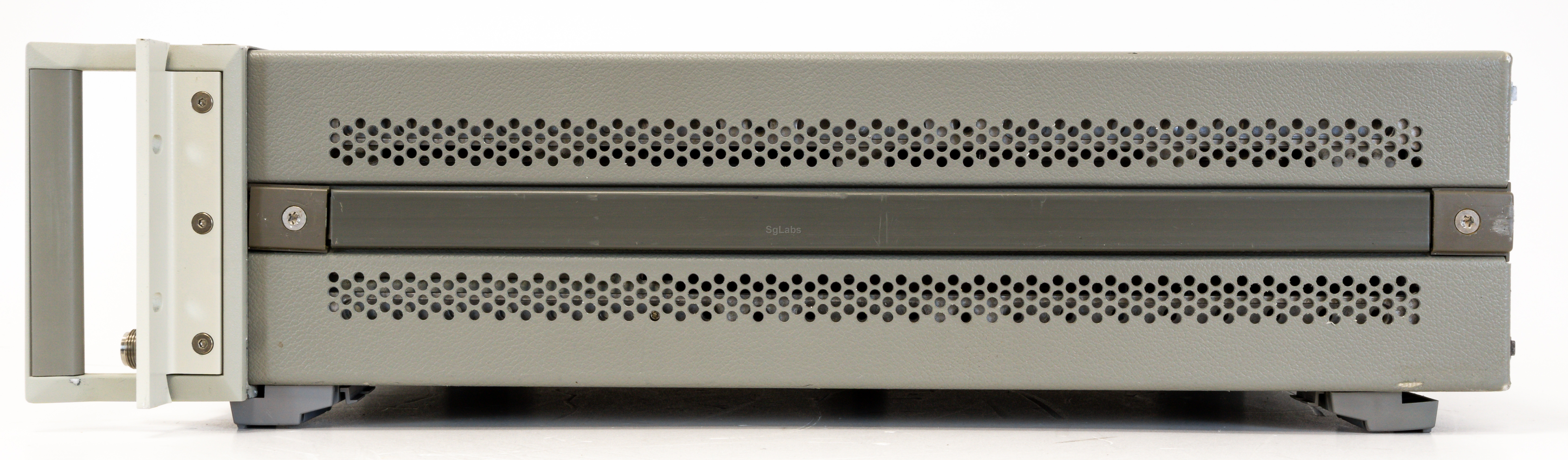

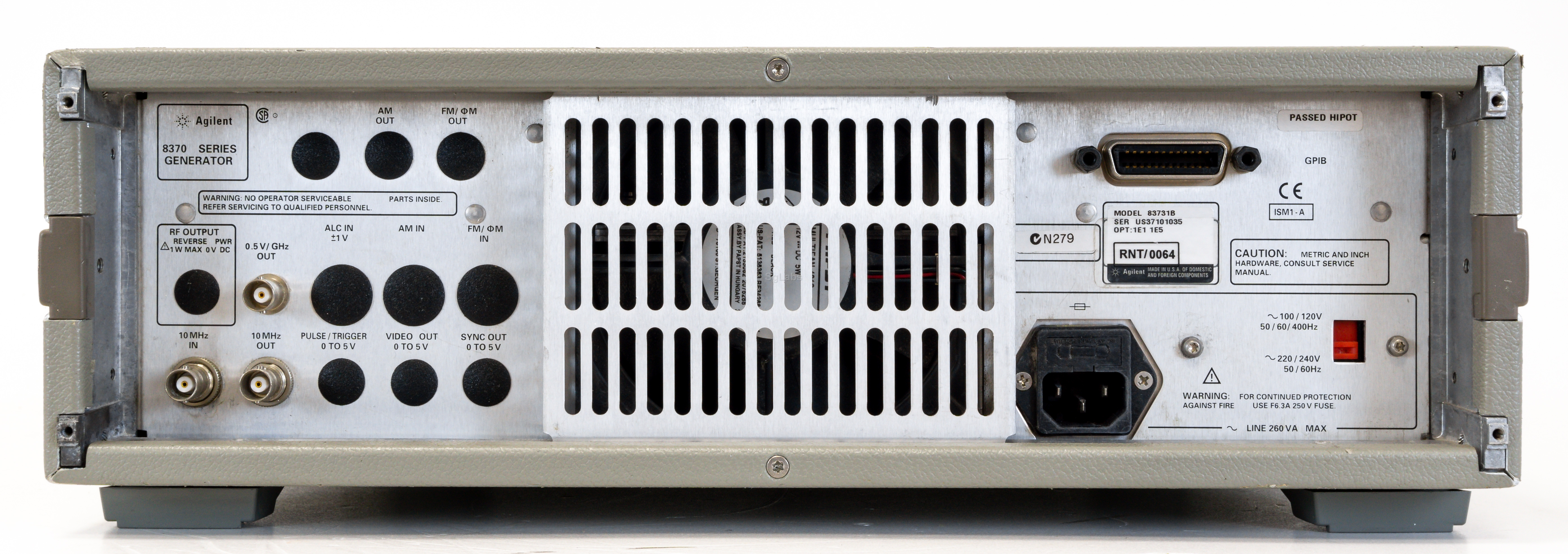

HP Agilent 83731B Signal Generator 20 GHz

You are here: RF Signal Generator » Digital

HP Agilent 83731B Signal Generator 20 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 83731B Signal Generator sets a new standard for performance at a price that is surprisingly affordable. No longer will you have to give up frequency coverage, modulation or reliability to meet your budget. The Agilent 83731B signal source will perform beyond your expectations at a price within your reach. Fundamental oscillators and switched low-pass filters deliver +14 dBm), while spectral purity is maintained even at high power levels (typical output power at frequencies below 1 GHz is +20 dBm).
Features
  • Frequency Range: 1.0 to 20 GHz
  • Pulse modulation for testing radar and EW receivers
  • Scan modulation for simulating a scanning antenna
  • Frequency modulation for simulating comms data
  • Phase modulation for satellite and radar applications
  • Max frequency: 20 GHz
  • Minimum Frequency: 1 GHz
  • Modulation: AM FM PHASE PULSE
  • Max. power: 13 dBm
  • Max. Output level: 20 dBm
  • Min. output level: - 4 dBm, -110dBm opt 1E1
  • Resolution: 1 kHz, 1 Hz opt 1E8
Price
 € 3.900,00
