HP Agilent Keysight, 35677A

You are here: Network Analyzer » Test set

HP Agilent Keysight, 35677A

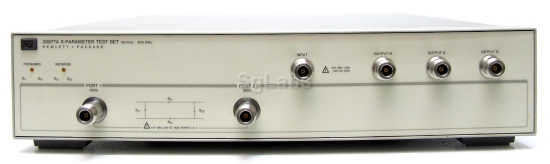

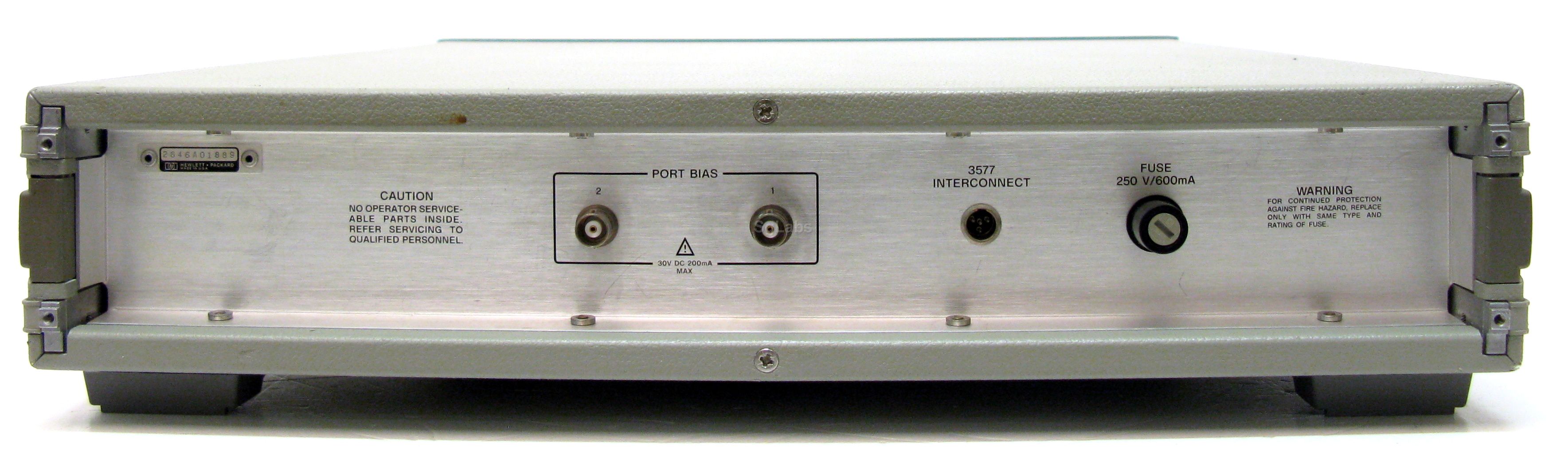

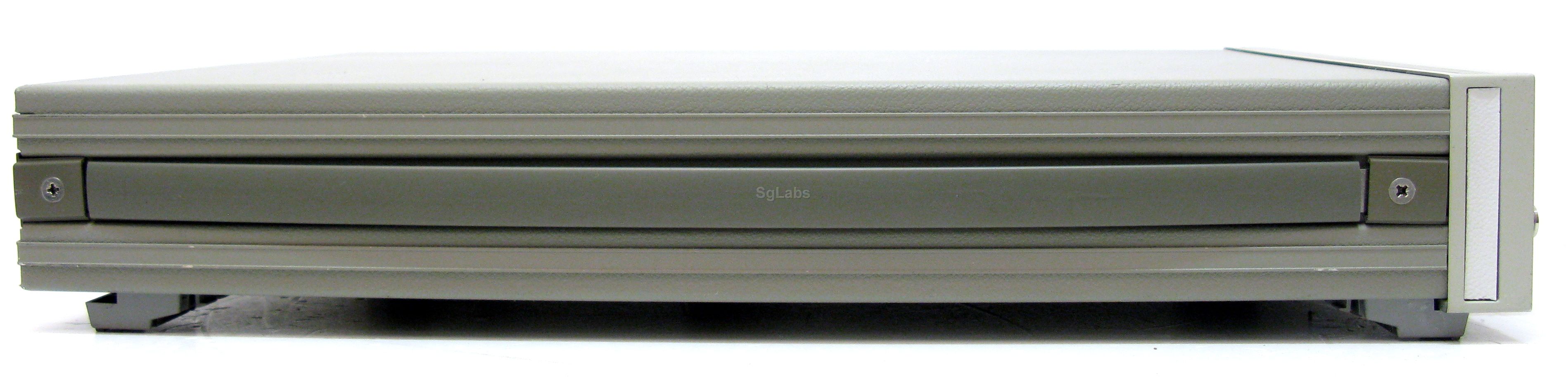

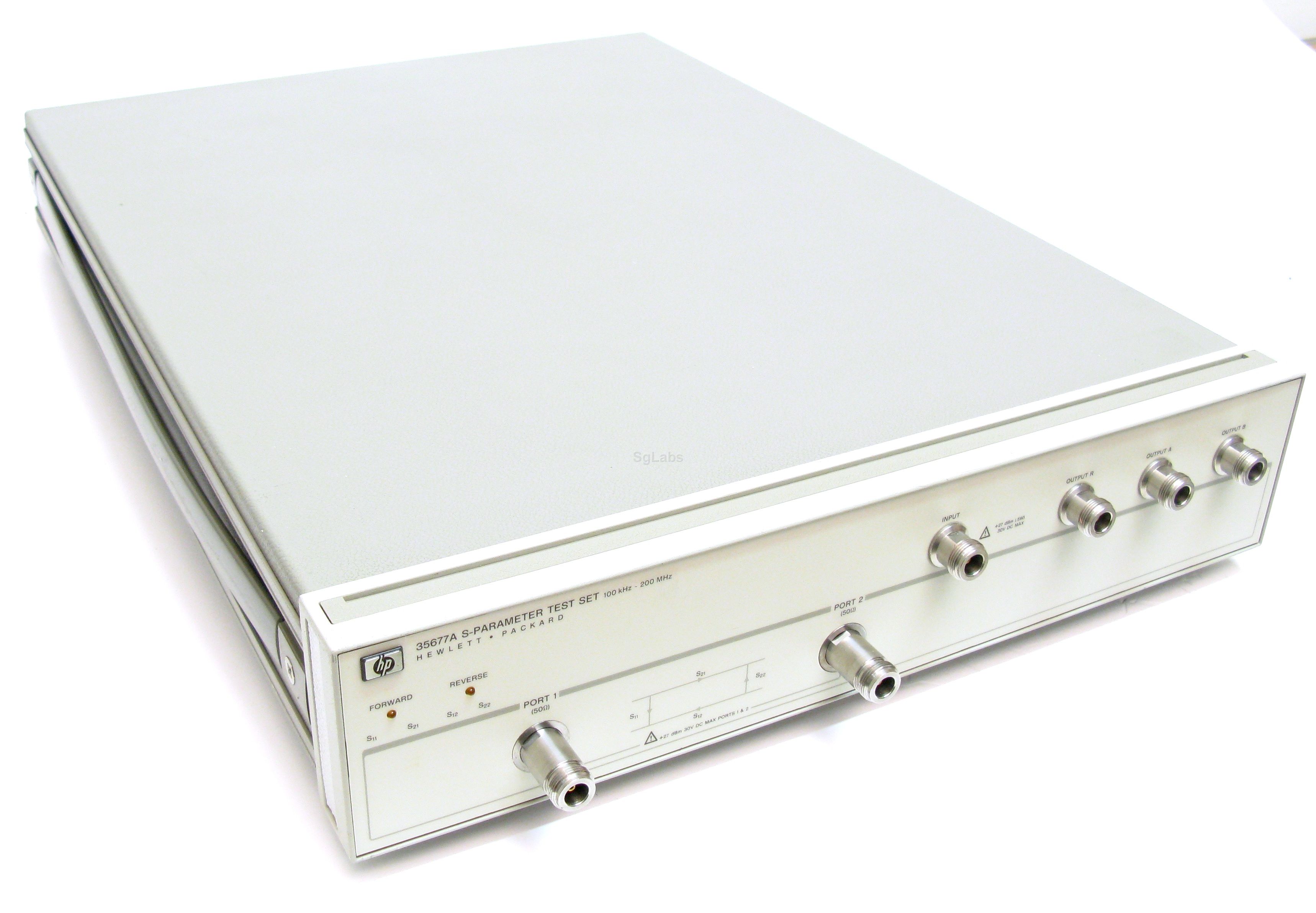

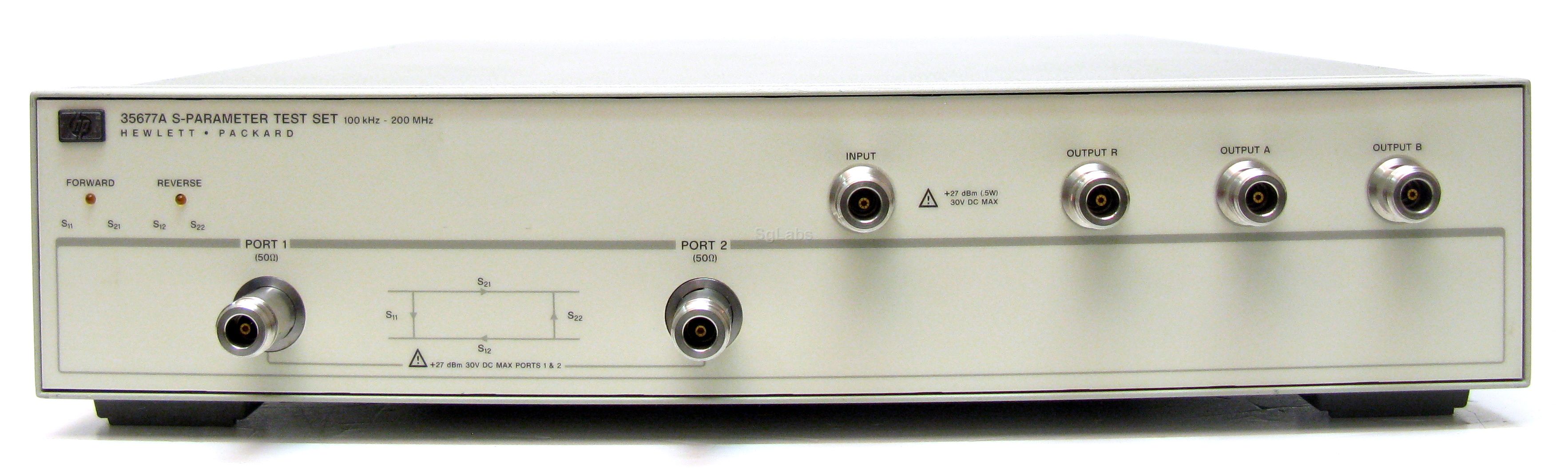

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP 35677A is a 100 kHz to 200 MHz scattering parameter test set built for use with the 3577A network analyzer. Although test setups can be constructed from discrete RF components such as power dividers, directional bridges, cables, and pads, it is much easier to use a fully integrated test set such as the 35677A. The 35677A has 50 ohm test ports. This test set provides a convenient method for making reflection and transmission measurements of one- and two-port devices. The 3577A provides signal, power, and control for the test set and provides a menu that includes S-parameter softkey selections in S11, S21, S12, and S22. These are defined in terms of receiver inputs and test set direction. Changing the test set direction effectively switches the signal source and termination of the device under test as though it were removed and reconnected to the test set in the reverse direction. Different S-parameters may be selected for each of the two traces.
  • Frequency range: 100 kHz to 200 MHz
  • Test port impedance: 50 ohms
  • Directivity: >40 dB
  • Connector: N
  • Directivity: >40 dB
  • Max. Frequency: 200 MHz
  • Min. Frequency: 100 kHz
