HP 5347A Microwave Counter - power meter

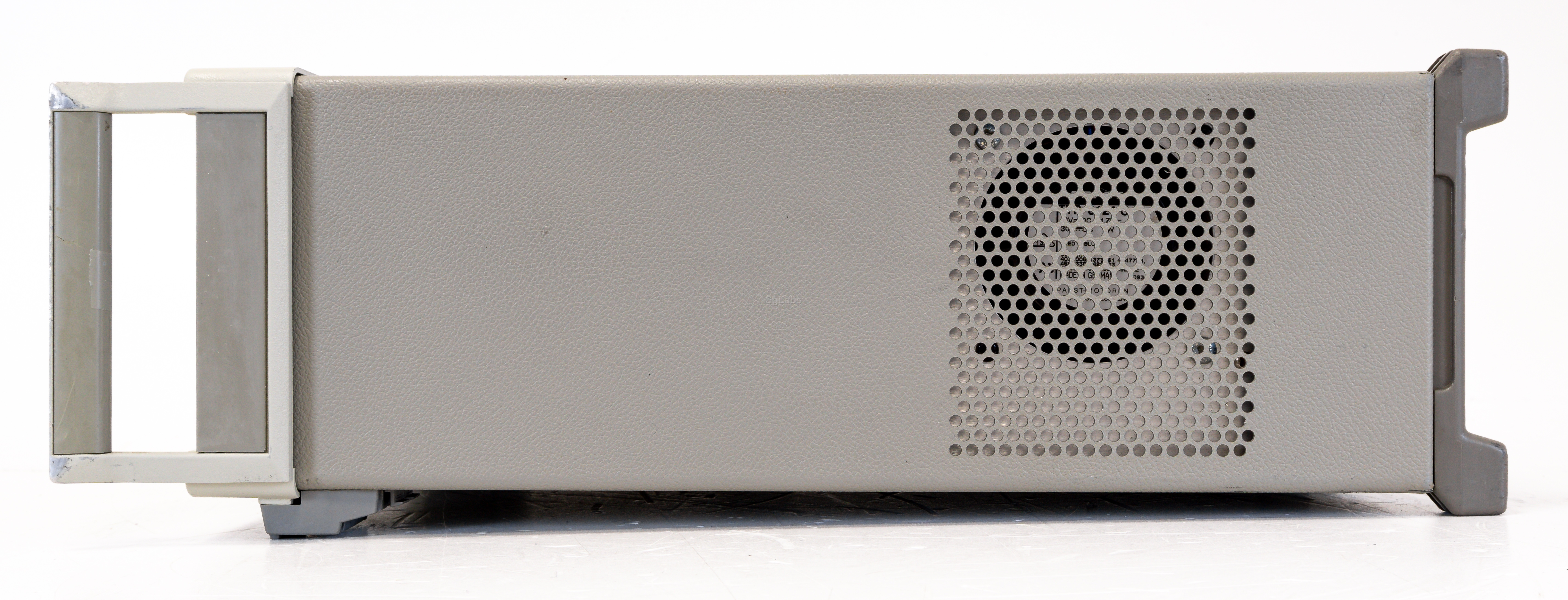

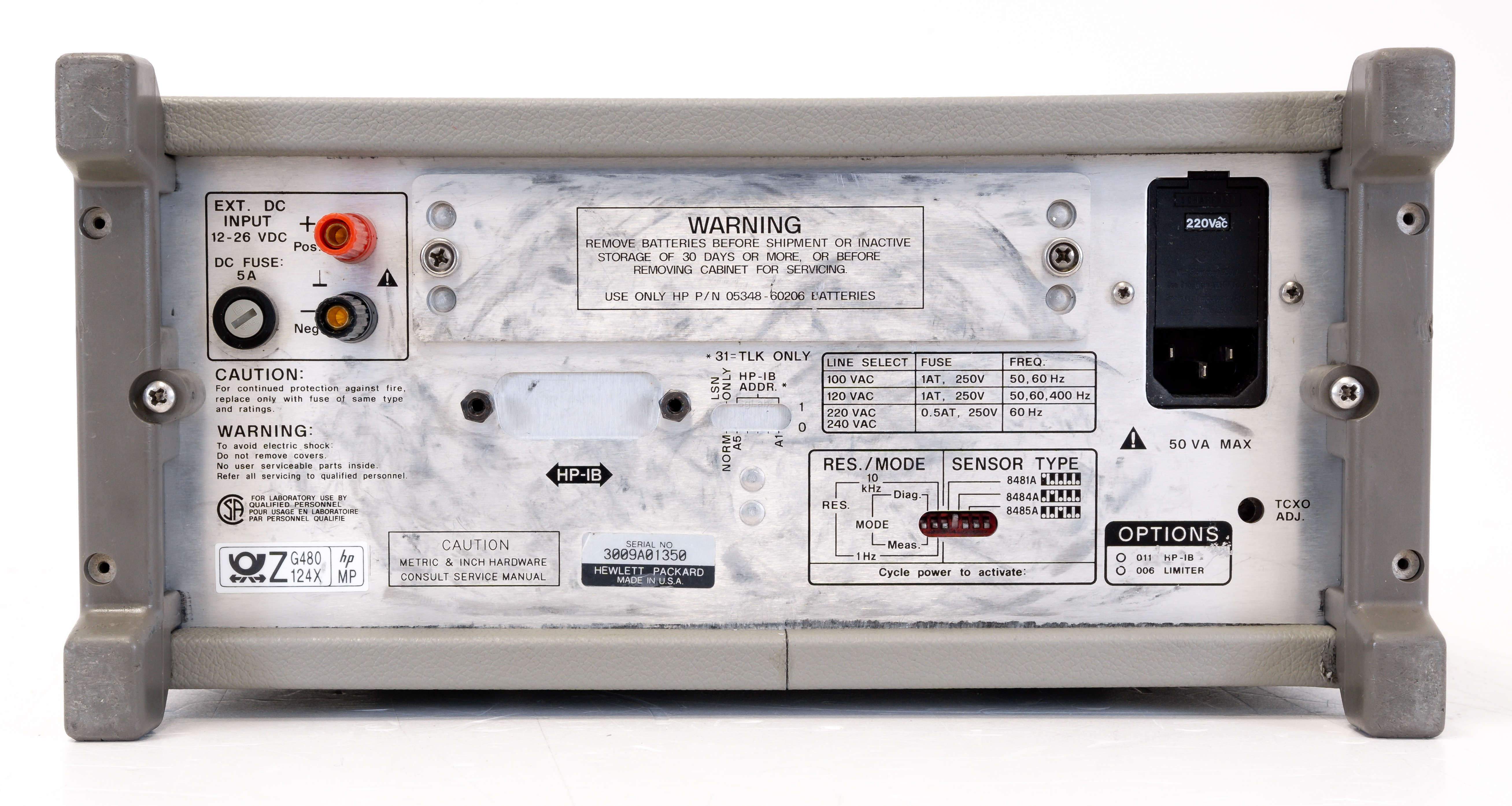

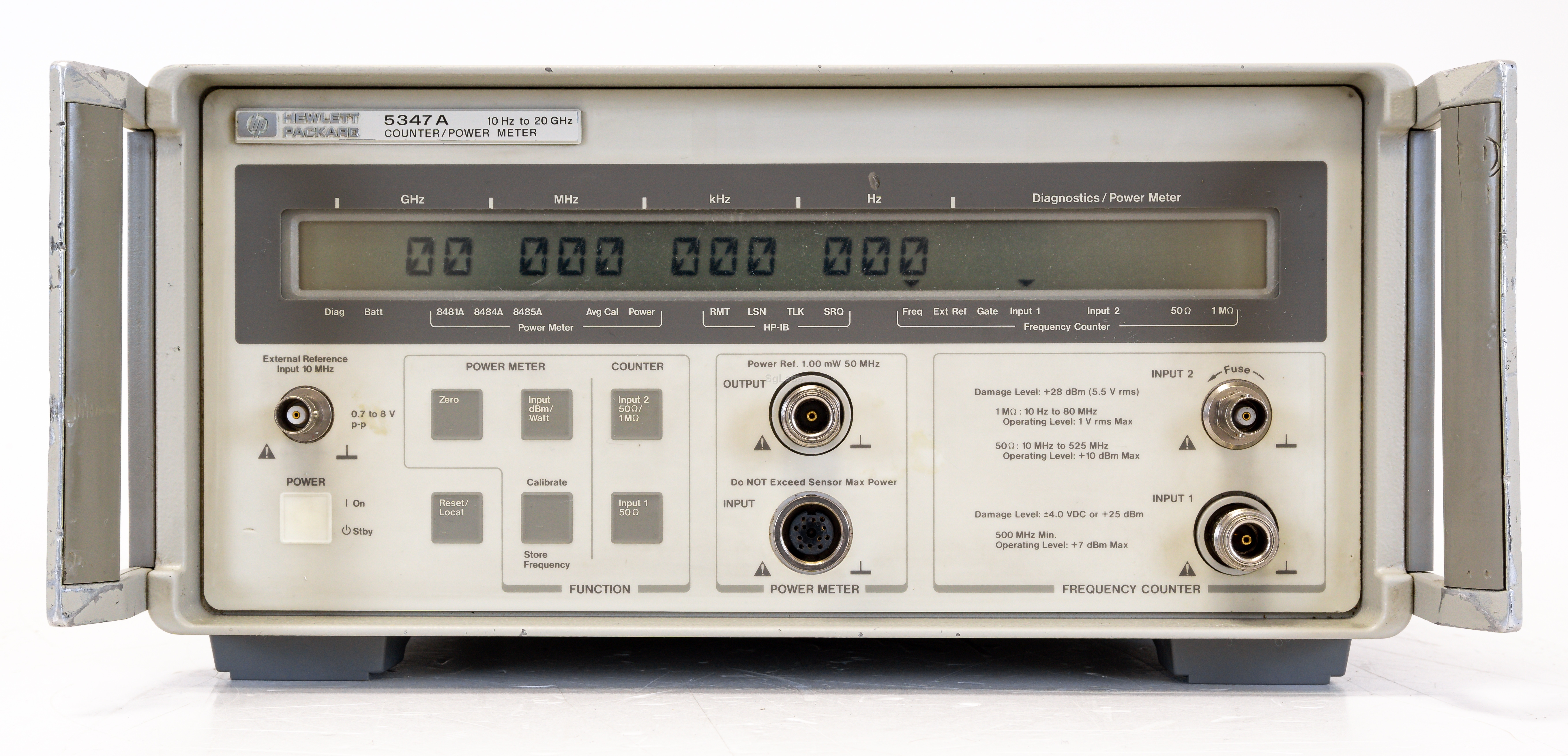

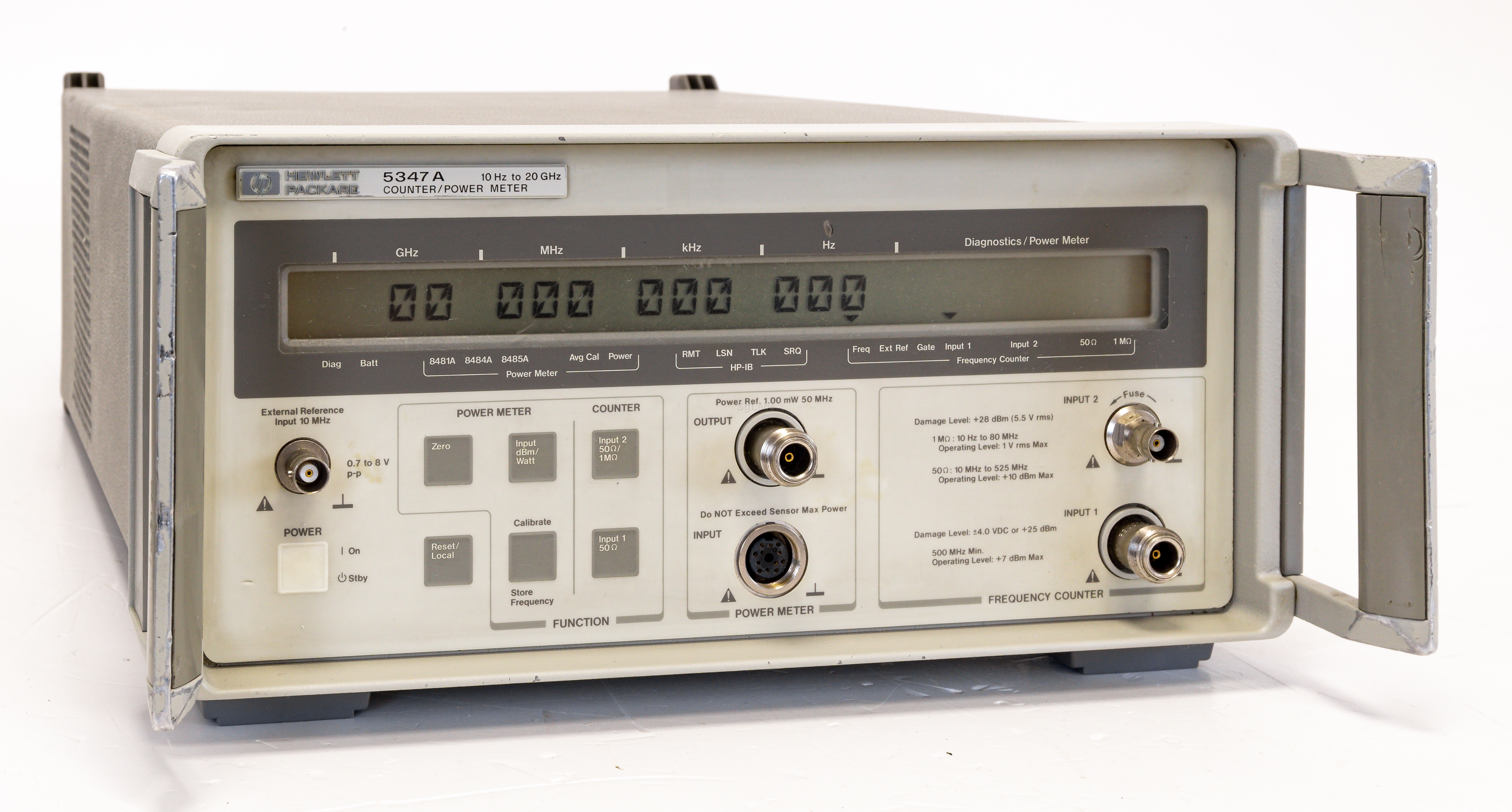

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Keysight 5347A 20 GHz Microwave Counter/Power Meter offers the convenience of a single instrument that makes frequency and power measurements with accuracy and resolution comparable to stand-alone instruments. As a true power meter, the Keysight 5347A offers excellent dynamic range, linearity, and accuracy. It uses the same proven power sensors as HP's standalone power meters. The high-performance frequency counter measures frequency from 10 Hz to 20 GHz.

With only five function keys, the Keysight 5347A is especially easy to use. Its rugged, lightweight package, along with an optional internal battery that provides up to two hours of cordless measurements, makes the Keysight 5347A ideal for taking portable measurements.

  • True power meter performance
  • Negligible power meter error
  • Outstanding frequency measurements
  • Built-in sensor calibration tables save time
  • External DC operation for greater measurement flexibility
  • Supports three HP power sensors
Features
Input 1
  • Frequency Range: 500 MHz to 20 GHz
  • Sensitivity 500 MHz - 12.4 GHz: -32 dBm (-35 dBm typical)
  • Maximum Input: +7 dBm
  • Resolution: 1 Hz or 10 kHz, selectable
Input 2
  • Frequency Range: 10 Hz - 525 MHz
  • Sensitivity: 25 mV rms (15 mV rms typical)
  • Resolution: 1 Hz or 10 kHz, selectable

Power meter
  • Frequency Range: 0 MHz to 20 GHz
  • sensor dependent Power Range: -70 dBm to +20 dBm (100 pW to 100 mW)
  • Resolution: 0.01 dB in logarithmic mode
  • Max. Frequency: 20 GHz
  • Min. Frequency: 10 Hz
  • Channels: 2
  • Min. Power: sensor dependent Power Range
  • Resolution: 1 Hz
Price
 € 650,00
