HP 4192A LF Impedance Analyzer

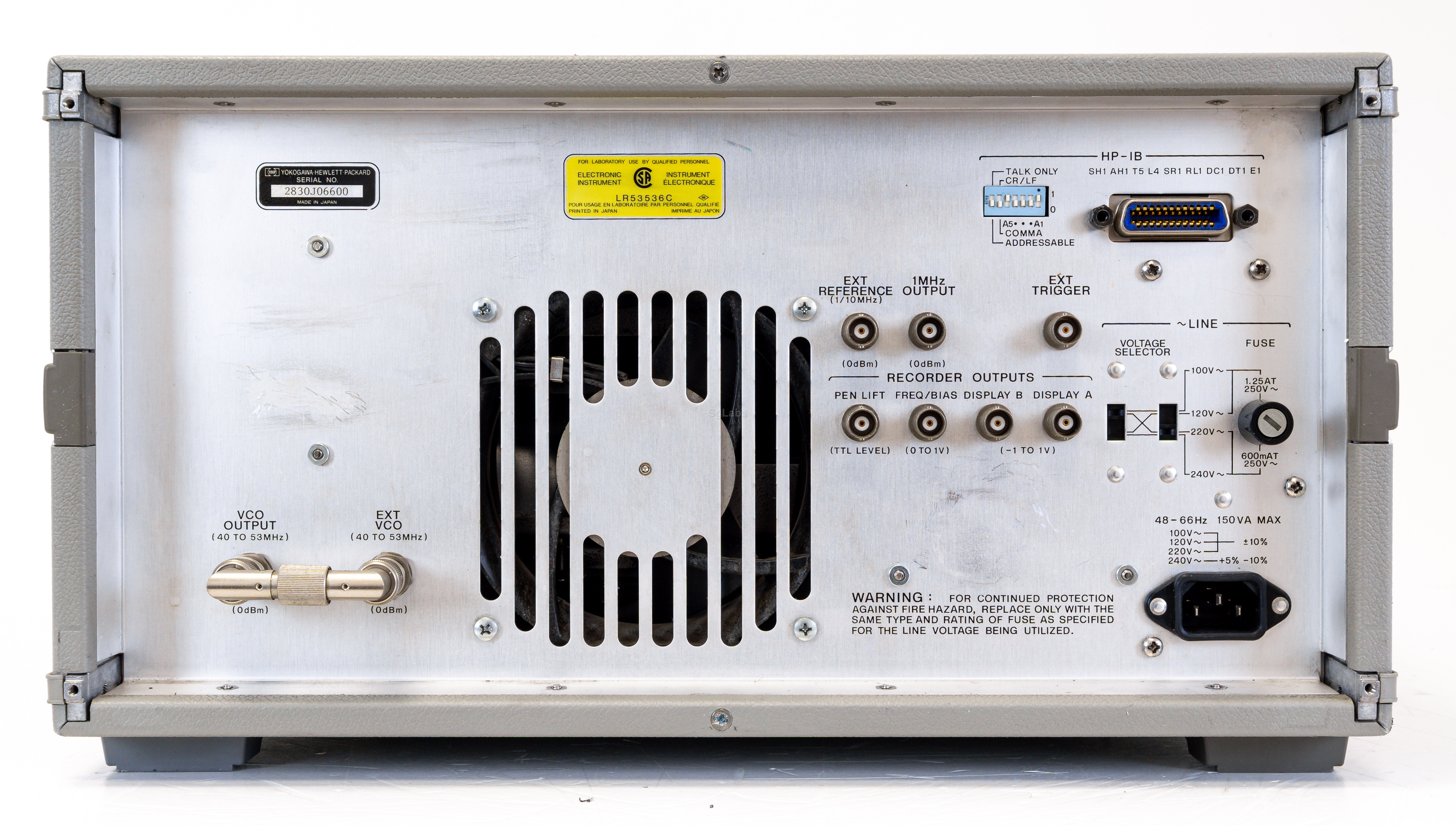

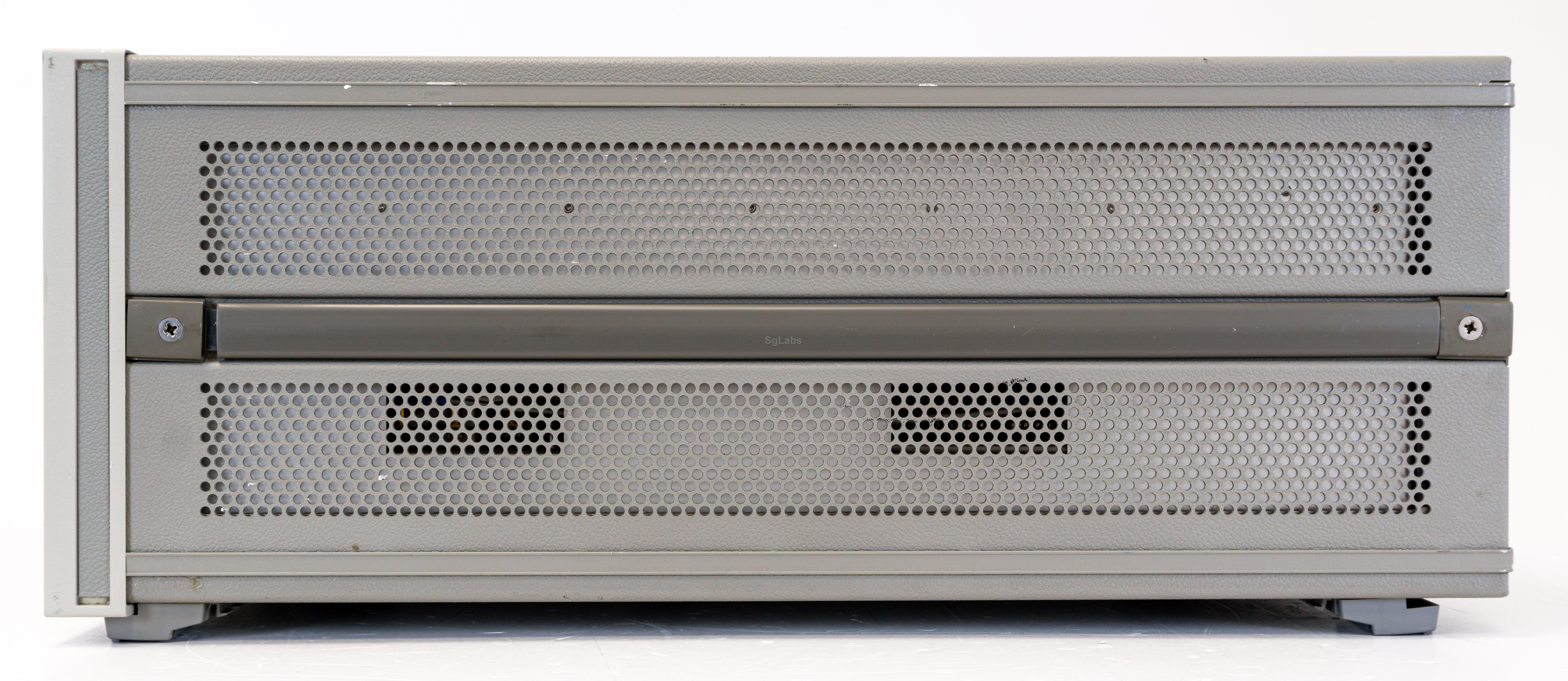

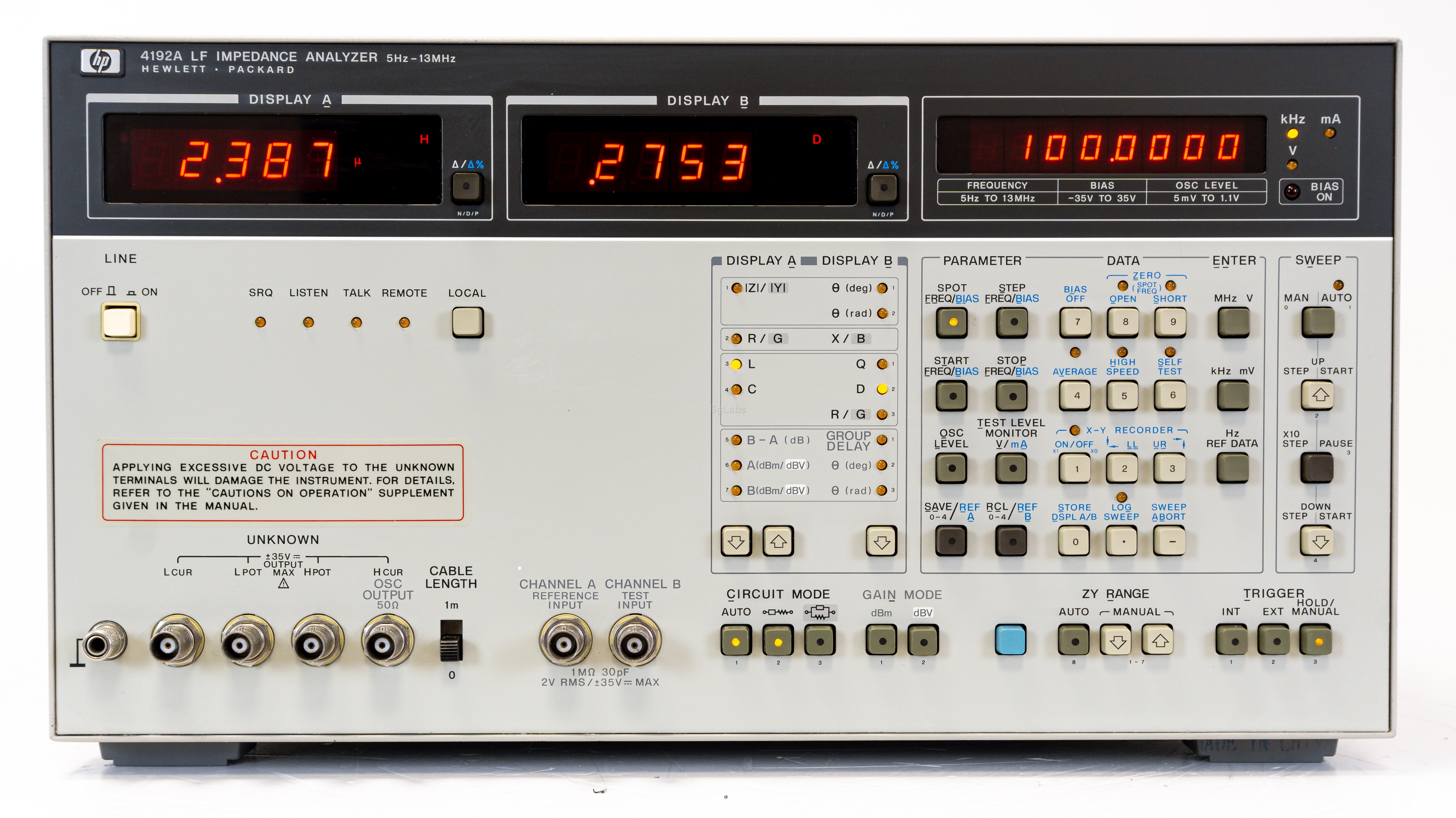

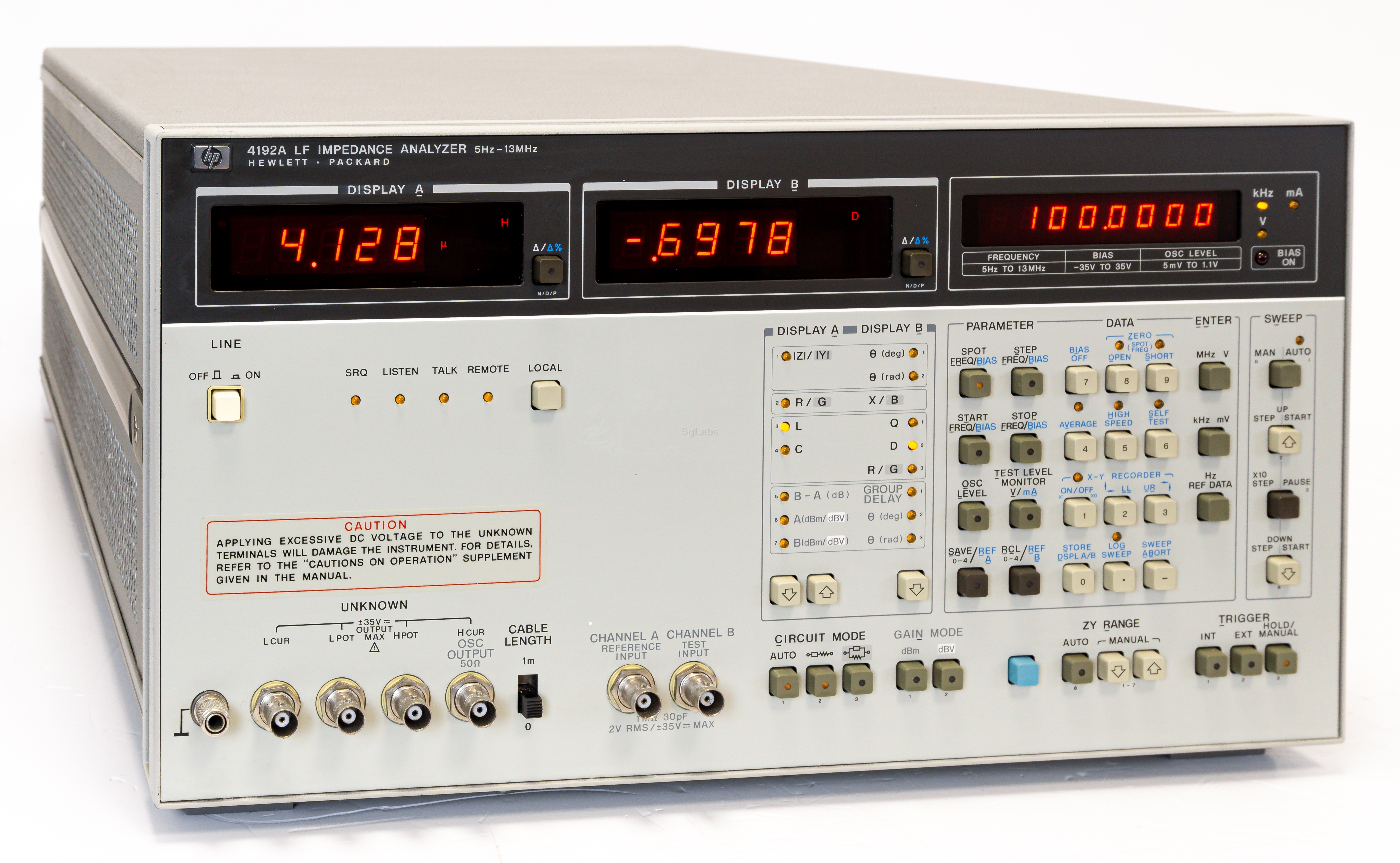

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 4192A LF impedance analyzer performs both network analysis and impedance analysis on such devices such as telecommunication filters audio/video electronic circuits, and basic electronic components. Both floating and grounded devices can be tested.
  • 5 Hz to 13 MHz variable frequency
  • Swept measurement capability
  • Gain-phase measurements: amplitude, phase, group delay
  • Floating or grounded devices
  • Impedance measurement: |Z|, |Y|, Theta, R, X, G, B, L, C, D, Q, Delta, Delta%
  • GPIB
  • Max. Frequency: 13 MHz
  • Min. Frequency: 5 Hz
  • Display: LCD
  • Capacity max. min.: 100 mF
  • inductance ranege: 10 kH
  • Resistance range: 1 Mohm
