HP Agilent Keysight, E5100A

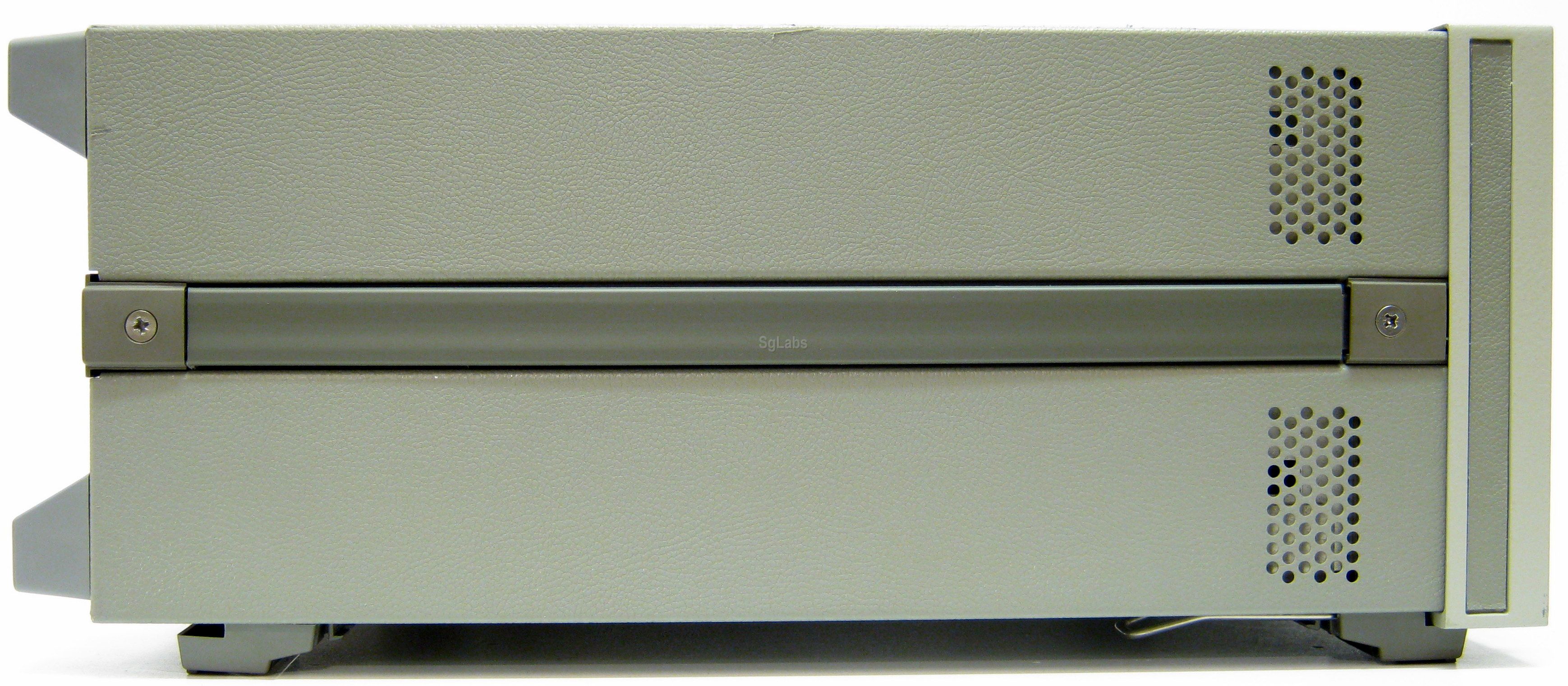

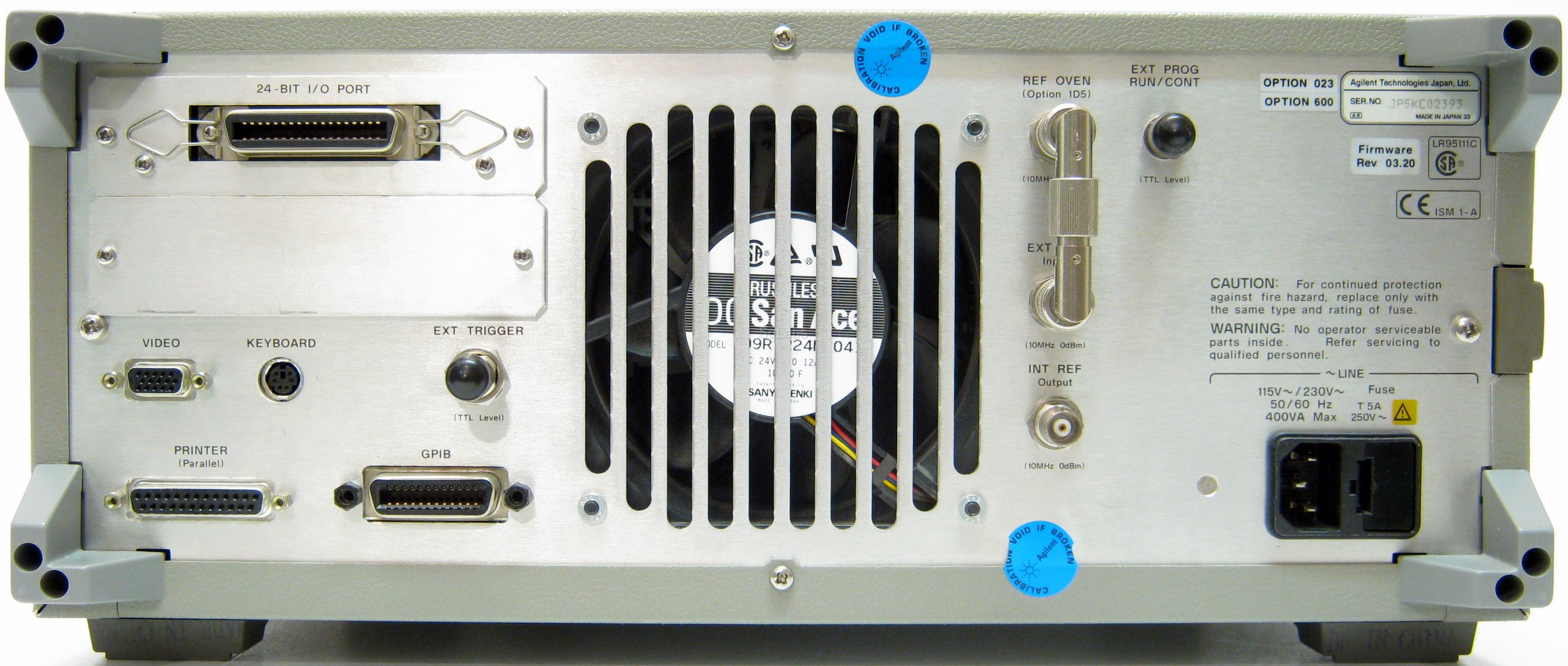

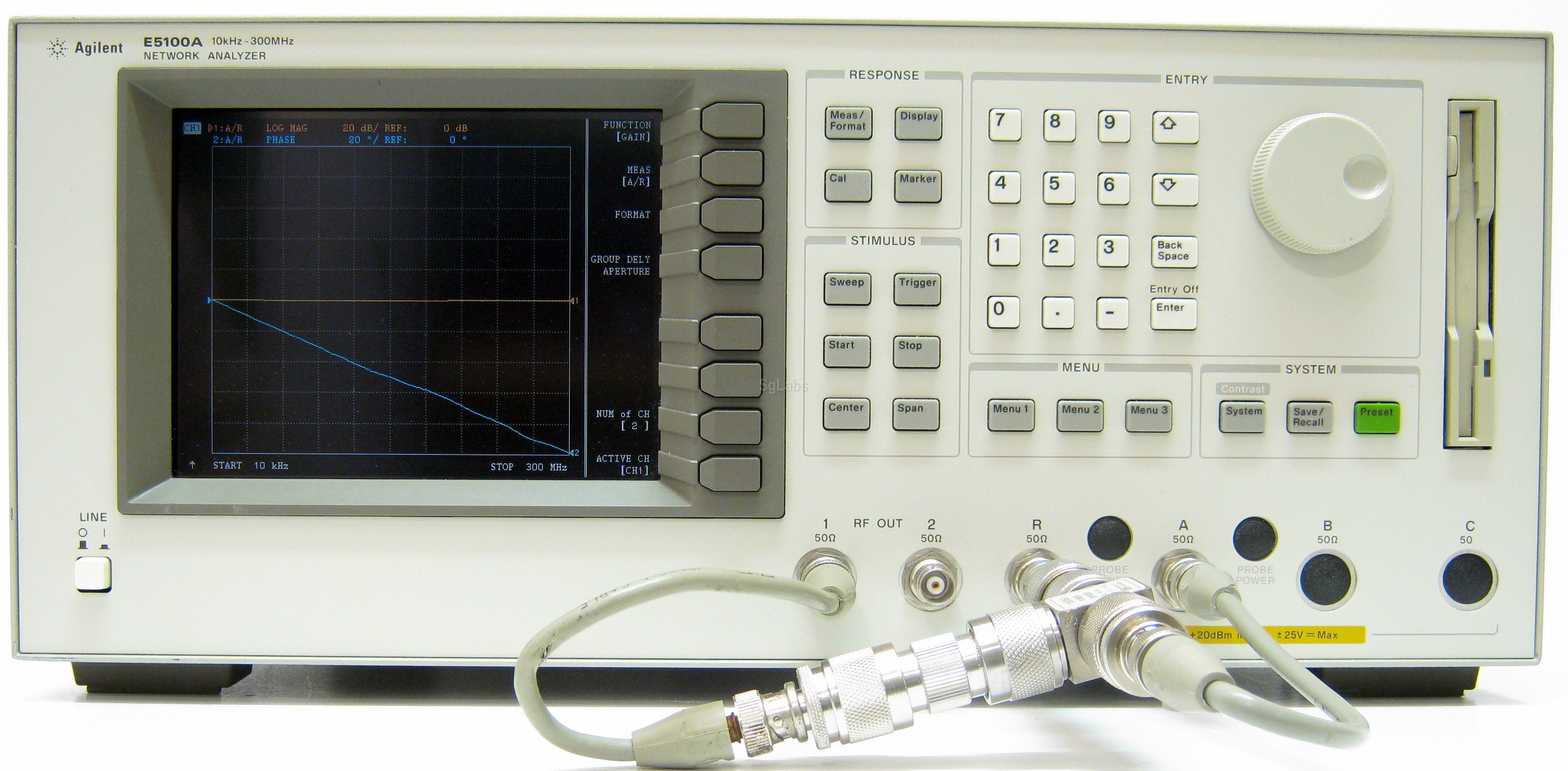

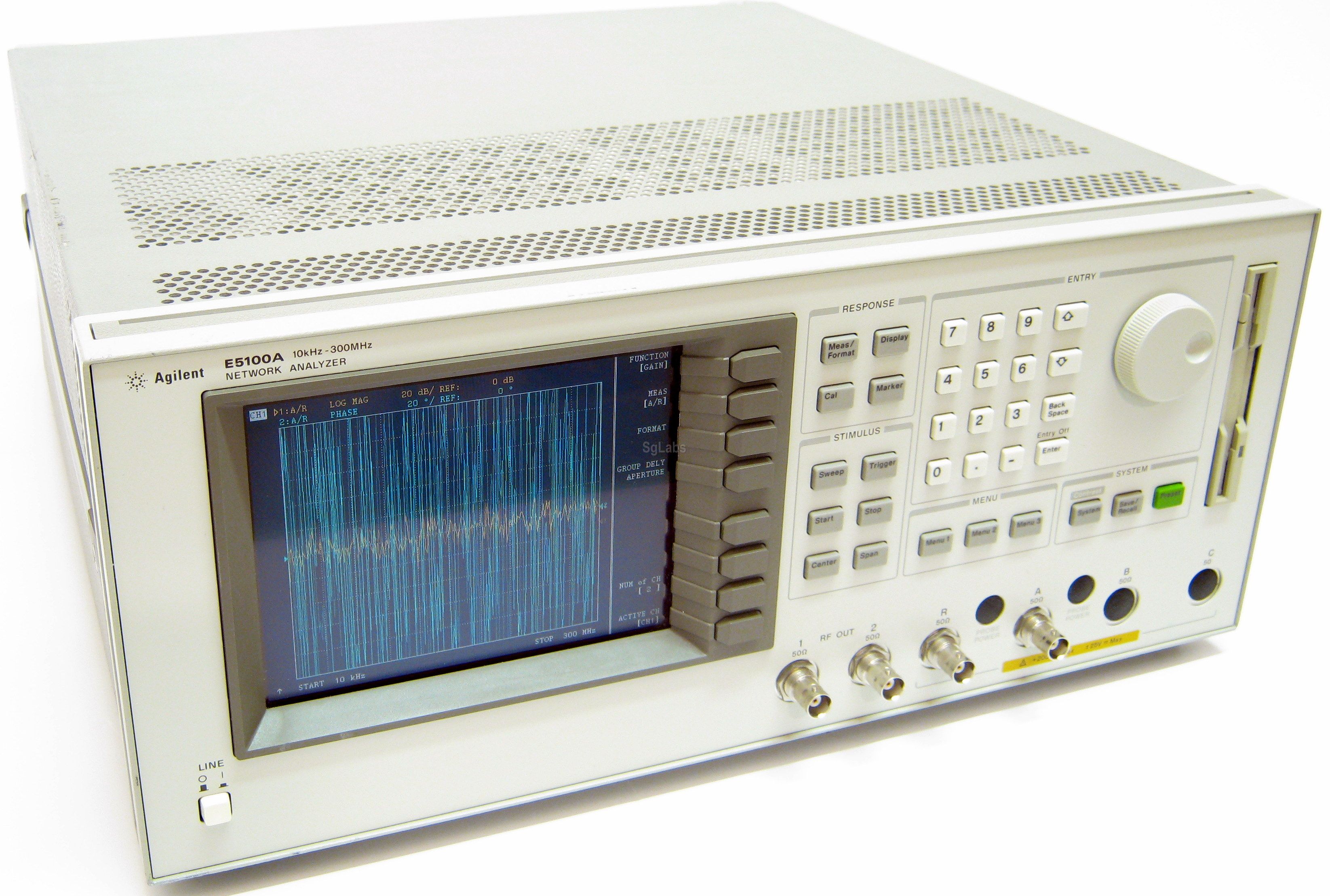

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The E5100A high-speed network analyzer is an excellent solution for electronic component manufacturers, especially resonator and filter manufacturers, who require extra-high throughput. The E5100A improves production line productivity with its fast measurement speed (fastest sweep speed is 0.04 ms/point), fast waveform analysis commands, and high-speed processor. The E5100A's low-noise performance and fine selection IFBW provide high quality measurements with lower fluctuations.

Test Set option 000 or 600 define the basic type of the E5100A:
Option 000: Standard Test Set (Opt. 801-400-804)
Option 600: 300MHz X'tal resonator test to use w/PI-network


  • Range: 10 KHz to 300 MHz
  • Accurany: 1ppm (opt. 1D5)
  • Resolution: 1mHz
  • IF Bandwidth: 10 Hz to 30 KHz

Measurement Speed

  • 0.04 ms/point measurement speed

More Features

  • High speed filter and resonator evaluation using waveform analysis commands
  • IBASIC for easy automation
  • Phase tracking function for high speed evaluation of resonator (Option 023)
  • Evaporation monitoring function (Option)
  • High Stability Frequency (Option 1D5)
  • Connector: BNC
  • Max. Frequency: 300 MHz
  • Min. Frequency: 10 kHz
