HP Agilent Keysight, E4408B

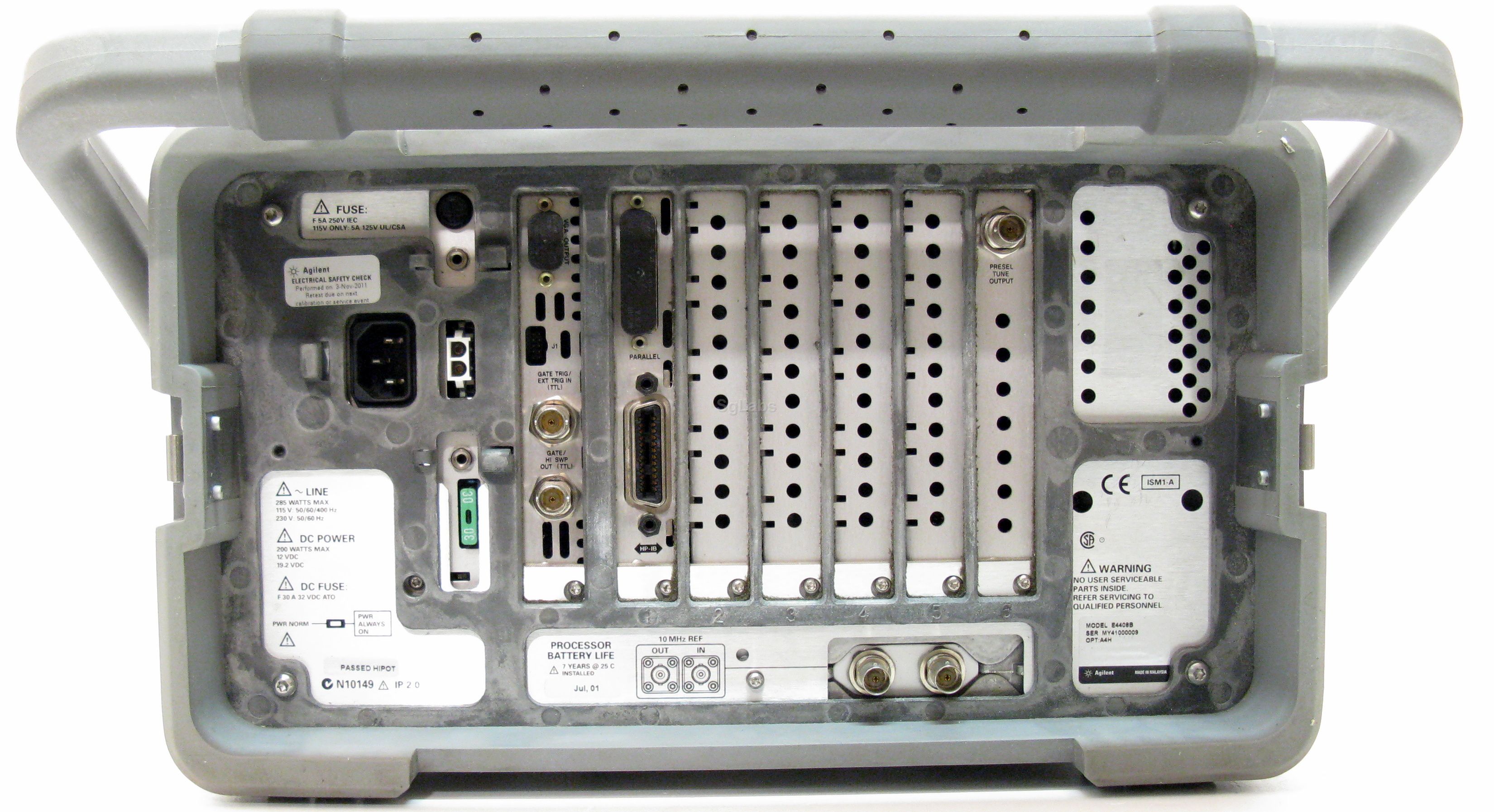

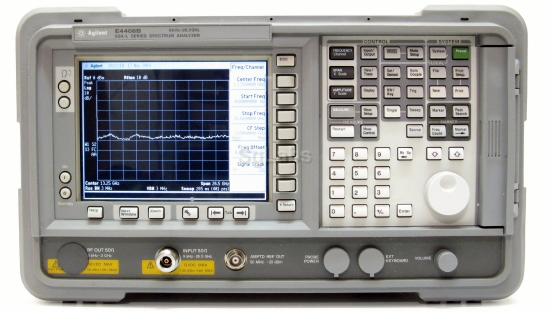

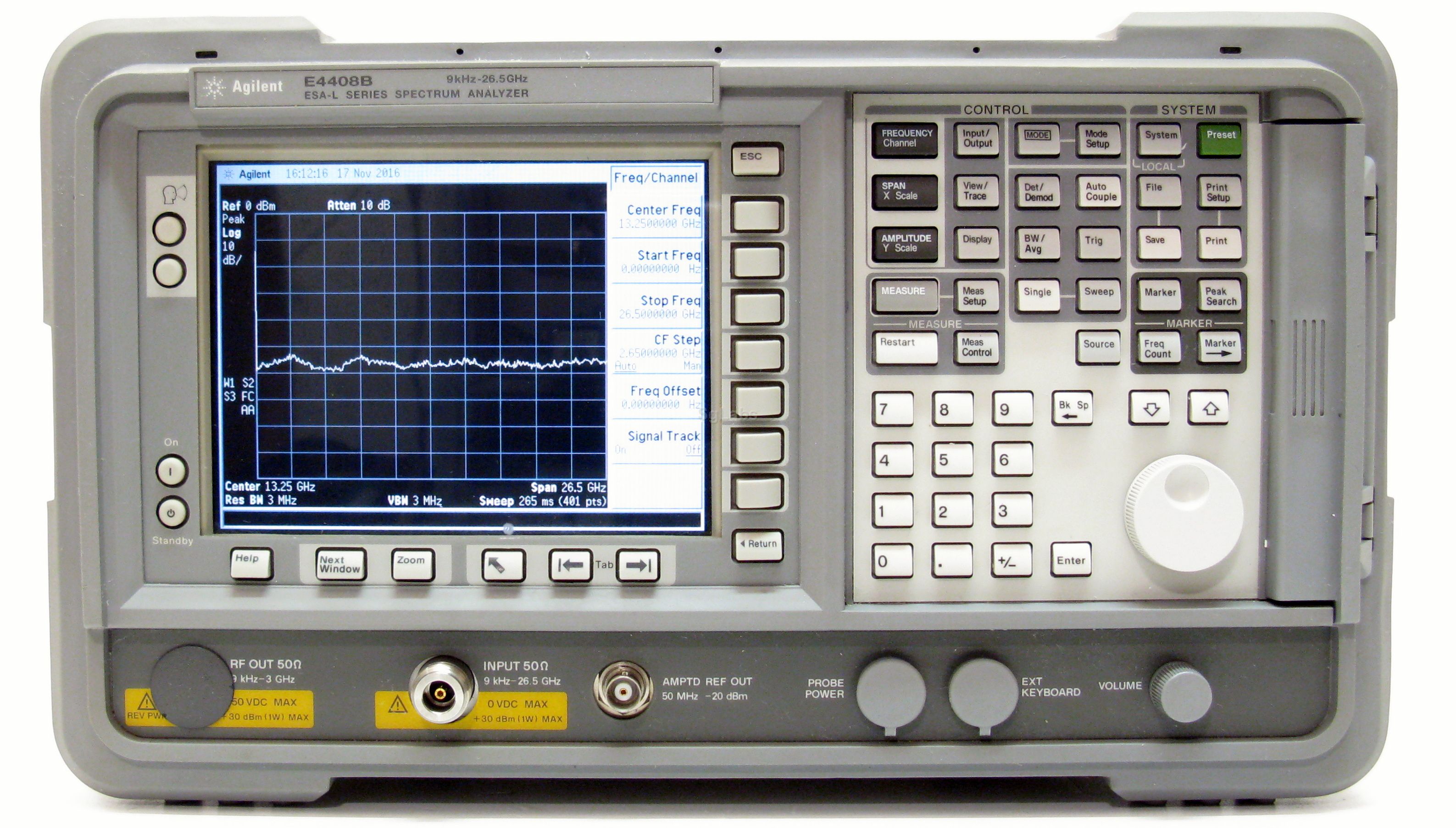

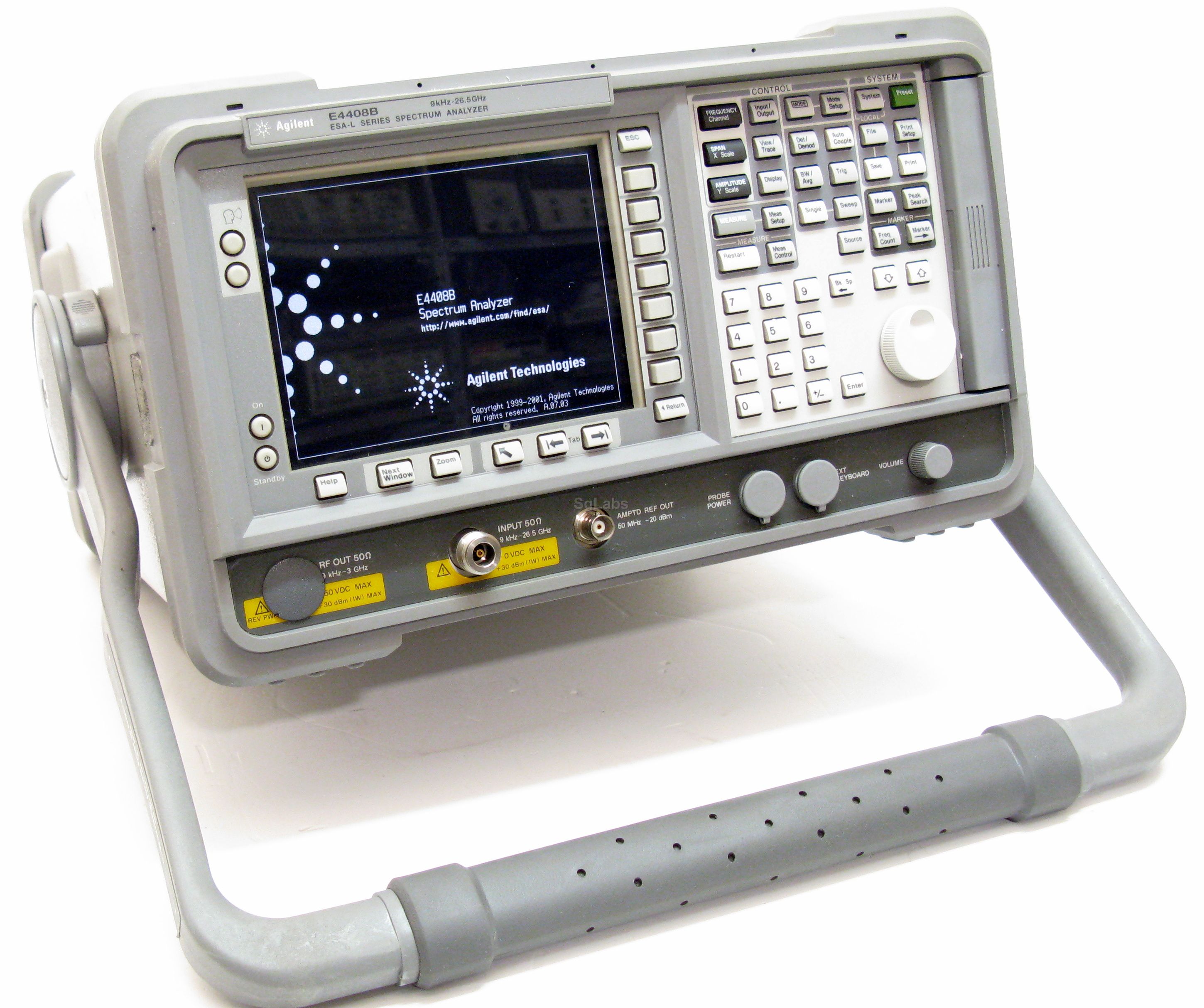

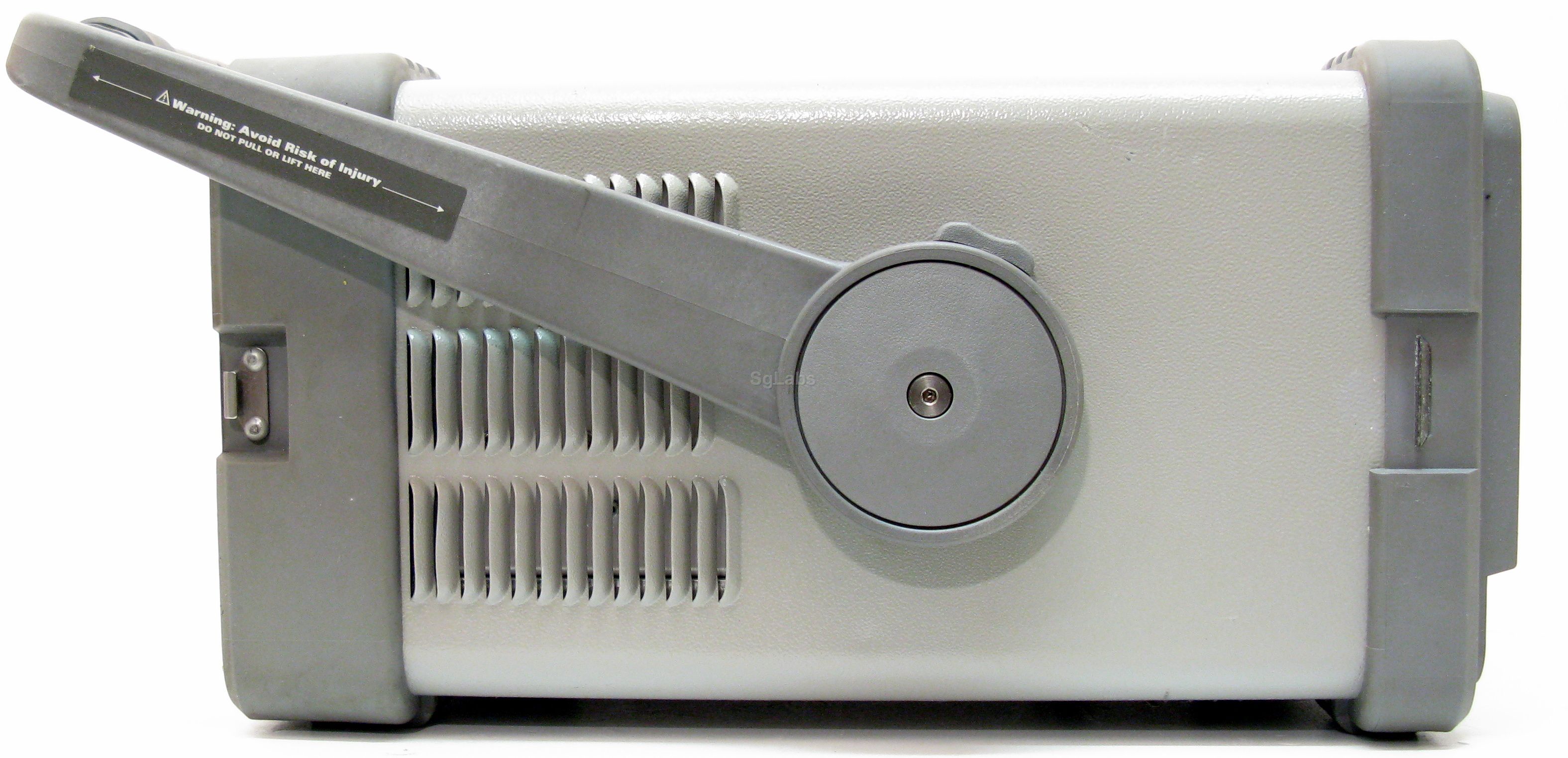

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent ESA-L series of general-purpose, portable spectrum analyzer provides basic spectrum analysis, with the speed and accuracy you need. These affordable, fully synthesized analyzers are available in three frequency ranges: 1.5 GHz, 3.0 GHz and 26.5 GHz.
Features
Performance
  • 1.1 dB overall amplitude accuracy
  • 100 Hz to 5 MHz RBW, 100 Hz to 300 Hz optional
  • +7.5 dBm TOI
  • 5 minute warm-up to guaranteed measurement accuracy
Measurement Applications

  • Narrow resolution bandwidth, 8590 series code compatibility, or 50 ohm tracking generator
  • Includes Power Suite one-button RF power measurements Details
Features


  • Frequency Range 9 kHz to 26.5 GHz
  • RBW Range 1 kHz to 5 MHz
  • DANL (1 GHz) -116 dBm
  • Maximum Third Order Dynamic Range (1 GHz) 82 dB
  • Maximum Second Order Dynamic Range (1 GHz) 78 dB
  • Phase Noise (10 kHz offset)
  • Overall Amplitude Accuracy ± 1.1 dB
  • Frequency Accuracy ± 2 kHz
  • Measurement speed >=28 updates/sec
  • Sweep Time 4ms to 4000s

  • Display: Color
  • Max. Frequency: 26.5 GHz
  • Min. Frequency: 9 kHz
  • Max. Level: 1 W
  • Min. Resolution: 1 kHz
  • Tracking generator: Option
