HP Agilent Keysight,  E4407B

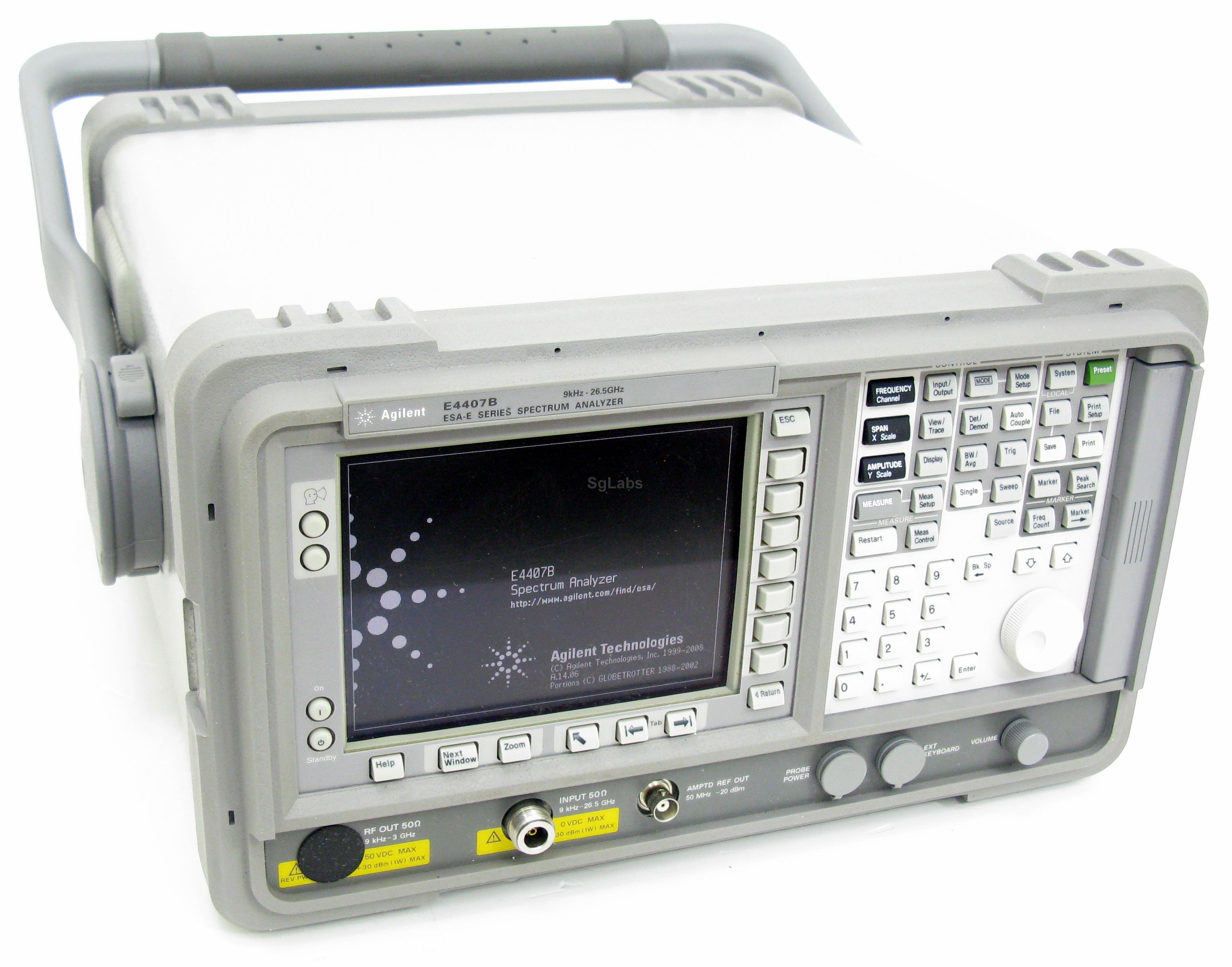

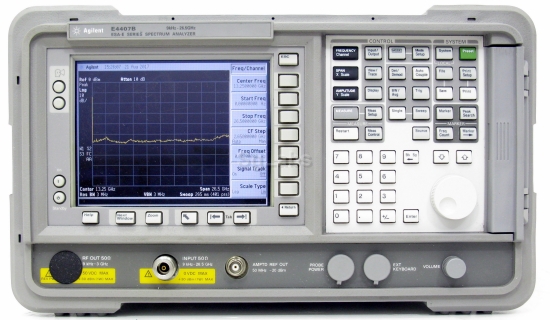

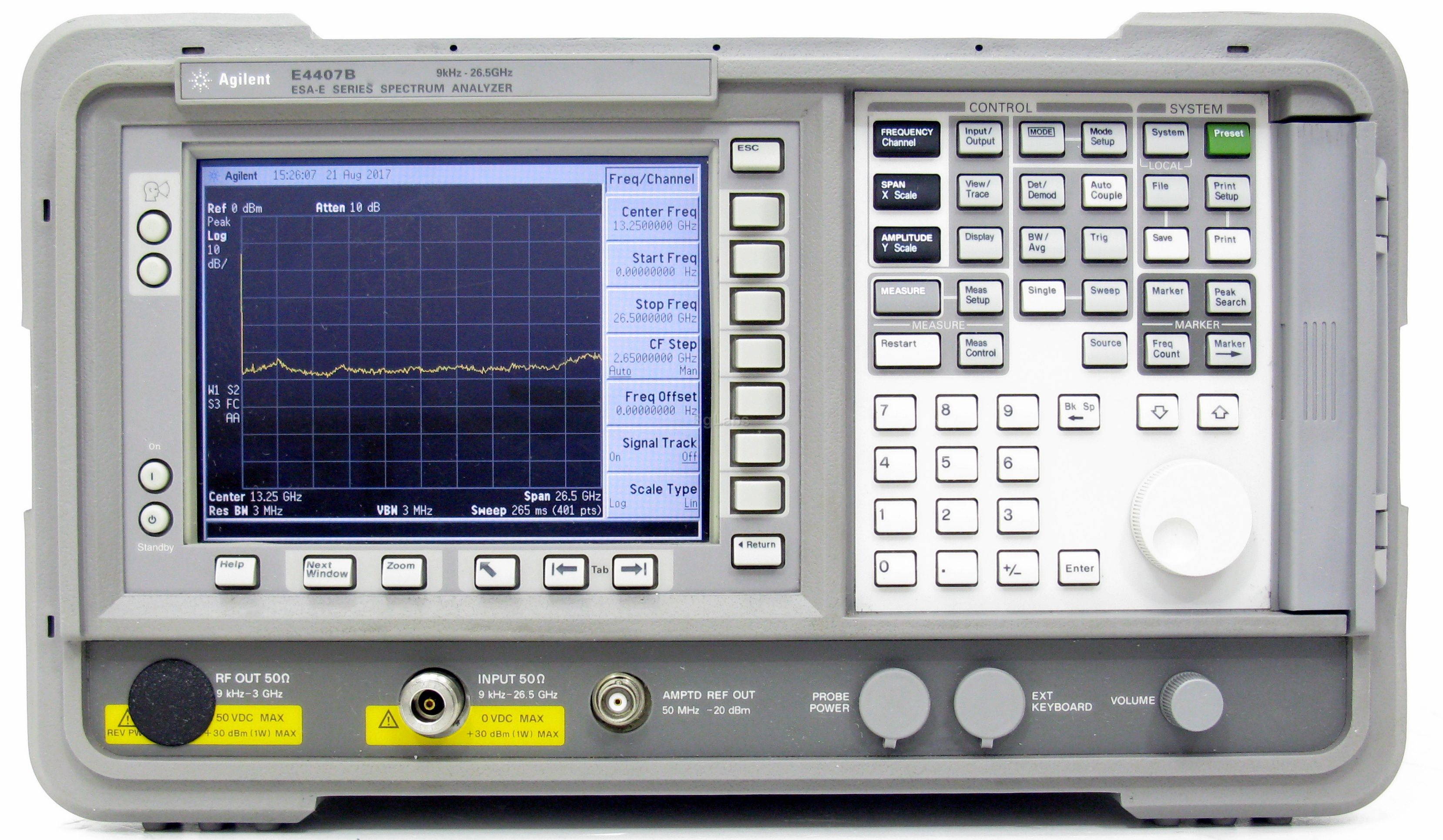

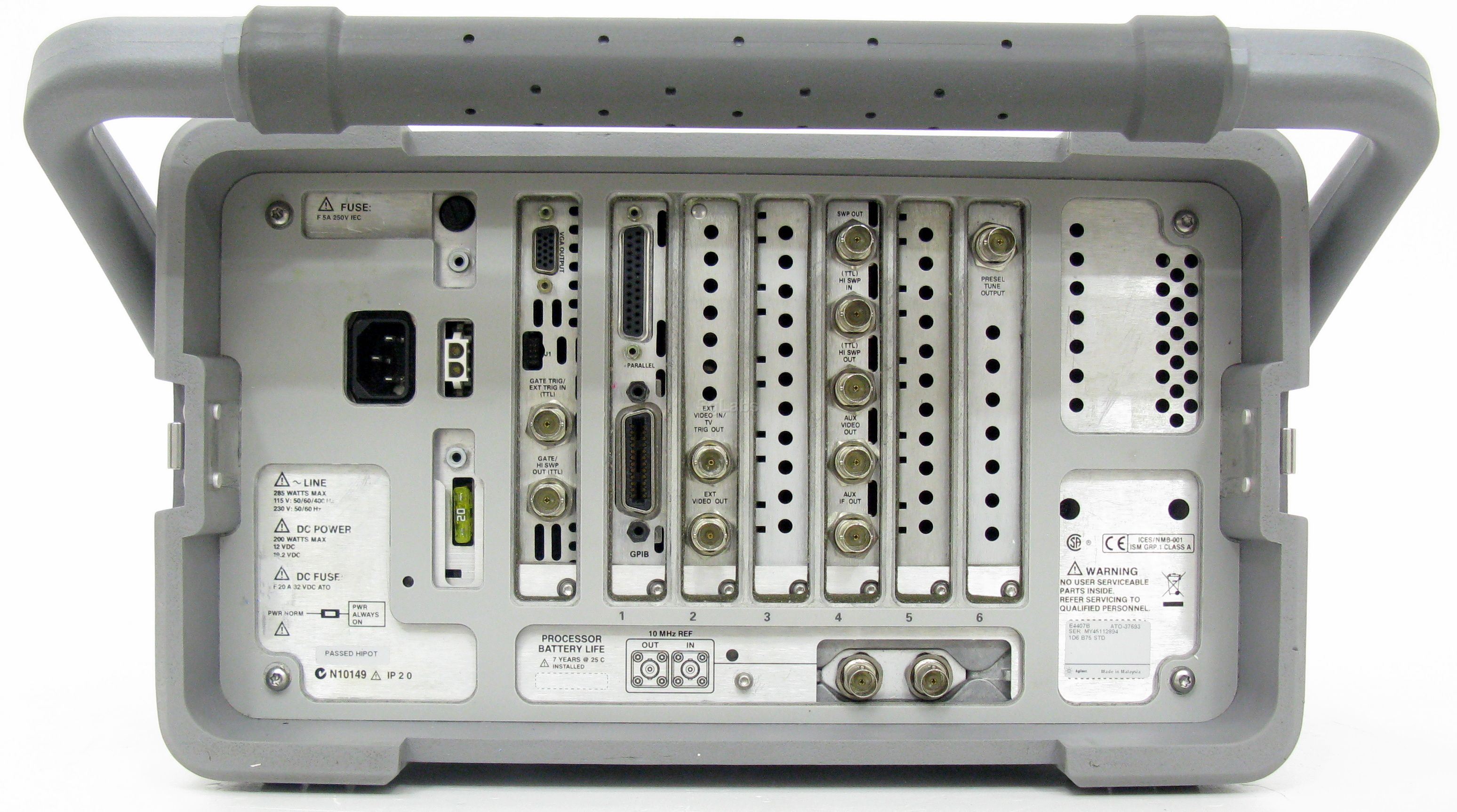

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent ESA-E Series is our mid-performance spectrum analyzer solution for the future. The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products. Its flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required. The products' selection of one button measurement solutions combined with its easily navigable user interface and performance in speed allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products.

  • Remotely view and control the ESA over the Internet
  • 8590-Series Programming Code Compatibility
  • Modulation Analysis Measurement Personality
  • Multiformat RF power measurement suite
  • Bluetooth standards compliant measurement personality
  • GSM and CDMAOne standards compliant measurement personalities
  • Fault location, phase noise, CATV Service measurement personalities
  • Rugged and portable for lab grade performance in the field
  • One-millisecond RF sweep time, 40 measurements per second
  • ± 1 dB overall amplitude accuracy
  • Optional 10 Hz digital-resolution bandwidth filter and preamplifier
  • -151 dBm sensitivity, with internal preamp, +12.5 dBm TOI
  • Variable sweep (trace points) from 2 to 8192
  • Segmented sweep for up to 32 discontinuous spans in one sweep
  • Free IntuiLink PC software for screen and data transfer

Features
  • Frequency Range: 9 kHz - 26.5 GHz
  • 0.4 dB overall amplitude accuracy
  • +16 dBm TOI
  • -167 dBm DANL, with internal preamp (Opt.1DS)
  • 10 MHz demodulation bandwidth
  • 1 kHz - 5 MHz narrow resolution bandwidth (opt. 1DR add 10 and 300 Hz, opt. 1D5 add 1 and 3 Hz)
  • 1 ms sweep time (50 ns 0 span)
  • Variable sweep (trace points) from 2 to 8192
  • Segmented sweep for up to 32 discontinuous spans in one sweep
  • Rugged and portable for lab grade performance in the field
  • 5 minute warm-up to guaranteed measurement accuracy
  • Amplitude correction
  • Automatic background alignment
  • Includes Power Suite 1-button power measurements

The PowerSuite allows one button measurements for:

  • Channel power
  • Occupied bandwidth
  • Adjacent channel power (ACP)
  • Multi-carrier ACP
  • Power statistics (CCDF) (not available on the basic analyzer)
  • Harmonic distortion
  • Burst power
  • Intermodulation distortion (TOI)
  • Spurious emissions
  • Spectrum emissions mask
  • Demodulator: AM-FM non compreso
  • Display: LCD monocromatic
  • Max. Frequency: 26.5 GHz
  • Min. Frequency: 9kHz
  • Min. Resolution: 10 Hz
  • Tracking generator: interno opzionale non compreso
Price
 € 7.200,00
