HP Agilent Keysight, E3632A

You are here: Power Supply (DC) » Single output

HP Agilent Keysight, E3632A

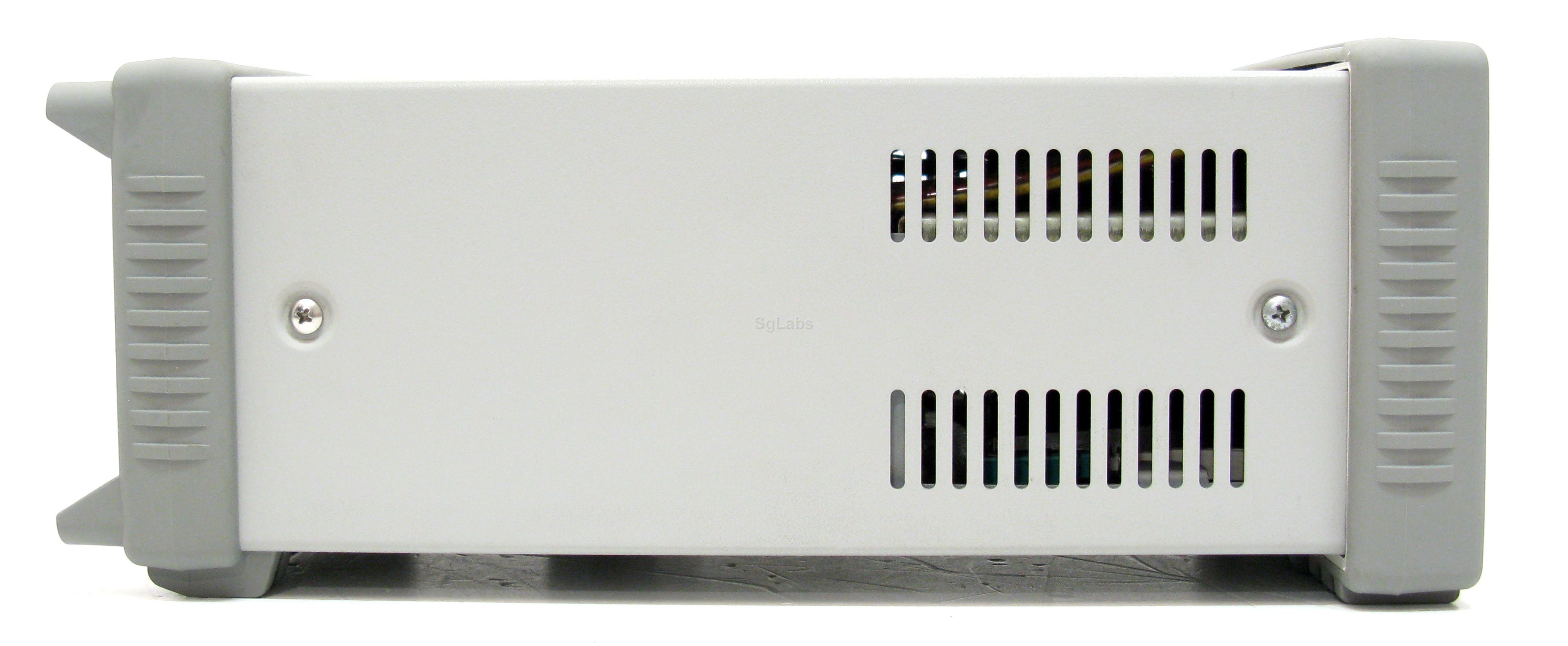

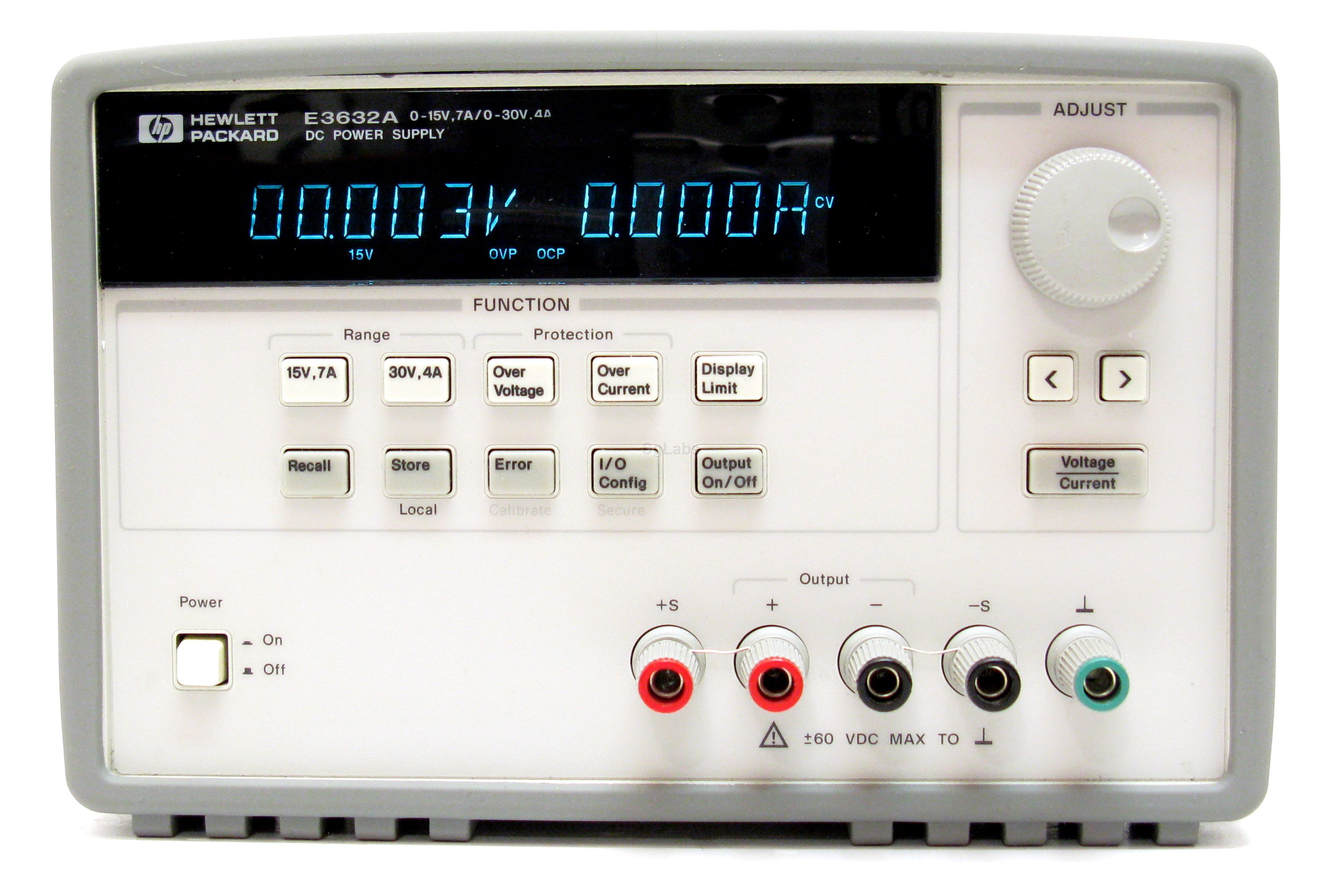

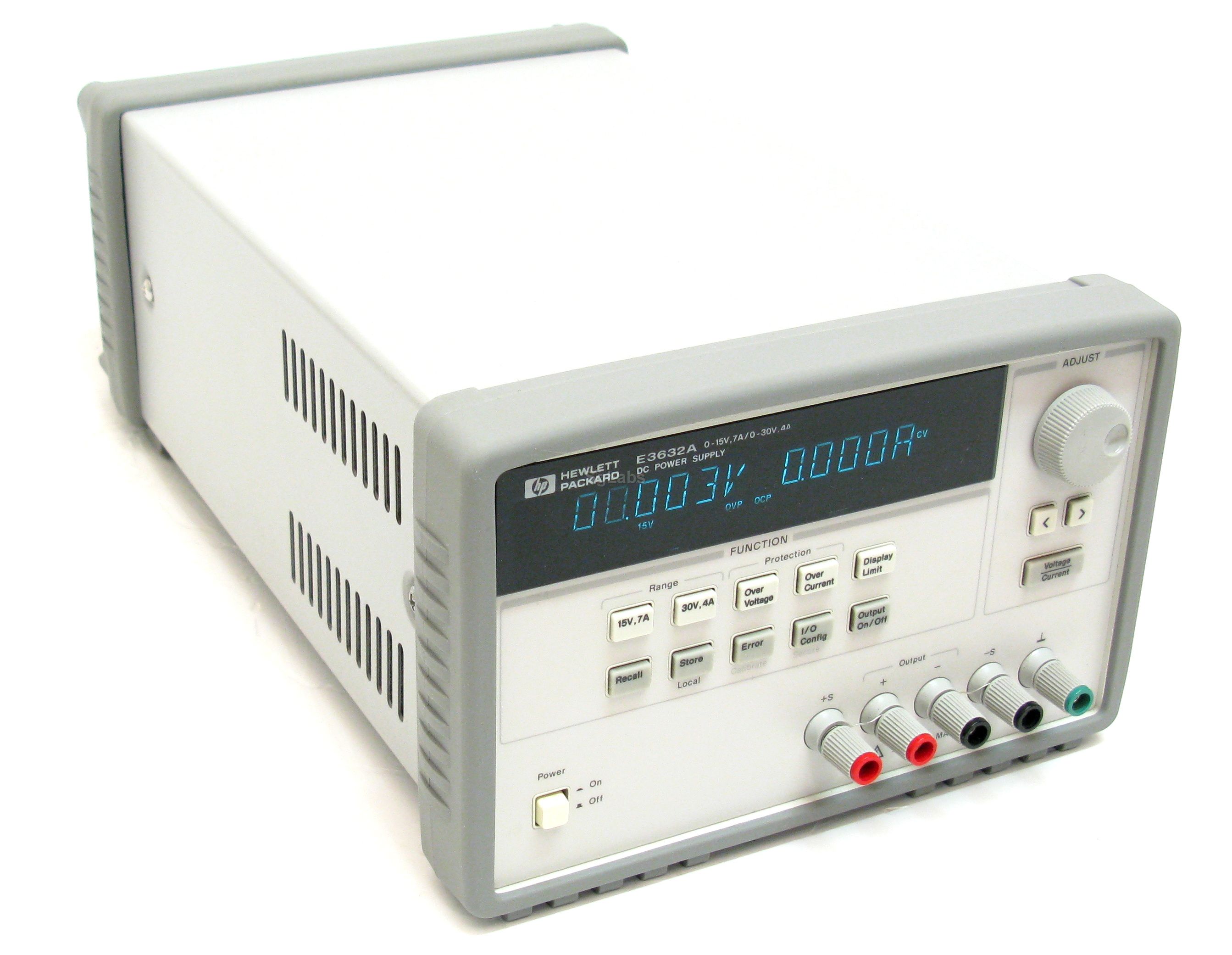

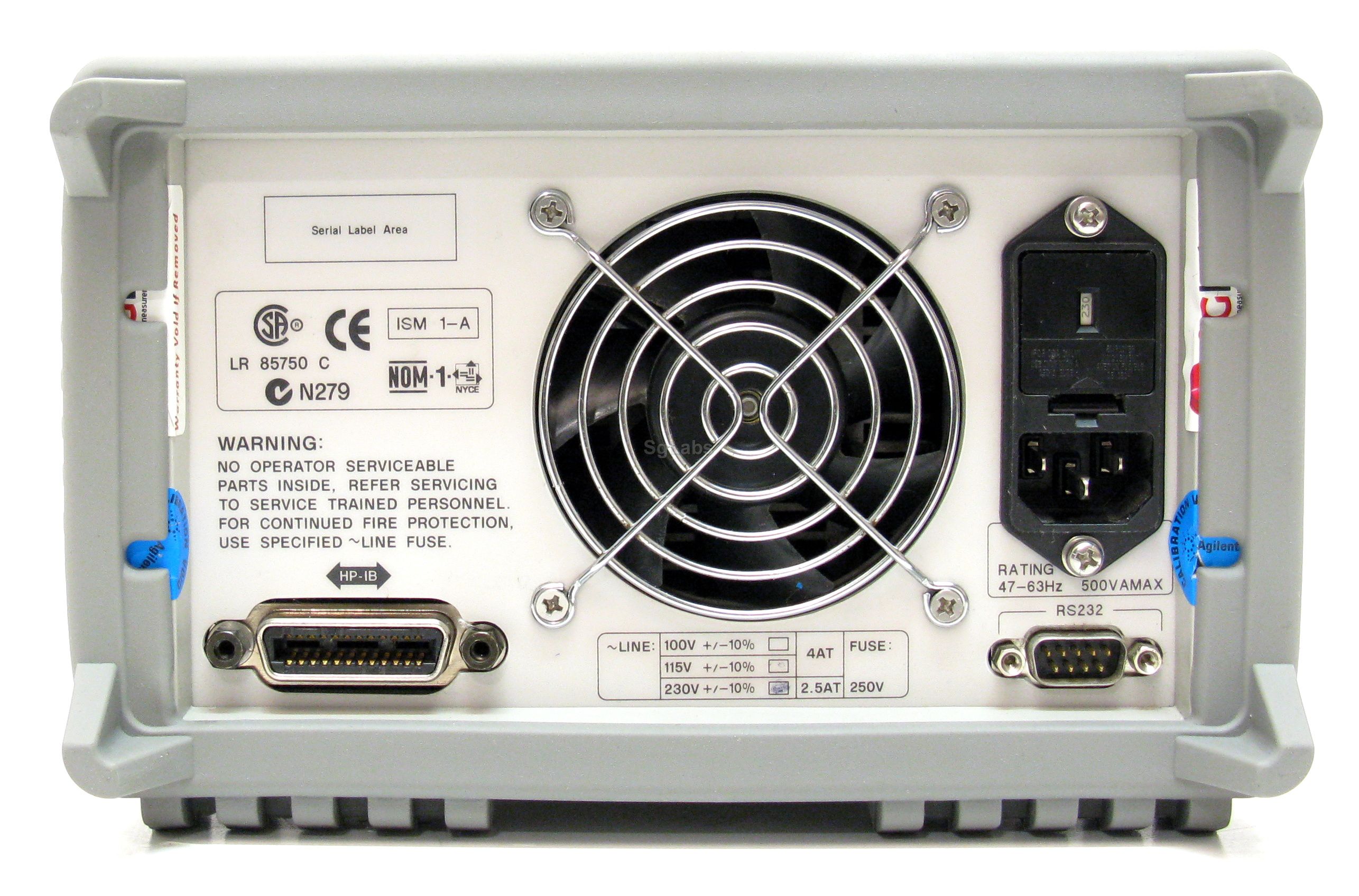

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Keysight basic DC power supplies offer essential features for a tight budget. The single output, 120-200 W, GPIB, E3632A-E3634A provide dual range outputs; small, compact size for bench use; low output ripple and noise; as well as built-in measurements and basic programmable features with GPIB and RS232 interface. The Keysight 120W, GPIB, single output E3632A is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.
Features

Output ratings

  • Range 1: 0 to 15 V, 7 A
  • Range 2: 0 to 30 V, 4 A

Programming accuracy at 25°C ±5°C

  • Voltage: 0.05% + 10 mV
  • Current: 0.2% +10 mA

Ripple & noise (20 Hz to 20 MHz)

  • Normal-mode voltage:
  • Normal-mode current:
  • Common-mode current:

Readback accuracy at 25°C ±5°C

  • Voltage: 0.05% + 5 mV
  • Current: 0.15% + 5 mA
  • Max current: 7A / 4A
  • Interface: GPIB
  • Max. Voltage: 15V / 30V
  • Min. Voltage: DC
Price
 € 450,00
