HP Agilent Keysight, 909A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

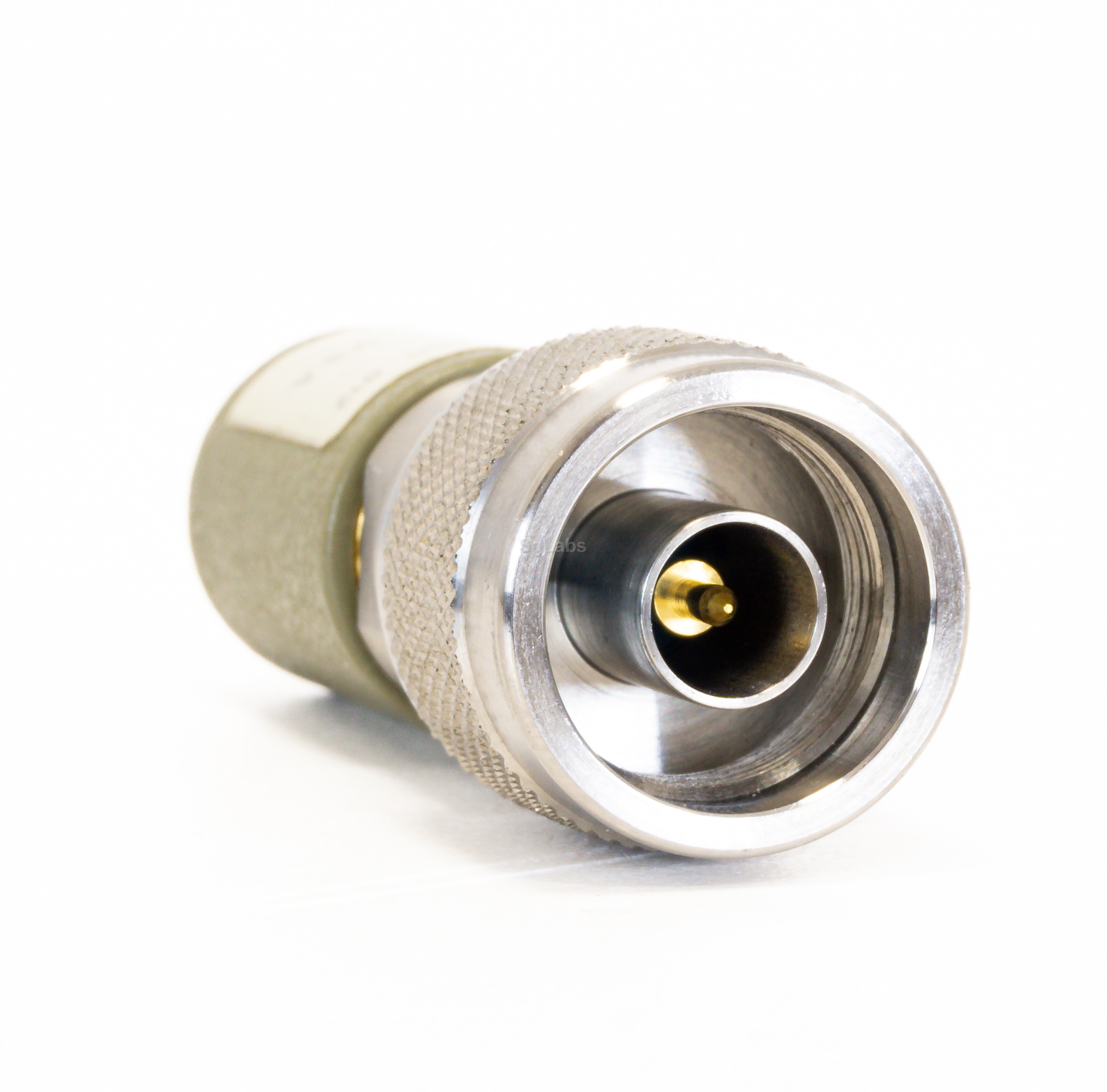

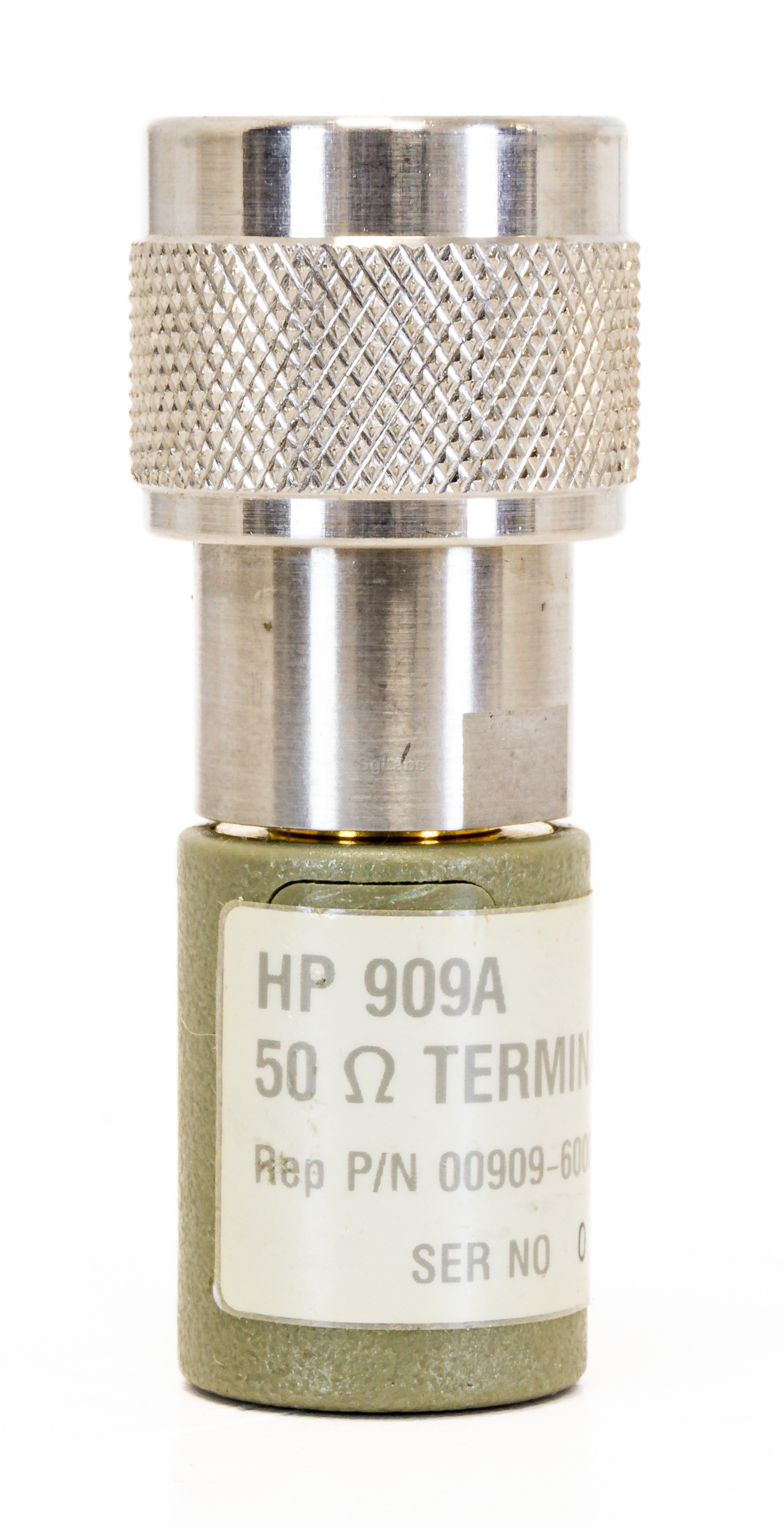

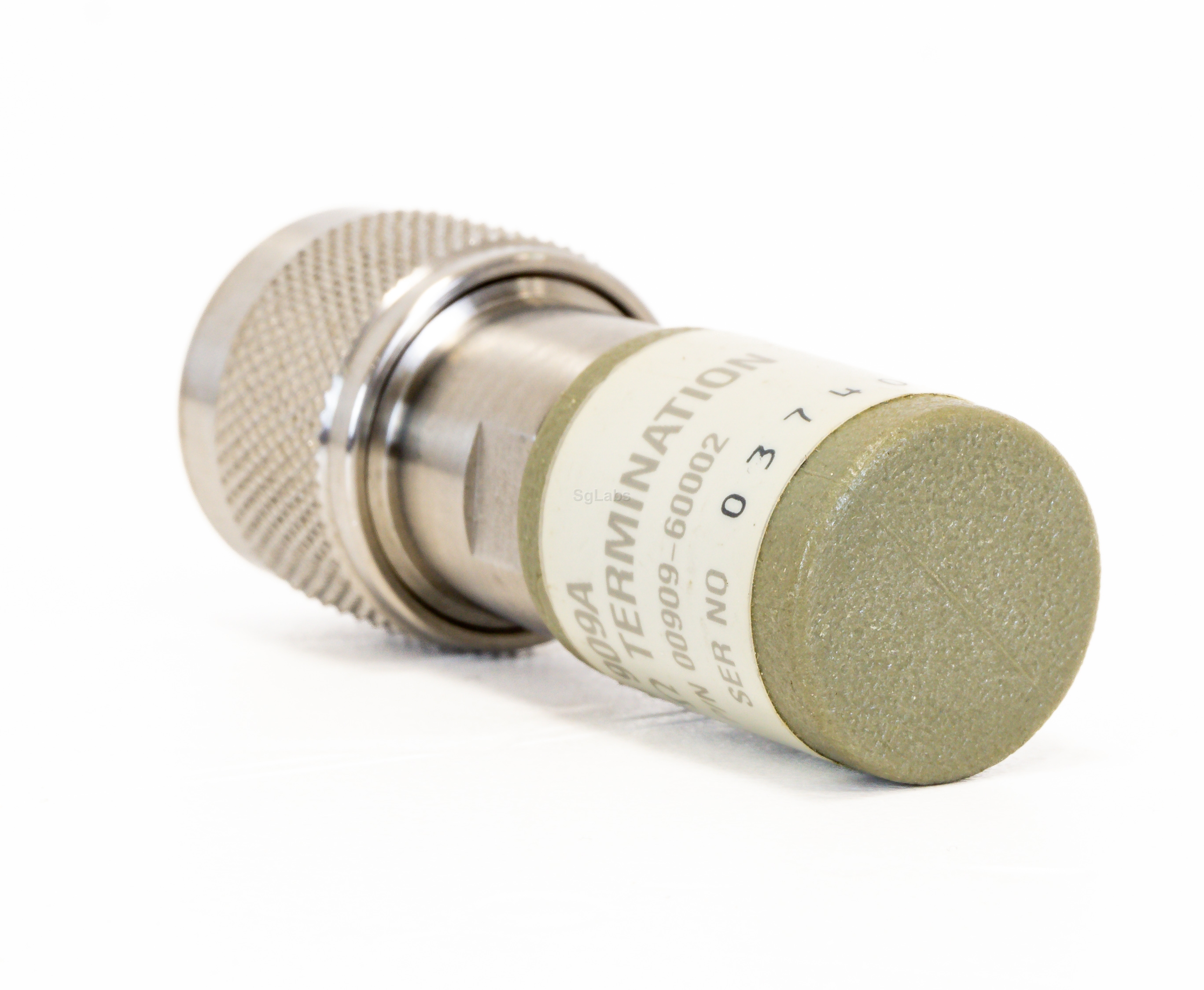

The Keysight 909A is a general-purpose, low-reflection load for terminating a 50-ohm coaxial system in its characteristic impedance over the dc to 18 GHz range. It is suitable for both broadband and narrowband measuring instruments. The Keysight 909A may be ordered with an APC-7, type-N female, or type-N male connector.
Features
  • Maximum SWR at 4 GHz, APC-7 (Type-N): 1.05 (1.06)
  • Maximum SWR at 12.4 GHz, APC-7 (Type-N): 1.10 (1.11)
  • Maximum SWR at 18 GHz, APC-7 (Type-N): 1.25 (1.30)
  • Maximum Power: 2 W avg/ 300 W peak
  • Max. Frequency: 18 GHz
  • Min. Frequency: DC
  • Max. power: 2W
Price
 € 120,00
