HP Agilent Keysight, 8970B

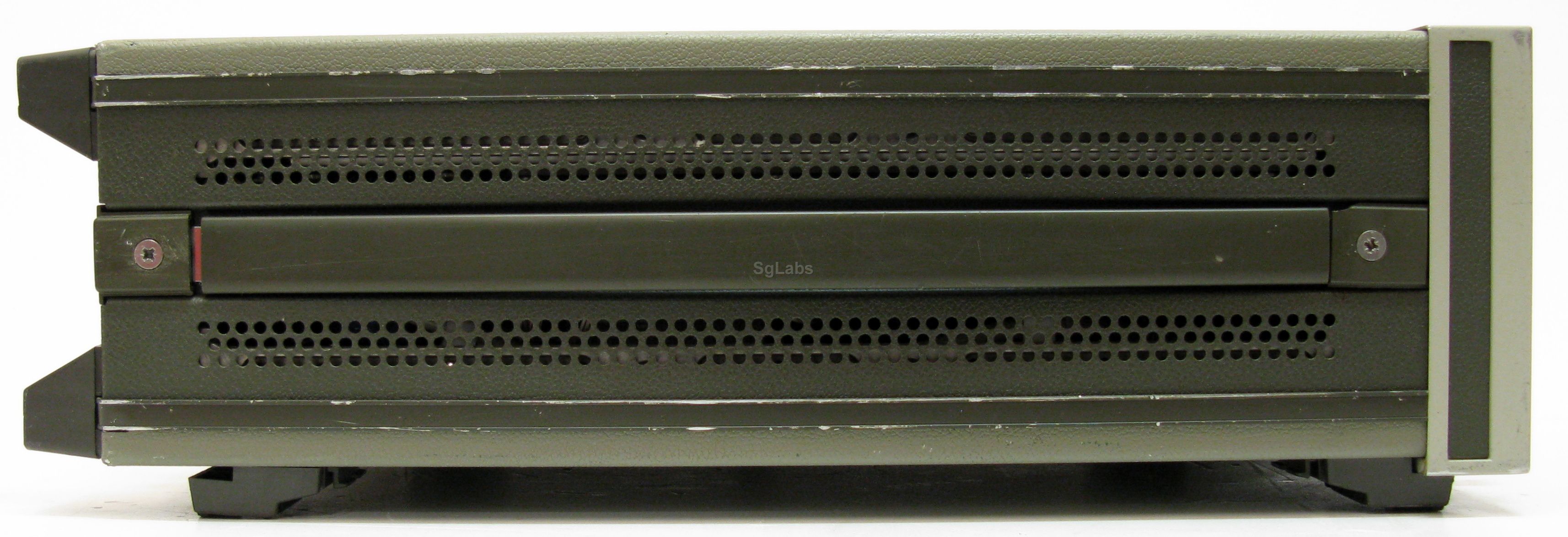

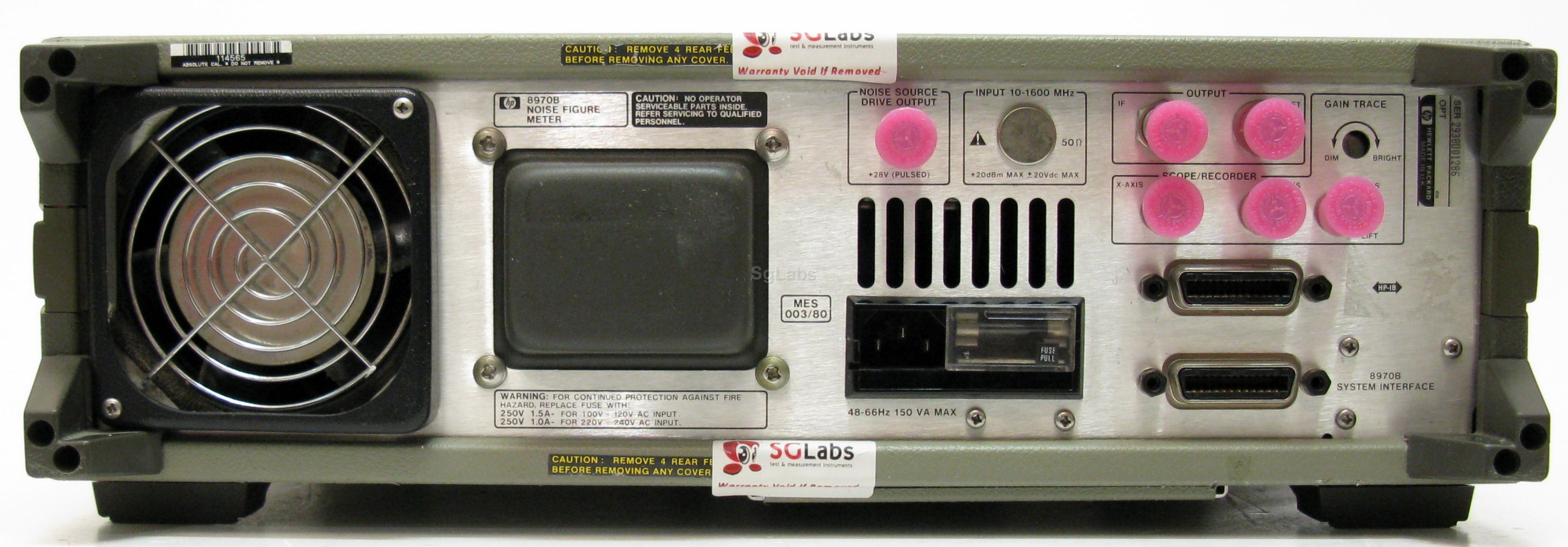

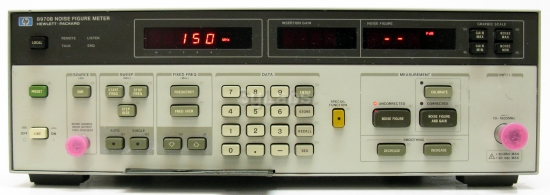

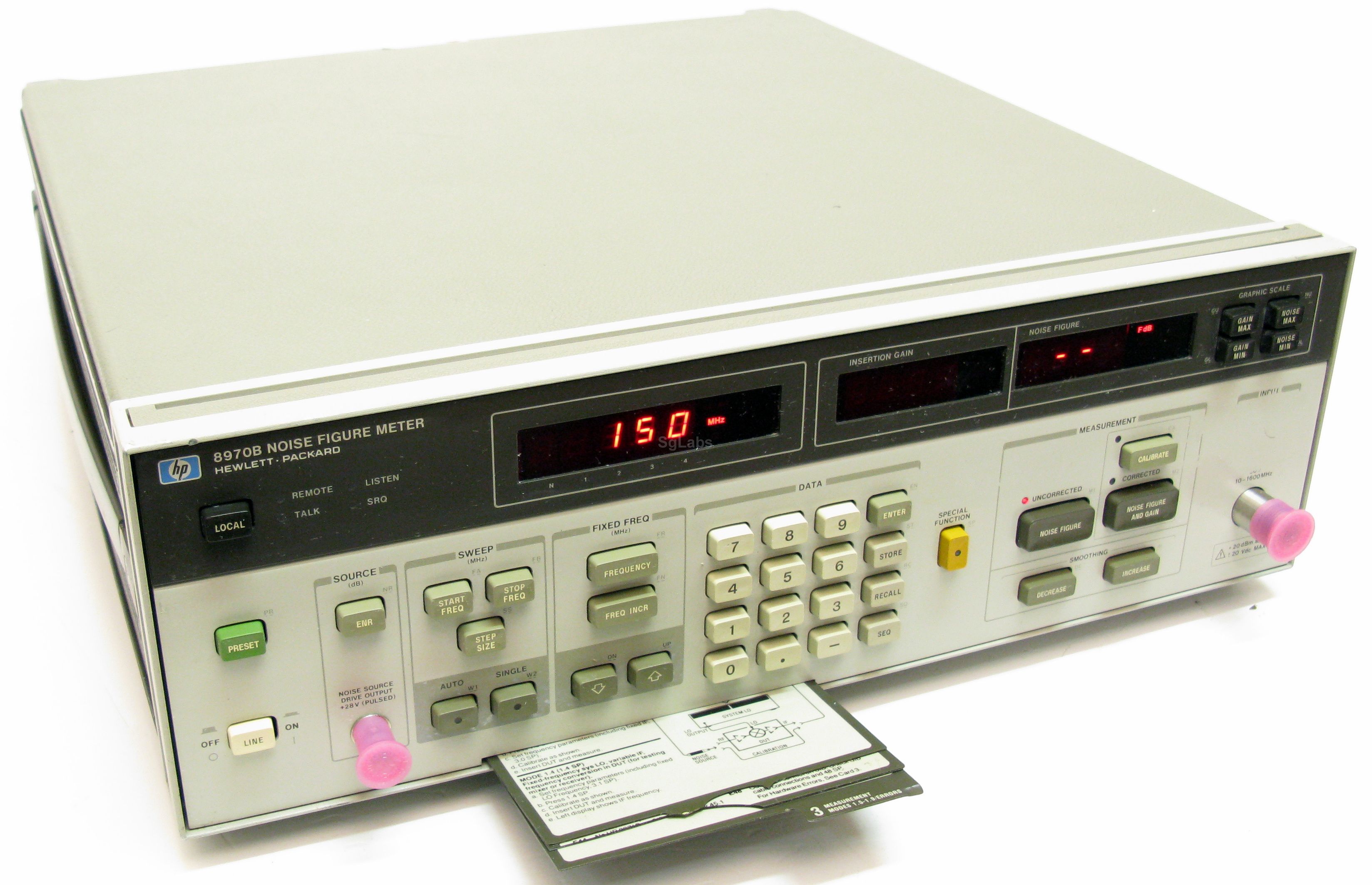

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The HP / Agilent 8970B noise figure meter takes the mystery out of noise figure measurements, making them easy, accurate and repeatable. The 8970B can be used with the 346x or 347x family noise sources. Low instrument uncertainty and automatic second-stage correction make it possible to make accurate noise figure readings, even for low-gain devices. The instrument has special measurement modes for mixer measurement and is capable of controlling external local oscillators and the 8971C noise figure test set.

The ENR calibration table of the noise source may be stored in the 8970B, and a properly interpolated value is automatically used at each frequency.

  • Frequency range: 10 MHz to 1.6 GHz
  • Noise figure measurement range: 0 to 30 dB
  • Gain measurement range: -20 to 40 dB
  • Frequency resolution: 1MHz
  • Max operating input level: -10dBm
  • HP-IB
  • Connector: N
  • Max. Frequency: 1600 MHz
  • Min. Frequency: 10 MHz
  • Gain Range: -20 to 40 dBm
  • NF Range: 0-30 dBm
