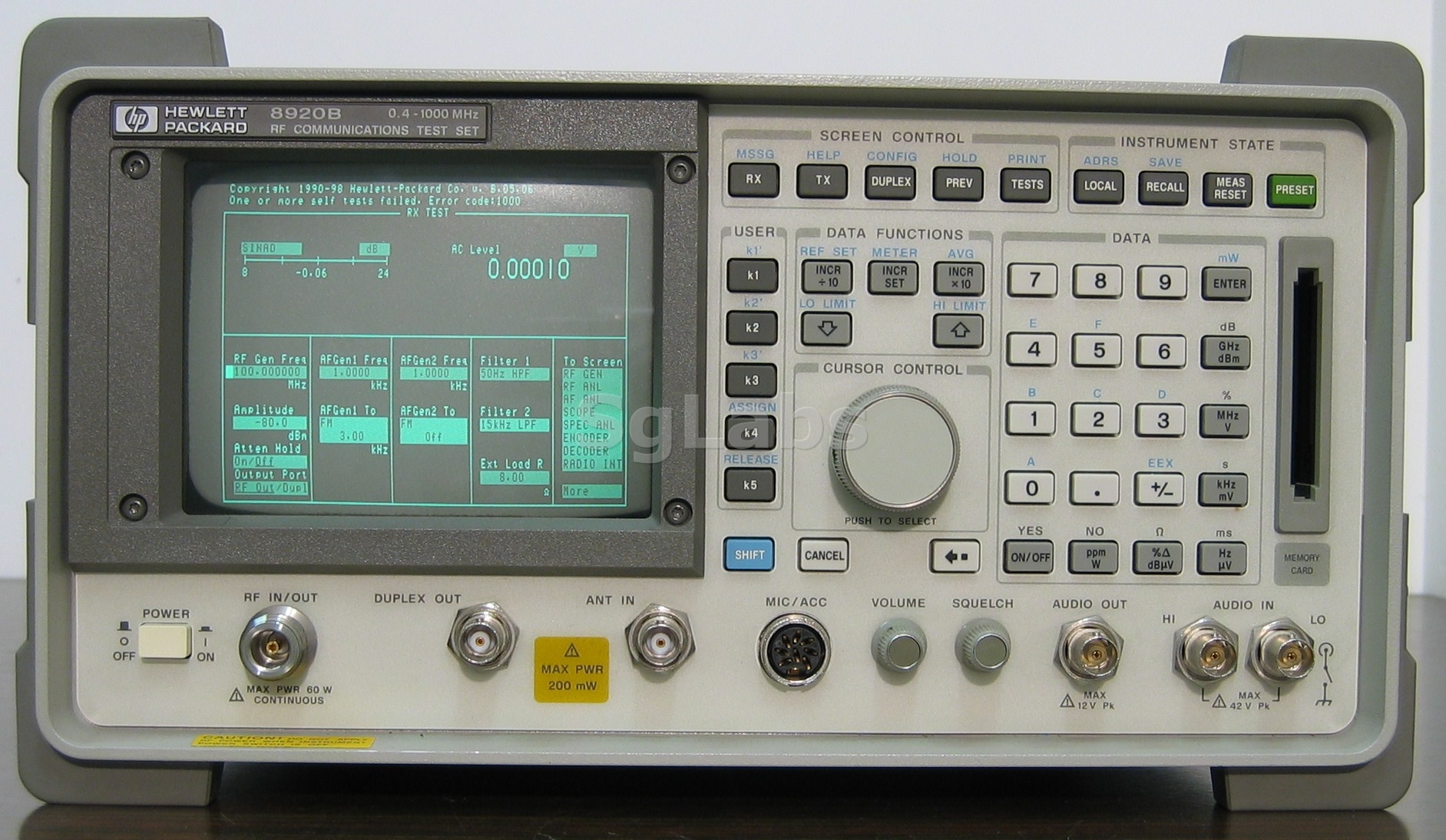

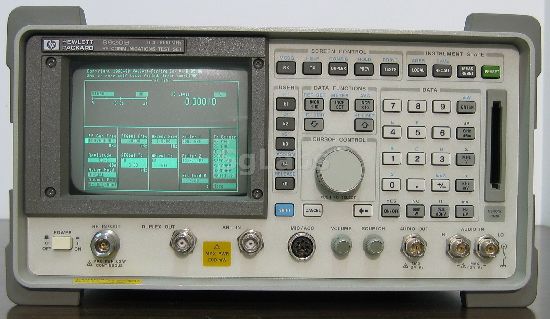

HP Agilent Keysight, 8920B

You are here: Test set - Communication Analyzer » Communication

ZOOM

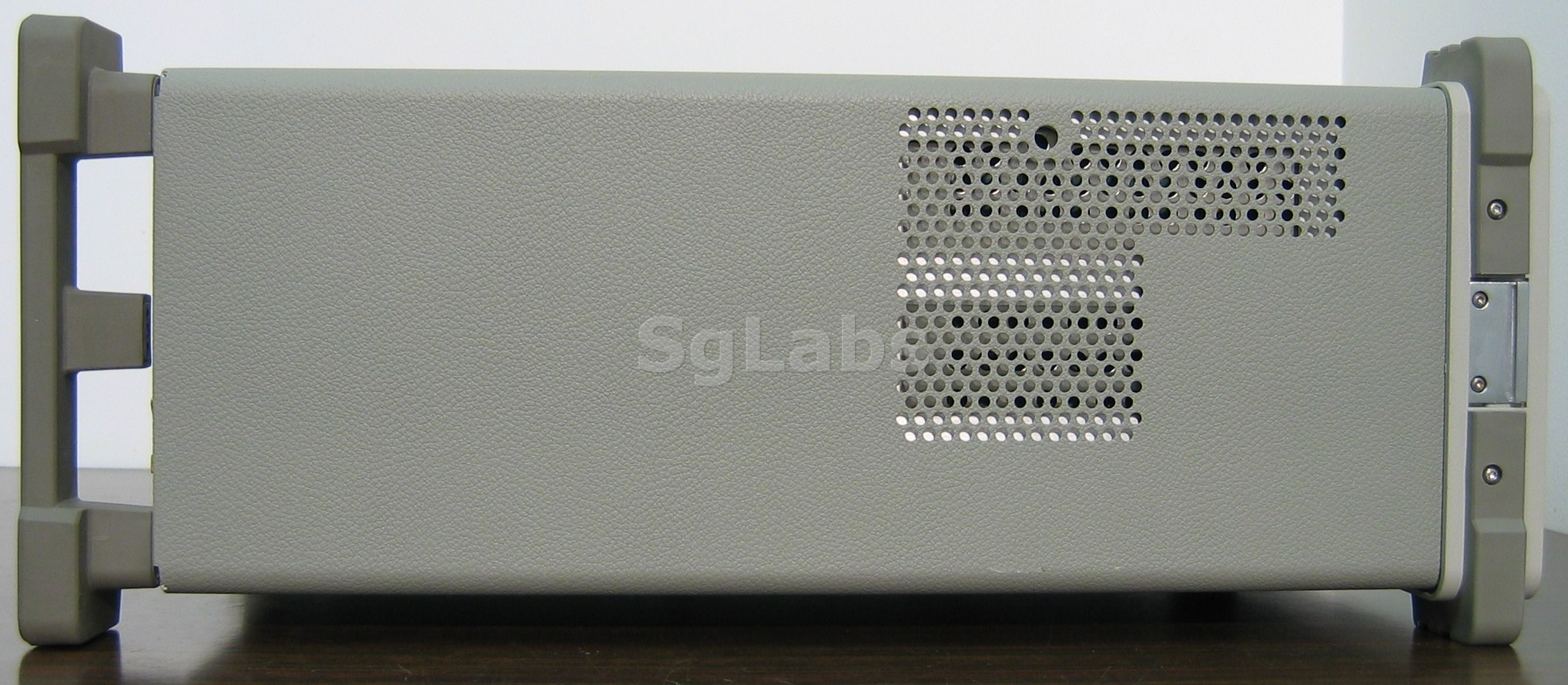

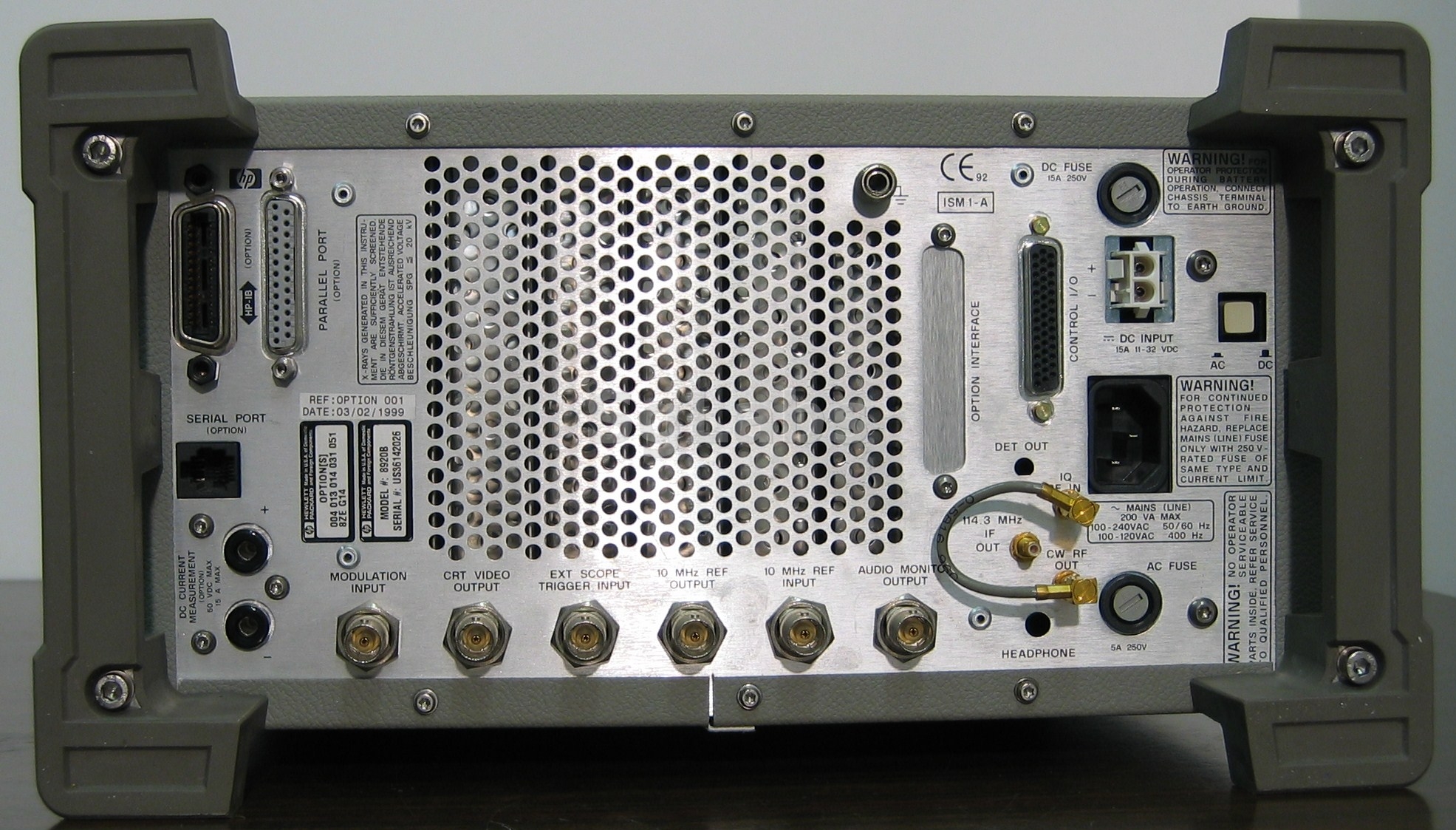

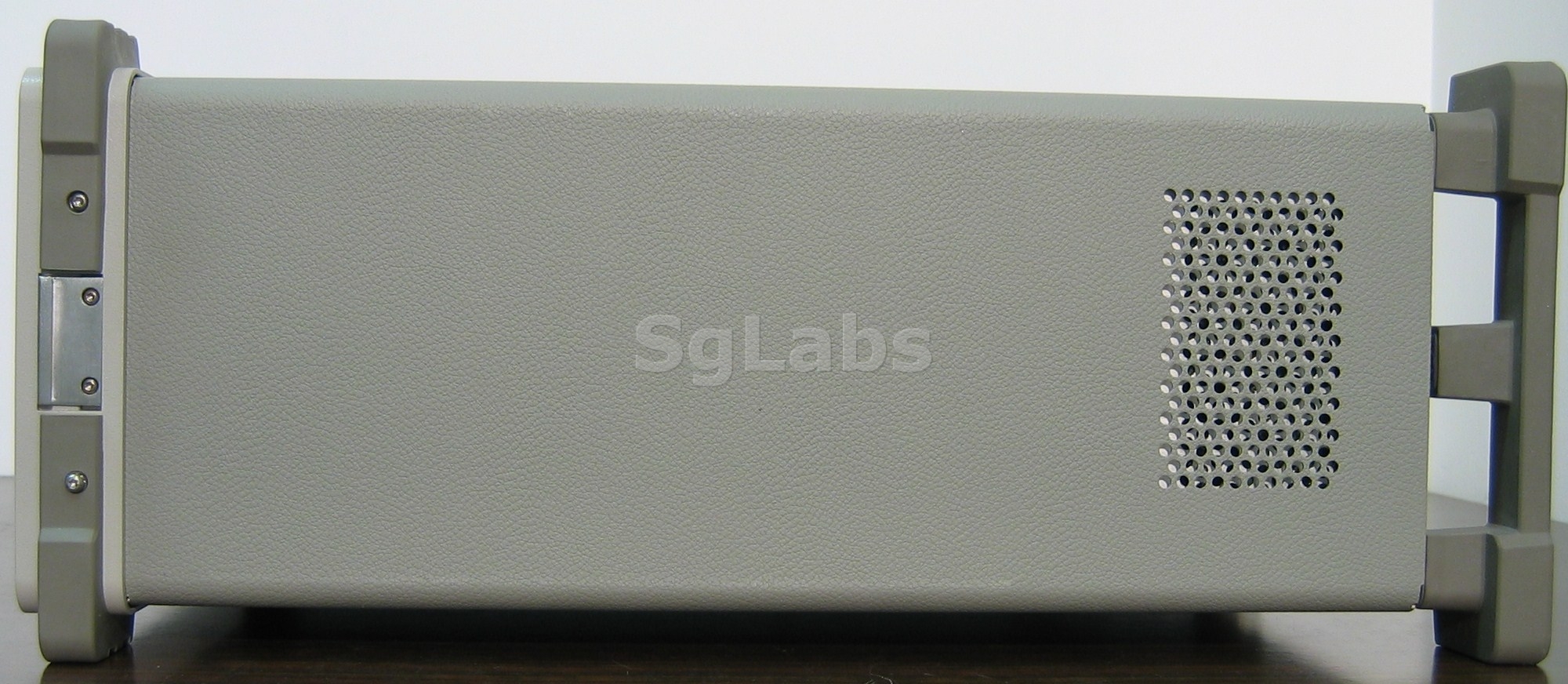

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.

Product description

The HP 8920B is a full-function RF test set with accuracy,speed, and flexibility for testing land mobile radios, cellular telephones, and other communications systems while improving throughput and quality in manufacturing.Here It's functions: RF/AF signal generators, AM/FM modulation analyzer, RF/AF power meter, Adjacent channel power meter, Oscilloscope, IBASIC controller, Signaling encoder/decoder, Function generator, AC/DC voltmeter, SINAD/SNR meters, DC current meter, High stability reference, IEEE 488.2/RS-232 interface e Centronics port.

Technical details:

• RF signal generators from 30 MHz to 1 GHz, resolution 1 Hz
• Output level -137 to 3.5 dBm (RF out - Duplex Out)
• Input max power 5W
• Modulation - demodulation AM - FM
• Audio source:
• Frequency range : dc to 25 kHz
• Output level: 0.1 mVrms to 4 Vrms
• RF Analyzer
• Measurement Range RF da 10 MHz a 1 GHz
• AF Analyzer
• Audio analyzer
• Voltage AC level meter
• Voltage DC level meter
• Distortion level meter
• SINAD

Installed options :

• 001 High Stability Timebase
• 004 Tone/Digital Signalling
• 006 10 W to 50 μW Power Measurement Range(designed to optimize the measurement range for
  cellular mobile station test)
• 011 CCITT Weighting Audio Filter
• 013 C-Message Weighted Audio Filter
• 014 6 kHz Bandpass Audio Filter
• 031 Delete Handle and Cover
• 051 Rear Panel Connectors for TDMA
• 800 Measurements for TDMA Option

• Dynamic range spectrum analyzer: included
• Max. Frequency: 1 GHz
• Min. Frequency: 30 MHz

Download datasheet: HP8920B_Specifiche.pdf (965 kb)
