HP Agilent Keysight, 8756A

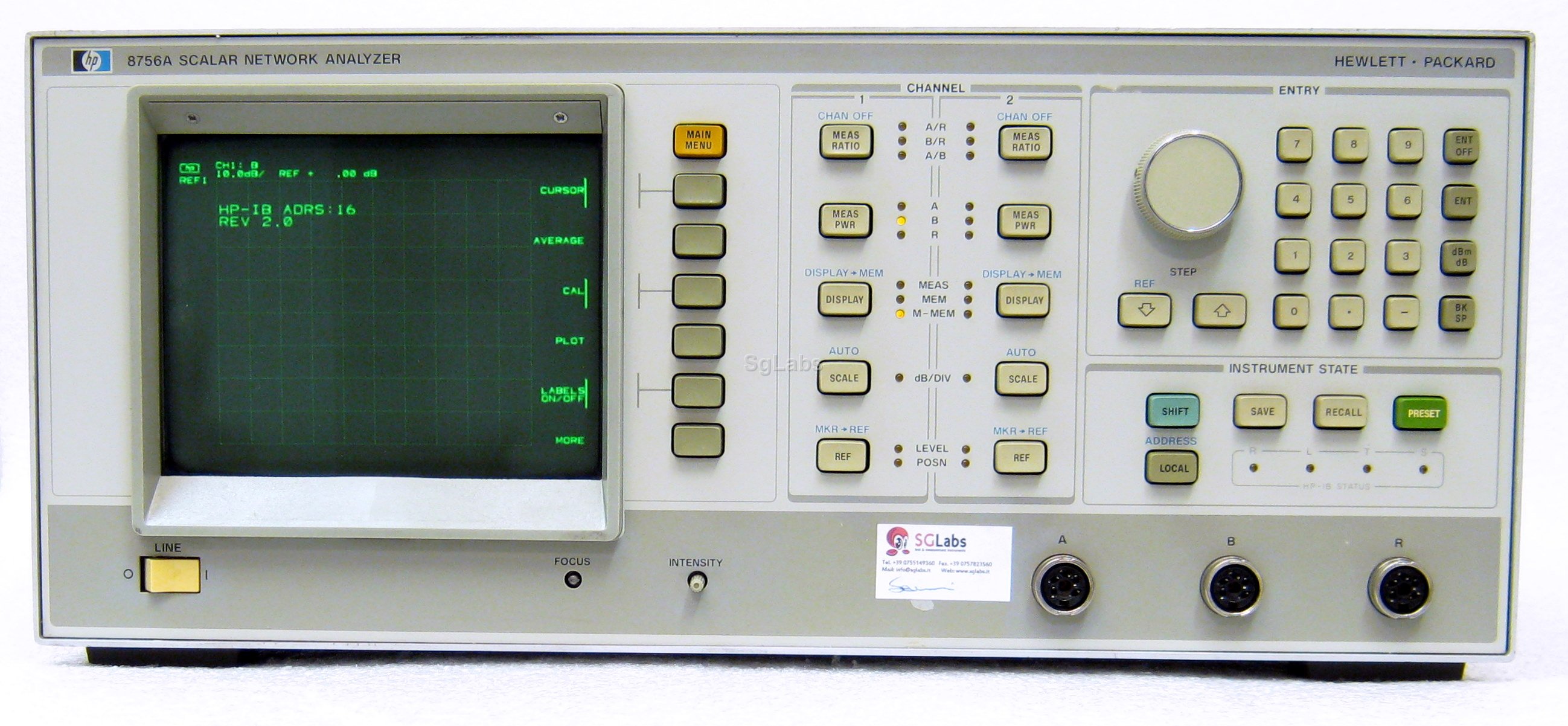

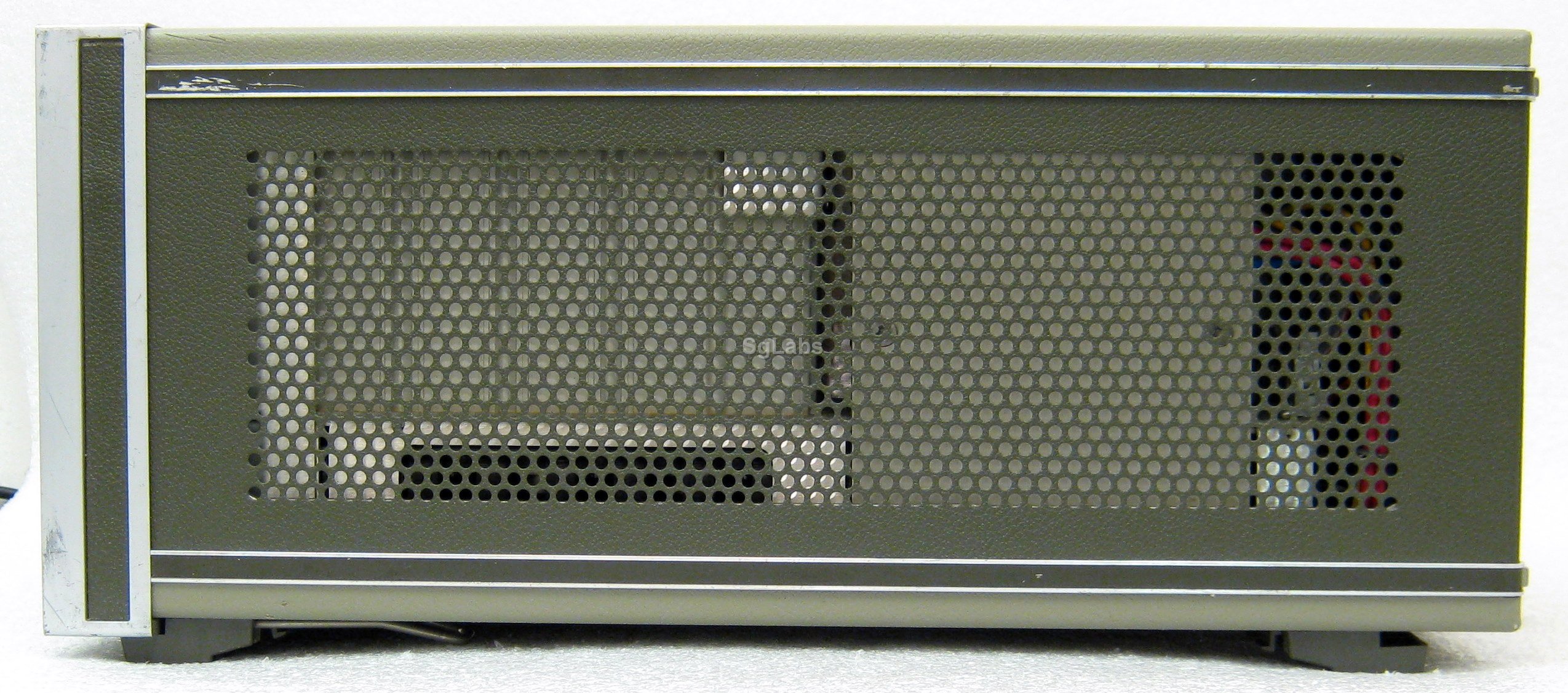

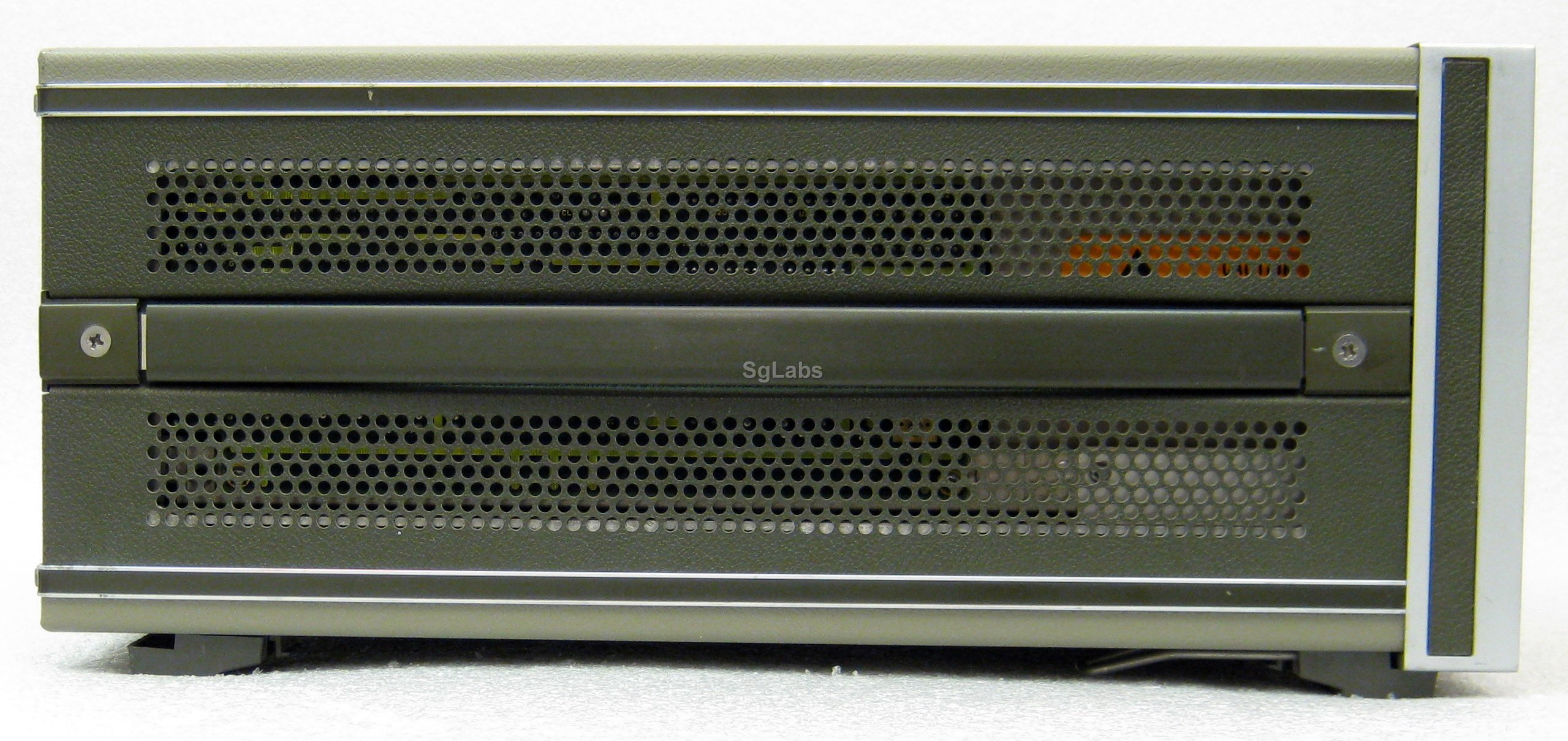

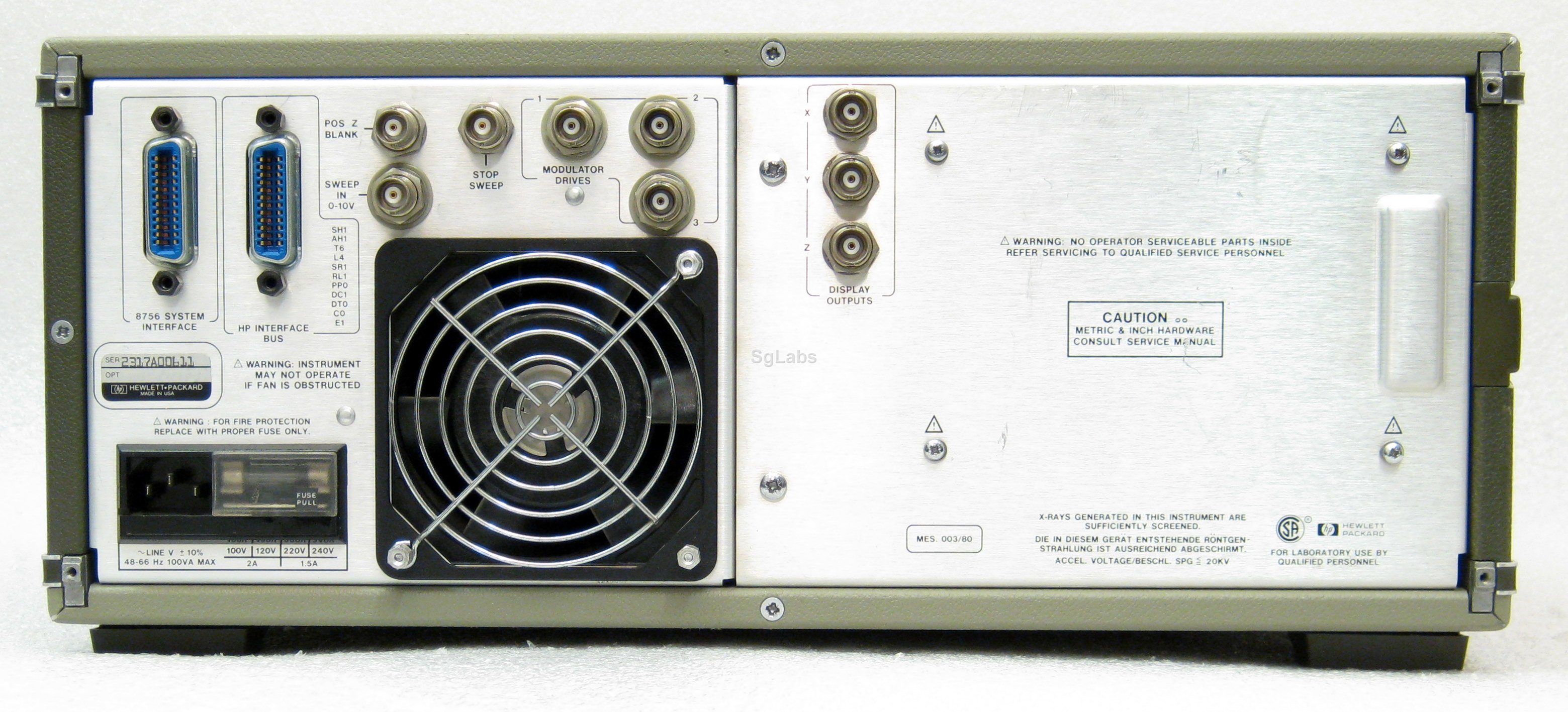

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The 8756A is a Scalar Network Analyzer using 11664-series detectors and 85027-series Reflectometer Bridges. It contains an independent gpib controller designed to control an 8350B Sweep Oscillator mainframe and 835xx-series RF Plug-in. Available modulator outputs permit the use of 8340/8341-series synthesizers for enhanced frequency accuracy. The system operates from 10 MHz to 40 GHz, depending upon detectors and bridge selected. It has three channels for independent or ratioed measurents over a 60 dB dynamic range. It is suitable for performing scalar measurements of components or networks.

Technical details :

  • Frequency range 10 MHz to 40 GHz (Accordind sensors not included)
  • Number of Channels: 3
  • Dynamic Range: 60dB
  • Up to 401 mesurement points
  • Display CRT


  • Max. Frequency: 40 GHz
  • Min. Frequency: 10 MHz
  • Channels: 3
 € 850,00
