HP Agilent Keysight, 8753D

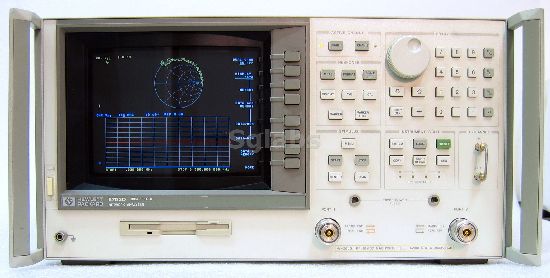

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
HP 8753D network analyzer provides affordable excellence in RF network measurement for the lab and production testing. It has an integrated S-parameter test set for longer-lasting calibrations, exceptional reliability, and improved resistance to ESD. The HP 8753D gives you a complete solution for characterizing active or passive networks, devices, or components from 30 kHz to 3 GHz--with a cost savings over the previous model with a test set.

  • 30 kHz to 3 GHz (or to 6 GHz w/Option 6 Frequency Extension)  frequency range
  • Integrated S-parameter test set
  • Integrated 1-Hz resolution synthesized source
  • Optional time-domain and swept-harmonic measurements
  • Up to 110 dB of dynamic range
  • Group delay and deviation from linear phase
  • Save/recall to built-in disk drive. Built-in accuracy enhancement

  • Connector: APC-7
  • Max. Frequency: 3 GHz (6 GHz opt.006)
  • Min. Frequency: 30 KHz
  • Channels: 2
  • Source: internal
  • Test set: S-parameter
