HP Agilent Keysight, 8752C

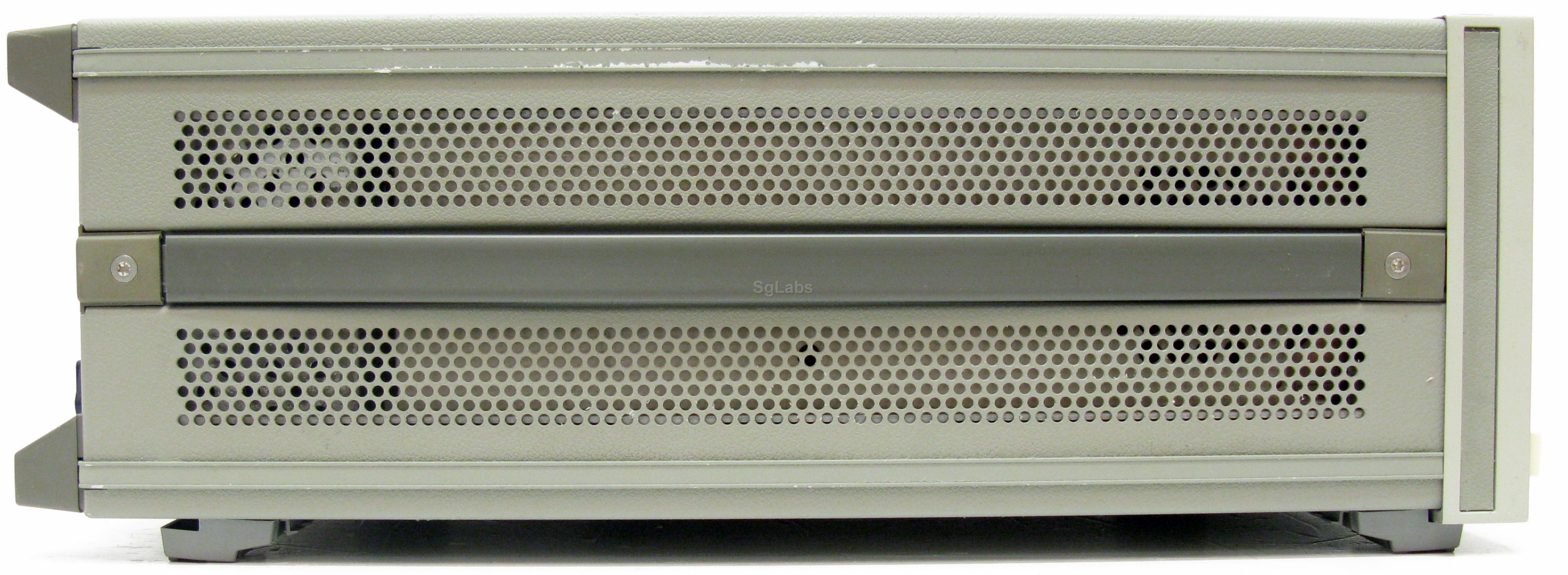

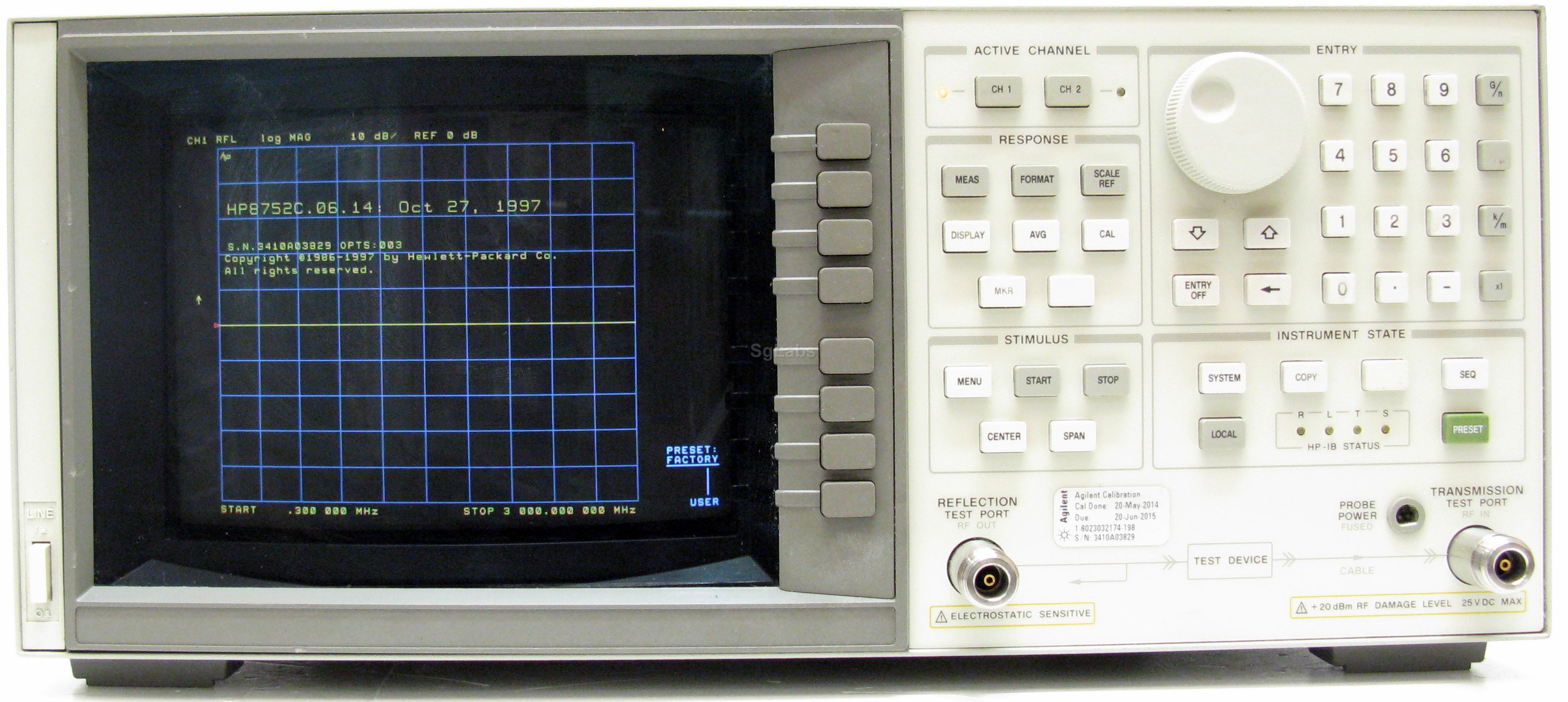

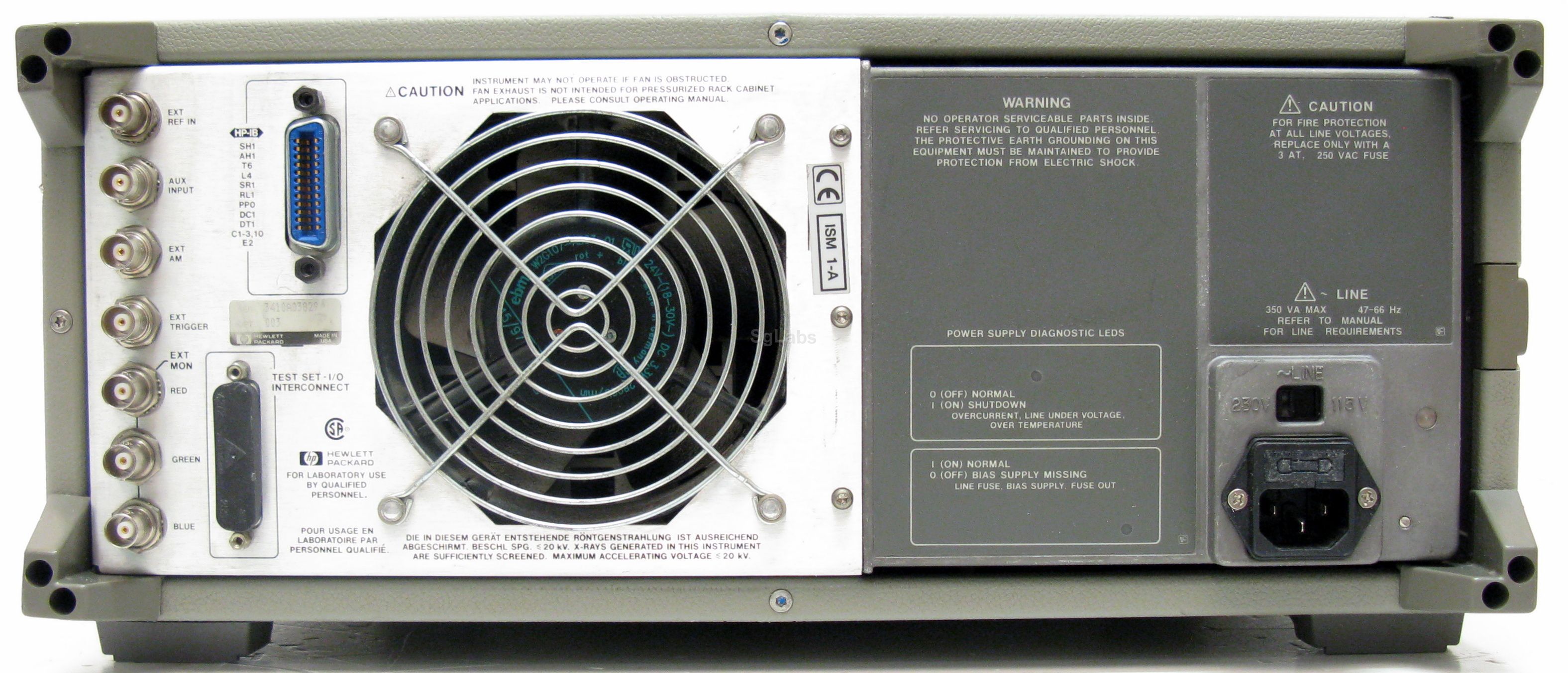

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The affordable 8752C network analyzer provides outstanding performance and numerous productivity features to simplify and speed your component measurements in the 300 kHz to 6 GHz frequency range.

The 8752C vector network analyzer measures the transmission and reflection characteristics of devices and networks by applying a known swept signal from a synthesized source. The test signal is separated from incident signals by a fully integrated test set. The response is displayed in a variety of useful formats. The 8752C easily and quickly measures a device’s reflection coefficient, return loss, phase, gain, isolation, group delay, and deviation from linear phase in transmission.

The 8752C not only provides magnitude and phase information, but also offers up to 110 dB dynamic range, makes group-delay and time-domain measurements, and uses vector accuracy enhancement to minimize measurement uncertainty.

  • Built-in test set for transmission and reflection measurements
  • Optional step attenuator for extended source output power range
  • Pass/fail testing, interpolative error correction, test sequencing
  • Softkey measurement functions for rapid testing
  • Frequency Range: 300 kHz -  3 GHz (Opt. 003)
  • Built in Test Set
  • Source Power Range: -20 / + 5 dBm (without attenuator)
  • 2 channels

Option available on request

  • Opt.010: Time domain
  • Connector: N
  • Max. Frequency: 3 GHz ( opt.003)
  • Min. Frequency: 300 KHz
  • Channels: 2
  • Test set: Trasmission Reflection
  • Interface: GP-IB
