HP Agilent Keysight, 8720A

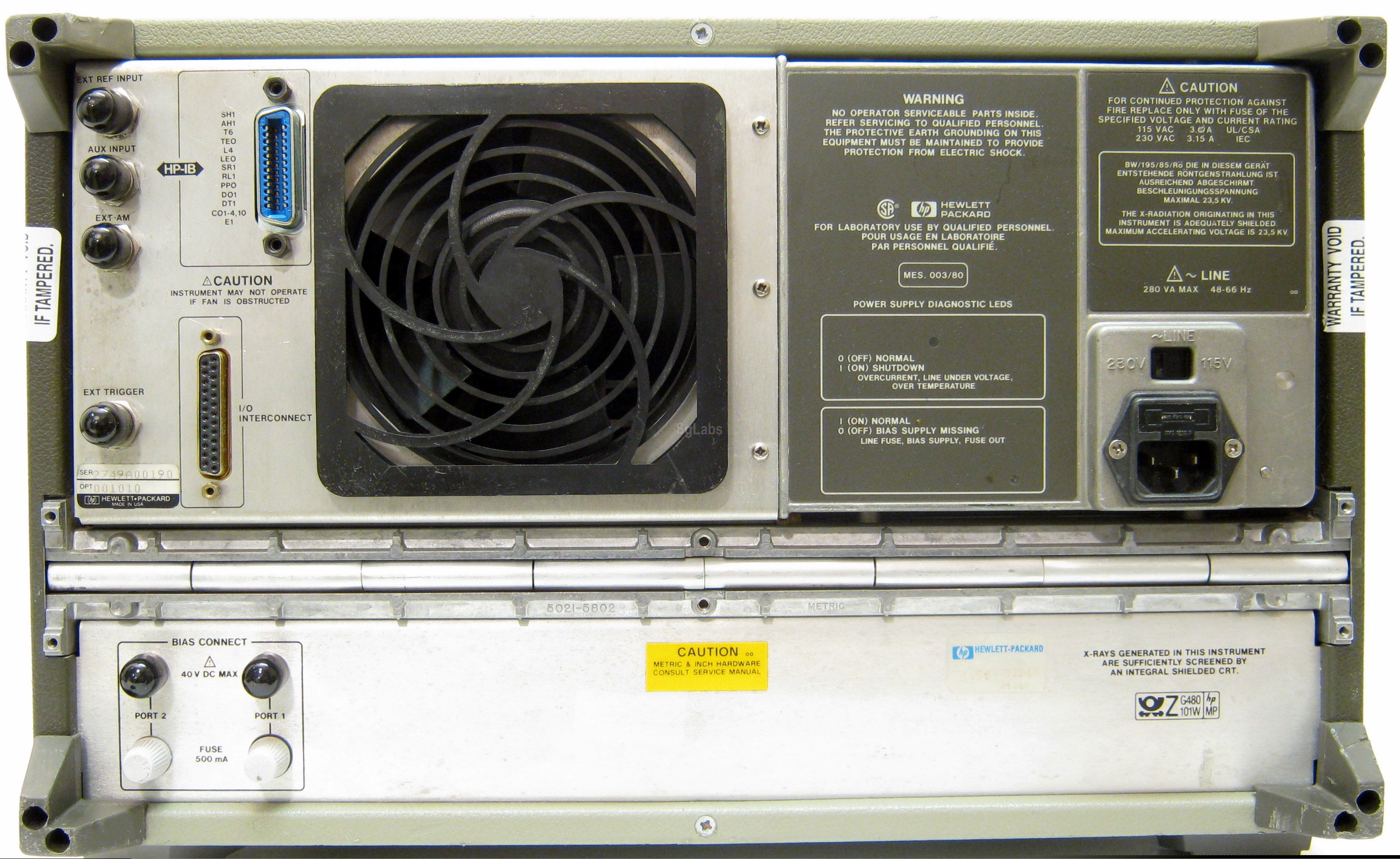

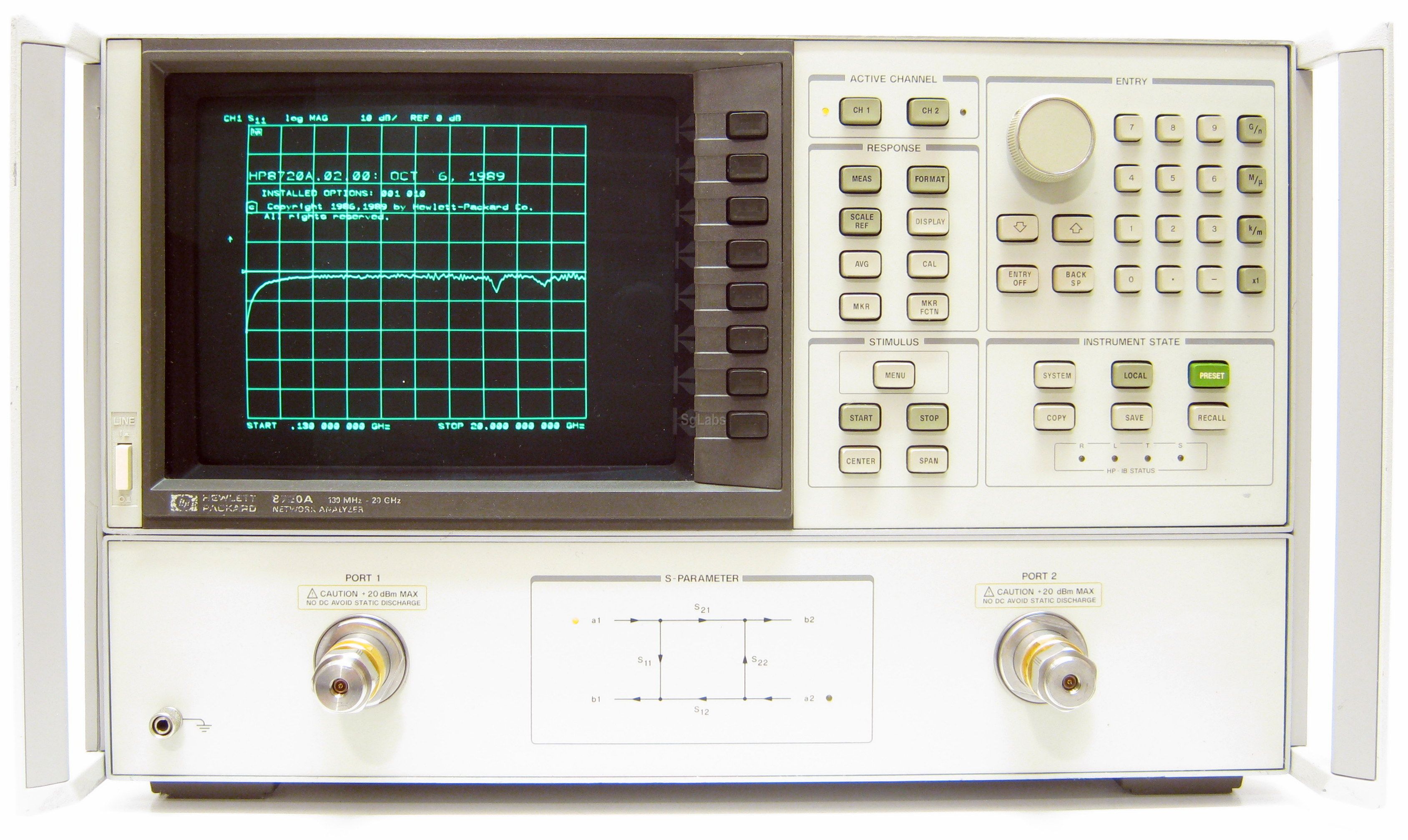

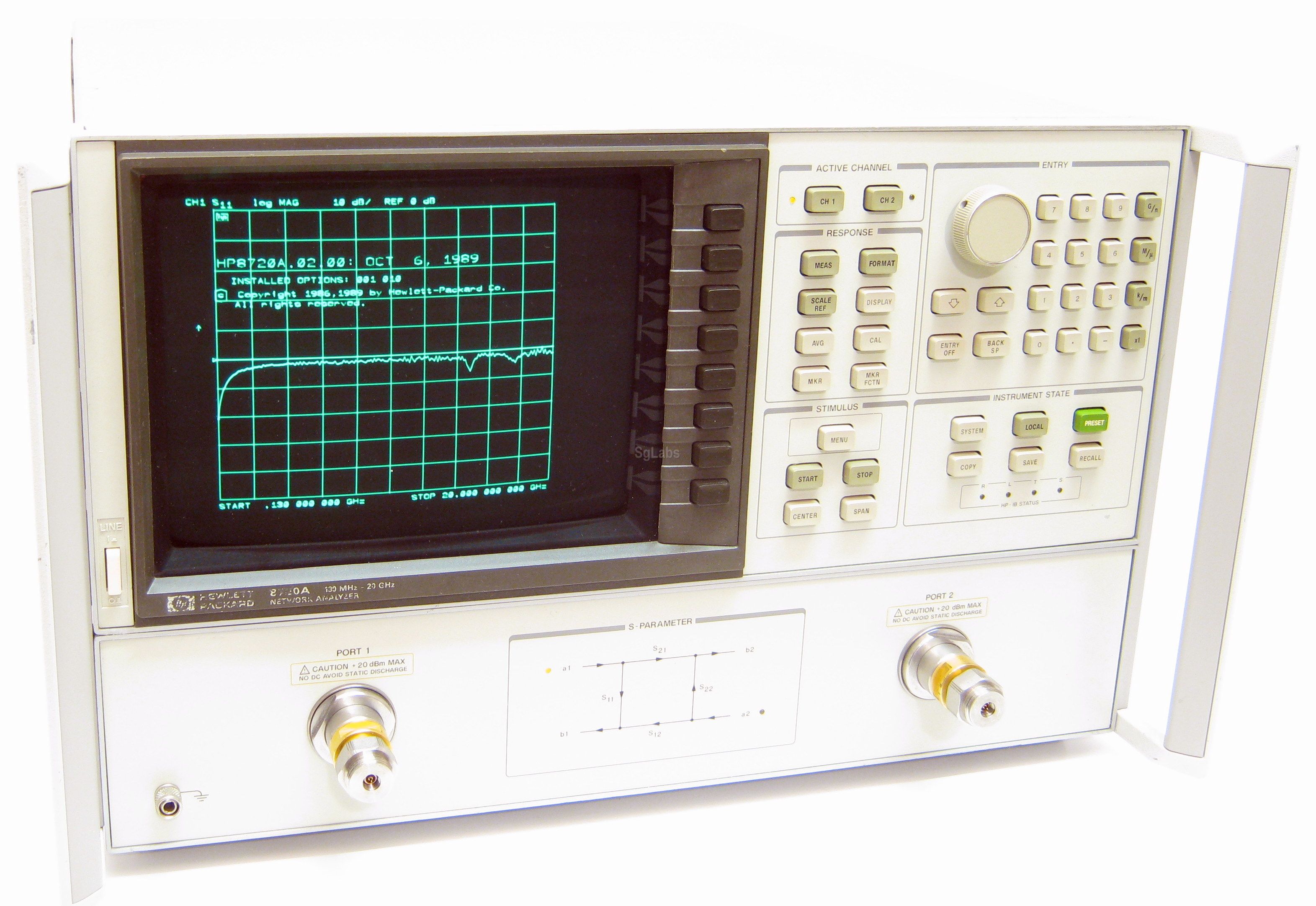

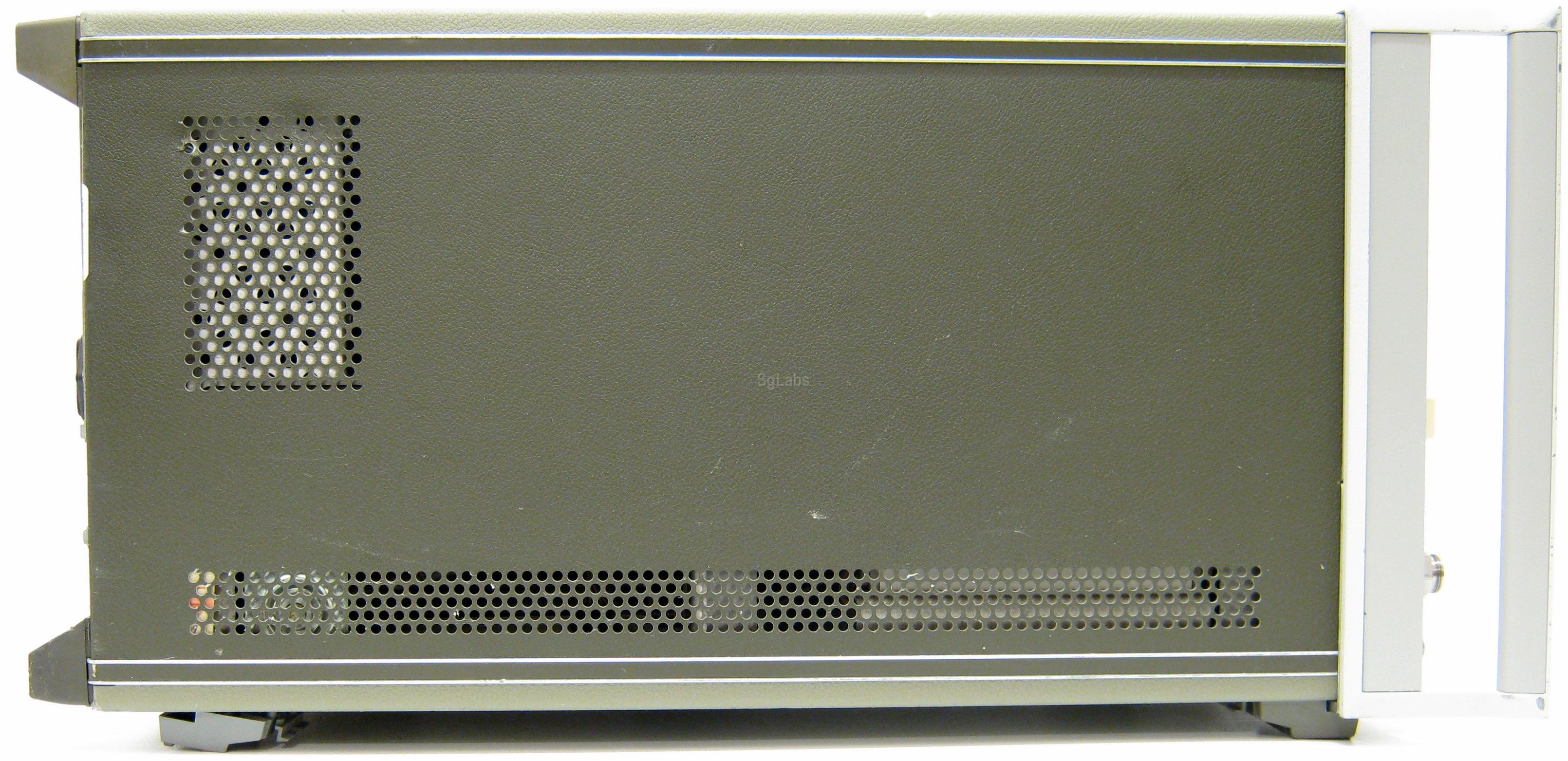

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
HP Agilent 8720A Microwave Network Analyzer provides both simple and complex vector network measurements in a single integrated instrument. Frequency range covered by the unit is from 130 MHz to 2 0 G H z . This unit includes a built-in integrated synthesized source and switching S-parameter test set. Dynamic range is greater than 85 d B . The 8720A also includes built-in vector accuracy enhancement. Two independent display channels are available. Data can be displayed in log magnitude, linear magnitude, SWR, phase, group delay, polar, real or Smith Chart formats. The HP8720A is completely programmable from an external computer using the HP-IB bus. There is a direct/save feature to an external disk drive.

  • Frequency range 130 MHz - 20 GHz
  • Frequency resolution 1 Hz (Opt.001)
  • Integrated transmission/reflection test set
  • Color display
  • Output power range -65 to - 10 dBm
  • Opt.010: Time Domain Capability
  • HP-IB interface
  • 3.5mm connectors
  • Connector: 3.5 mm
  • Max. Frequency: 20 GHz
  • Min. Frequency: 130 MHz
  • Channels: 2
  • Source: internal
  • Test set: S-parameter inside
