HP Agilent Keysight, 8719C

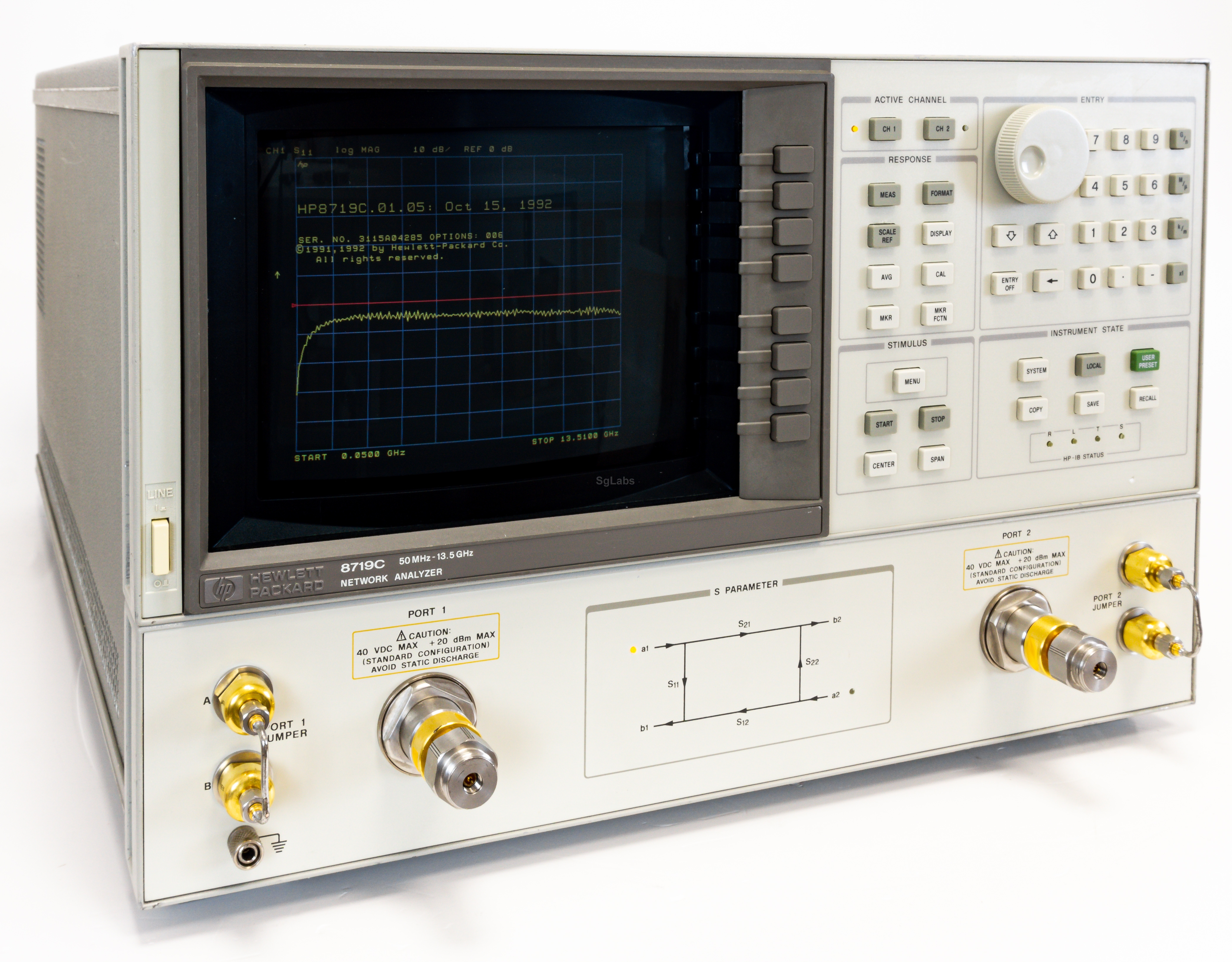

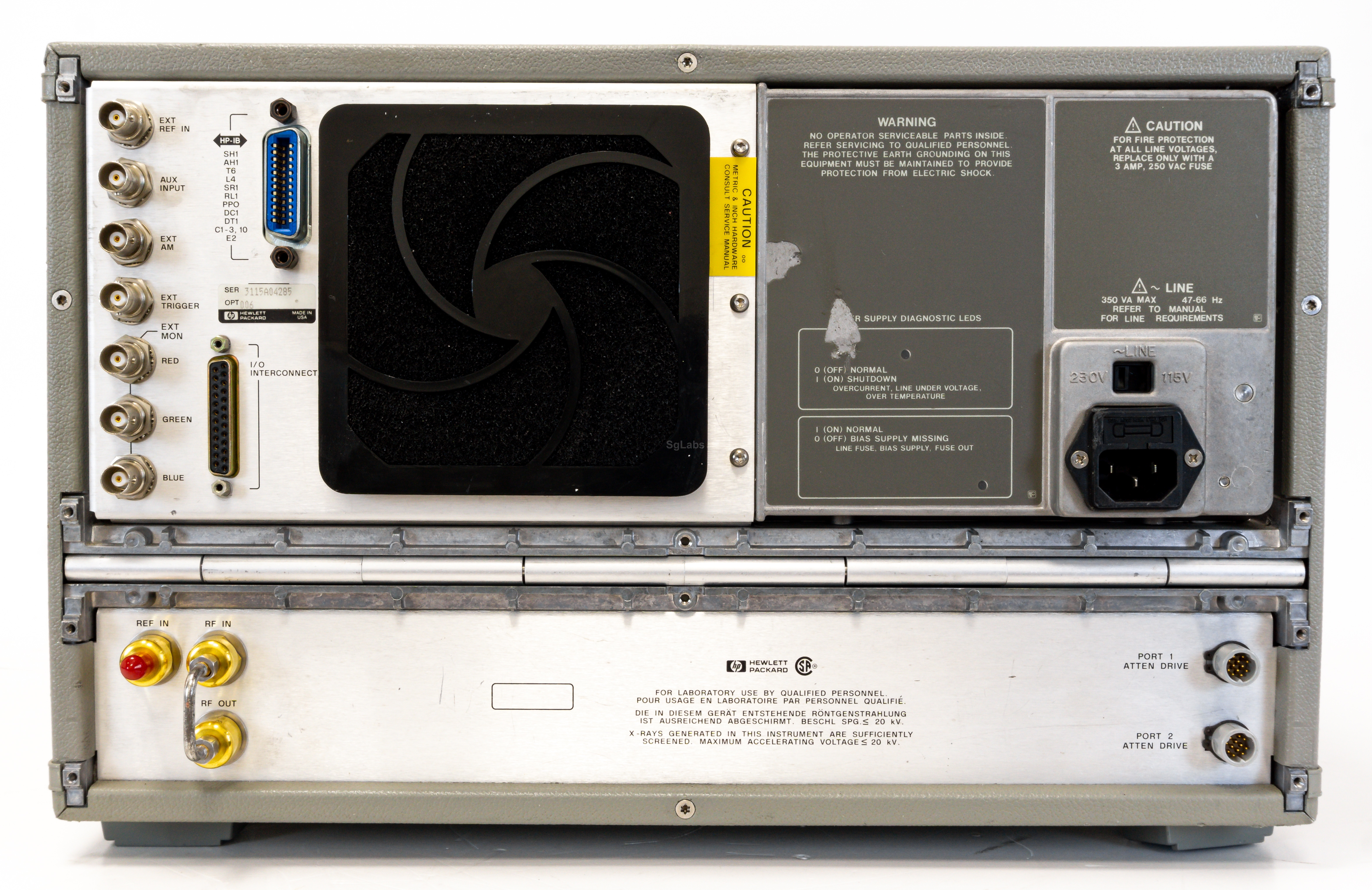

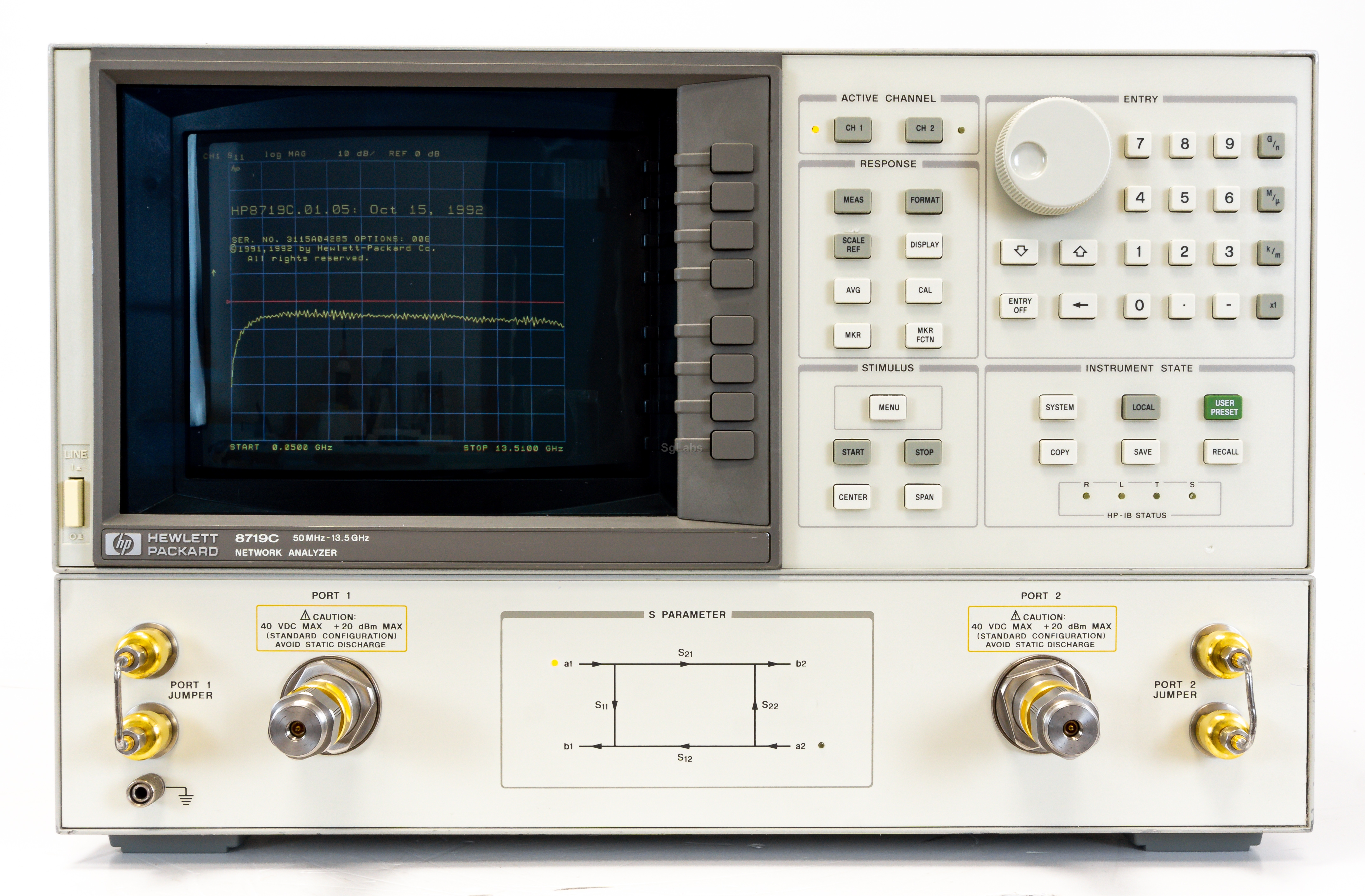

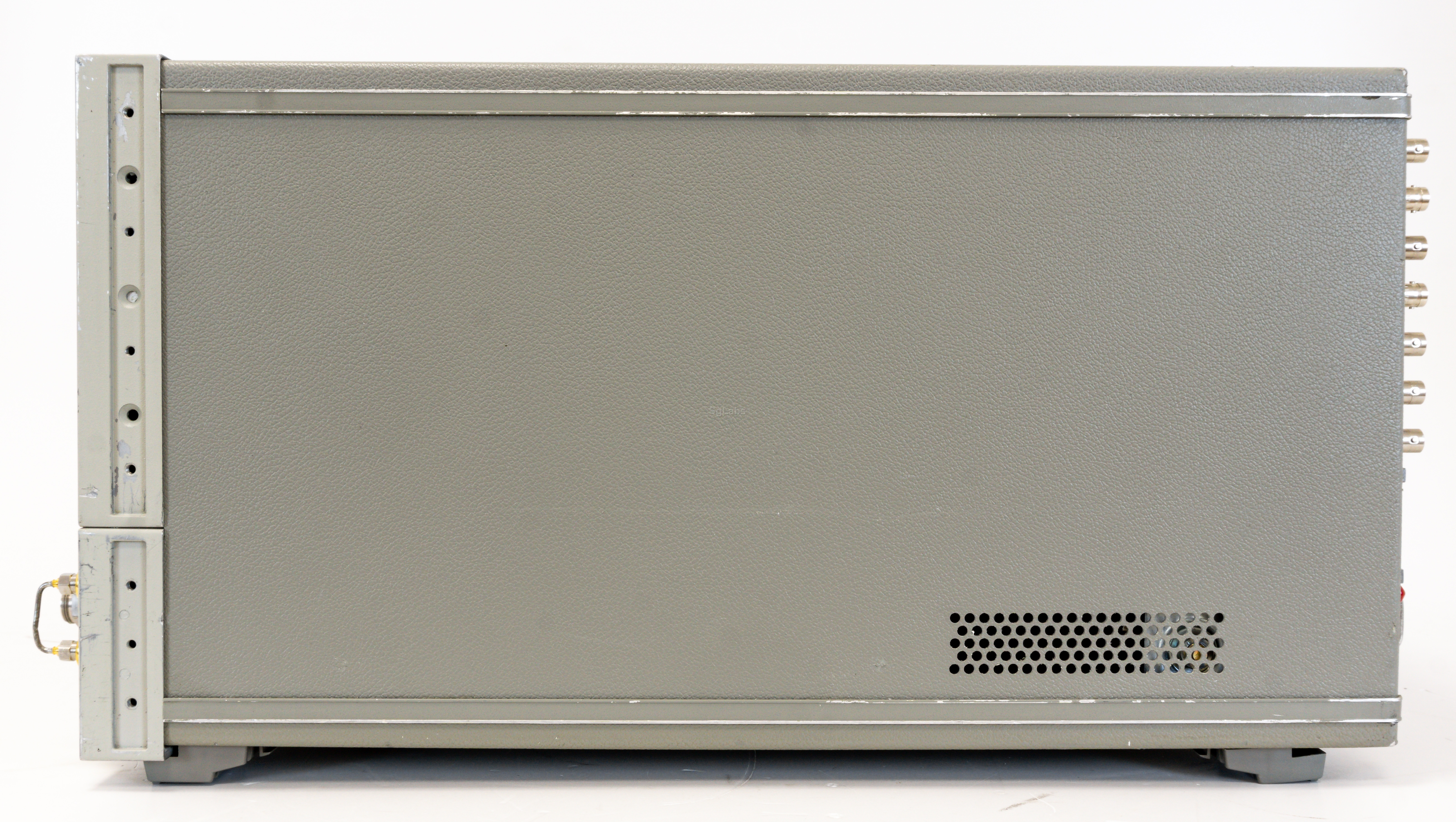

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
ThE Agilent HP 8719C, Network Analyzer, includes a fast-sweeping synthesized source, S-parameter test set, tuned receiver, and large color display in a single package.

The HP Agilent 8719C, Network Analyzer, is an ideal choice for cost- and space-conscious engineers in research and development, manufacturing, incoming inspection, or quality assurance.

Product Specs:
  • Fast-sweeping built-in synthesized source with optional 1 Hz frequency resolution
  • Integrated switching test set measures all four S-parameters with a single connection
  • Vector accuracy enhancement
  • Optional time domain capability computes and displays response versus time or distance
  • Optional Solid State Switch allow simultaneous measurement of forward and reverse parameters and continuous update of all four S-parameters as required for two-part error correction
  • Productivity is enhanced with pass/fail testing, direct printer/plotter output of results, advanced marker functions, and save/recall of test configurations
  • Two independent display channels for simultaneous measurement of reflection and transmission characteristics
  • Connector: 3.5 mm
  • Max. Frequency: 13.5 GHz
  • Min. Frequency: 50 MHz
  • Channels: 2
  • Source: internal
  • Interface: GP-IB
