HP Agilent Keysight, 8714ET

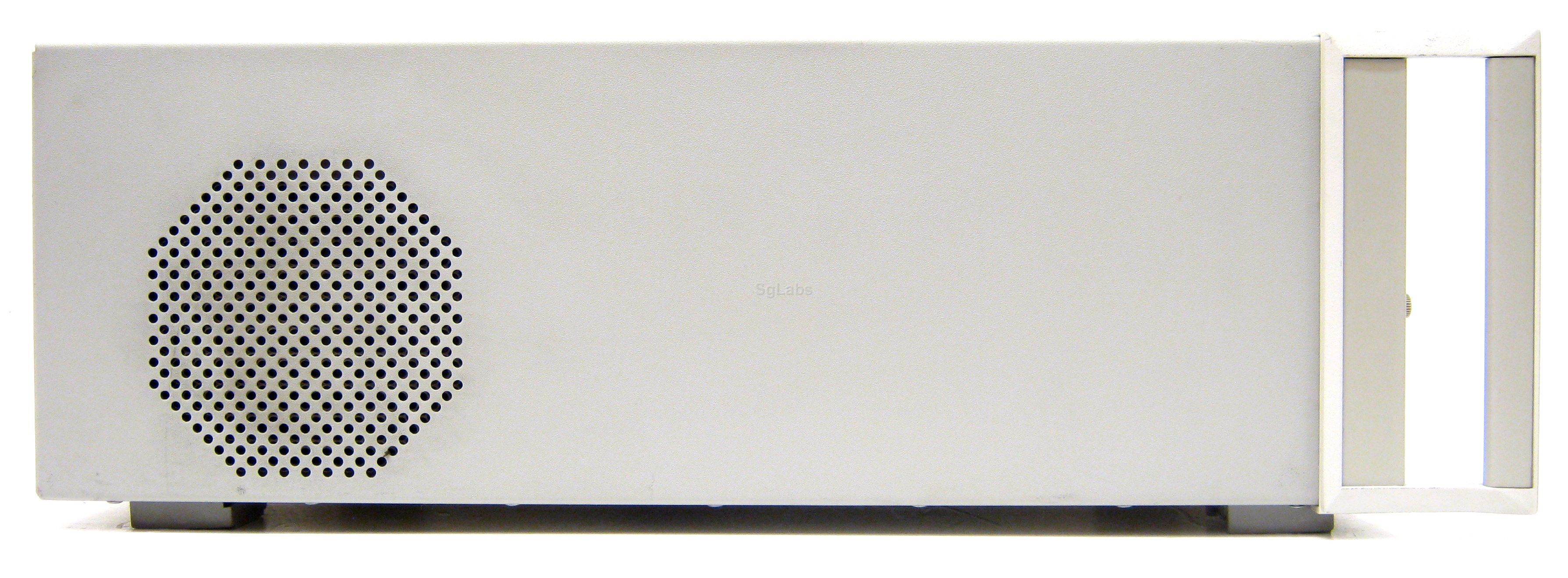

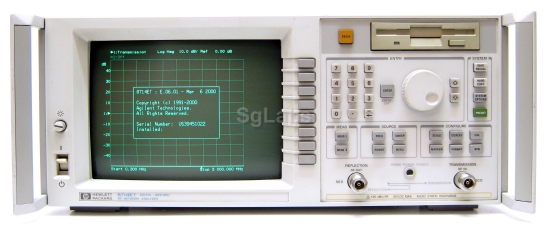

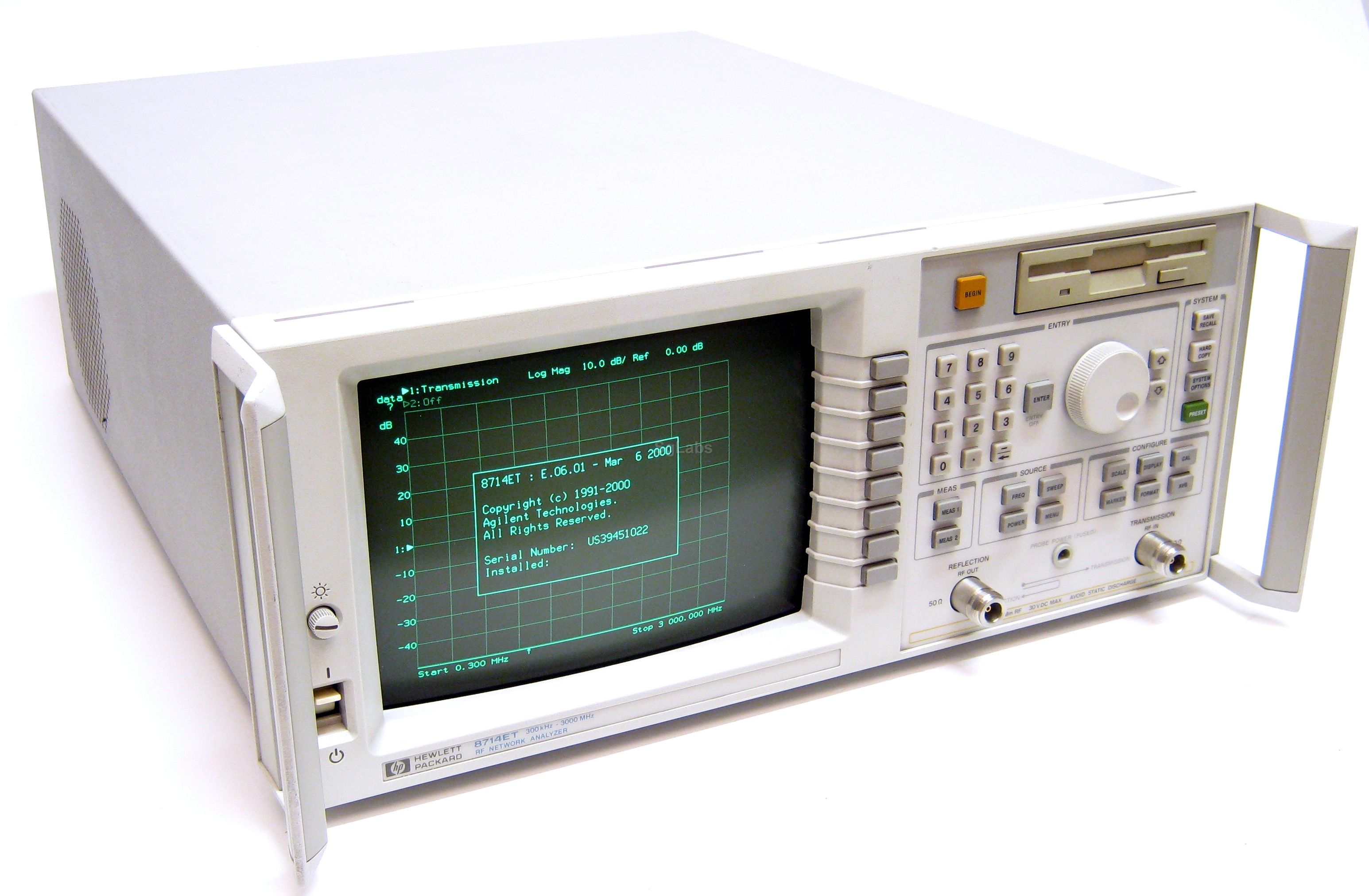

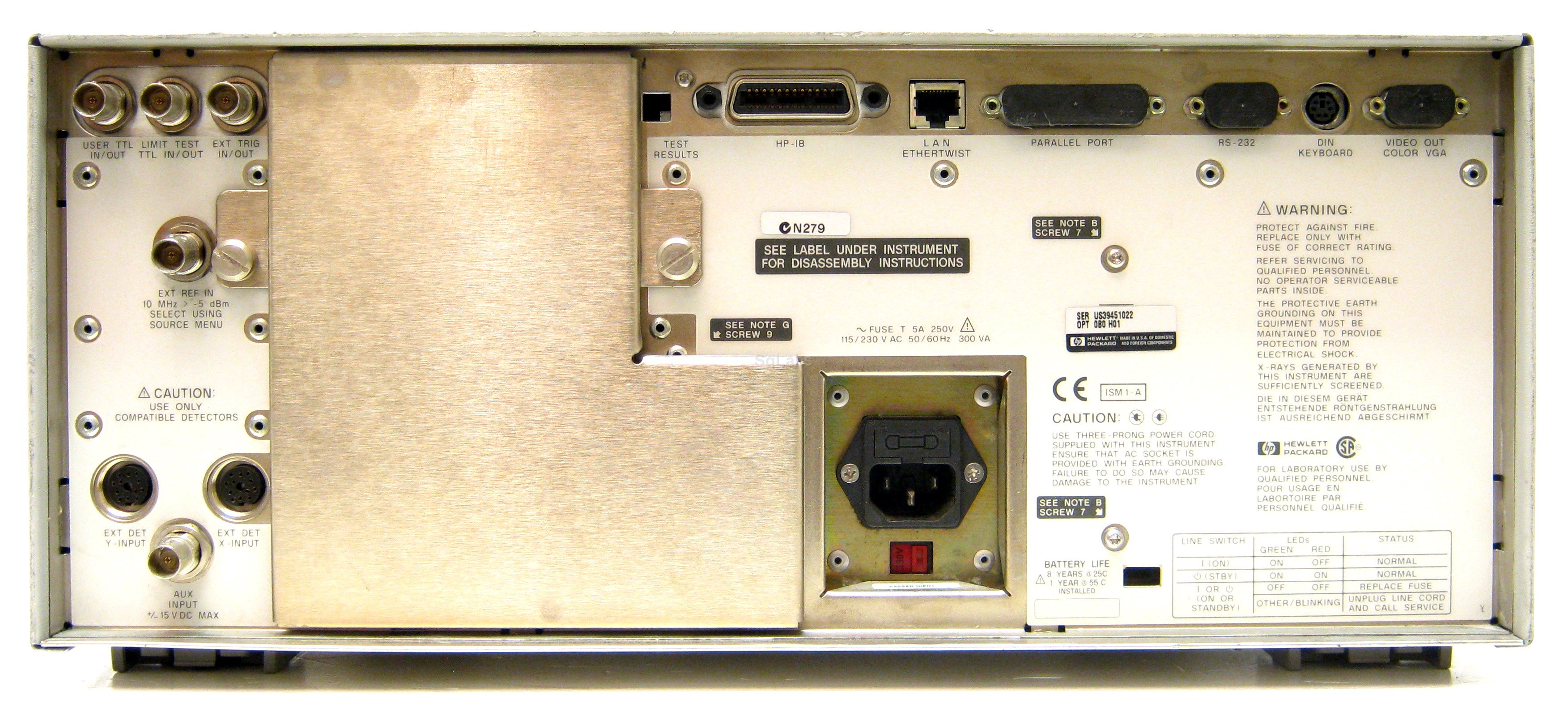

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 8714ET features a built-in transmission/reflection test set with a full range of magnitude and phase measurements. Two independent channels can measure and display two device parameters, such as transmission and reflection response, in a variety of formats including complex impedance, SWR, and delay, on rectangular, polar or Smith-chart displays. These analyzers also employ advanced vector-error-correction techniques to enhance measurement accuracy.
  • Min. Frequency 300 kHz
  • Max. Frequency 3 GHz
  • Test set Trasmission Reflection Source internal
  • Channels 2
  • Interface GP-IB - Parallel
  • Narrowband and broadband detection
  • 100 dB dynamic range
  • Real-time sweep speeds (40 ms/sweep)
  • Synthesized source with 1-Hz resolution
  • Standard LAN interface
  • Standard Internal Agilent Instrument BASIC (IBASIC)
Options description:
  • 1E1: Step Attenuator
  • 100: Fault location and structural return loss
  • Max. Frequency: 3 GHz
  • Min. Frequency: 300 kHz
  • Channels: 2
  • Source: internal
  • Test set: Trasmission Reflection
  • Interface: GP-IB - Parallel
