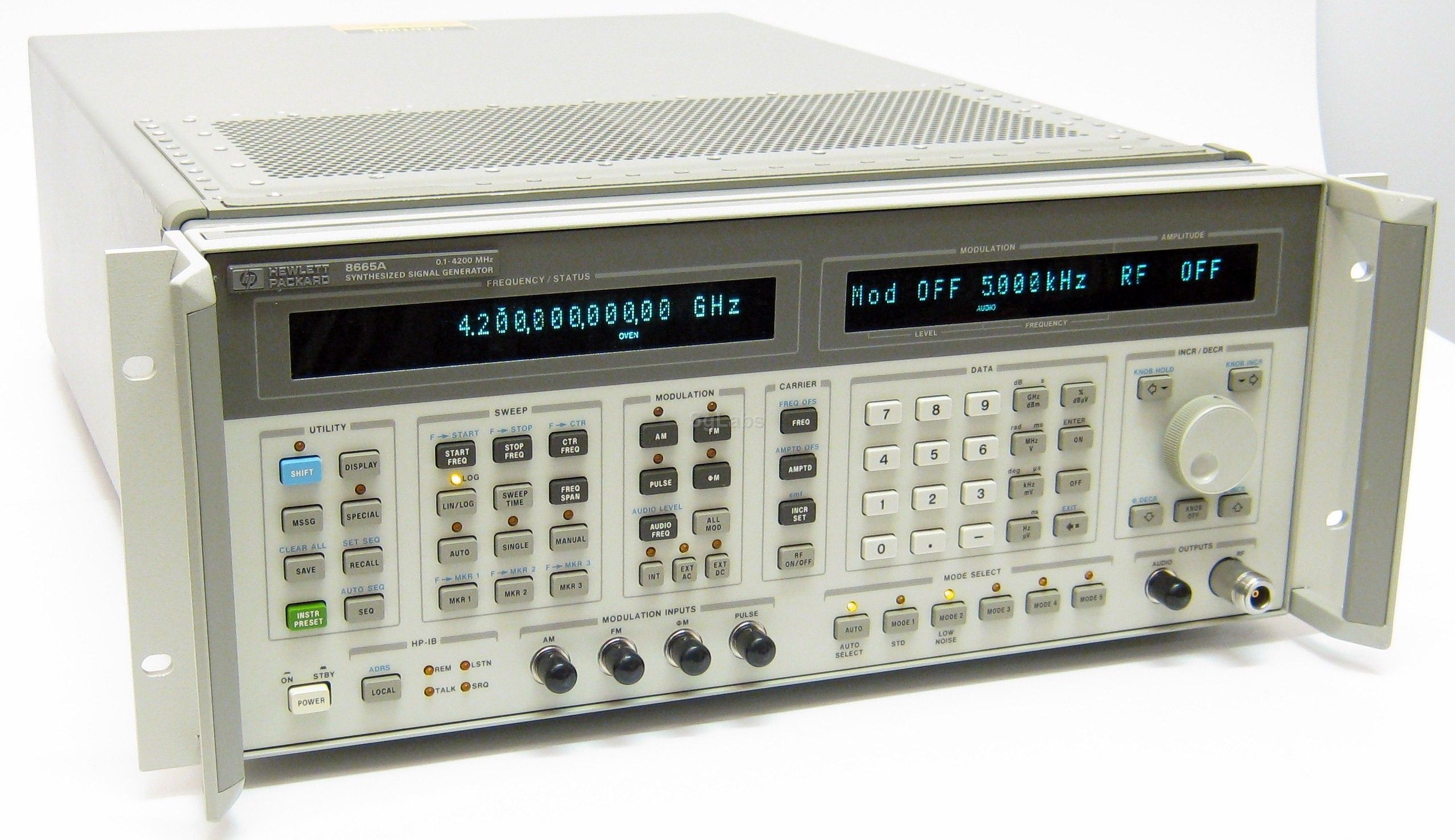

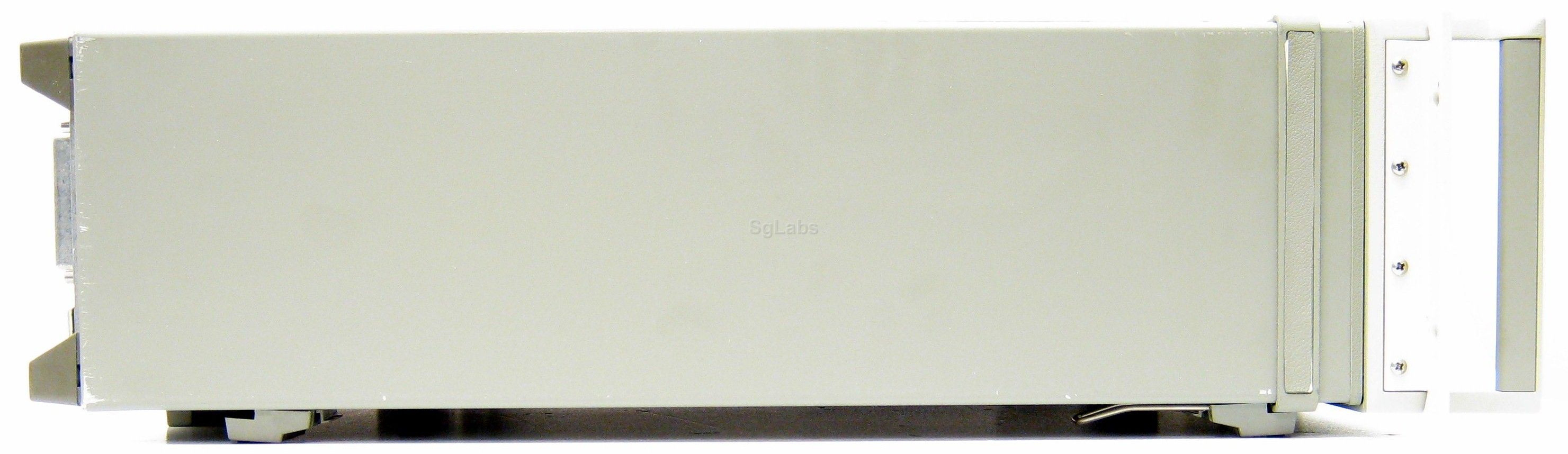

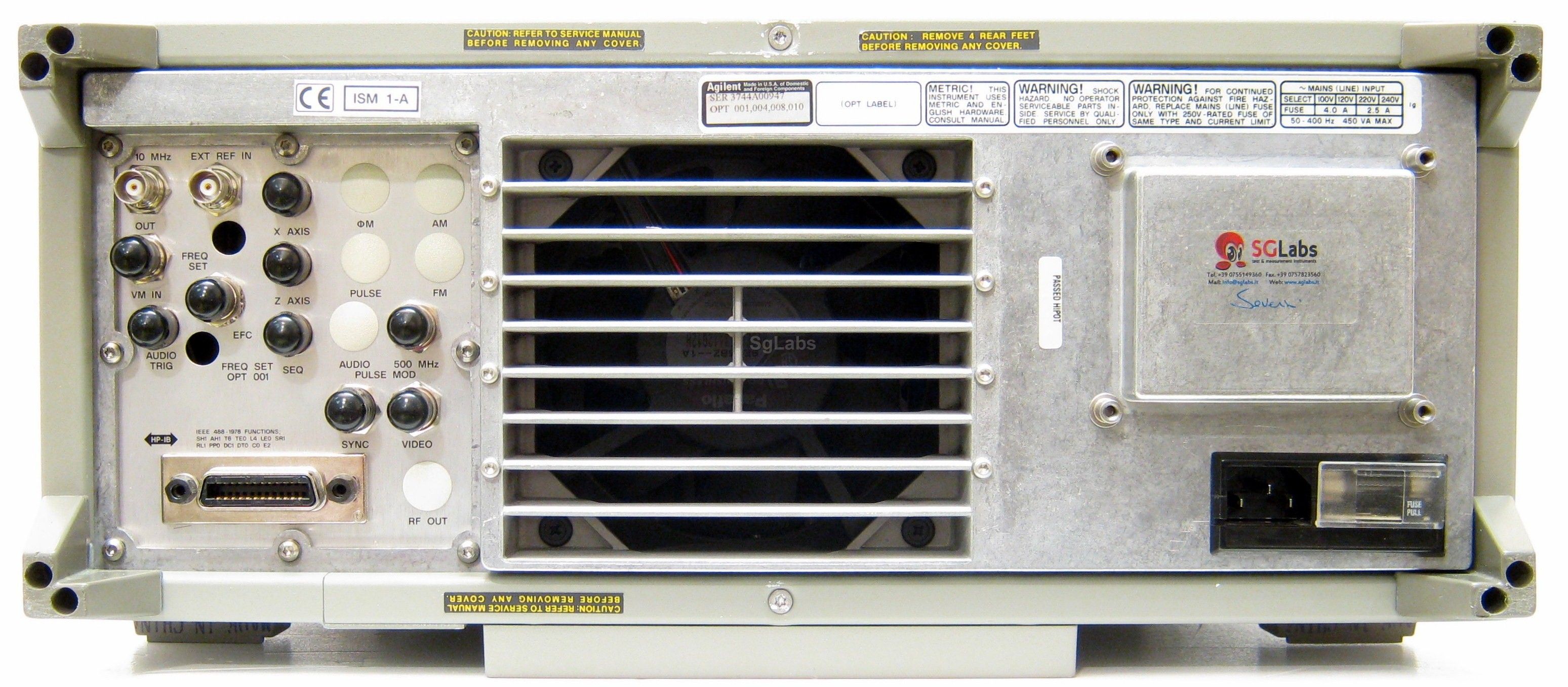

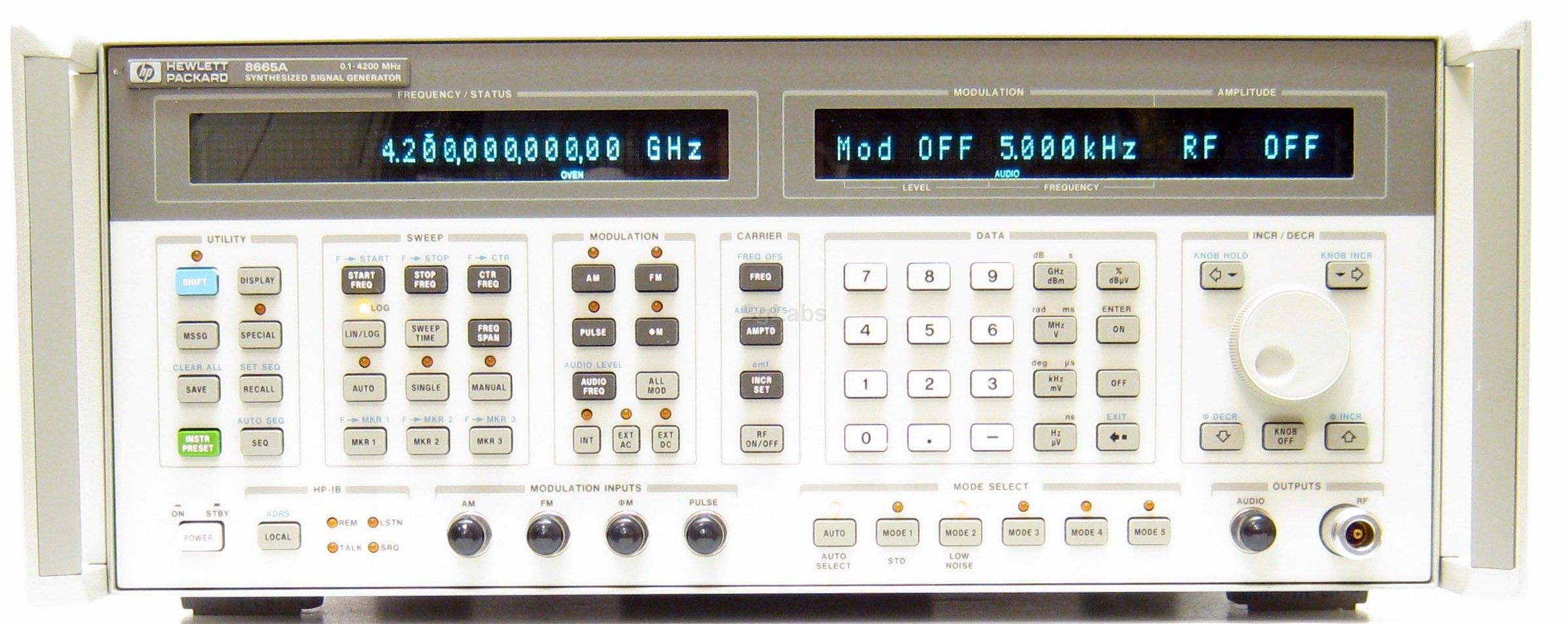

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The HP / Agilent 8665A is a high performance signal generator suited for basic receiver testing up to 4.2 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 20 MHz are suitable for many applications such as high-speed digital communications.



Technical details :

  • Frequency range 100 kMHz to 4.2 GHz
  • Max resolution 0.01 Hz
  • Sweep
  • RF Output Level: -140 to +13 dBm
  • Impedance: 50 Ohm
  • Frequency Modulation Range: up to 20 MHz
  • Amplitude Modulation Range: 0 to 100%
  • HP-IP interface
