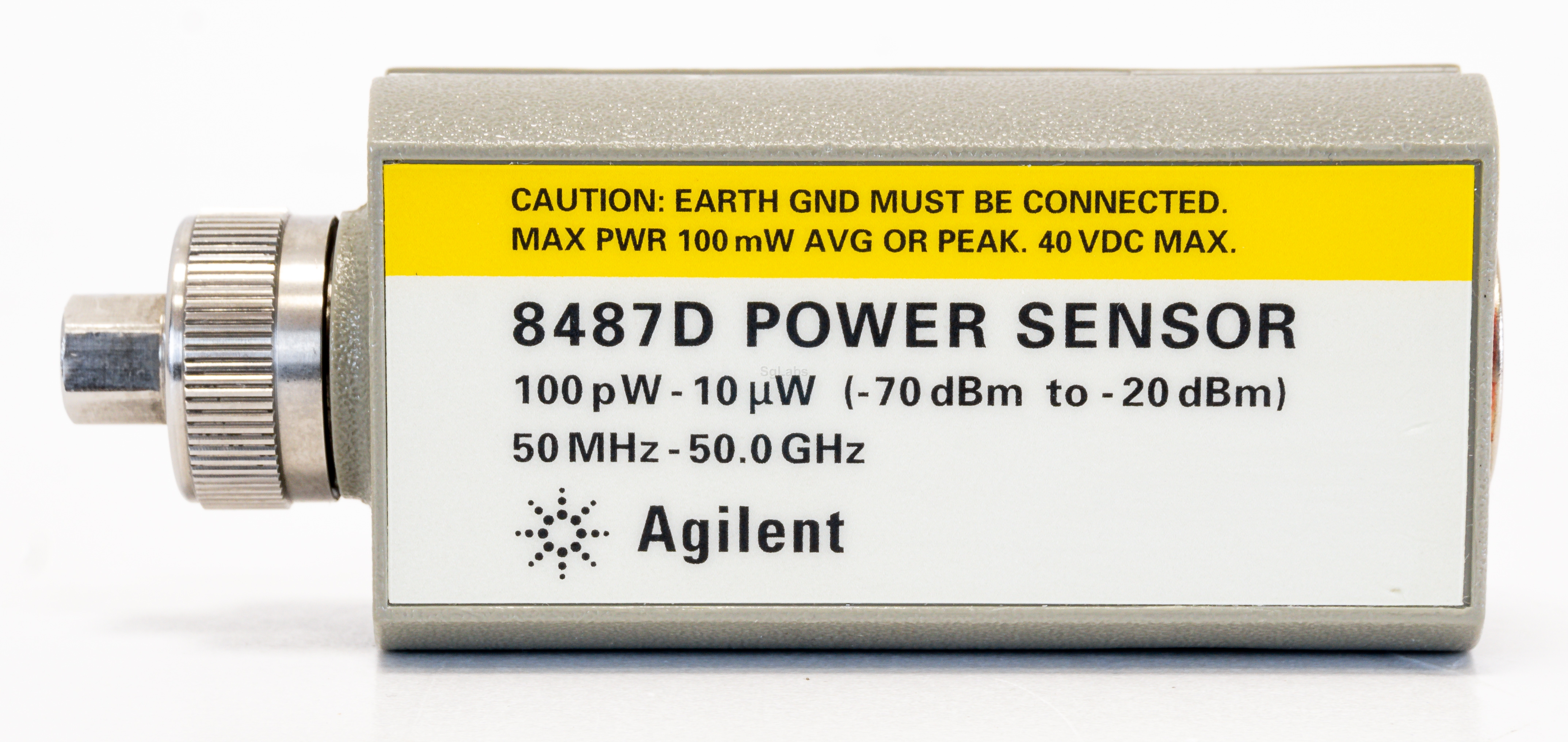

HP Agilent Keysight 8487D power sensor 50 GHz
You are here: Power Meter / Sensor (RF) » Power sensor
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 8487D diode power sensor measures average power over the frequency range 50 MHz to 50 GHz and power range -70 to -20 dBm (50 dB dynamic range).
Features
- Excellent SWR for reducing mismatch uncertainty
- Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) millimeter-wave sensor calibration
- Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter
- Accurate average power measurements over -70 to -20 dBm
- Frequency range 50 MHz to 50 GHz
- Diode power sensing element
- Max. Frequency: 50 GHz
- Min. Frequency: 50 MHz
- Max. power: 10 uW
- Min. Power: 100 pW
Price
€ 1.500,00
