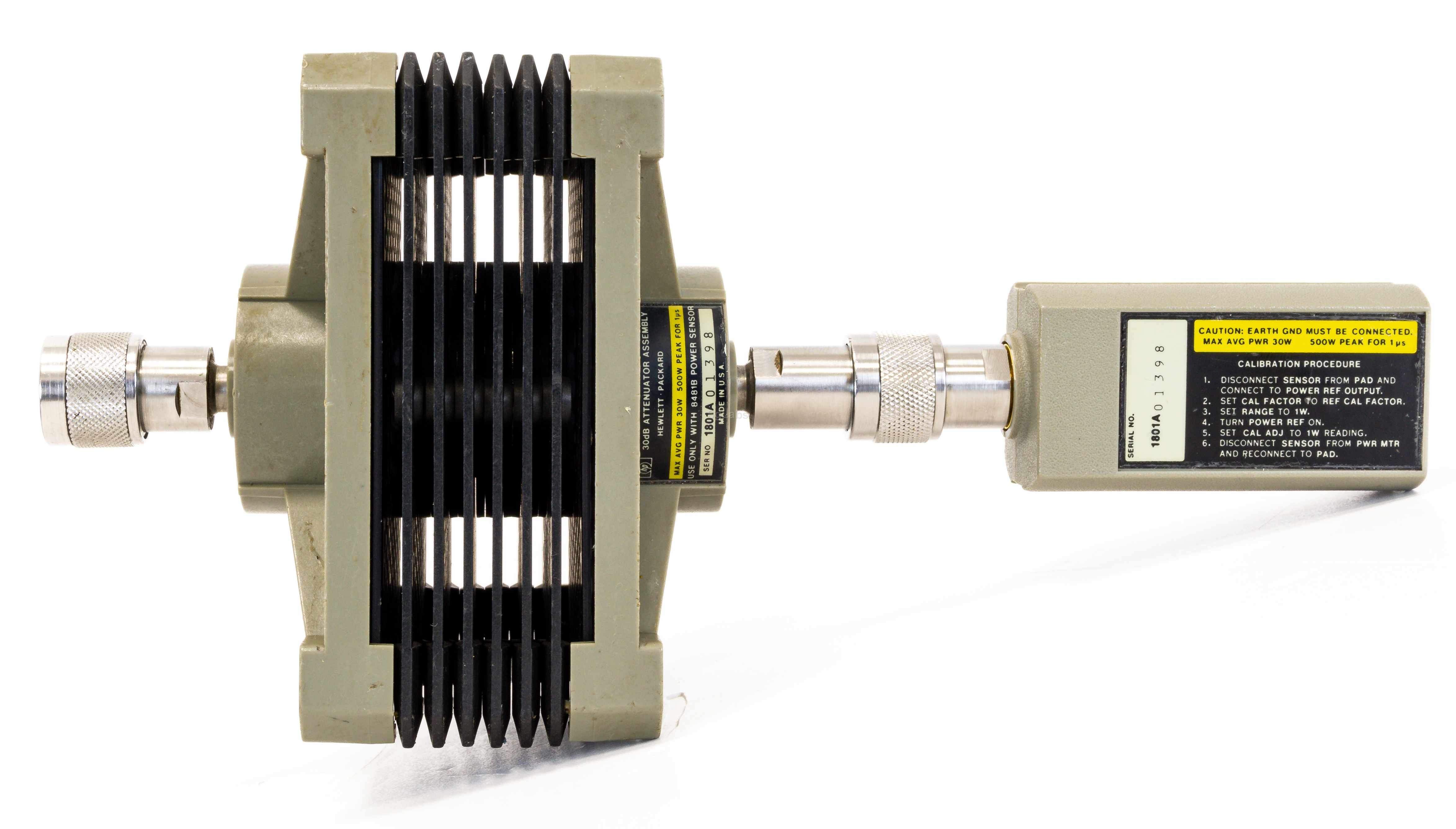

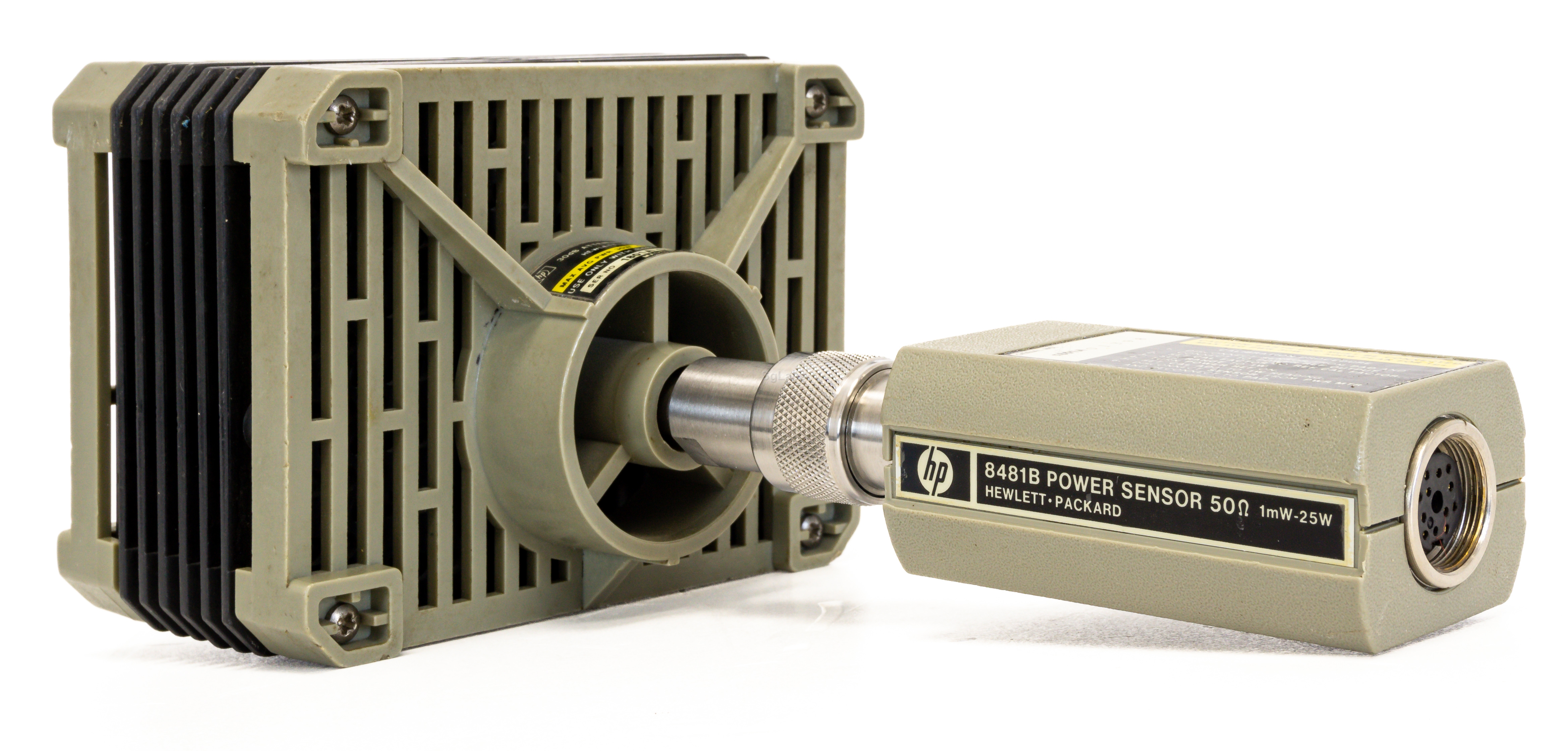

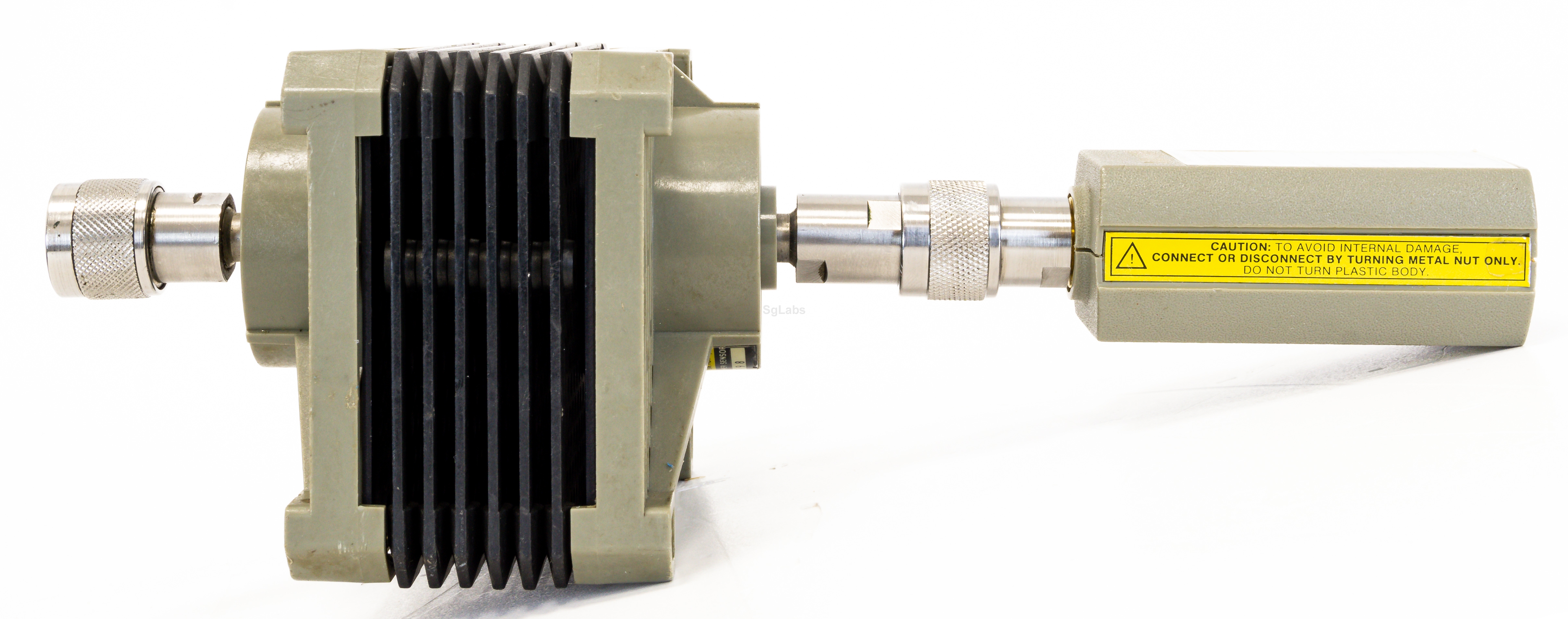

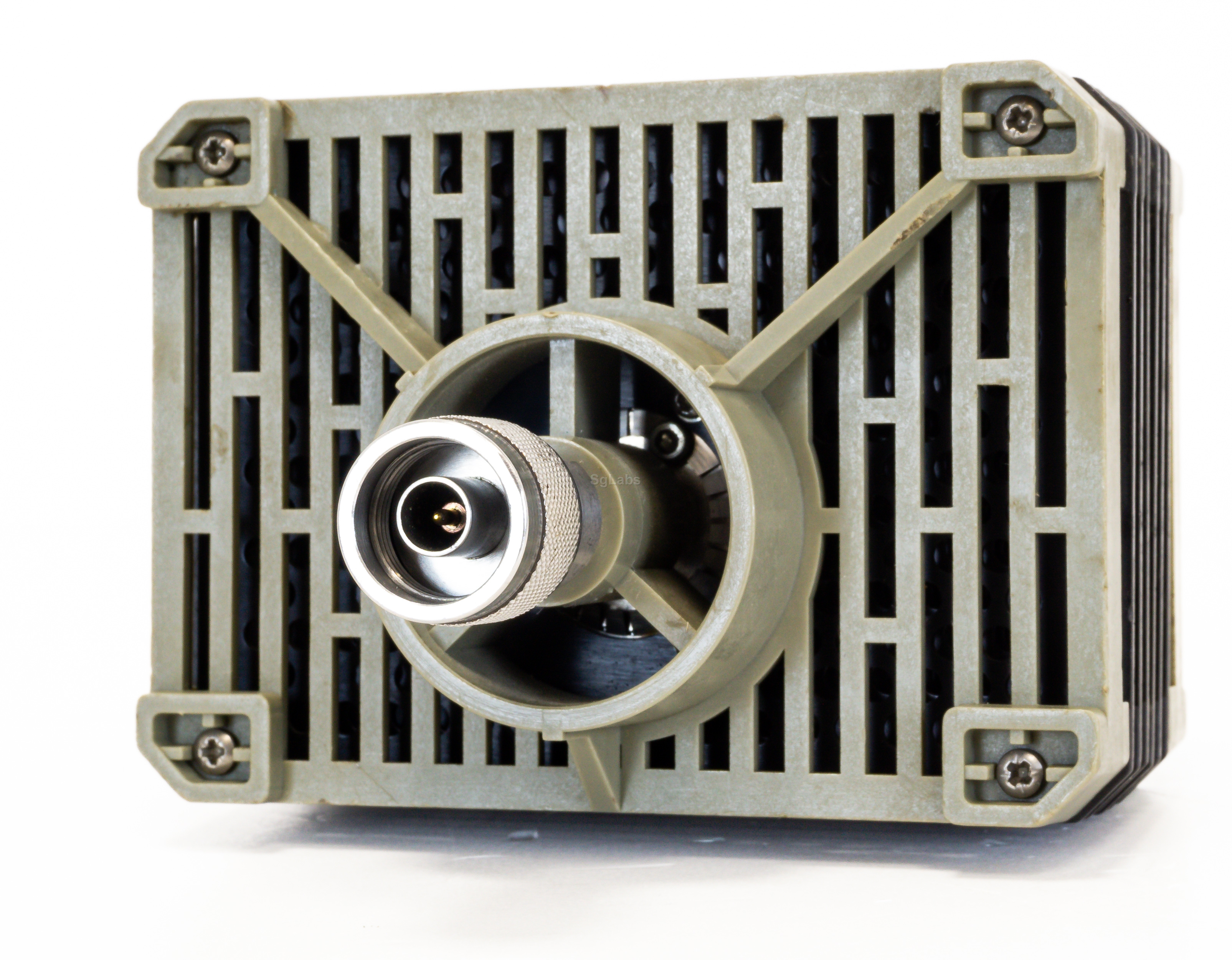

HP Agilent Keysight, 8481B
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 8481B, Power Sensor, gives you extremely low SWR and is traceable to the U.S. National Institute of Standards and Technology (NIST). This calibration provides traceability to NIST and it eliminates the uncertainties due to temperature changes and the variance in making measurements with different meter/sensor combinations.
Features
  • Excellent SWR for reducing mismatch uncertainty
  • Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
  • Compatible with EPM, EPM-P and P-series power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter
  • Accurate average power measurements over 0 to +44 dBm
  • Frequency range 10 MHz to 18 GHz
  • Thermocouple power sensing element
  • Max. Frequency: 18 GHz
  • Min. Frequency: 10 MHz
  • Max. power: +44 dBm
  • Min. Power: 0 dBm
Price
 € 600,00
