HP Agilent Keysight, 8447F

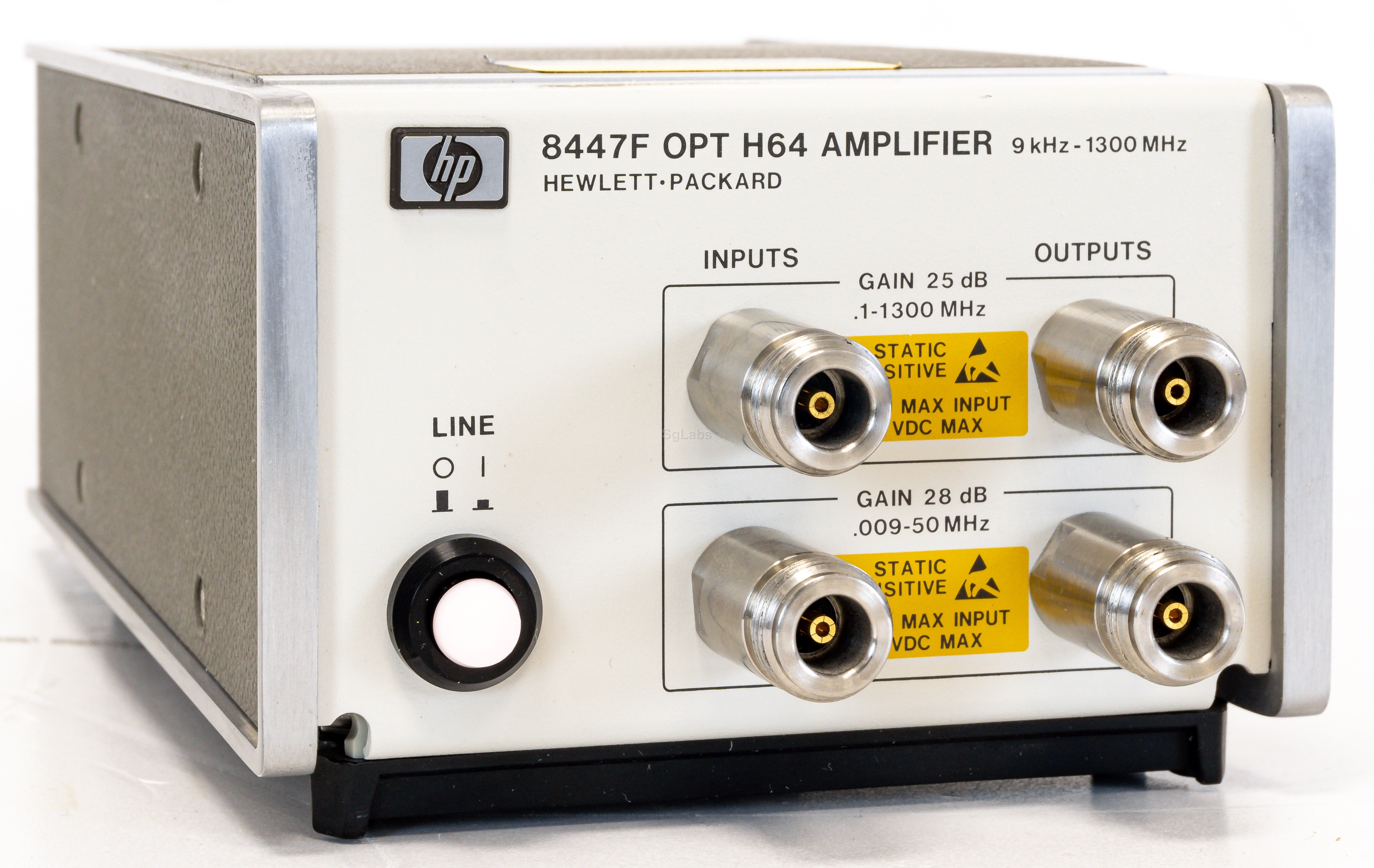

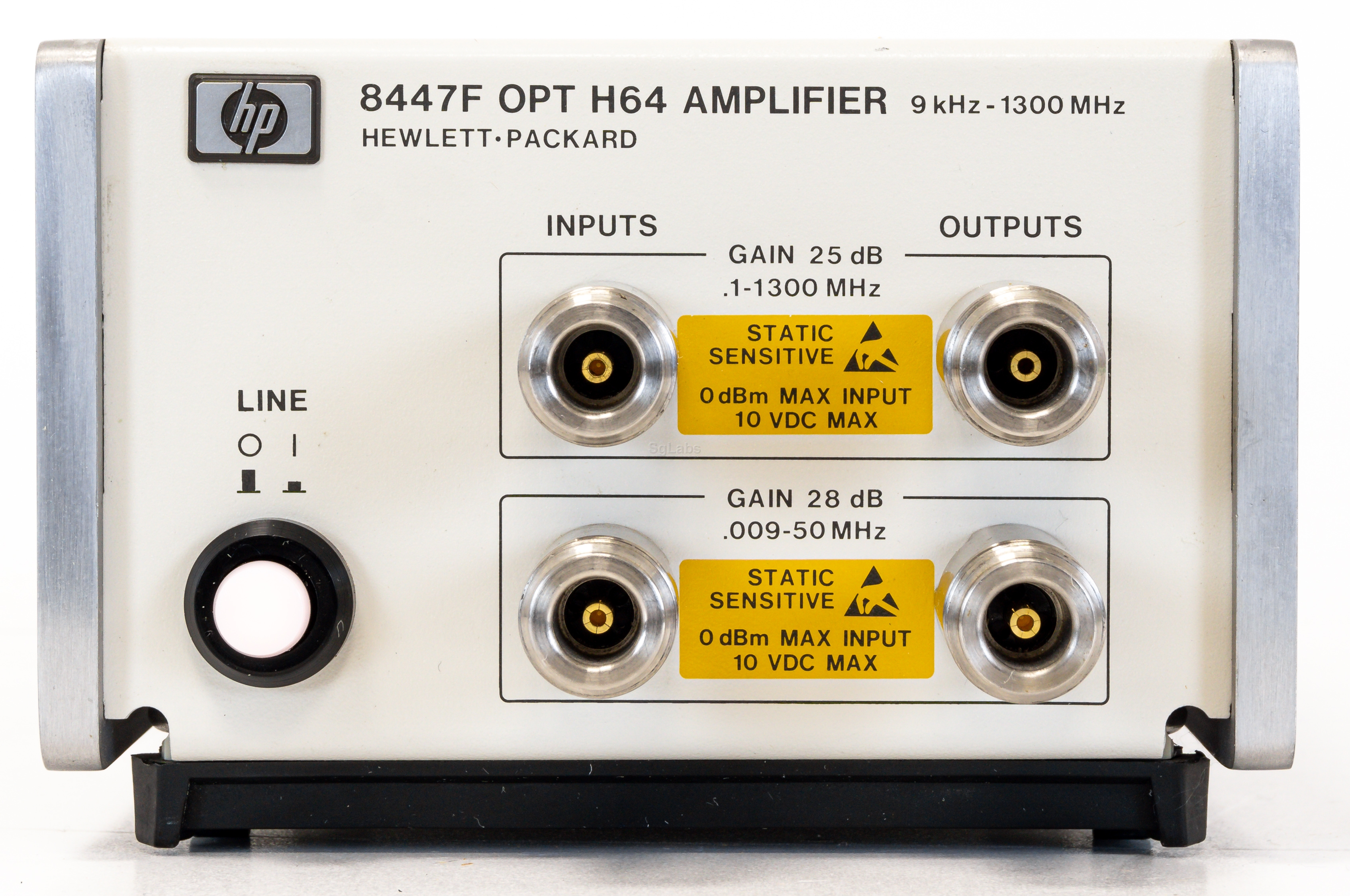

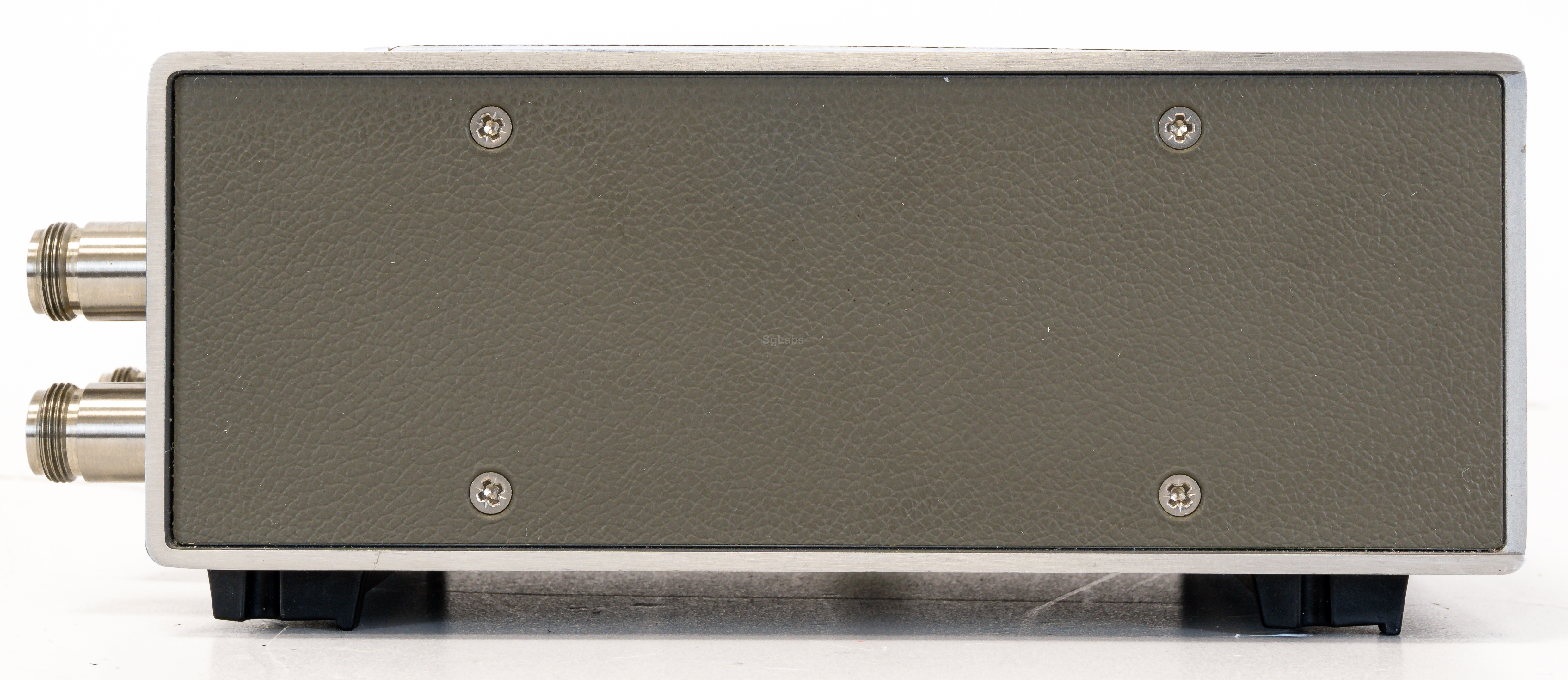

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Keysight 8447F is the Keysight 8447D Preamplifier and 8447E Power Amplifier combined into a single package. The Keysight 8447F is capable of providing gain and power to overcome systematic RF losses, drive high-power devices and improve measurement system performance. The Keysight 8447F can be used to increase low-level sweep speed and increase dynamic range measurements when used with a network analyzer.

  • Reduced systematic power losses for increased dynamic range
  • High power drive signals for increased dynamic range
  • Increased low-level sweep speed and increased dynamic range measurements in network analyzers

  • Frequency Range: 0.1 to 1300MHz
  • Mean Gain: 26dB
  • Noise Figure < 8.5
  • Outup Power 1 dB Gain compression: >7dBm
  • Max. Frequency: 1300 MHz
  • Min. Frequency: 100 KHz
  • Gain: 26 dB
  • Max. power: + 7 dBm
