HP Agilent Keysight, 8405A

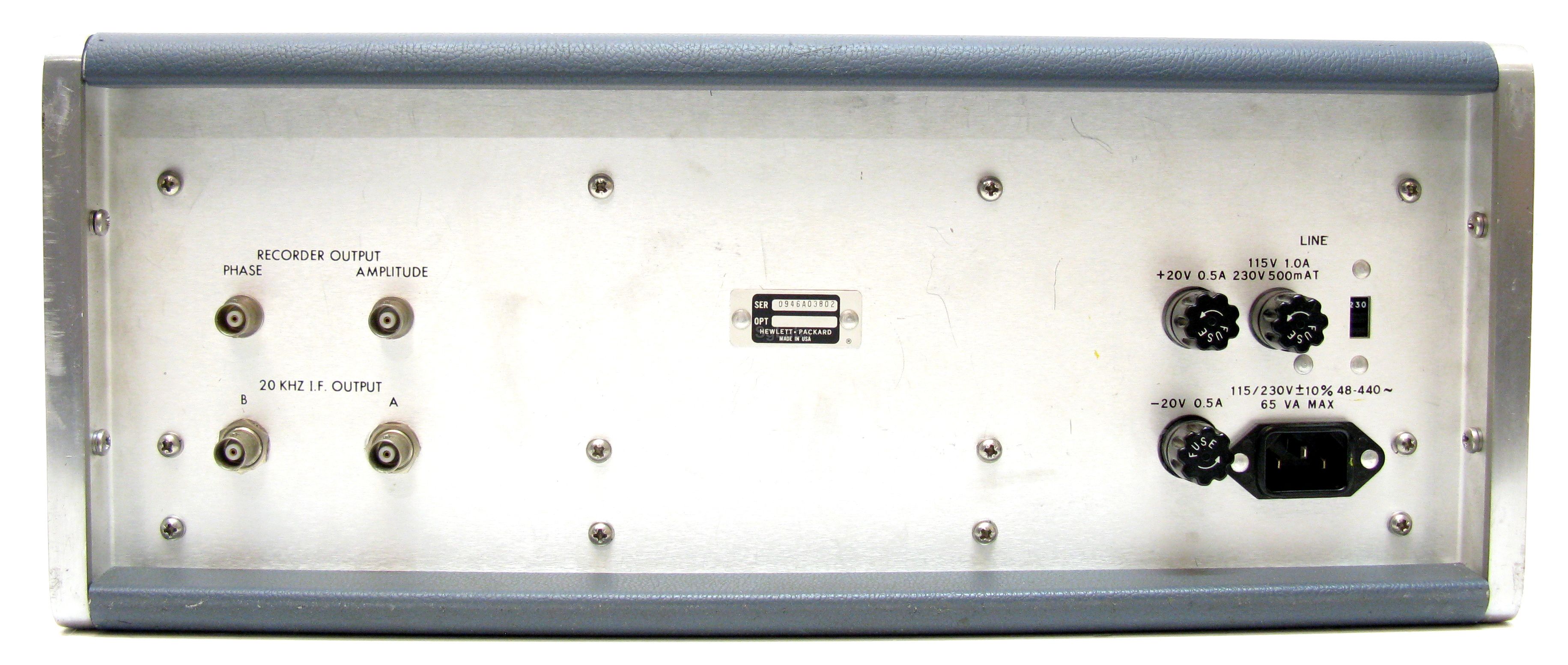

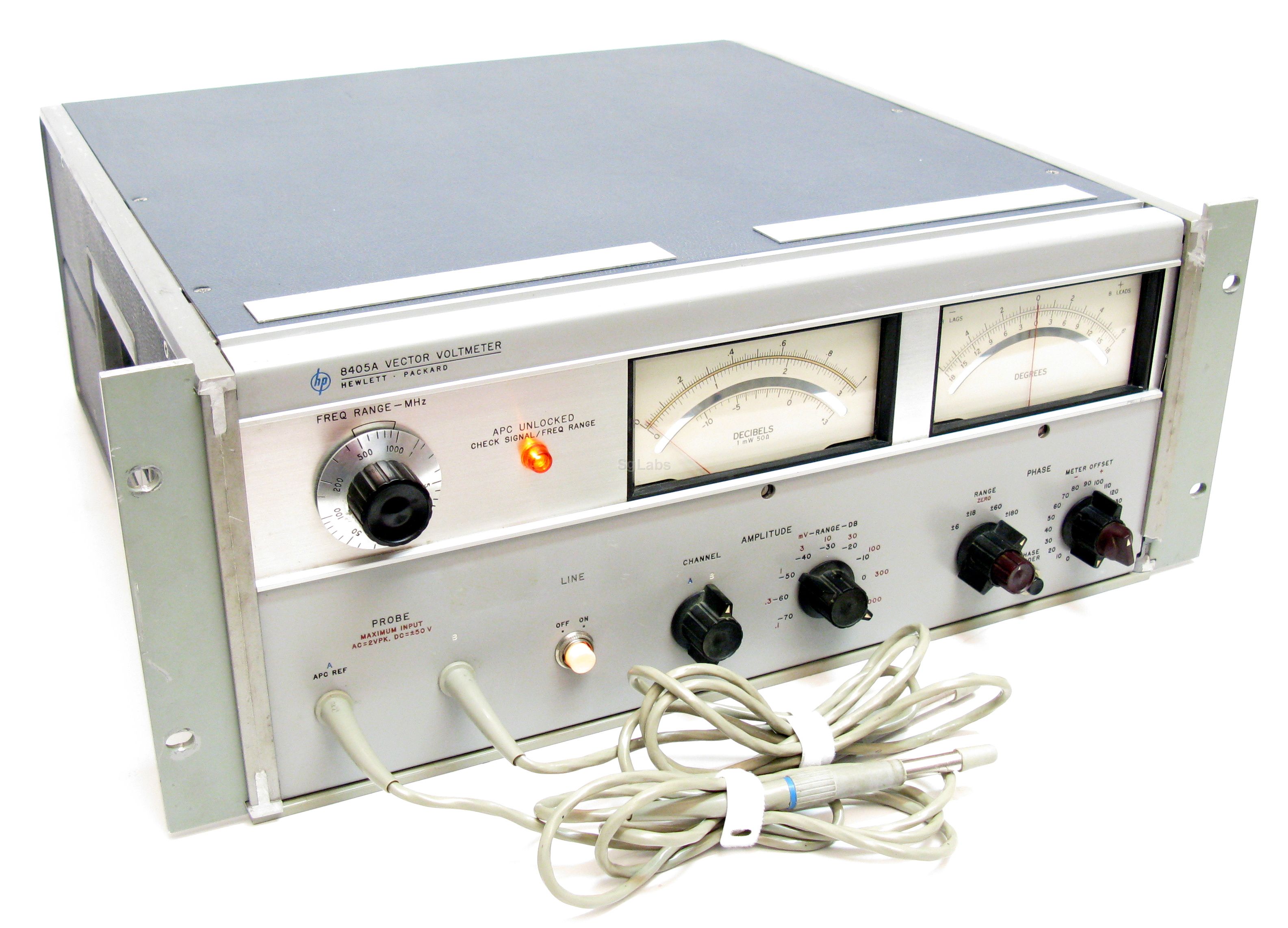

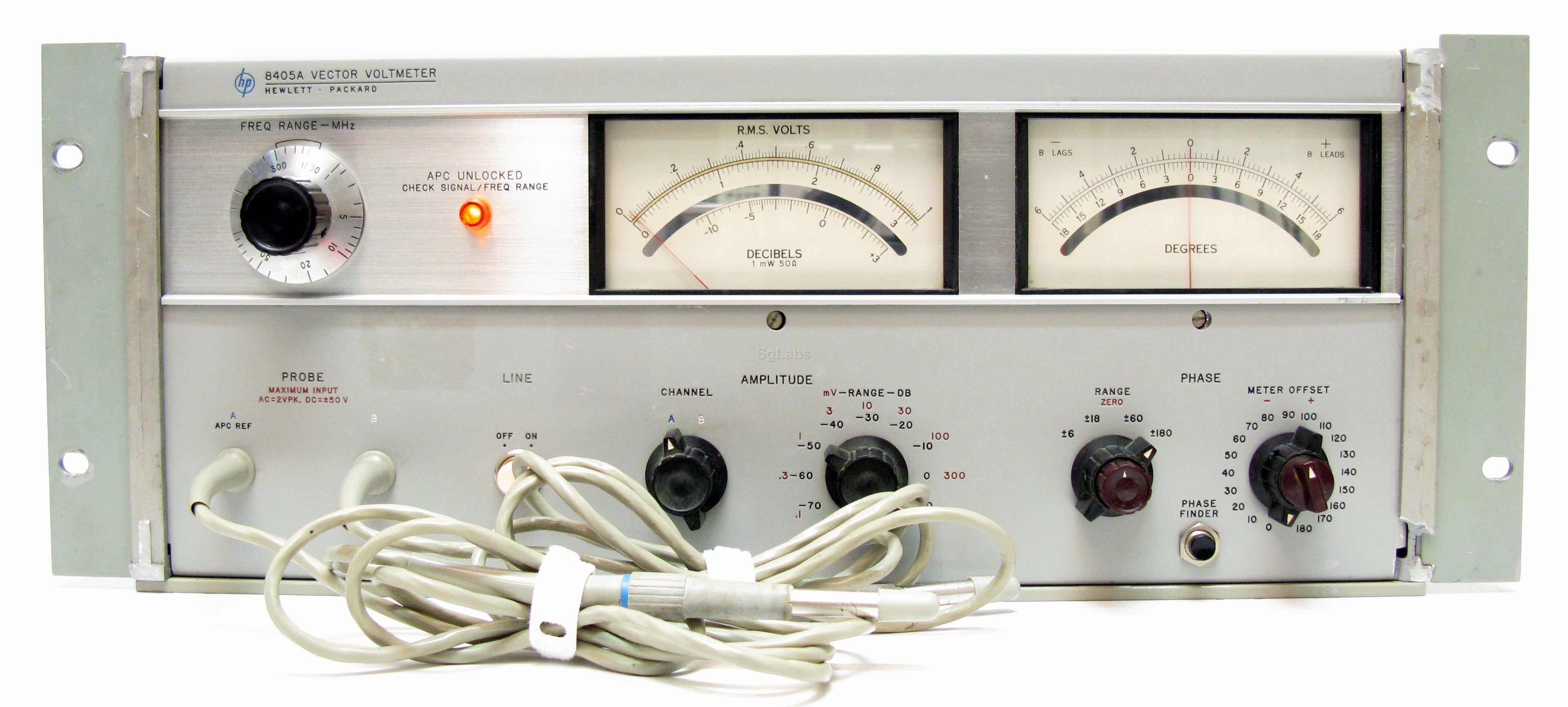

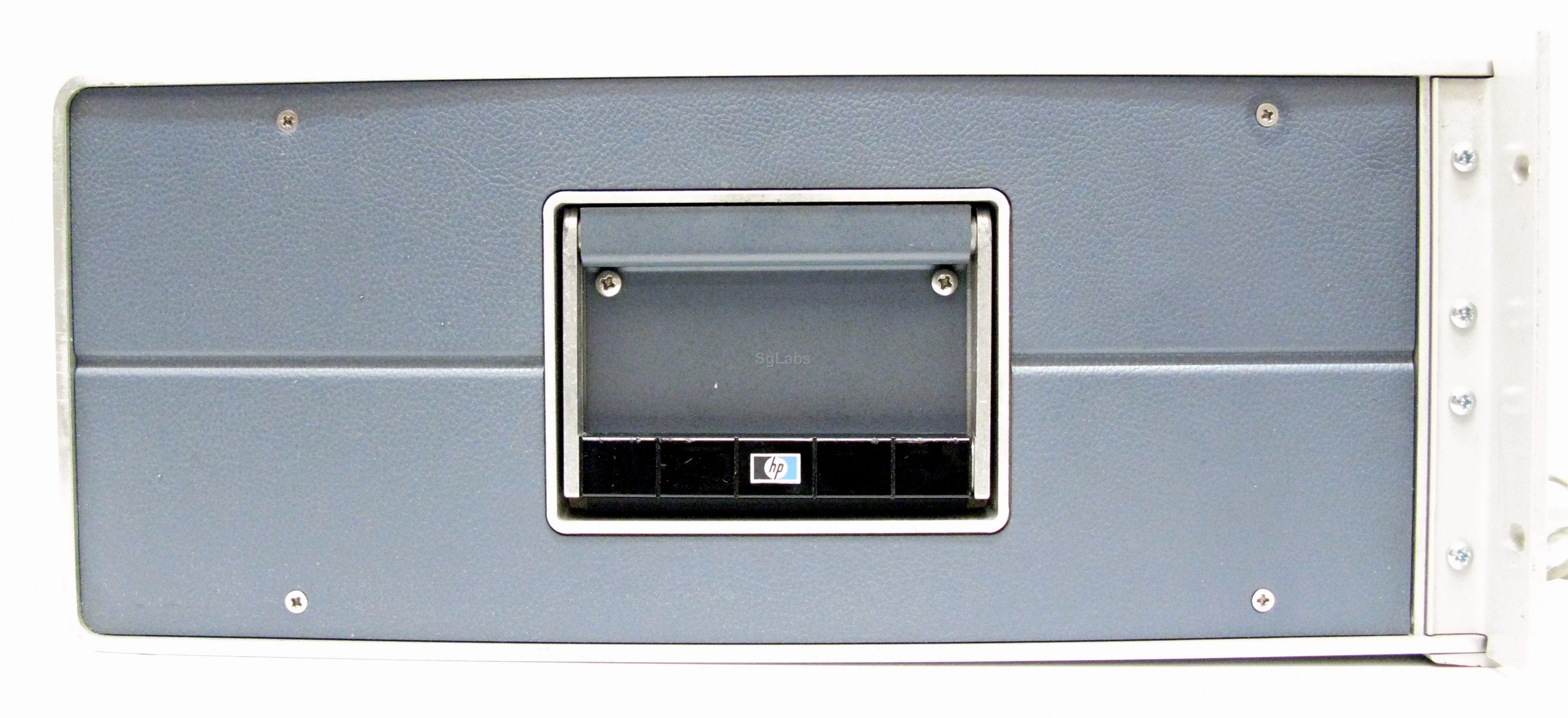

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 8405A Vector Voltmeter measures voltage vectors in terms of both magnitude and phase over the frequency range from 1MHz to 1GHz.  The 2 Probes have a high input impedance of 100KΩ.
  • Measures voltage vectors described by both magnitude and phase
  • Ideal for almost any design and test application in the frequency range of 1 to 1000 MHz
  • Measurement capabilities include insertion loss and group delay of passband-filters and other transmission devices, gain and phase margin of amplifiers, complex impedance of mixers, antennas, etc.
  • Two channels allow for ratio measurements and phase difference between the two channels
  • Gain or loss in excess of 90 dB and phase measurements with 0.1˚ resolution over a 360˚ phase range are possible
  • Option 002 provides Linear dB Scale
