HP Agilent Keysight, 83751A

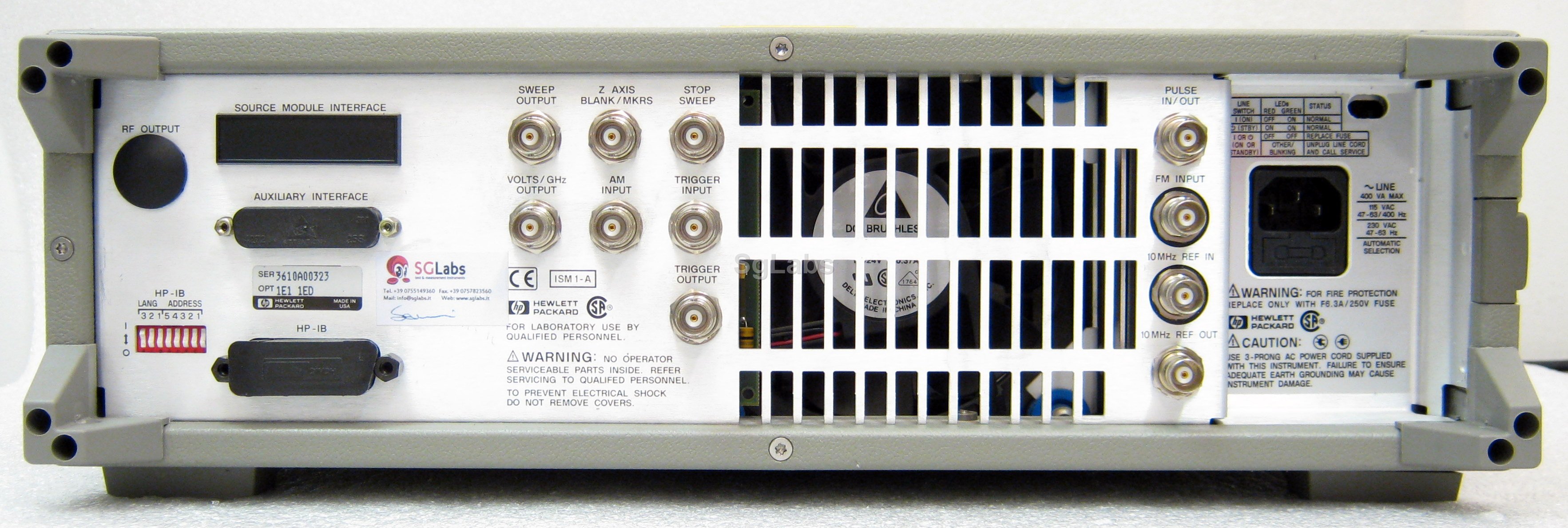

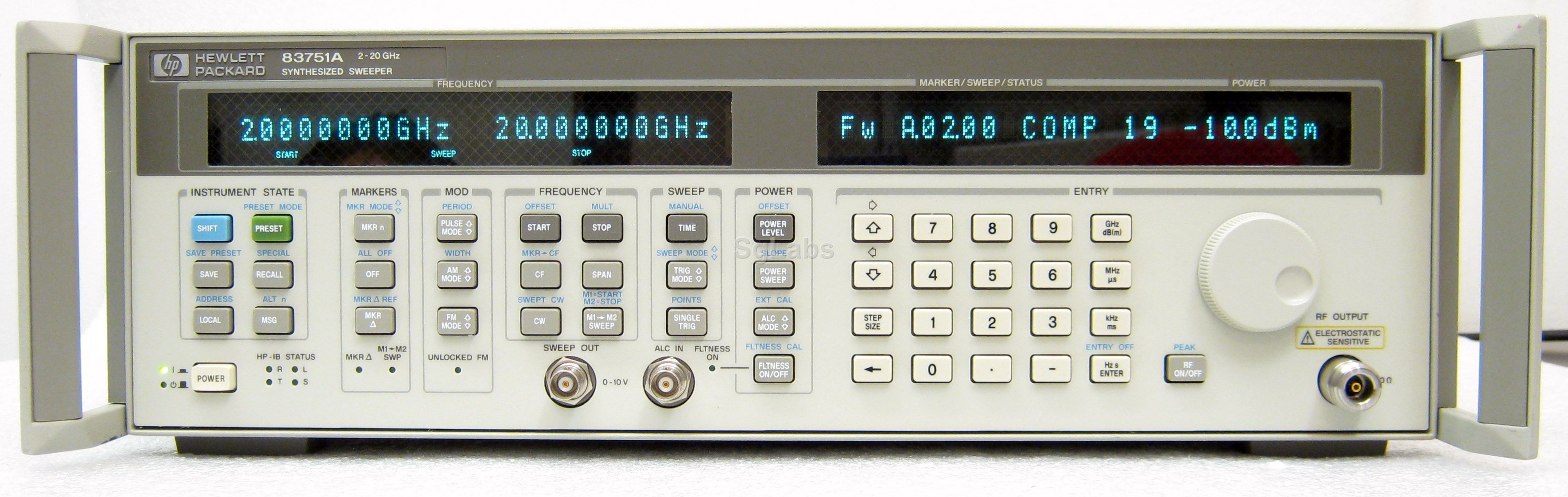

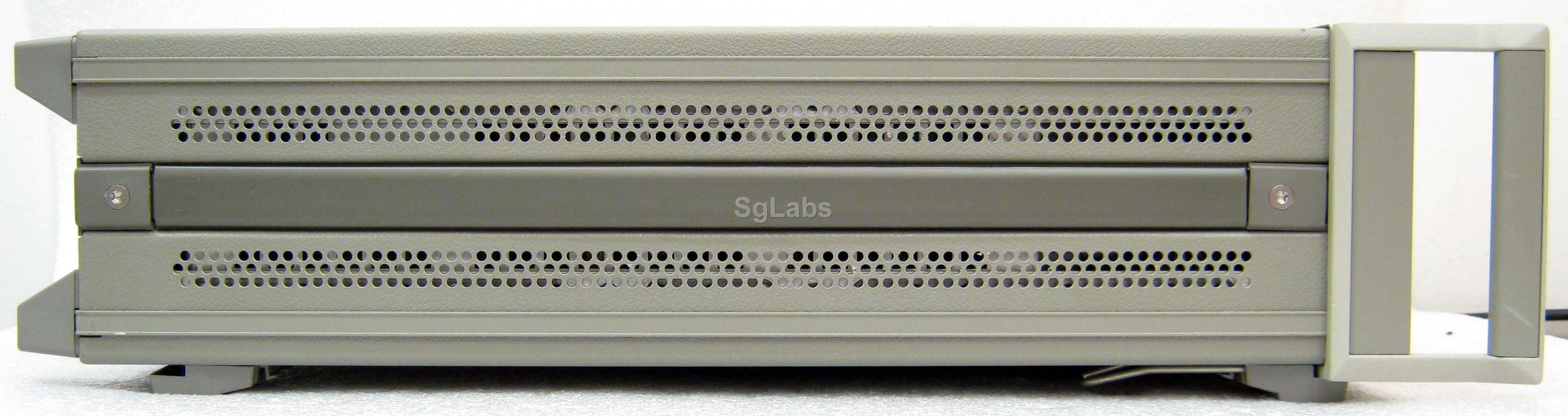

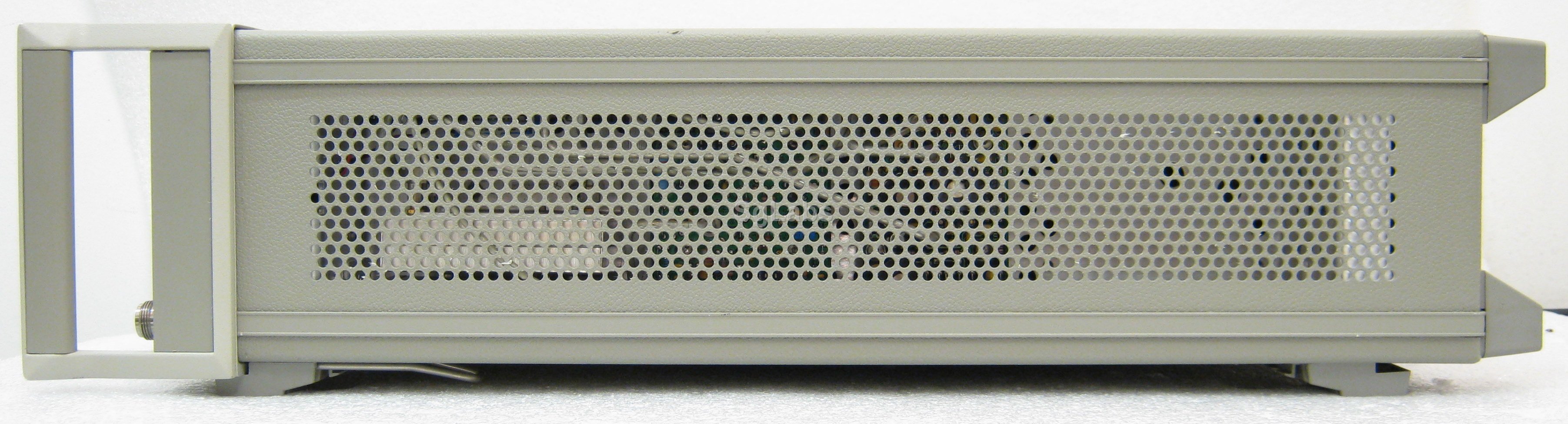

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Sinthesized sweep generator 2-20 GHz

Agilent 83751A sweeper brings outstanding synthesized performance to the component-test marketplace. It delivers the best performance for the price in general purpose benchtop, swept test or scalar applications. This sweeper provides superior accuracy and stability while maintaining the speed of an analog source. Fully synthesized CW, stepped and ramp sweep modes are available in broadband and narrowband operation. The synthesis capability is particularly useful for the characterization of narrowband devices, in which the frequency instabilities of open-loop sources become most apparent.

  • Fully phase locked analog sweep for accuracy and speed
  • Flat and accurate output power to characterize the linear response of the test device
  • Offset frequency sweep for mixer test
  • Agilent 8350 programming mode for backwards compatibility

Features
  • Frequency Range: 2-20 GHz
  • Modulations: AM-FM-Pulse
  • Max Output Power: 10 dBm
  • Min Output Power: -15 dBm (-85 dBm Opt.1E1)
  • Sweep, CW
  • Frequency risolution: 1 Hz

Description of possible options:

  • 1E1: Step Attenuator
  • 1E4: Rear panel RF output
  • 1E5: High stability time base
  • 1ED: N-RF output
  • 1EE: 3,5mm RF output
  • Max frequency: 20 GHz
  • Minimum Frequency: 2 GHz
  • Modulation: AM-FM-PULSE
  • Max. Output level: 10 dBm
  • Min. output level: -15 dBm (-85 dBm opt. 1E1)
  • Resolution: 1 Hz
Price
 € 3.700,00
