HP Agilent Keysight, 83630B

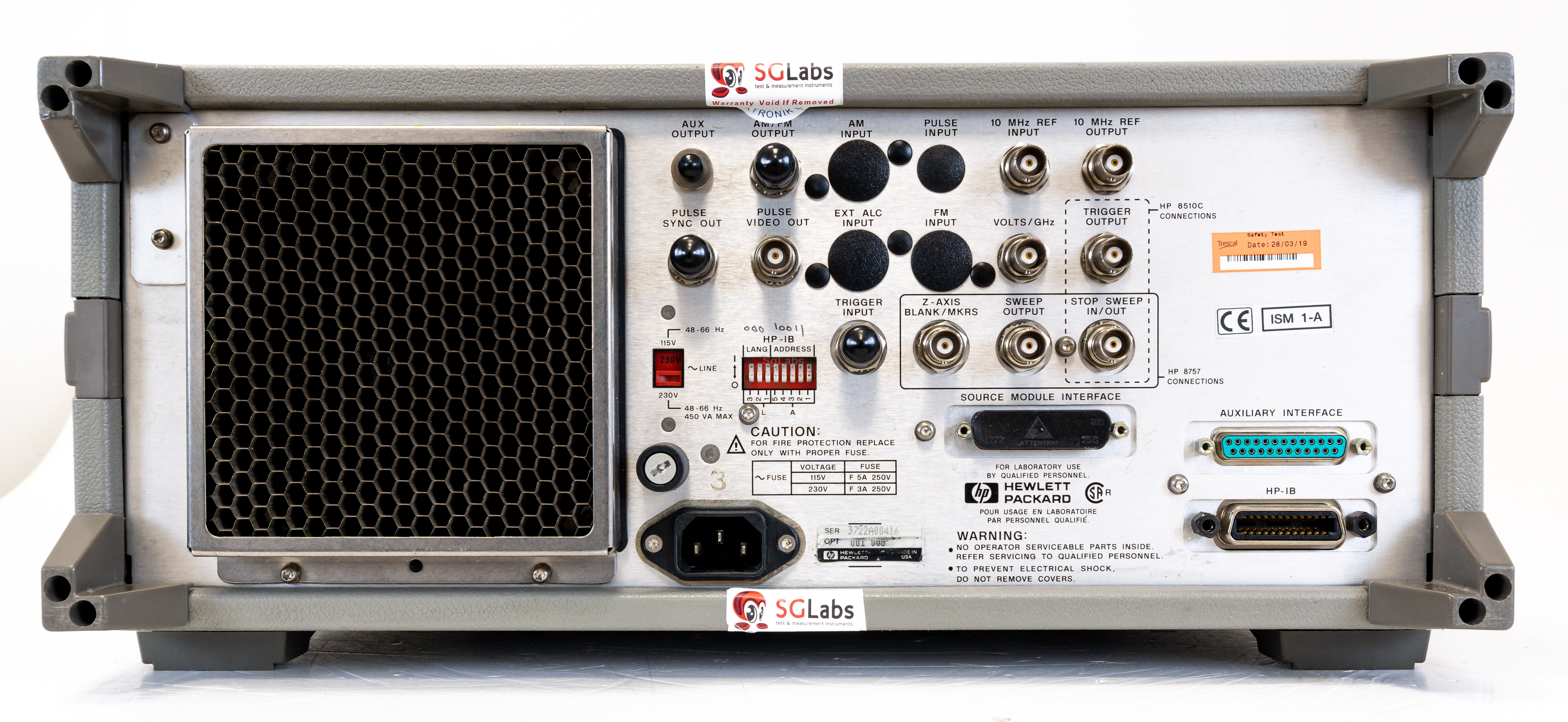

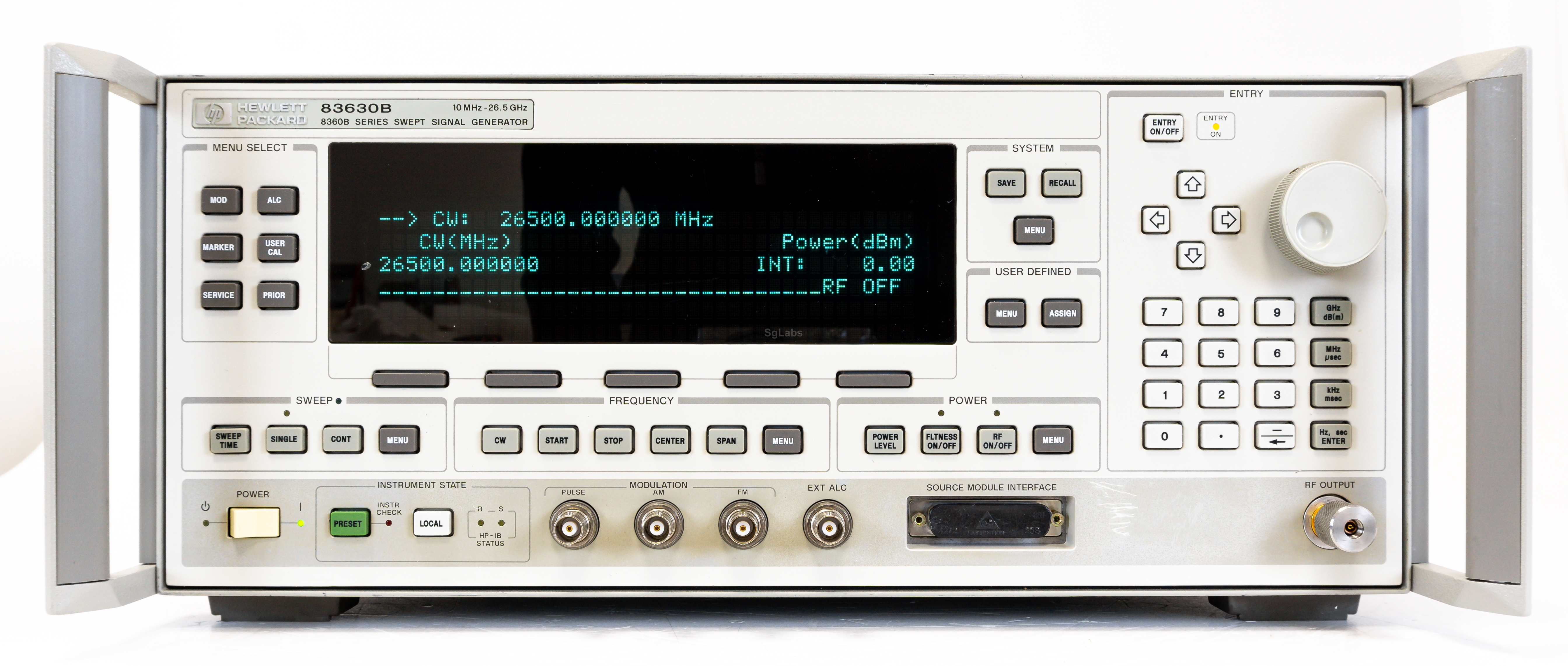

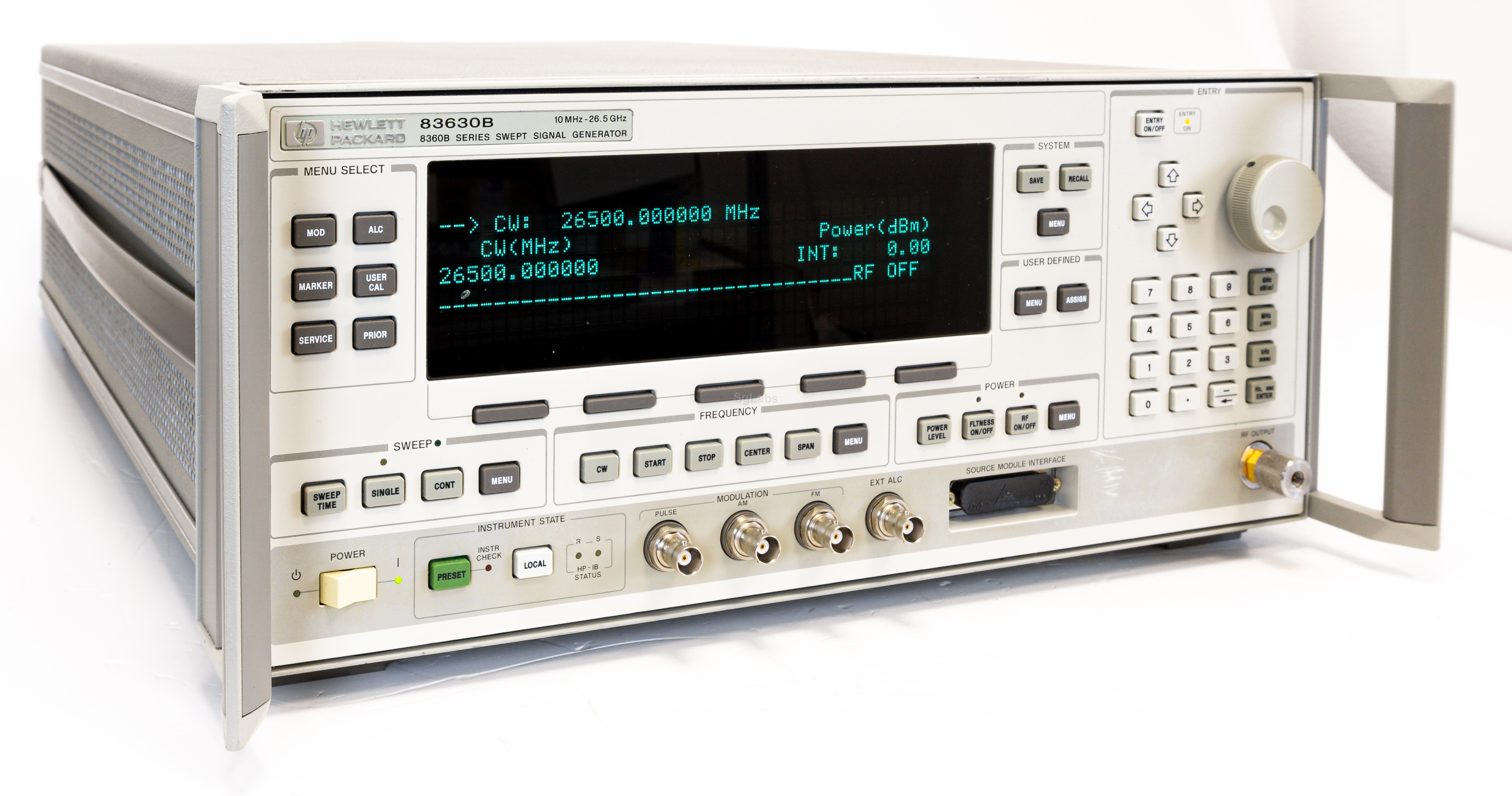

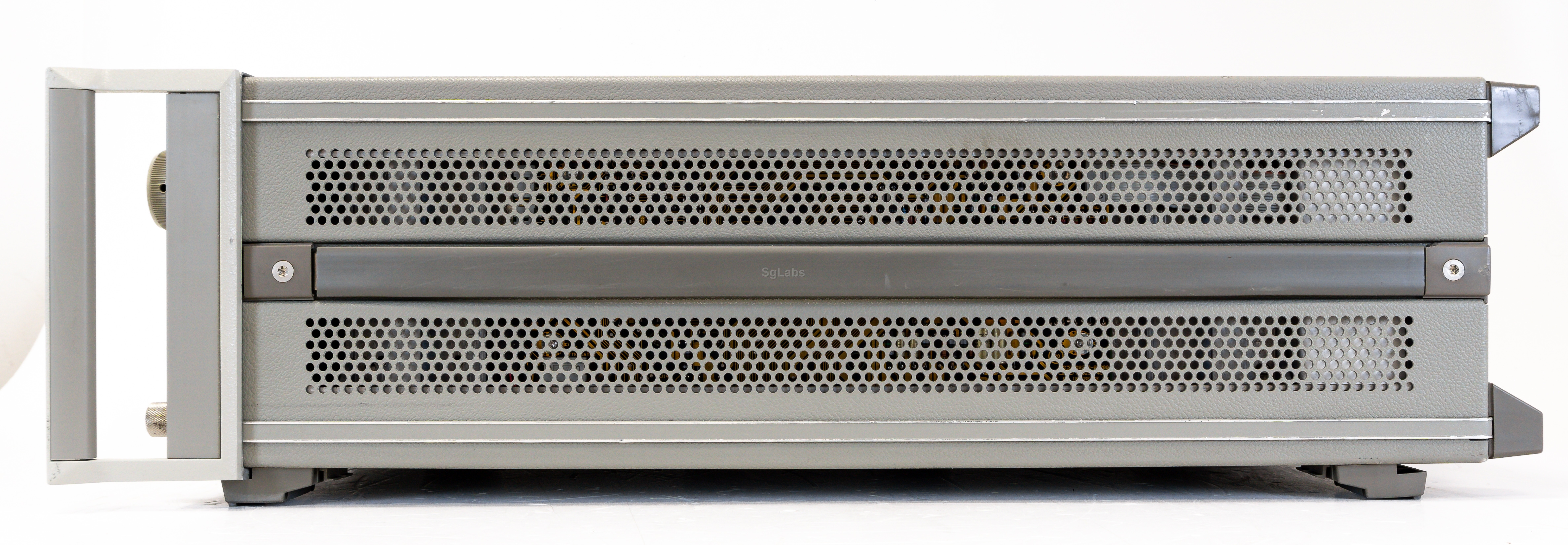

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 83630B synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83630B to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz.
Synthesized Sweeper 10MHz-26.5GHz
Features
  • +13 dBm calibrated output power
  • -50 dBc harmonics
  • SSB phase noise
  • Complete analog sweeper
  • 1 Hz frequency resolution (Option 008)
  • Pulse, amplitude and frequency modulation (8360B Series only)
  • -110 dBm output power with step attenuator (Option 001)
  • 001 - Adds Step Attenuator
  • 002 - Internal Modulation Generator
  • 004 - Rear Panel RF Output
  • 006 - Fast Pulse Modulation
  • 008 - 1 HZ Freq Resolution
  • 700 - MATE Compatible
  • Max frequency: 26.5 GHz
  • Minimum Frequency: 10 MHz
  • Modulation: AM_FM_PM
  • Max. power: 13 dBm
  • Min. output level: -20 dBm, -110 dBm with opt 001
  • Resolution: 1 kHz, 1Hz with opt 008
