HP Agilent Keysight, 8340B

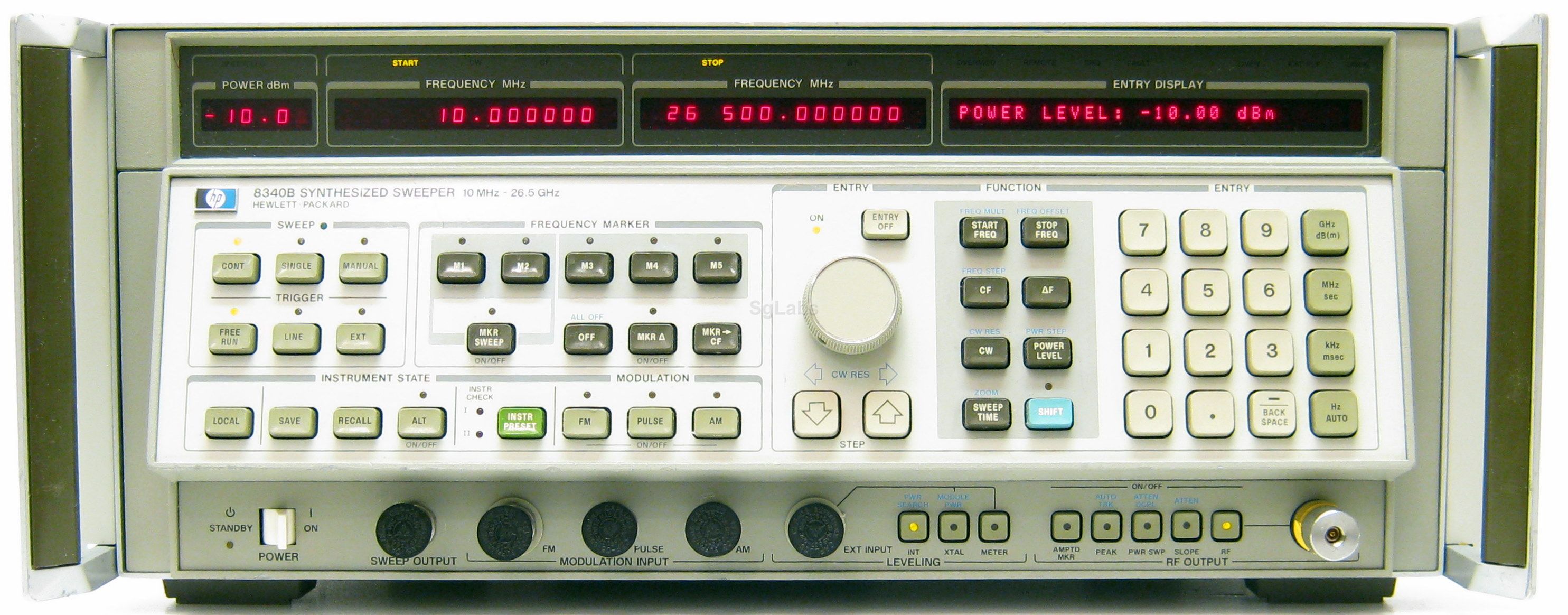

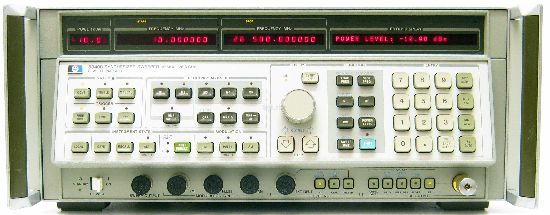

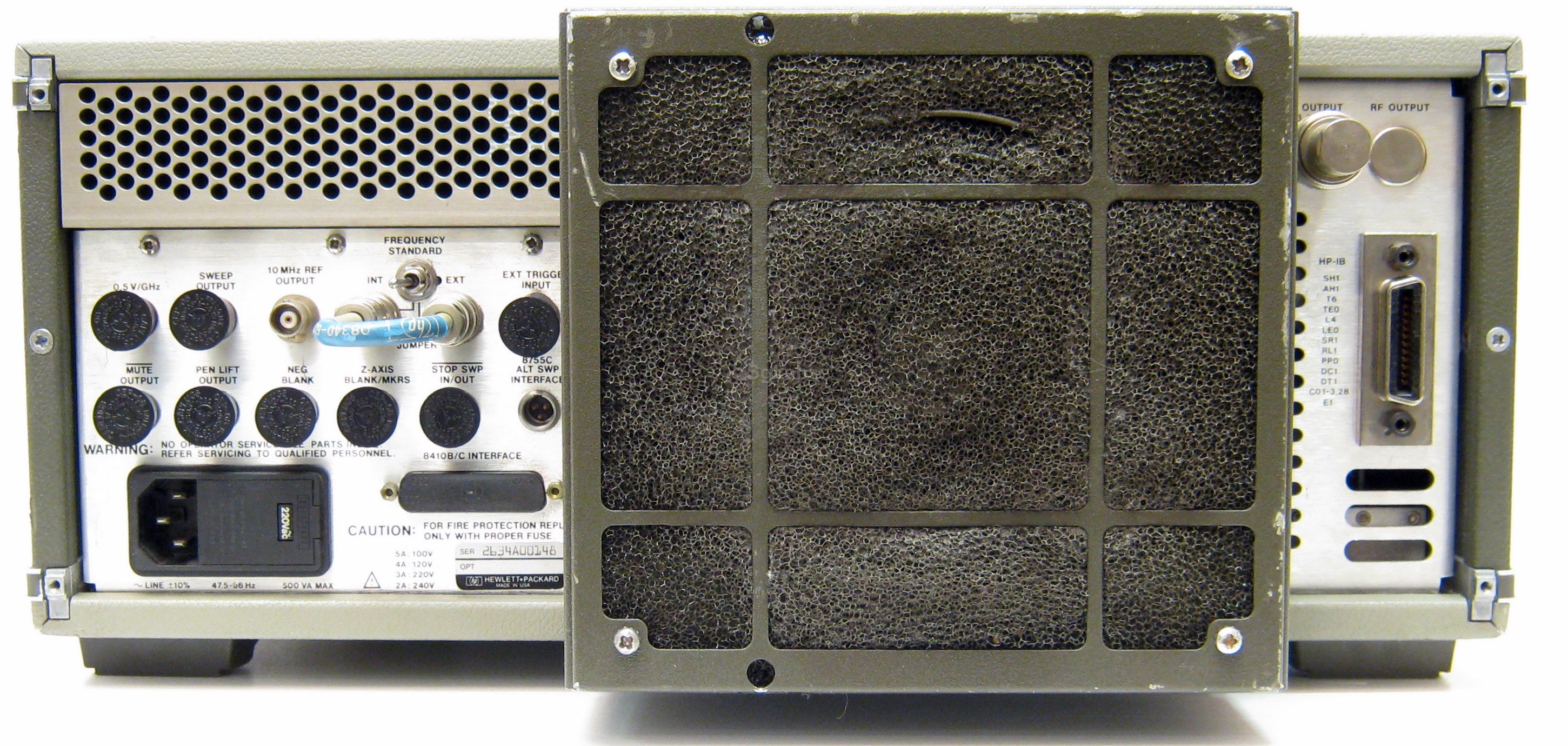

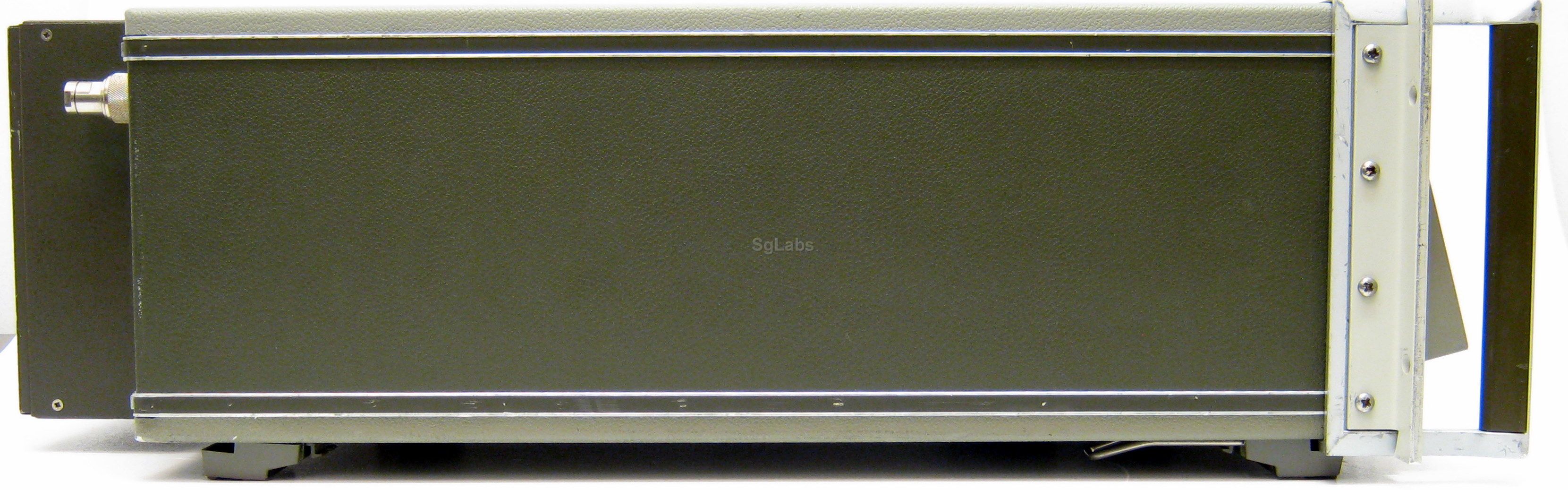

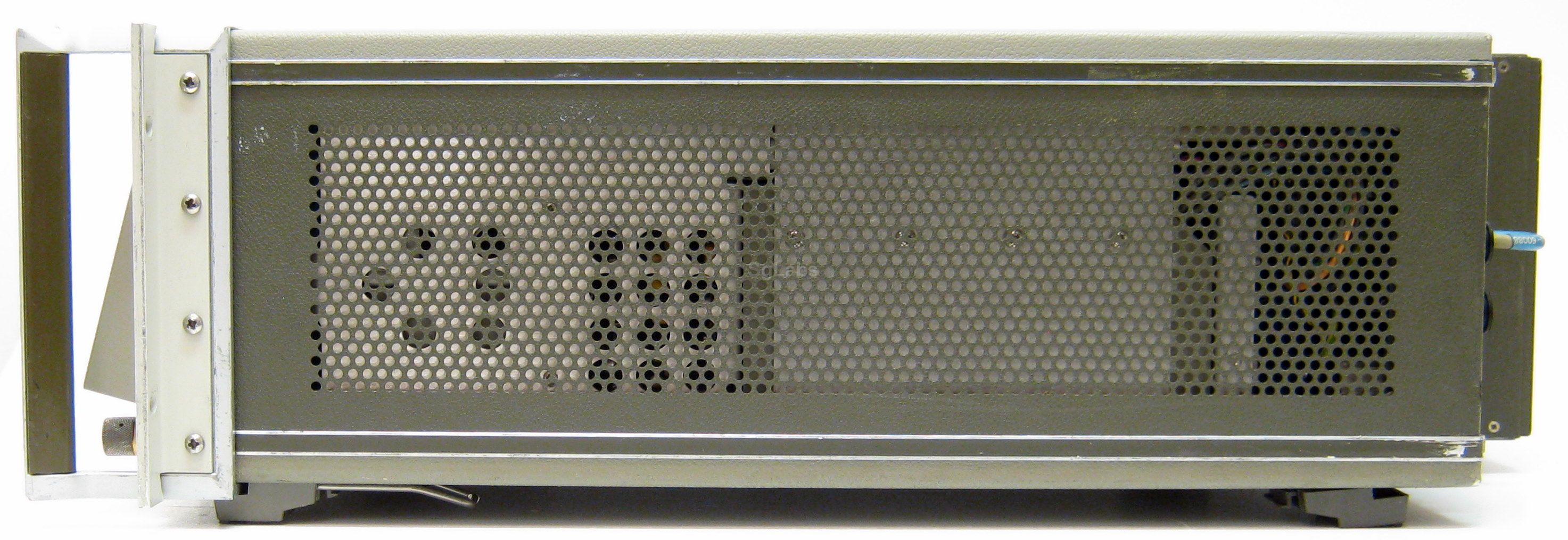

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 8340B synthesized sweep generator offers superior resolution of 1 to 4 Hz over the frequency range of 10 MHz to 26.5 GHz. Output is generated by an indirect synthesis technique that yields low single-sideband phase noise. This makes the 8340B an excellent source for use in conjunction with microwave network analyzers like the HP 8510B. The indirect synthesis technique also gives the 8340B a very fast CW switching time of typically better than 35 ms. A fast phase-lock feature can also be enabled to give switch times between 11 and 22 ms depending on absolute frequency and step size. Long term stability is excellent at 1x10-9/day. Calibrated output range +10 dBm to -110 dBm. Pulse, AM, FM modulation and a complete analog sweeping with widths as narrow as 100Hz. HP-IB.

001: Front RF Output without Attenuator
004: Rear RF Output with Attenuator
005: Rear RF Output without Attenuator
006: Delete Pulse Modulation
007: Relaxed Phase Noise Specifications
008: 1 kHz Frequency Resolution
806: Rackmount Slide Kit
850: 8410 B/C Interface Cable
908: Kit for Rack Flanges without Front
910: Additional Operating and Service Manual
913: Rack Mount Flange Kit
915: Additional Service Manual
E69: MATE/CIIL Programming Capability
  • Max frequency: 26.5 GHz
  • Minimum Frequency: 10 MHz
  • Modulation: AM-PULSE
  • Max. Output level: 10 dBm
  • Min. output level: -110 dB
  • Resolution: max 1 Hz
