HP Agilent Keysight, 8161A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

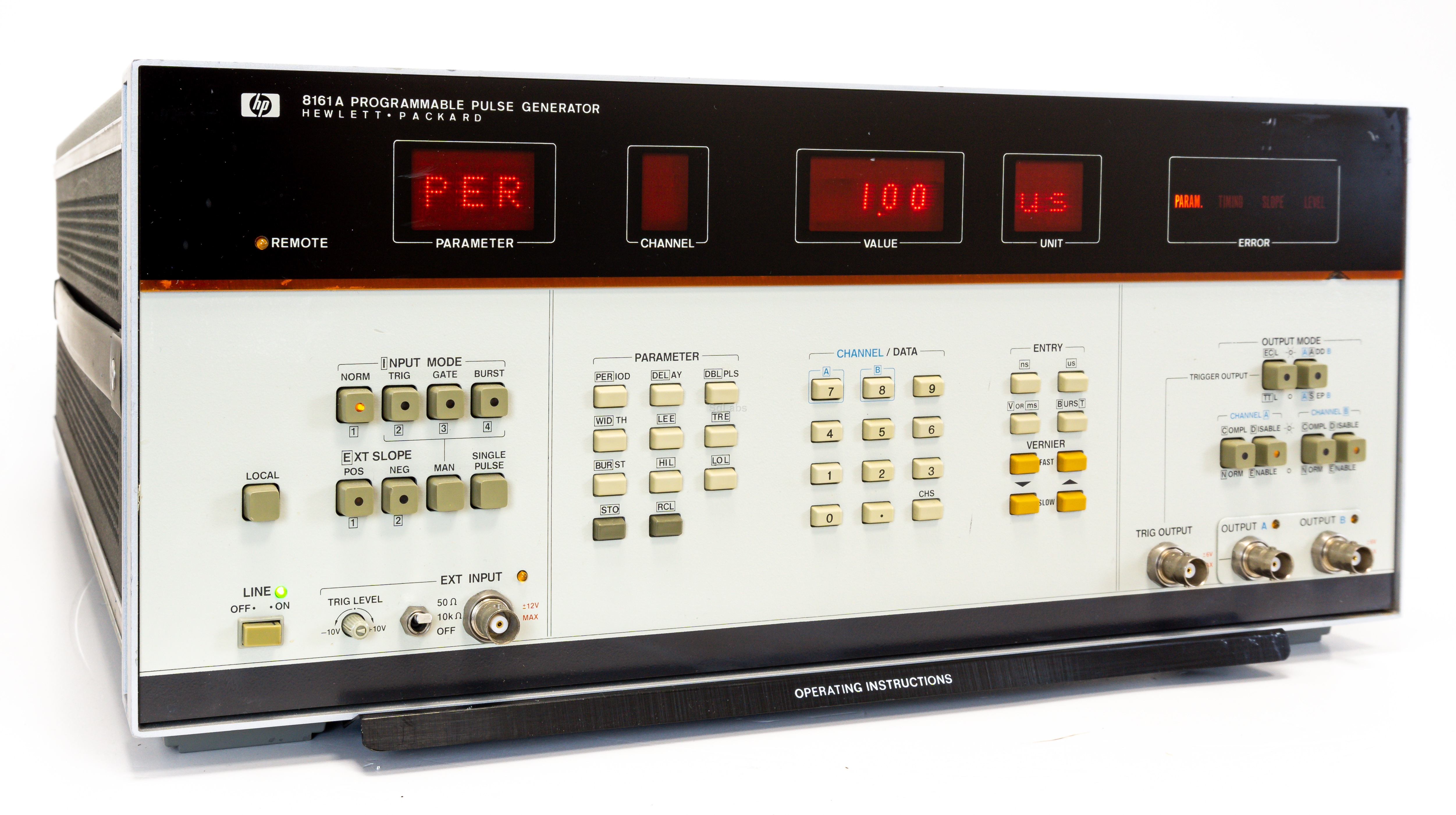

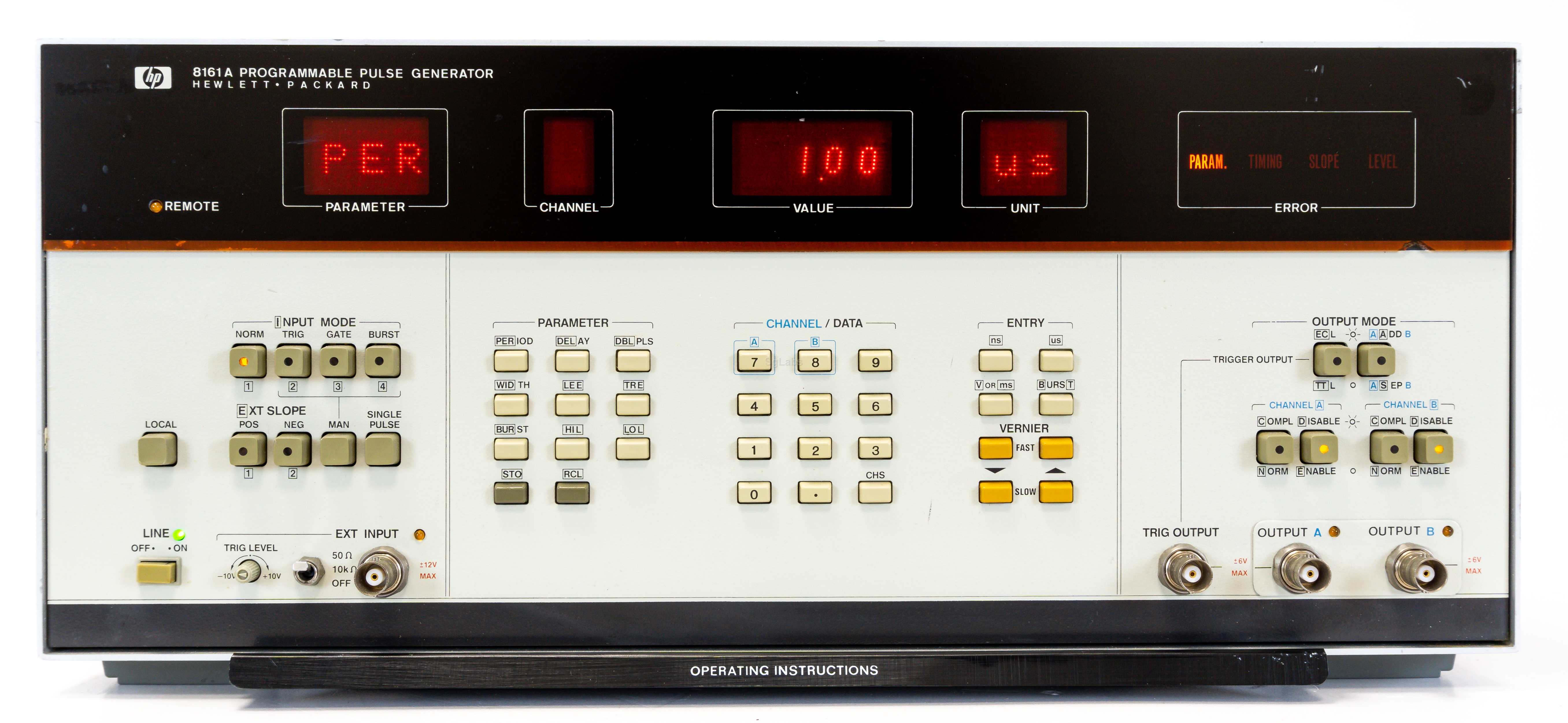

The Agilent 8161A Programmable Pulse Generator is a precision 100 MHz HP-IB programmable pulse generator. All pulse parameters are programmable either from the front-panel keyboard or via the bus. In addition, each parameter, value, unit, as well as any error is logically displayed on the front panel. The Agilent 8161A can output pulses at up to 100 MHz with transition times independently adjustable from 1.3 ns to 900 µs. High and low pulse levels are adjustable to ±5 V. Pulse width range is 4.0 ns to 990 ms and pulse delay is 0.0 ns to 990 ms. Double pulse range is selectable from 8.0 ns to 990 ms. It also has normal/compliment output selection and output enable/disable functions. Nine complete front-panel setups can be stored and recalled either from the front-panel or via the HP-IB bus.
Features
  • Timing period: 10 ns to 980 ms
  • Delay: 0.00 ns to 990 ms
  • Pulse width: 4.0 ns to 990 ms
  • Pulse width accuracy: ±1%
  • Double pulse: 8.0 ns to 990 ms

  • Max. Frequency: 100 MHz
  • Max. Level: 5 Vp-p
  • Channels: 2
