HP Agilent Keysight, 6575A

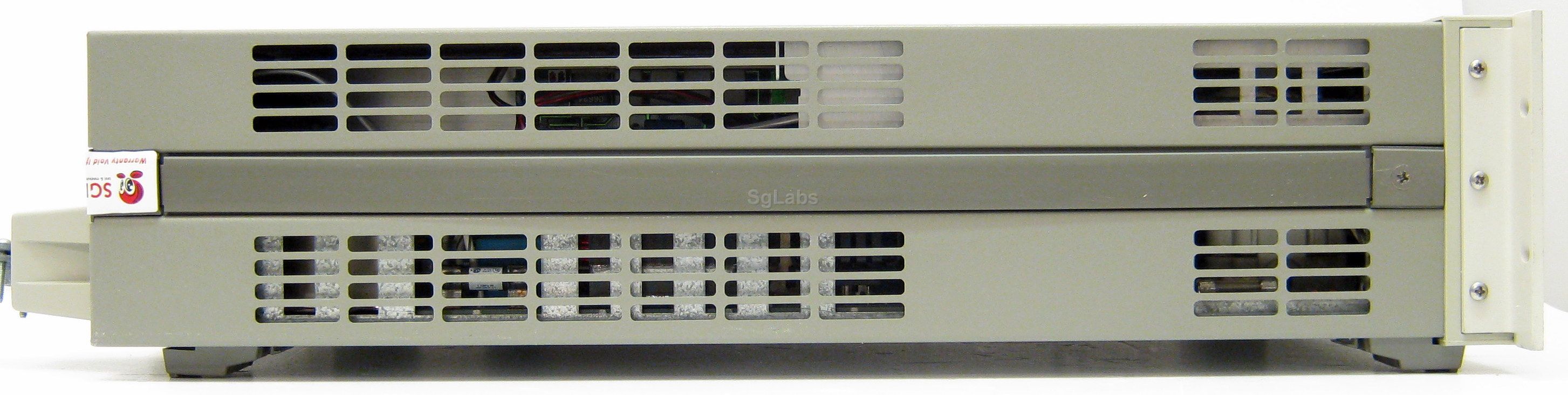

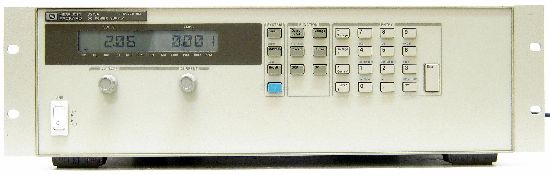

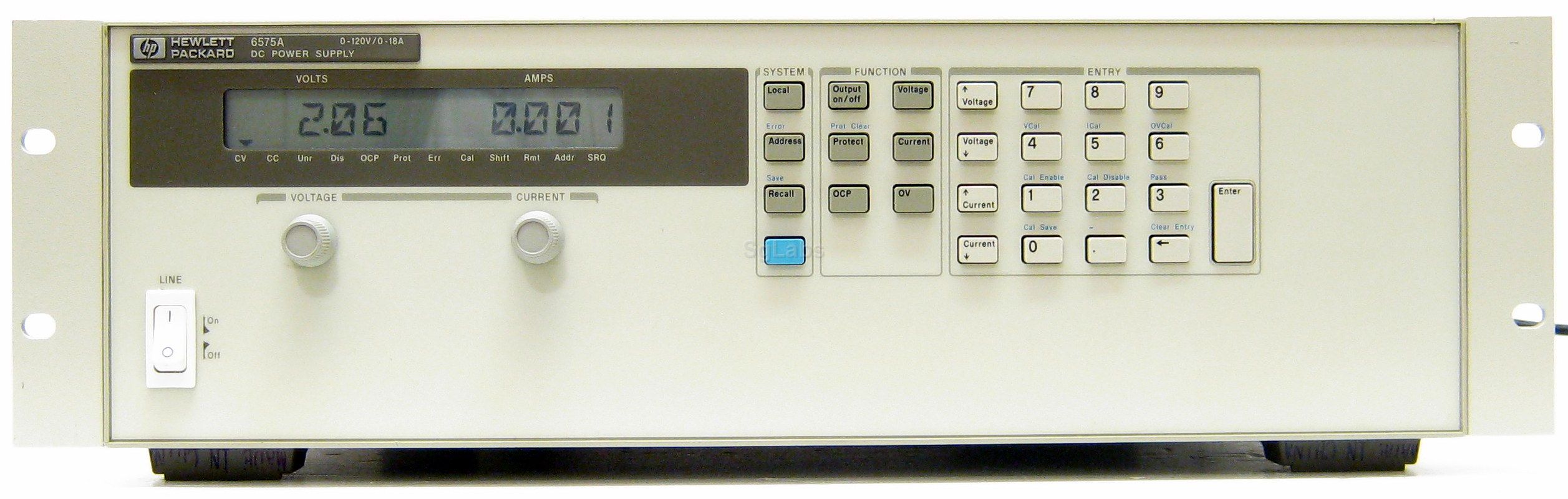

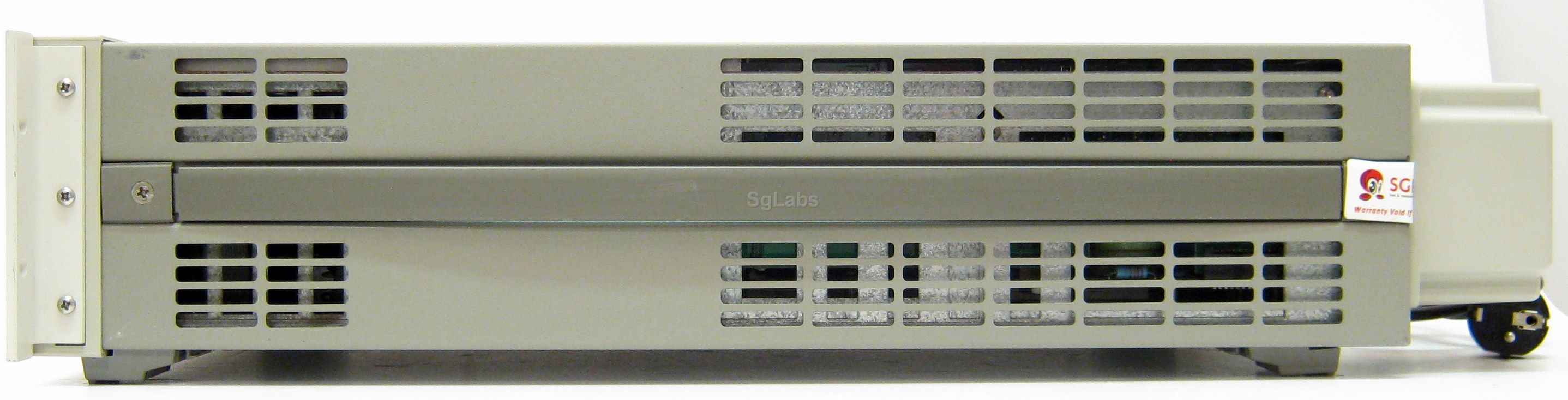

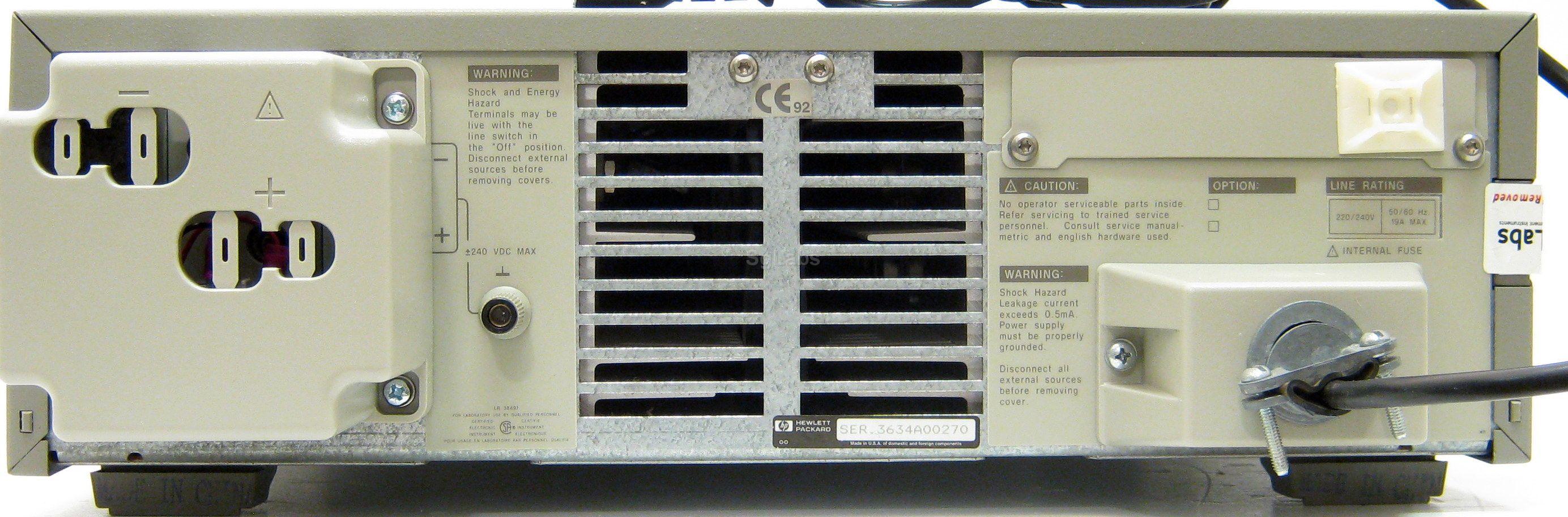

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

This single output DC power supply offers speed and accuracy for test optimization.

This unit provide front panel and analog control of output voltage and current; fast, low noise outputs; fan speed control to minimize acoustic noise; and protection features to ensure DUT safety.

These dc power supplies can be controlled either from the front panel or via an analog programming voltage. When used in a test system, the fast up and down programming helps decrease test time. Quickly reacting protection features, including CV/CC mode crossover and over-voltage protection help protect your valuable assemblies from damage. Lab-bench use is enhanced by the fan-speed control, which minimizes acoustic noise. The extremely low ripple and noise helps the test engineer make extremely accurate current and voltage  measurements.

Technical Details:

  • Max voltage: 120 V
  • Max Current: 18 A
  • Max Power: 2 kW
  • Accuracy: 120 mV, 12 mA
  • Singol channel
  • Over voltage protection
  • Over current protection
  • Max current: 18 A
  • Max. Voltage: 120 V
