HP Agilent Keysight, 4274A

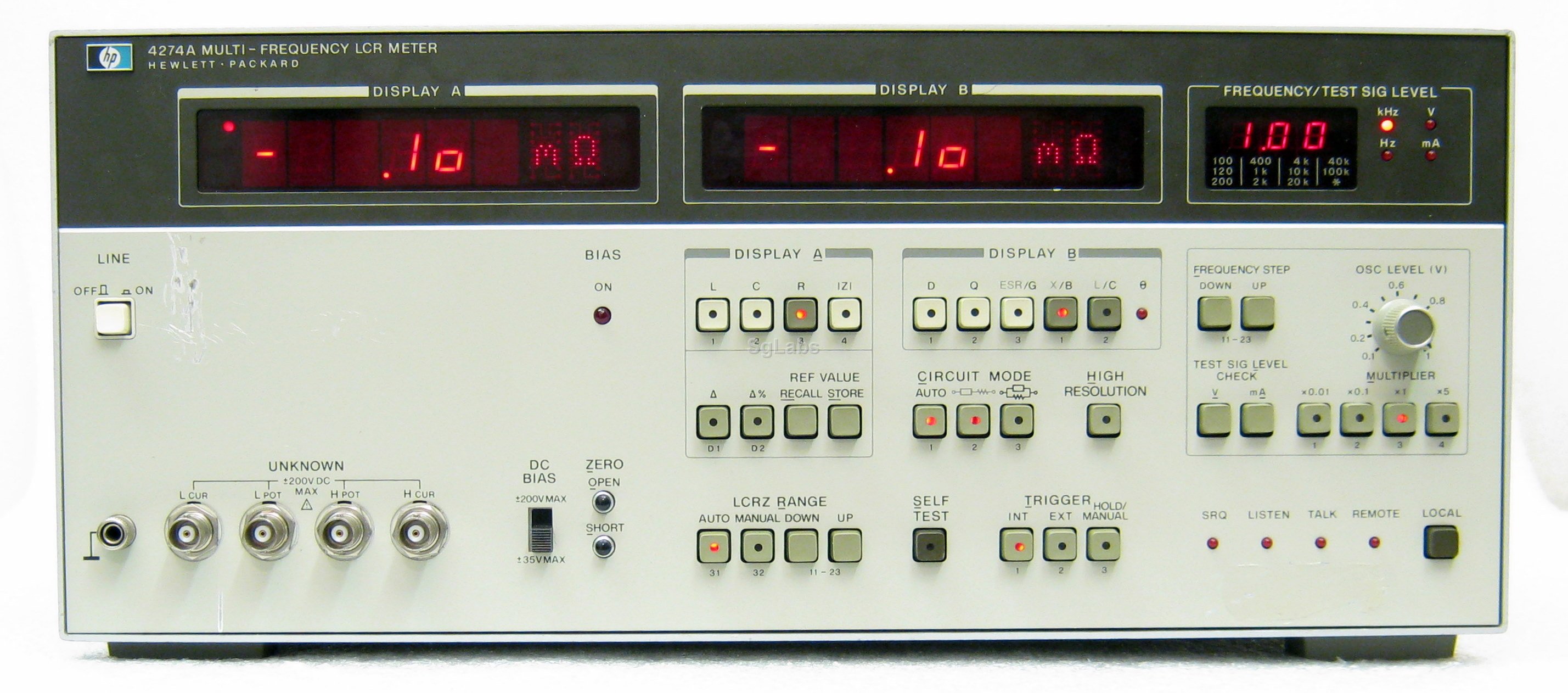

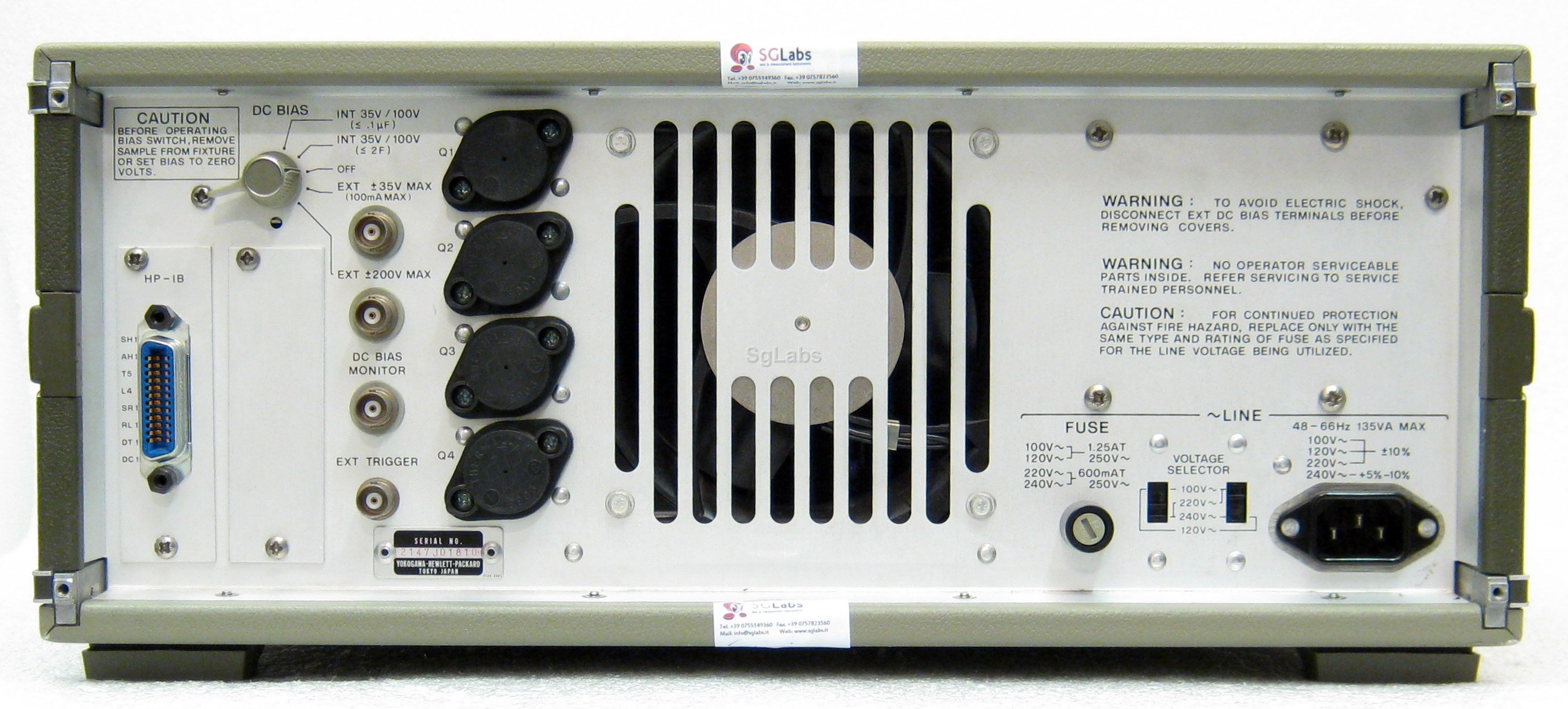

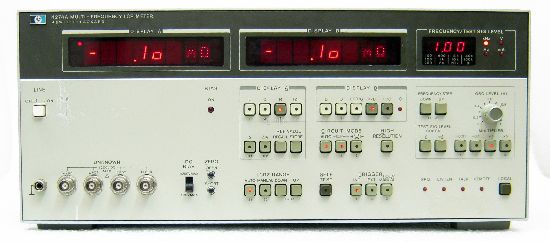

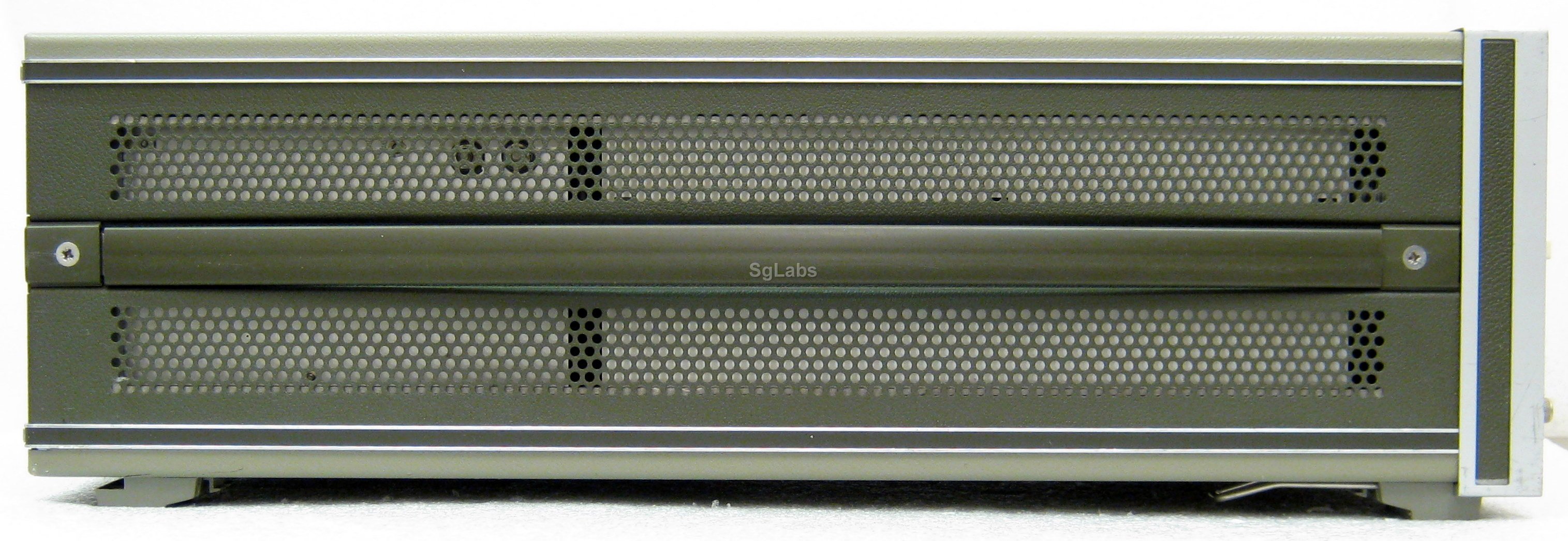

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 4274A Multi-Frequency LCR Meter is a microprocessor based impedance measuring instrument making the evaluation of LCR components, complex components, and semiconductor materials quick-and-easy. A wide range of components can be tested with the 4274A due to its wide frequency range of 100Hz to 100kHz and test signal levels of 1 mV to 5 VRMS. The meter measures equivalent series resistance (ESR), impedance (|Z|), phase angle (Theta), reactance (X), susceptance (B), and conductance (G), in addition to the conventional L, C, R, D and Q parameters. The 4274A measures only the value of the component and/or device under test, with 5 1/2-digit resolution and 0.1% basic accuracy by reducing the possibility of errors due to self or mutual inductance, stray capacitance and/or residual inductance in the test leads or test fixture used. This measurement is obtained by a four terminal pair configuration and a built in automatic zero offset to compensate for these errors. A self test provides an automatic operational verification check indicating a pass or fail condition.


  • Test frequencies:
    • 100 Hz to 100 kHz
  • Test signal level:
    • 1 mV to 5 Vrms
  • 0.1% basic accuracy
  • Measure L/C - D/Q/ESR/G; IZI - e, R-X/B/L/C; DLCRZ, D%
  • High Resolution - 5.5 digit; D=0.00001
  • Accuracy: 0.1%
  • Frequency range: da 100 Hz a 100 KHz in frequenze spot
  • Capacity max. min.: 1 pF - 1000 mF
  • inductance ranege: 100 nH - 10 KH
  • Resistance range: 100 milliohm - 10 megaohm
  • Resolution: 5.5 digit
