HP Agilent Keysight, 3314A

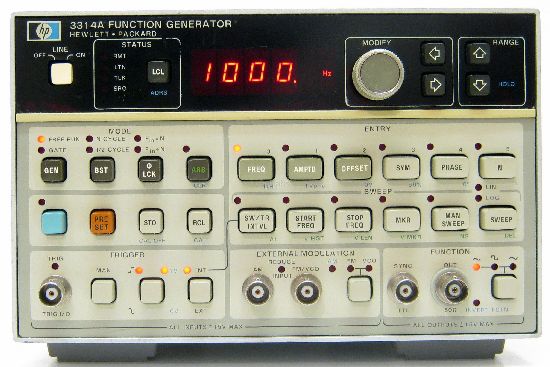

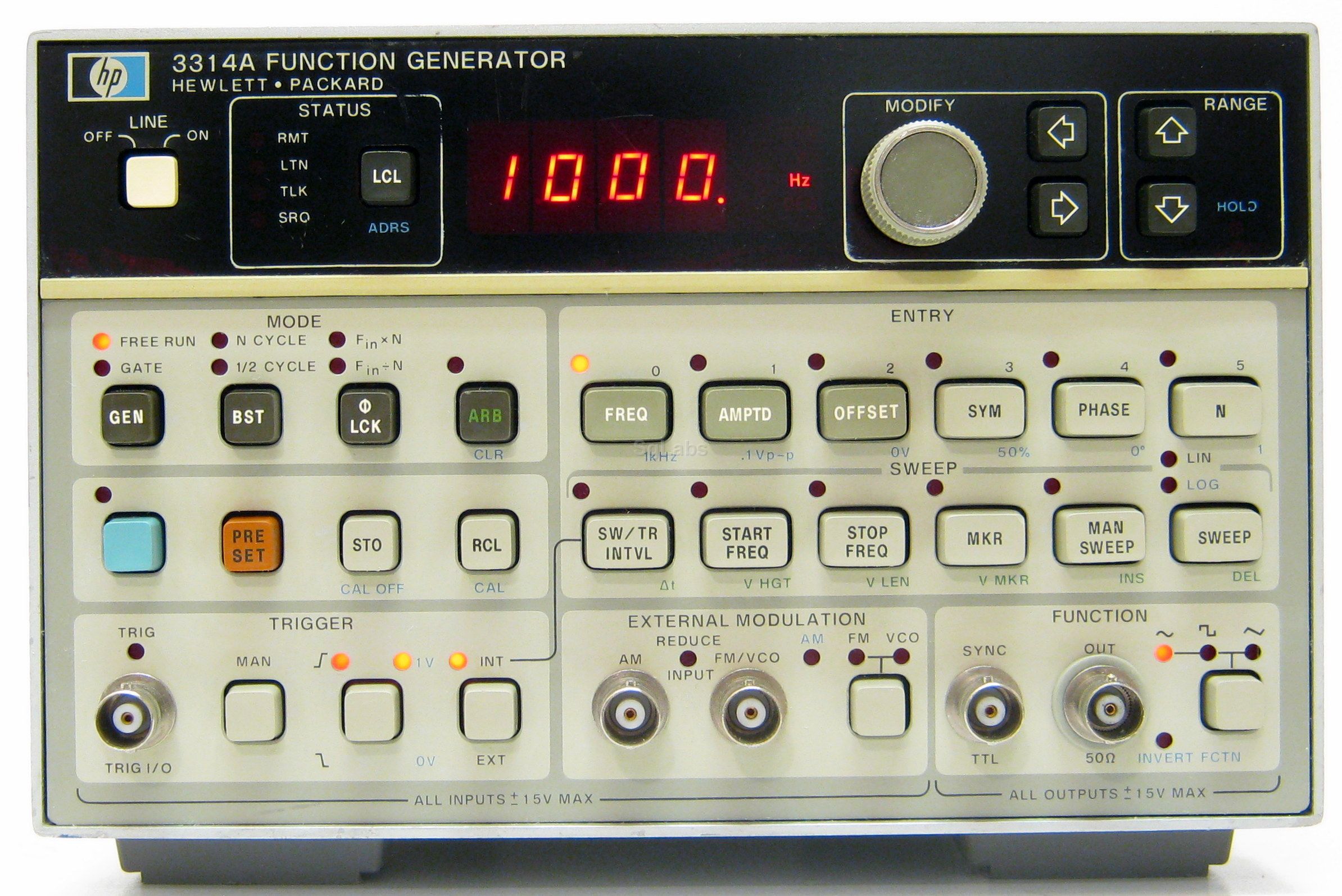

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP / Agilent 3314A is a GPIB-programmable Function/ Waveform generator. The 3314A feature set includes accurate sine, square, and triangle waves, with ramps and pulses available using variable symmetry with a frequency range of 1 mHz to 19.99 MHz. Additional features include counted bursts, gate, lin/log sweeps, AM, FM/VCO, dc offset and phase lock.

  • Lin/Log sweeps
  • AM/FM/VCO
  • Phase lock XN and ÷N
  • Gate and counted burst
  • 1/2 cycle mode
  • Arbitrary waveform generator

  • Max. Frequency: 20 MHz
  • Min. Frequency: 1 mHz
  • Max. Level: 10 Vpp
  • Min. Level: 0.01 mVpp
  • sweep: included
