HP Agilent Keysight, 11664E
You are here: Network Analyzer » Sensor

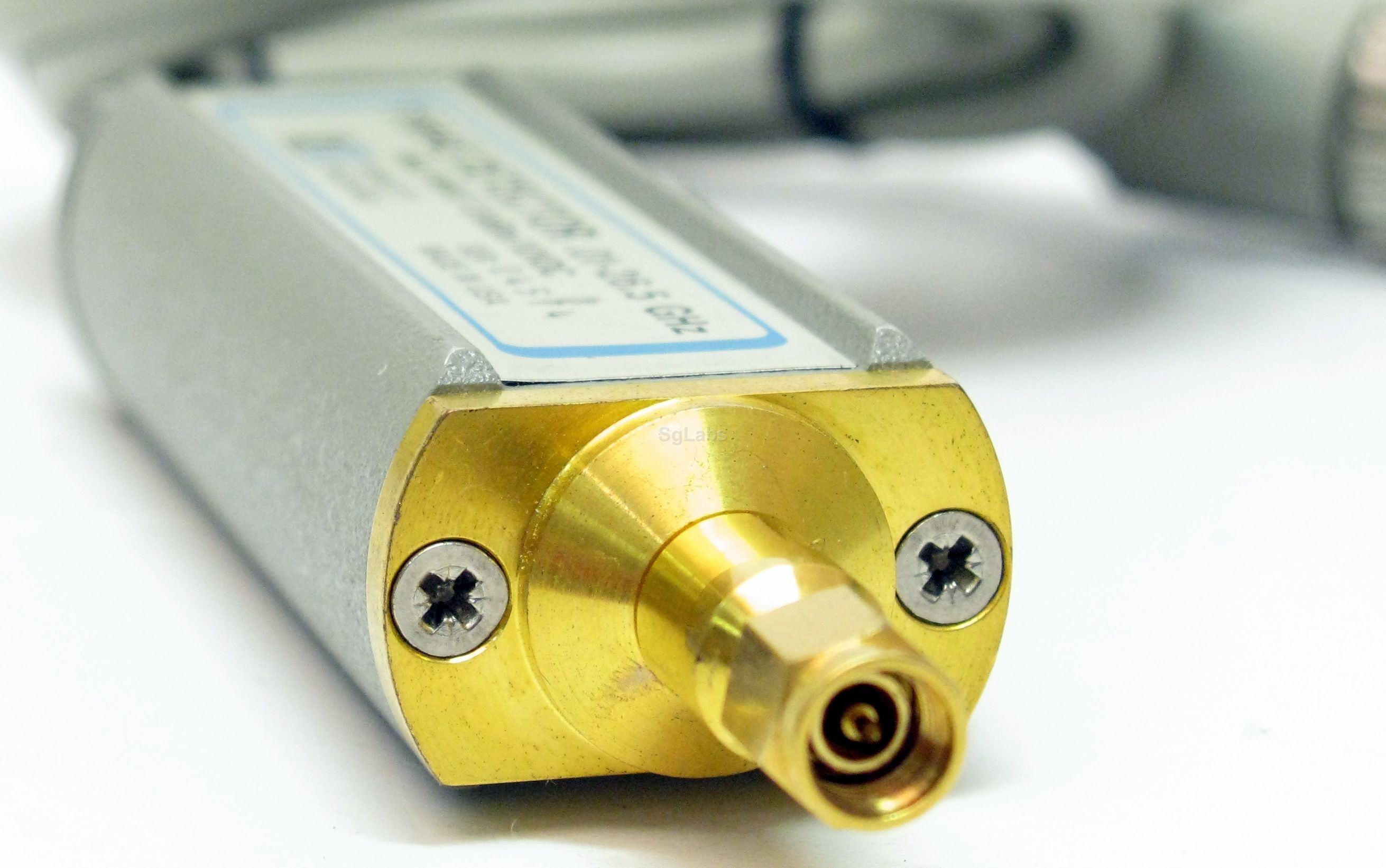

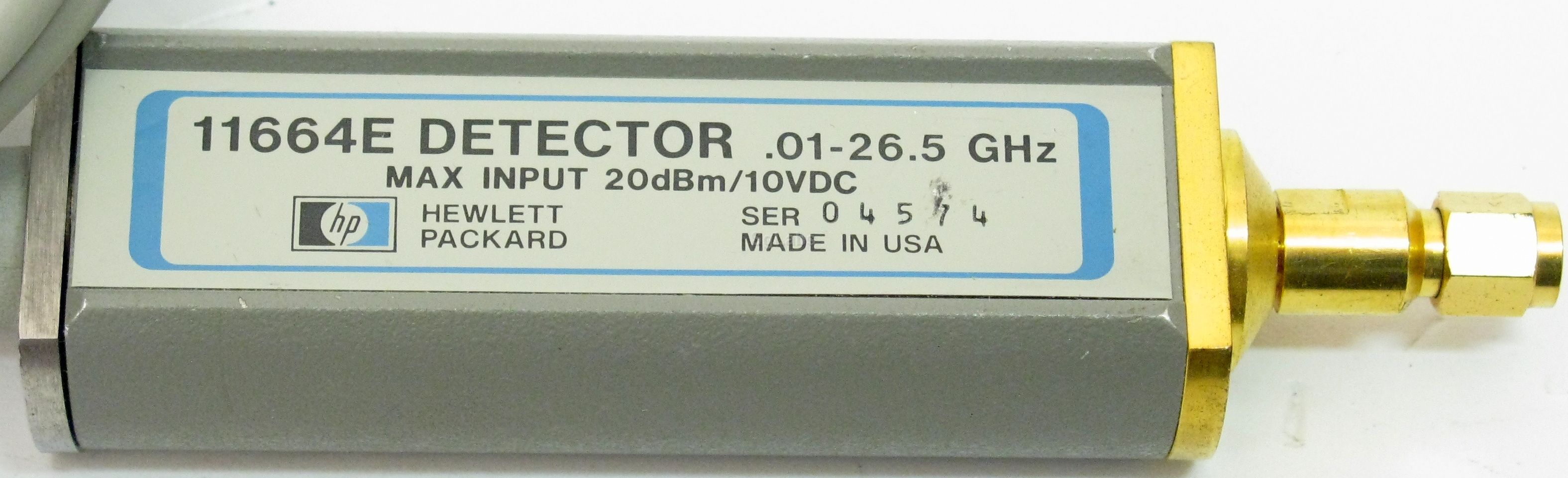

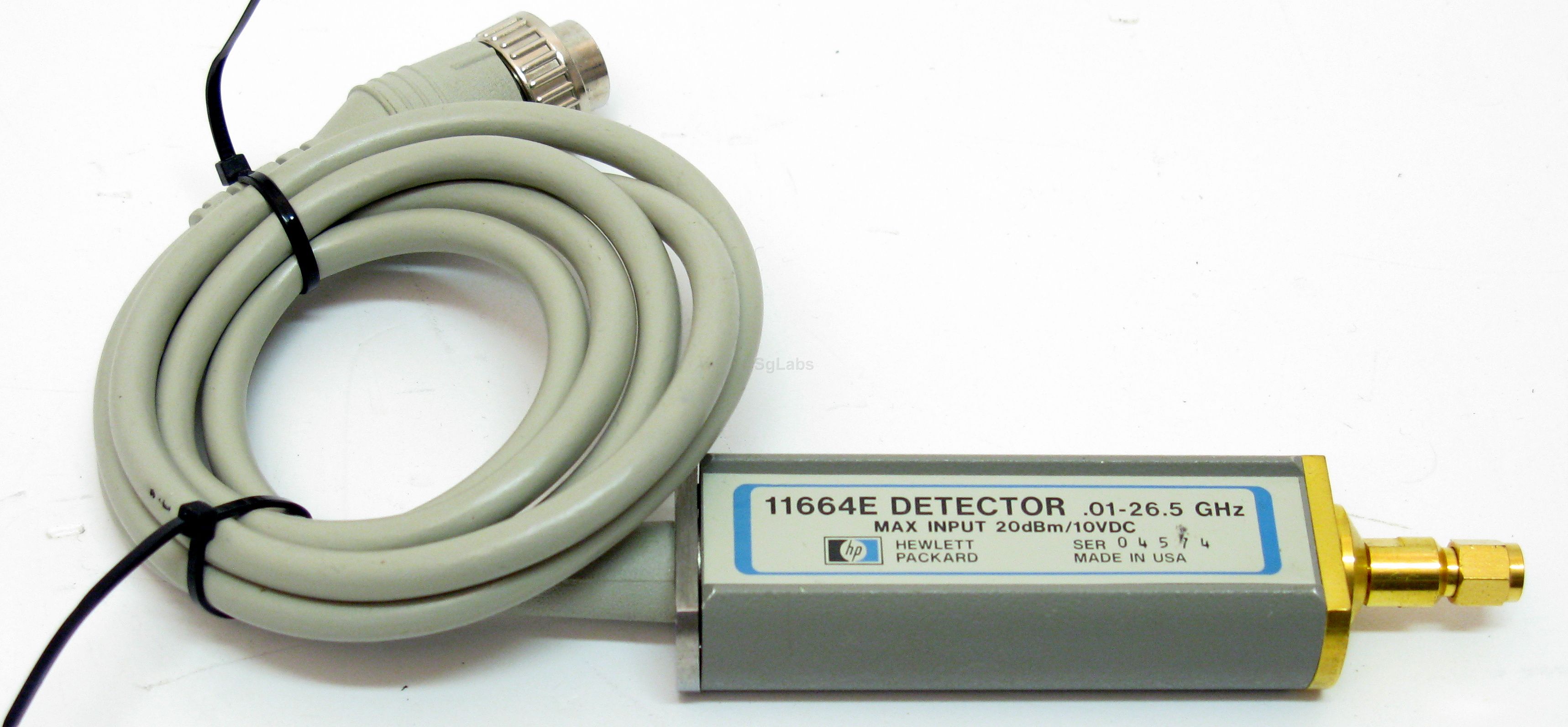

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent HP 11664E Coaxial Detector was designed for use with the 8757, 8756, or 8755 series of Network Analyzers, in ac detection mode. The Agilent 11664E Detector covers a frequency range of 10 MHz to 26.5 GHz, uses 3.5 mm connectors and has a dynamic range of +16 to -60 dBm.
Features
- Frequency range 10 MHz - 26.5 GHz
- Return loss: 10-40 MHz >10 dB (20 dB (16 dB, 20-26.5 GHz >12 dB
- Input power range: +16 to -60 dBm (8757)
- Input impedance 50Ω
- Connector: APC 3.5mm
- Max. Frequency: 26.5 GHz
- Min. Frequency: 10 MHz
