GwInstek, GDS2104

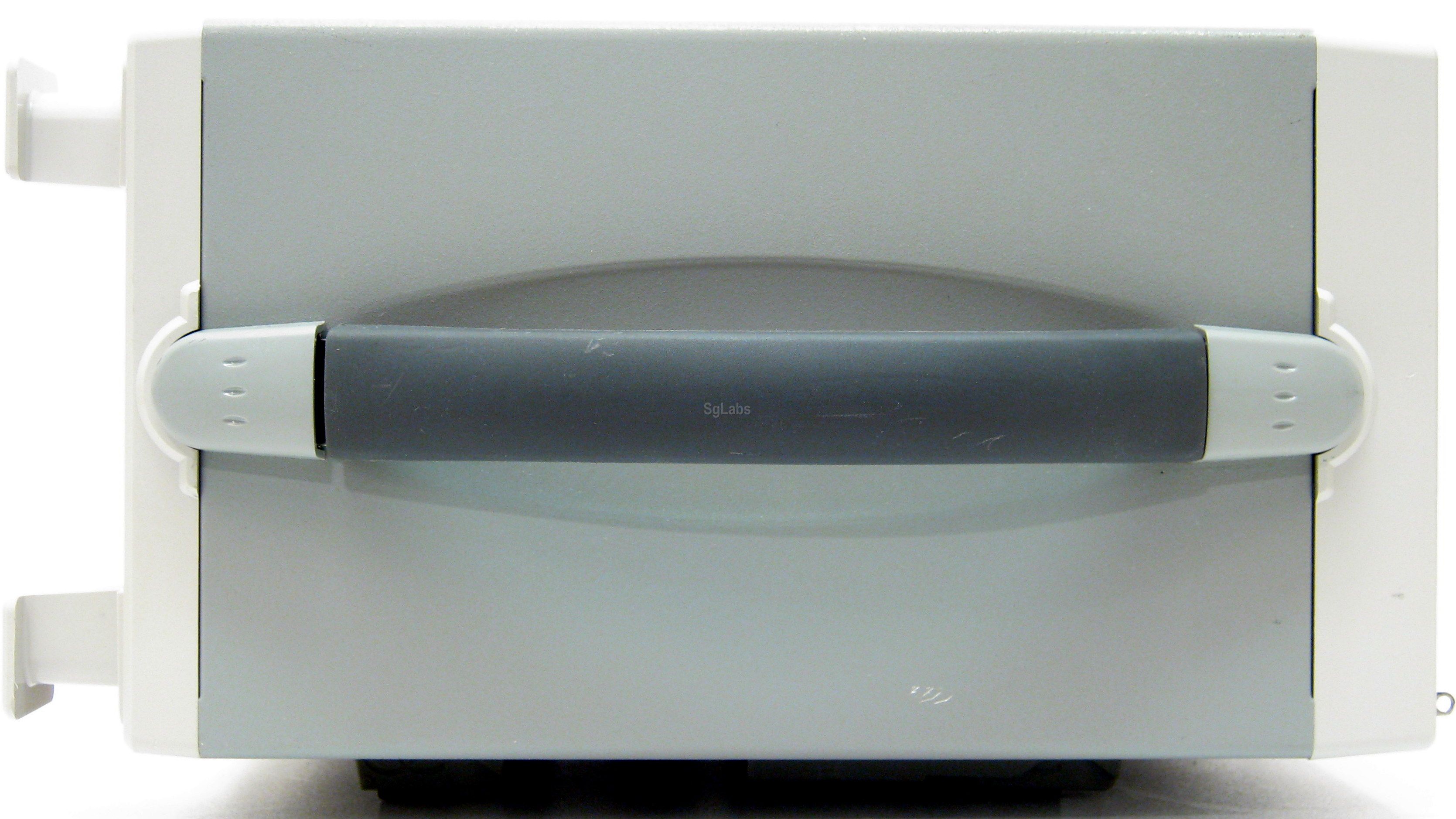

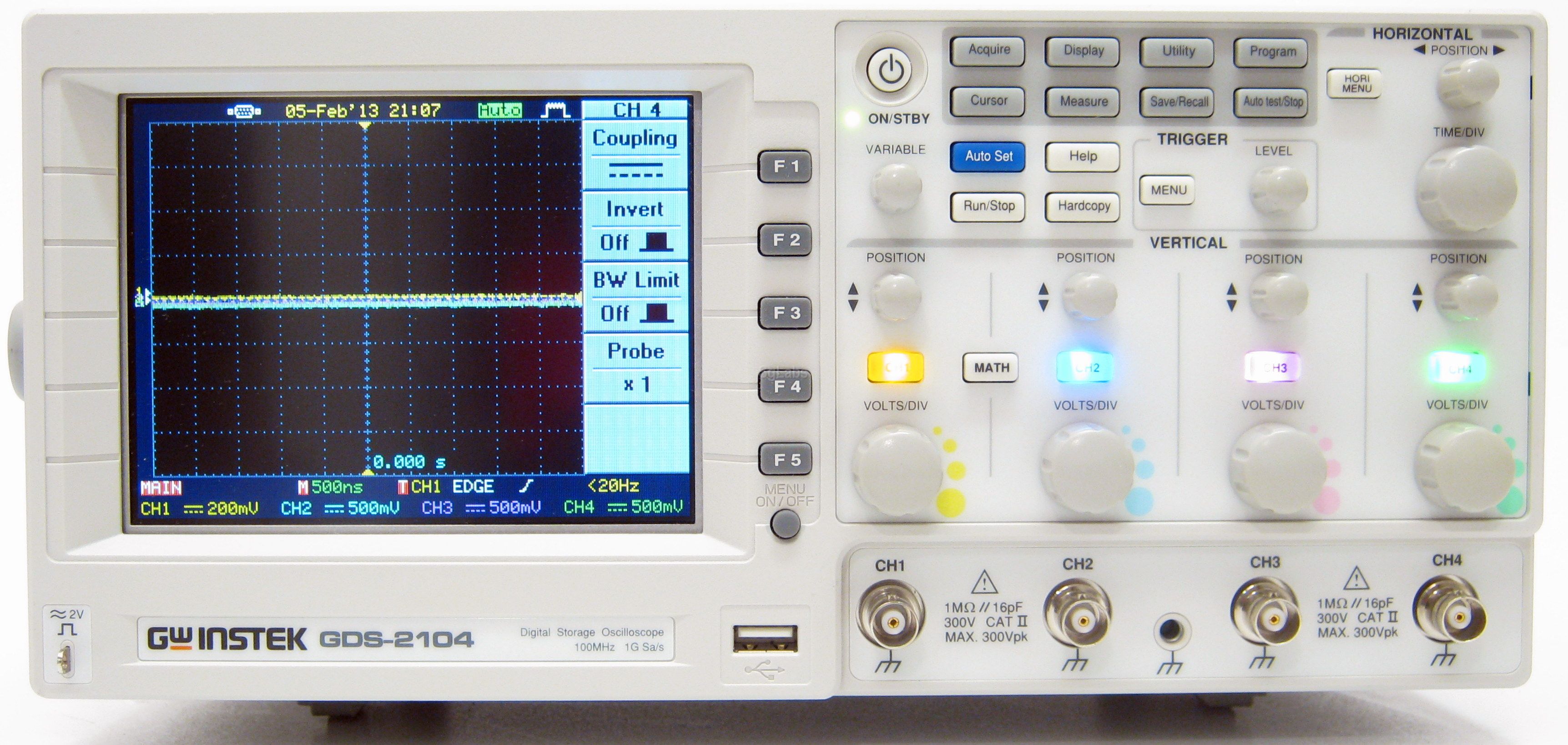

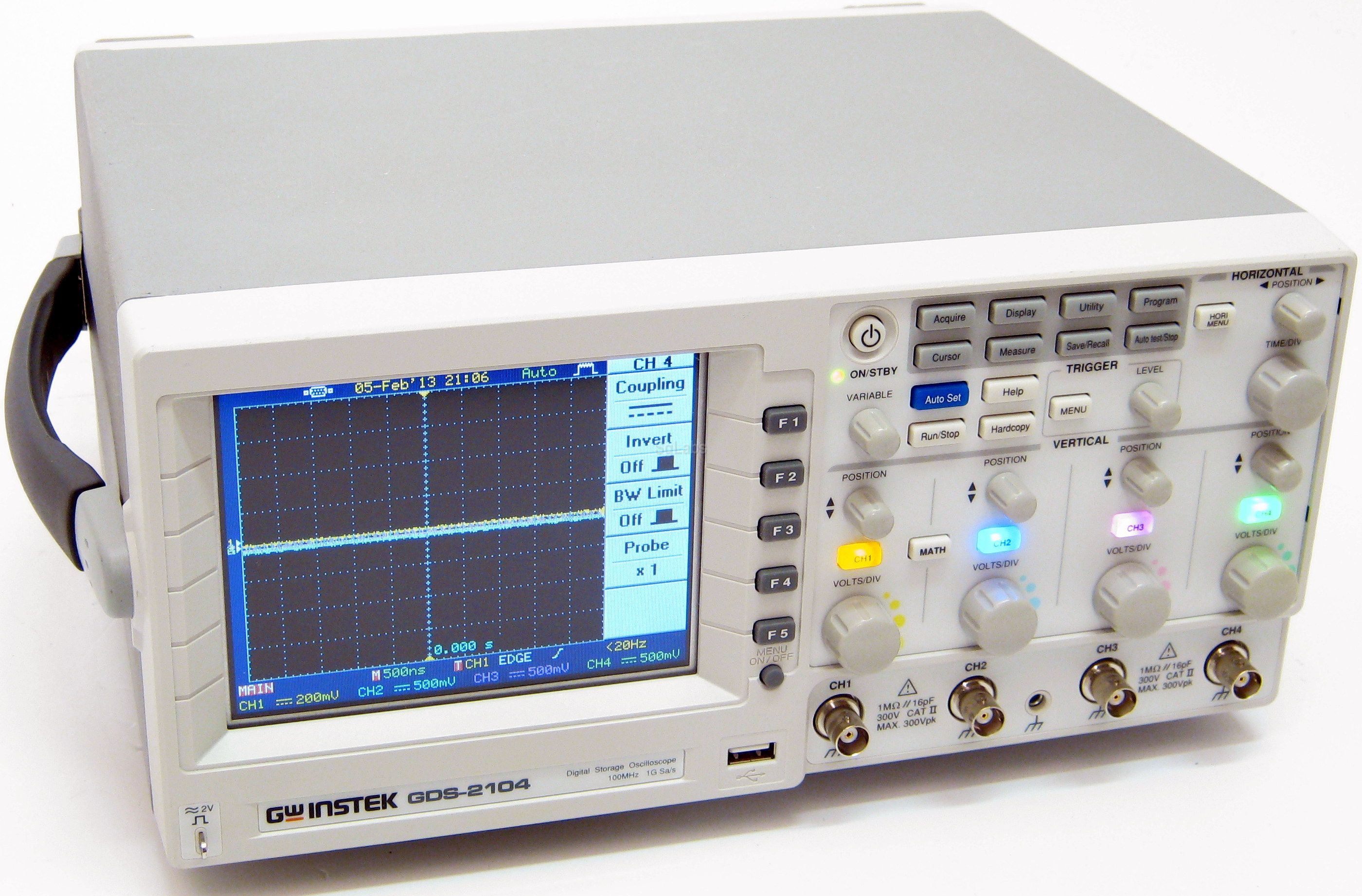

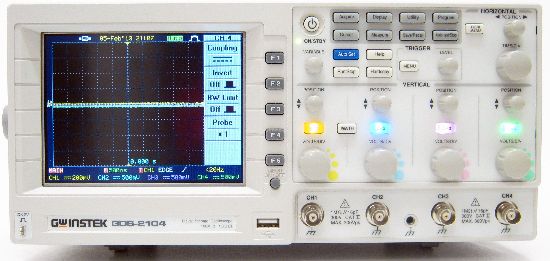

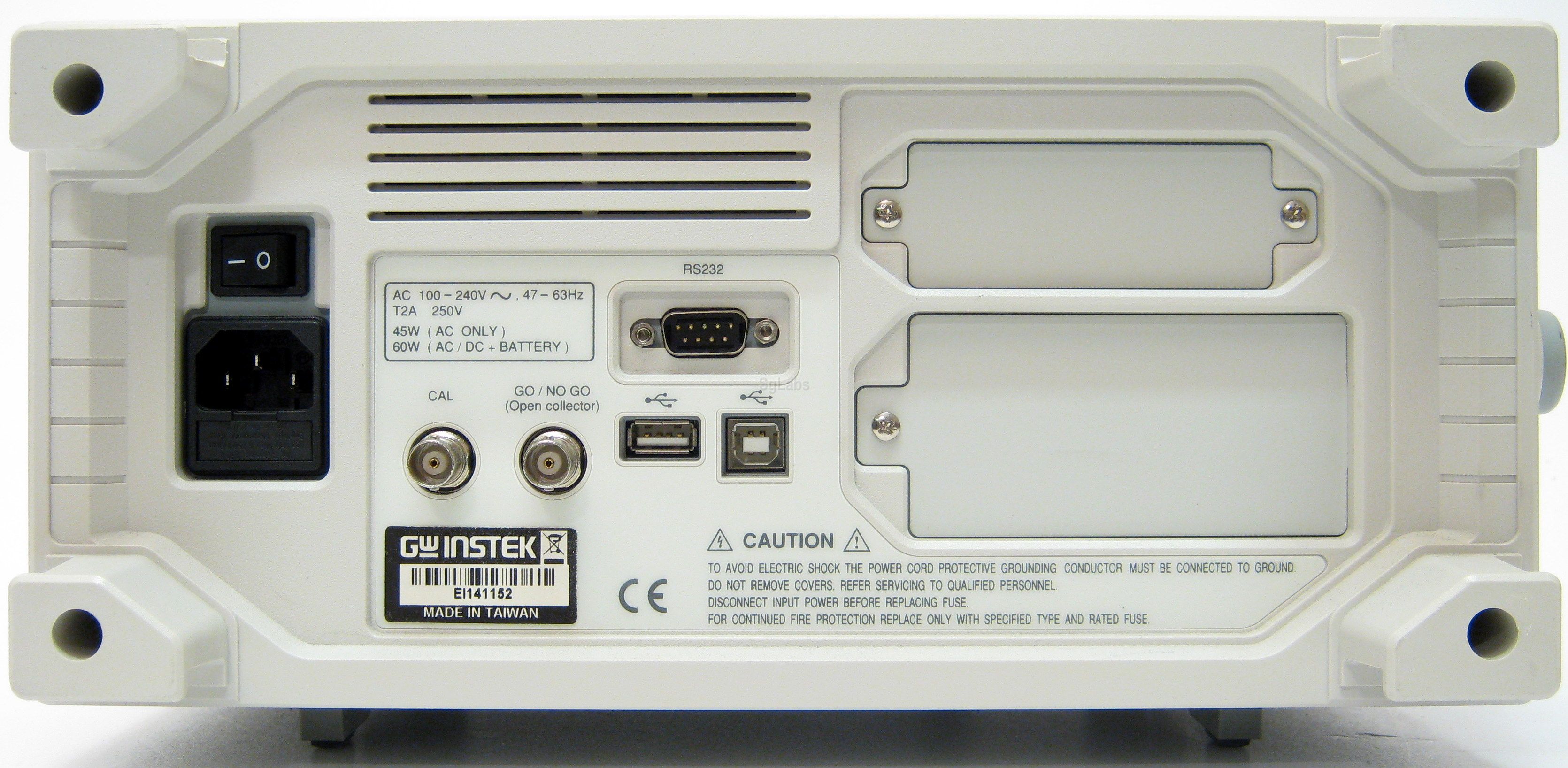

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The GDS-2000 Series comes along with All-In-One design, including 1GSa/s sampling rate, 25k record length, 2 and 4 channel selection, TFT color LCD display, USB support on flash drive storage, color printout, and remote control, Battery power operation and all the powerful Auto-Measurement functions. With GDS-2000 Series digital storage oscilloscope, you could easily make your job done.
The 1GSa/s sampling , the 2CH and 4CH selection with TFT color display , the USB mass storage and programmability, the RS-232C and USB interface included as standard features, and the battery power operation(optional) available for field applications all together make GDS-2000 Series a new standard for the main stream DSO market.

  • Scope Channels:4
  • N. of Channels:4
  • Larghezza di banda:100MHz
  • Meter Display Type:TFT Colour
  • Velocità di campionamento:1GS/s
  • Input Impedance:1Mohm
  • Tempo di salita:3.5ns
  • Tensione di ingresso -:300V
  • Supply Voltage Min:100VAC
  • Supply Voltage Max:240 VCA
  • External Height:142mm
  • External Width:310mm
  • External Depth:254mm

  • Channels: 4
  • Display: TFT coor LCD
  • BandWidth: 100 MHz
  • Sampling: 1GS/s
