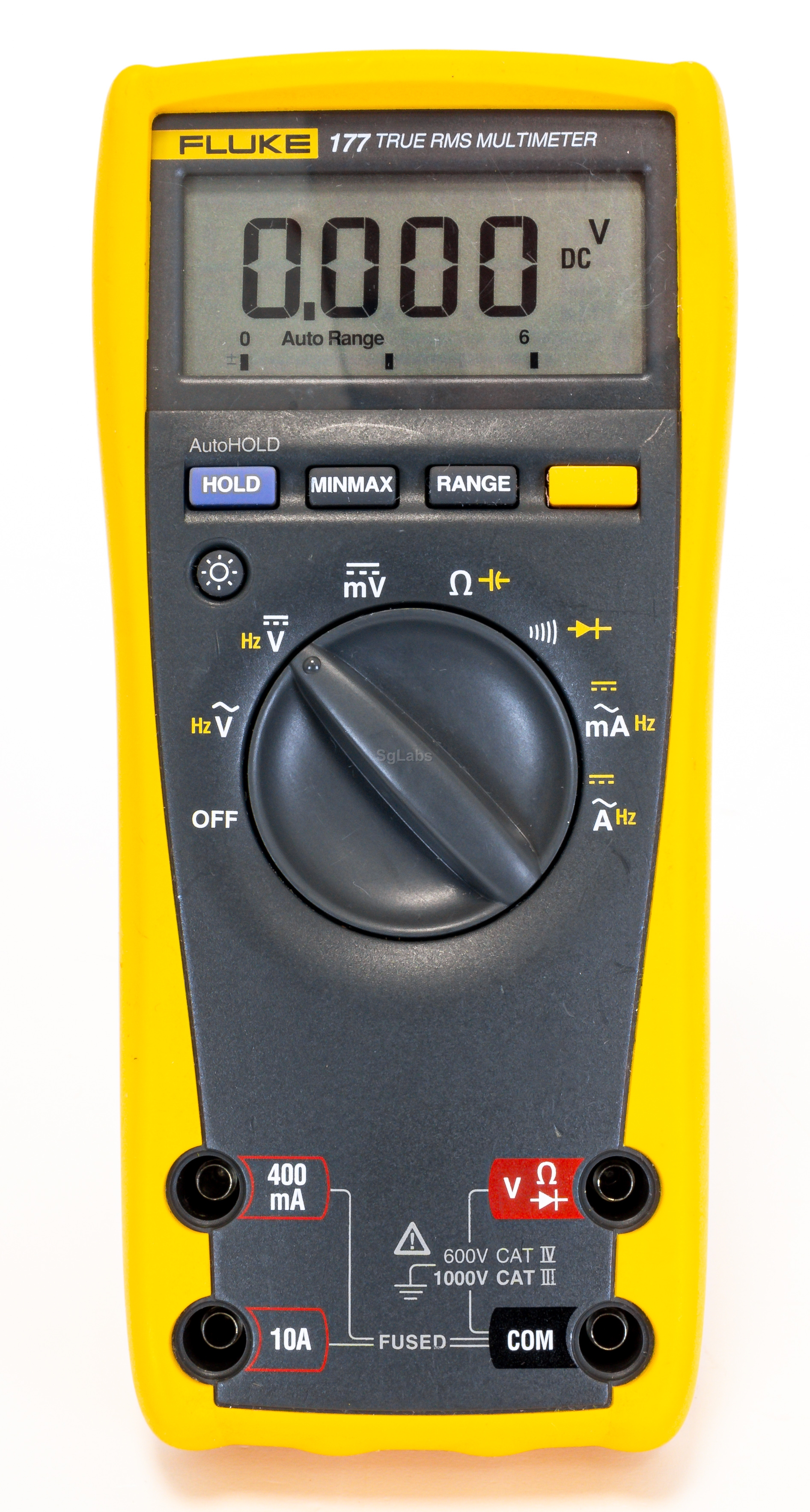

Fluke 177 Digital Multimeter
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Fluke 177 and Fluke 179 offer precision. Reliability and are easy to use that’s why this range are the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, the Fluke 177 Includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems.
With the Fluke 177 and 179 Digital Multi-meters you get True-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, the Fluke 177 provides 0.09% basic accuracy, a digital display with analogue bar graph and backlight. Plus a limited lifetime warranty.

Features
  • 6000 count LCD with 33 segment bargraph
  • True rms (a.c.) measurement
  • EN61010-1 safety standard compliance to Cat IV 600V & Cat III 1000V
  • Resistance, continuity and diode measurement
  • Capacitance measurement up to 10000μF
  • Frequency measurement up to 100kHz
  • Min/Max/Average recording
  • Display and Auto Hold
  • Separate battery and fuses access without breaking the calibration seal
  • Measured Function: AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance
  • AAC Max: 10A
  • ADC Max: 10A
  • Digit: 6000 count
  • VAC Max: 1000V
  • VDC Max: 1000V
