Eaton Maury, 2075 MT2075C

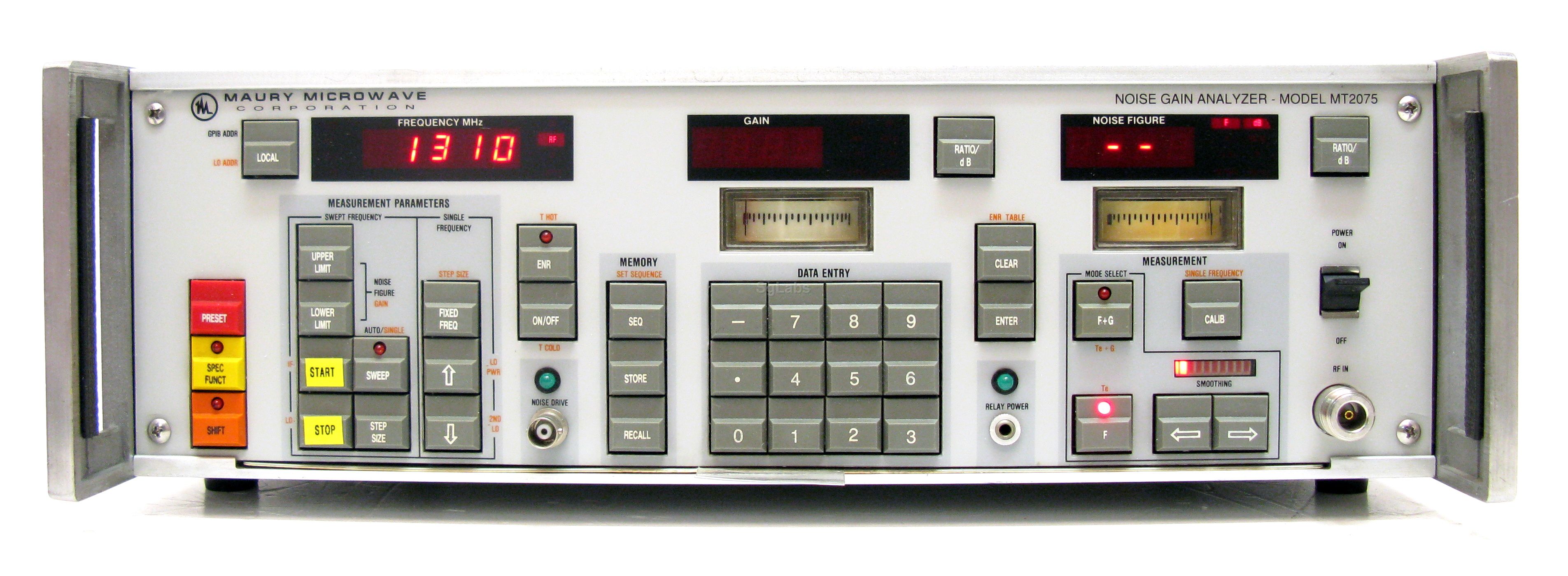

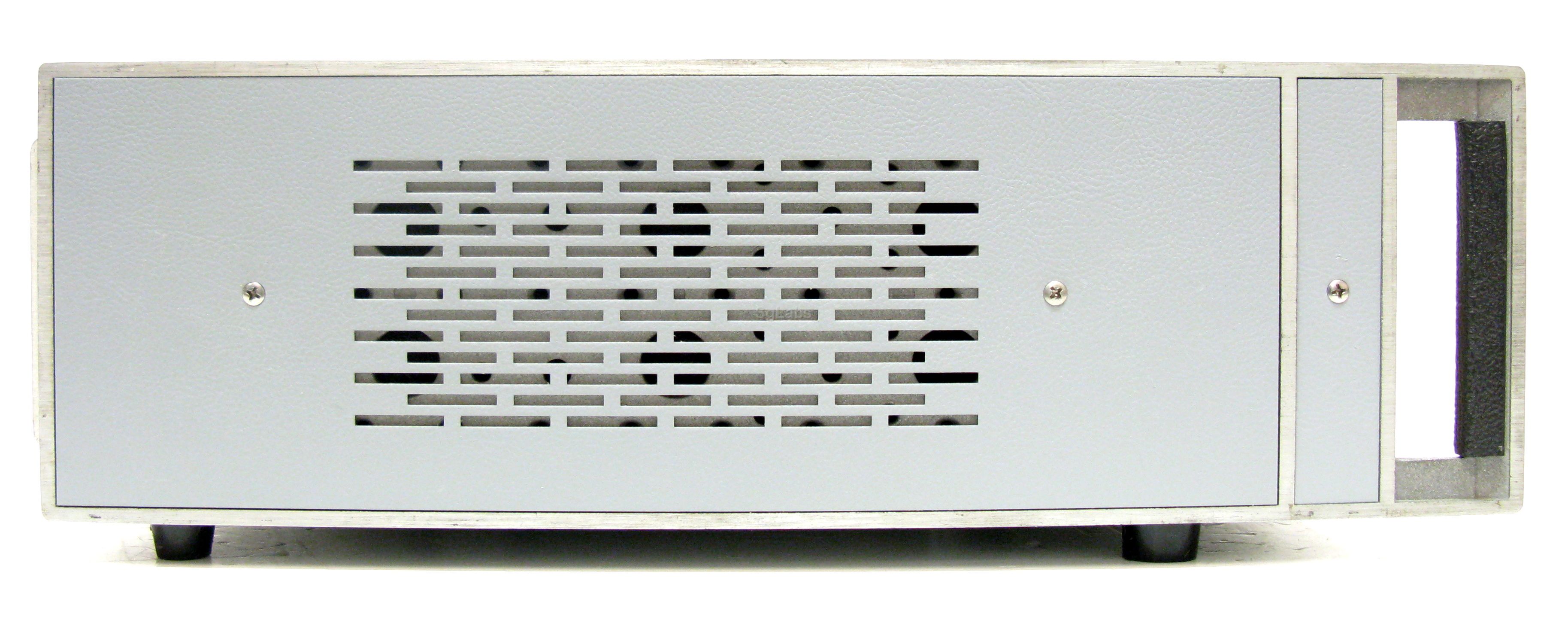

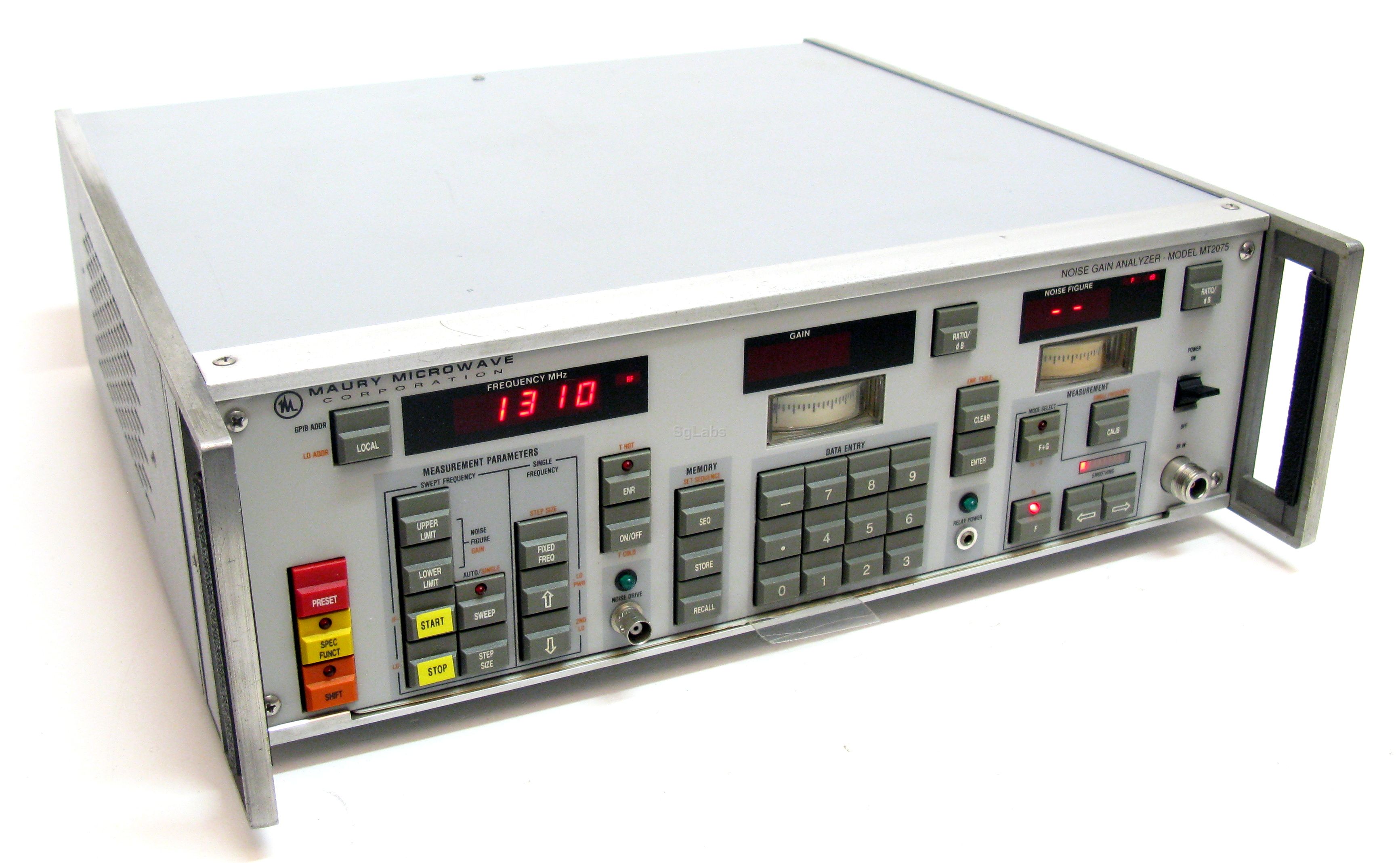

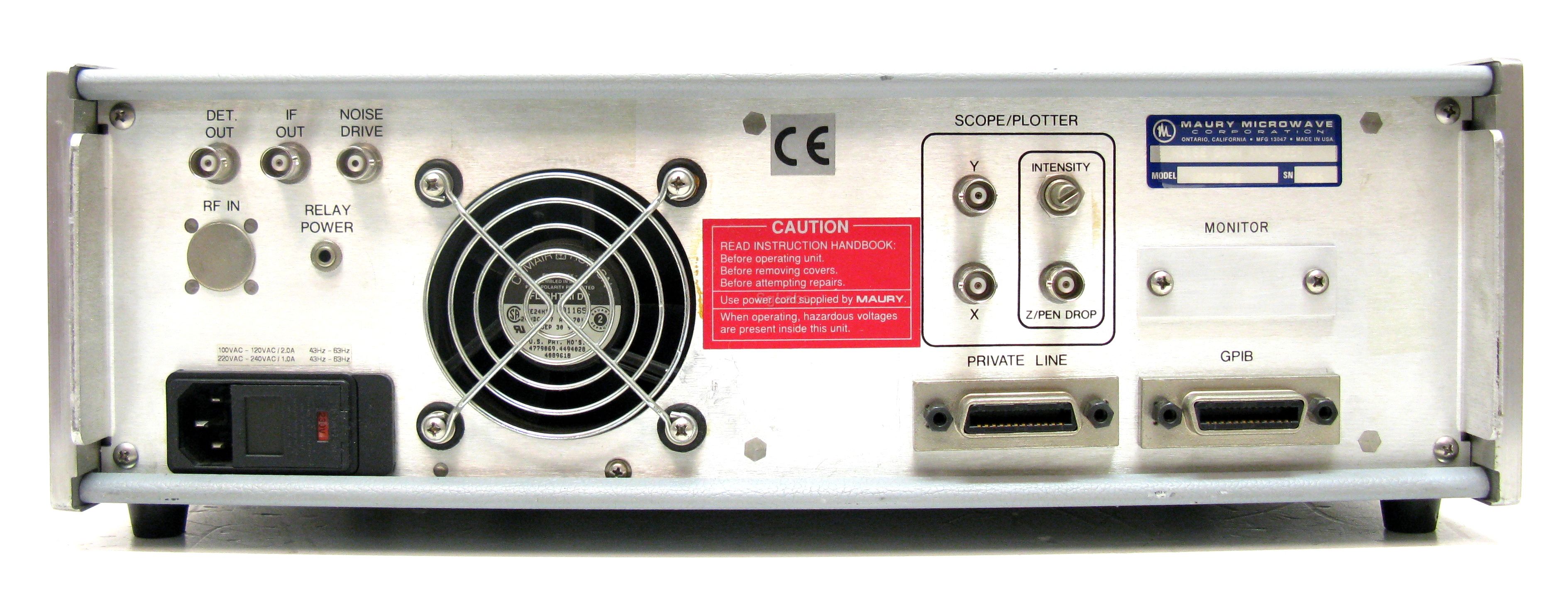

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Noise Gain Analyzer is a programmable, microprocessor-controlled instrument disigned specifically to make precise measurements of noise and gain characteristics of RF devices. The analyzer can be controlled in its local mode using its front panel controller, or in remote mode, by an external controller via an IEEE-488 GPIB.
Noise figure meters, such as the Maury MT2075 Eaton 2075/205 series noise gain analyzers, are low frequency instruments. The maximum operating frequency of the MT2075C is 2047 MHz. Measurement of amplifiers at higher microwave frequencies require the assembly of a frequency converter to bring the noise output signal into the frequency range of the noise figure meter.

The anlyzer can make the following measurements:
  • Corrected Noise Figure amd Gain
  • Uncorrected Noise Figure
  • Corrected Effective Input Noise Temperature and Gain
  • Effective Input Noise Temperature
  • Corrected Effective Operating Noise Temperature and Gain
  • Effective Operating Noise Temperature
  • Noise Measure (includes Gain)
  • Y Factor
  • Power
  • Excess Noise Ratio
  • Frequency Range: 10 MHz - 2047 MHz
  • Noise Figure Range: 0-30 dB
  • Resolution: 0.1 dB
  • Uncertainty: +/-0.05 dB (Noise Figure 0-12 dB); +/-0.10 dB (Noise Figure > 12 dB)
  • Gain Range: -20 dB / + 50 dB
  • Resolution: 0.01 dB
  • Uncertainty: +/-0.2 dB
  • Connector: N
  • Max. Frequency: 2047 MHz
  • Min. Frequency: 10 MHz
  • Gain Range: -20 / +50 dB
  • NF Range: 0-30 dB
