Datron Wavetek, 4800

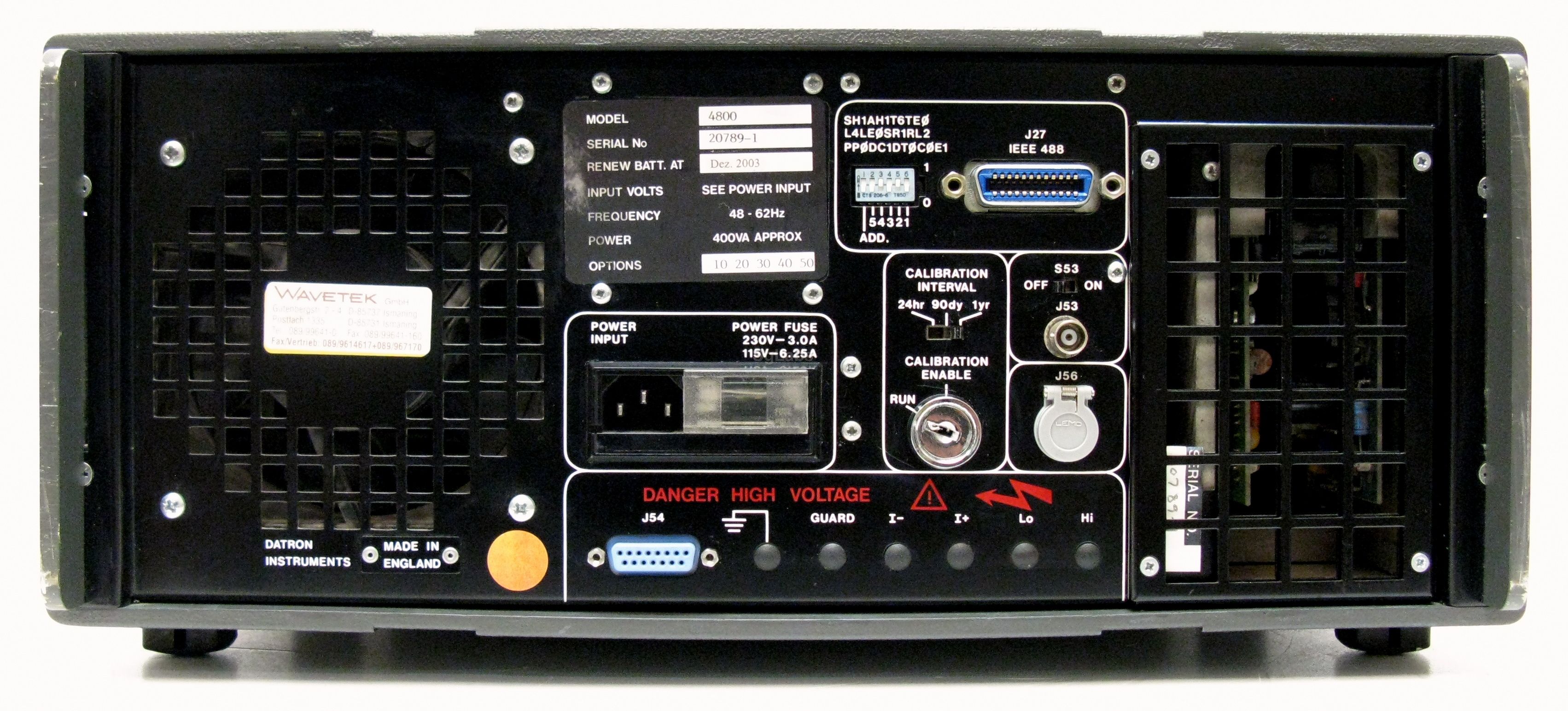

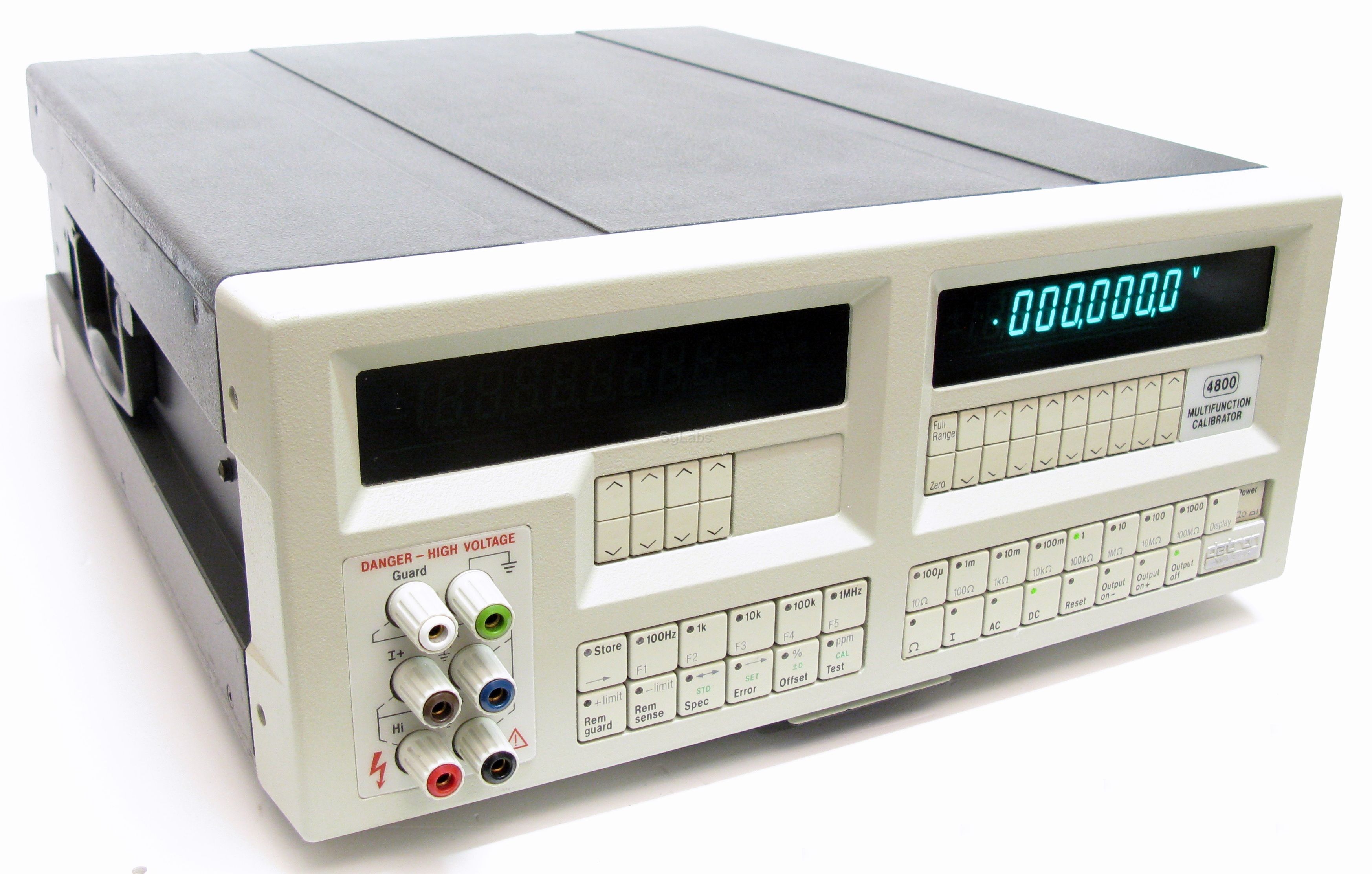

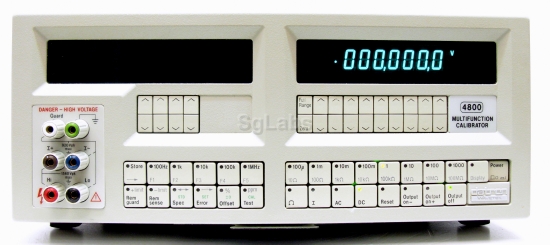

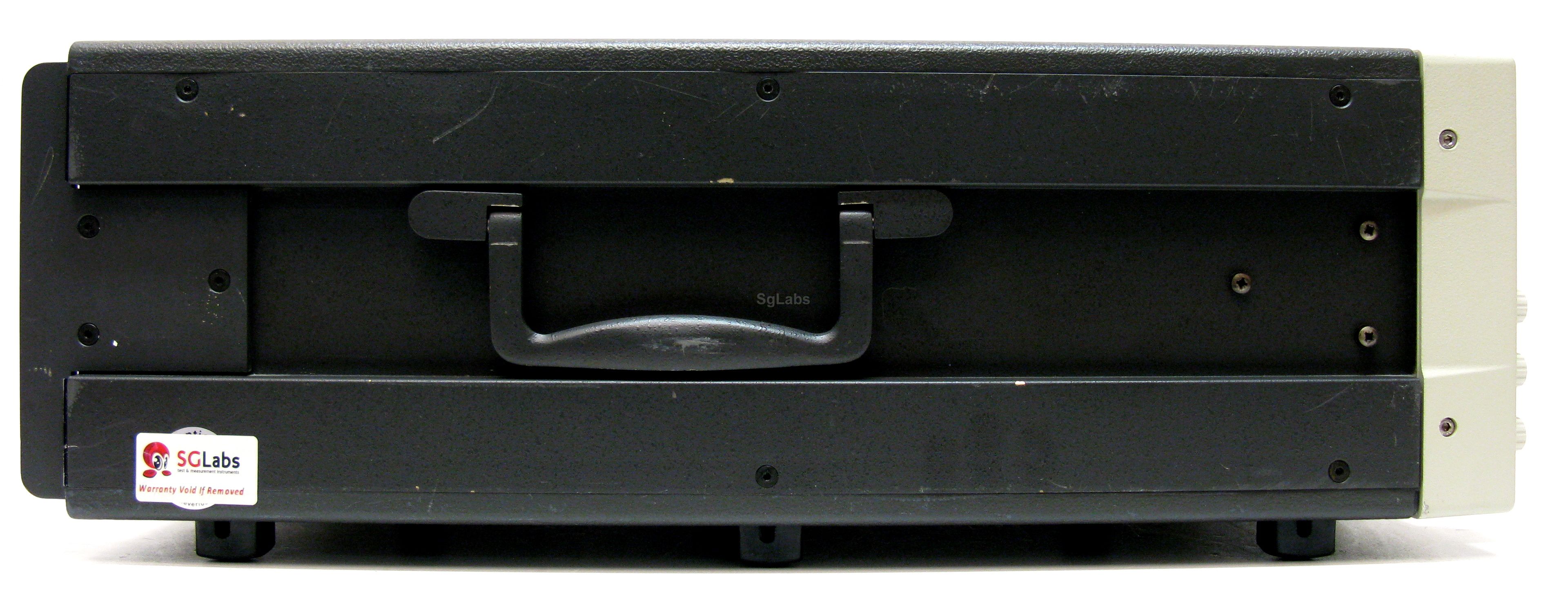

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Datron 4800 Multifunction DMM Calibrator is designed to be supported by the 4950 Multifunction Transfer Standard. DC Voltage (Option 10); Ranges: 100 uV to 1000V in decades. Resolution: 7 1/2 digits or 10 nV, whichever is greater. Output Impedance/Max Output Current: 100 uV to 100 mV Ranges, 100 ohm. 1V to 1000V Ranges, 25 mA max. AC Voltage (Option 20); Ranges: 1 mV to 1000V in decades. Resolution: 6 1/2 digits or 100 nV, whichever is greater. Frequency: Ranges: 10 Hz to 1 MHz. Resolution: 1% of setting or 1Hz. Accuracy: Option 40); Ranges: 100 uA to 10A in decades. Resolution: 6 1/2 digits or 100 pA, whichever is greater. AC Current (Option 40); Ranges: 100 mA to 10A in decades. Resolution: 6 1/2 digits or 100 pA. whichever is greater. Resistance (Option 50); Ranges: 10 ohms to 100 Mohm in decades. (Ranges are nominal, actual calibrated values are displayed). Connections: Selectable 2 or 4-wire, remote/local guard. Display Resolution: 7 1/2 digits. IEEE-488 interface. OPTIONS; 10: DCV Ranges to 200V. 20: ACV Ranges to 200V. 30: 1000V range for DCV, ACV (requires option 10, option 20 or both). 40: DCI and ACI to 2A (requires option 10, option 20 or both). 50: Ohm Ranges. 60: DCI and ACI ranges extender to 11A DC or RMS AC (requires Options 10 and/or 20 and option 40).
Features
Description of possible Options:

  • Opt.10: DC Voltage:
    • 100uV - 200V in decades
    • Resolution: 7.5 digits or 10nV
  • Opt.20: AC Voltage
    • 1mV - 200V in decades
    • Resolution: 6.5 digits or 100nV
    • Frequency: 10Hz - 1MHz
  • Opt.30: ACV and DCV up to 1000V
  • Opt.40: DC Current and AC Current
    • 100uA - 2A
    • Resolution: 6.5 digits o 100pA
  • Opt.50: Resistance
    • 10 Ohm - 100 MOhm
    • Resolution: 7.5 digits
  • Opt.60: DCI and ACI up to 11A
  • Current: 11A
  • Frequency range: 1MHz
  • Type of calibration: DCV ACV DCI ACI Ohms
  • Interface: GPIB
  • Resistance: 100 MOhm
  • Voltage: 1000V
