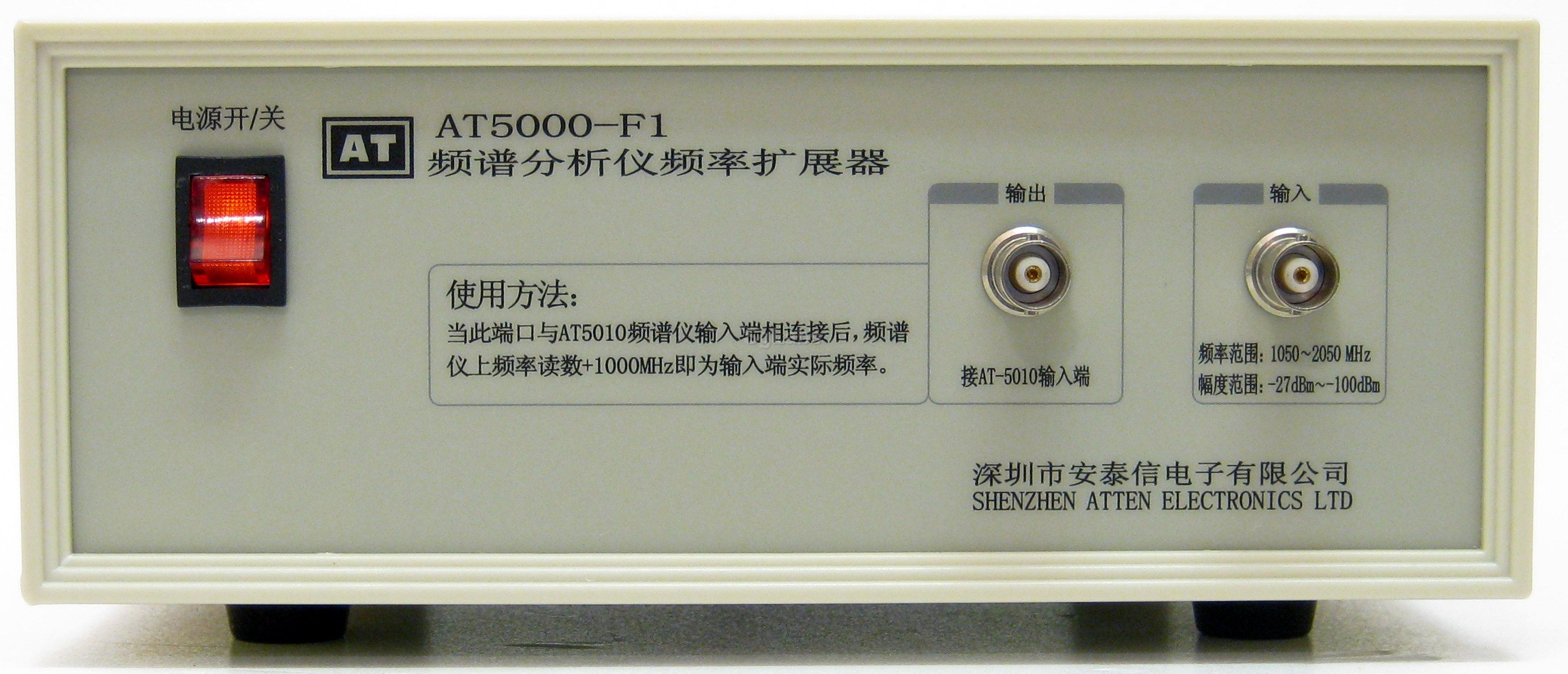

ATTEN, AT5000 F1

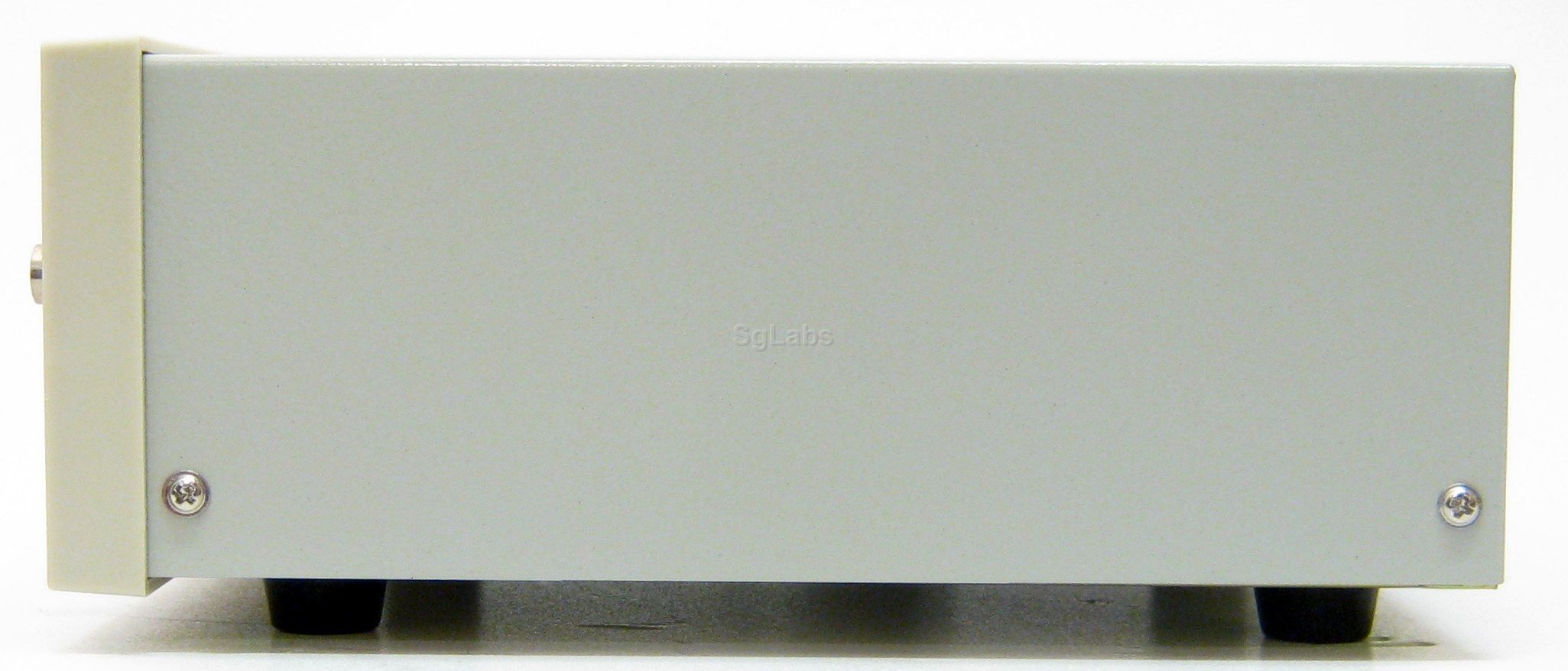

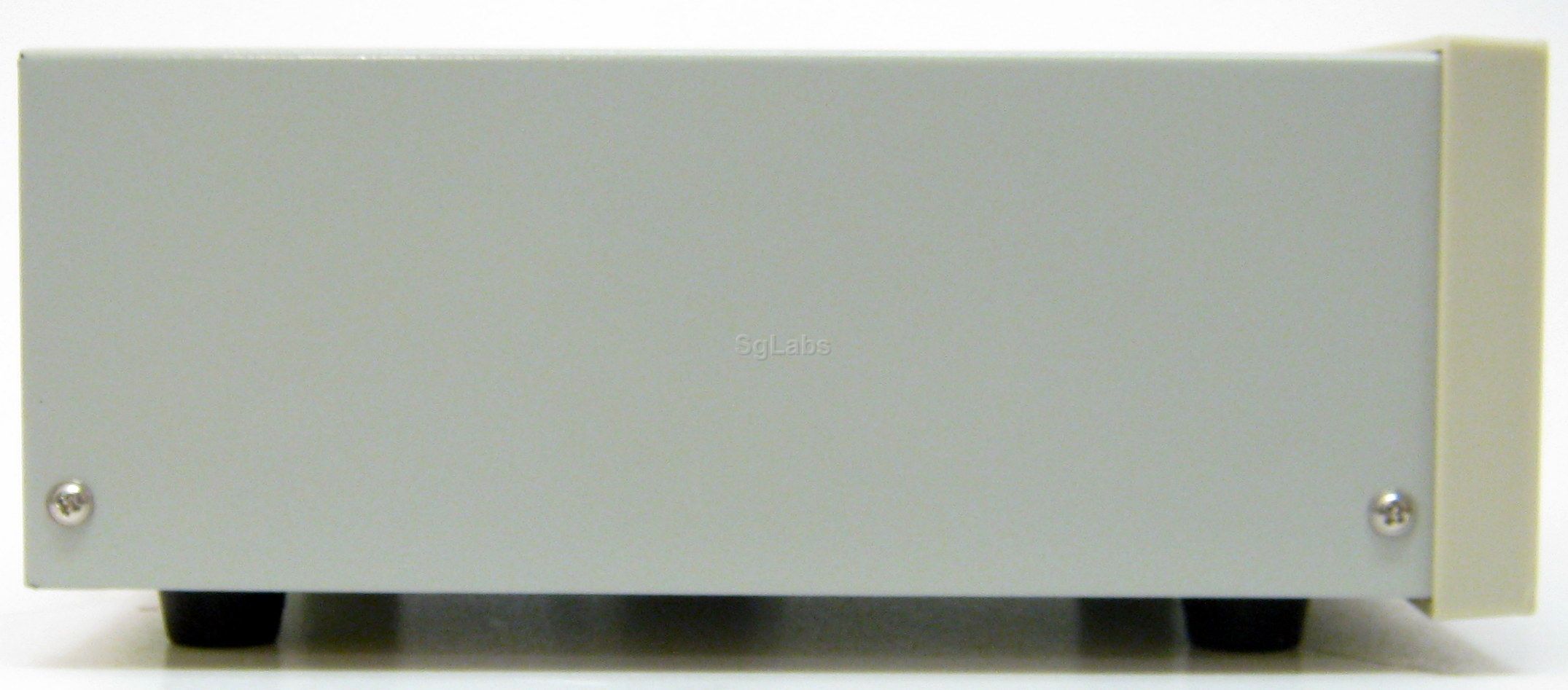

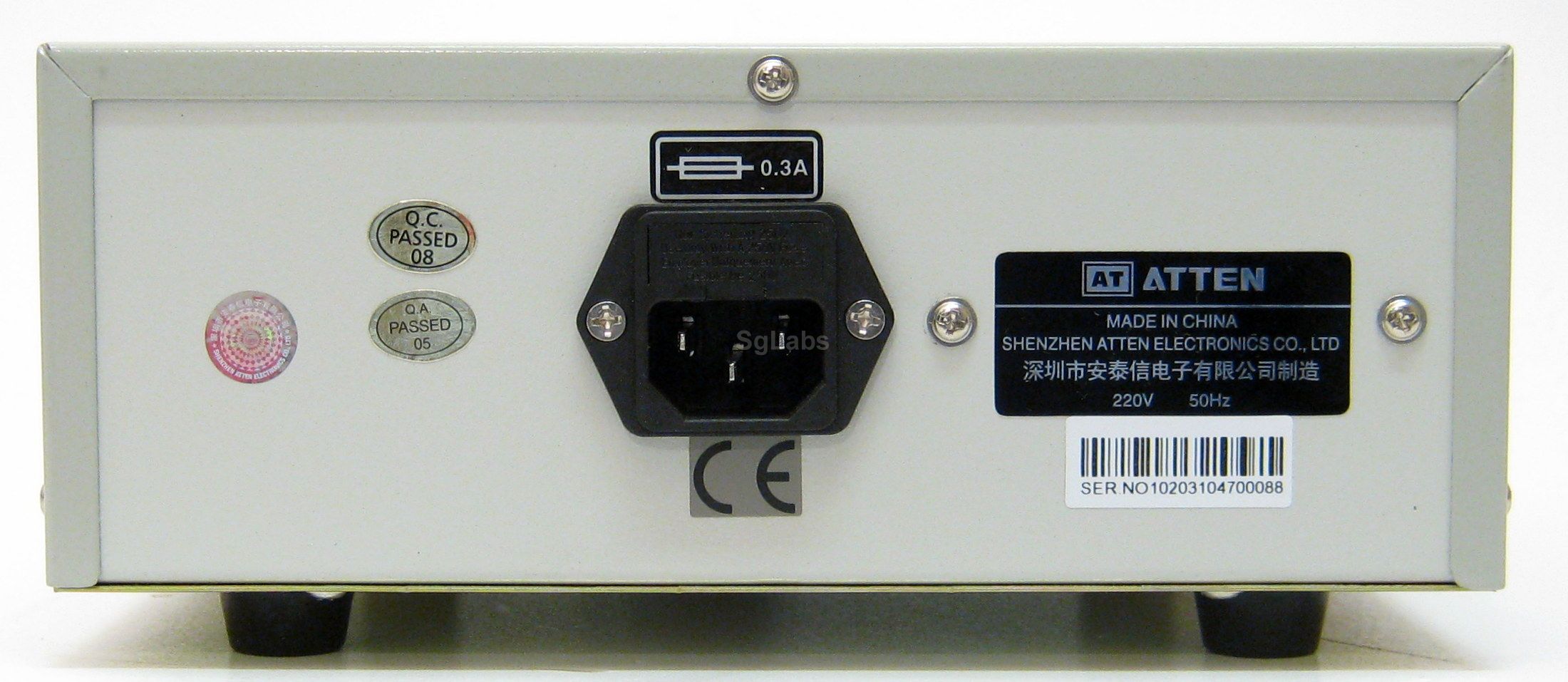

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Extend the spectrum frequency range of your spectrum analyzer. This unit will allow you test the higher range of frequency based on your 500M/1G spectrum analyzer

Specification:

Input Frequency Range      : 1050MHz ~ 2050MHz
Input level                       : -27dBm ~ -100dBm
Input impedance               : 50 ohm

Output impedance             : 50 ohm

Size                                : 210mm x 220mm x 80mm
Weight                            : 2kg
Power                             : 220V  50Hz 5W



  • Connector: BNC
  • Max. Frequency: 2 Ghz
  • Min. Frequency: 1 GHz
