Anritsu (Wiltron), S332D

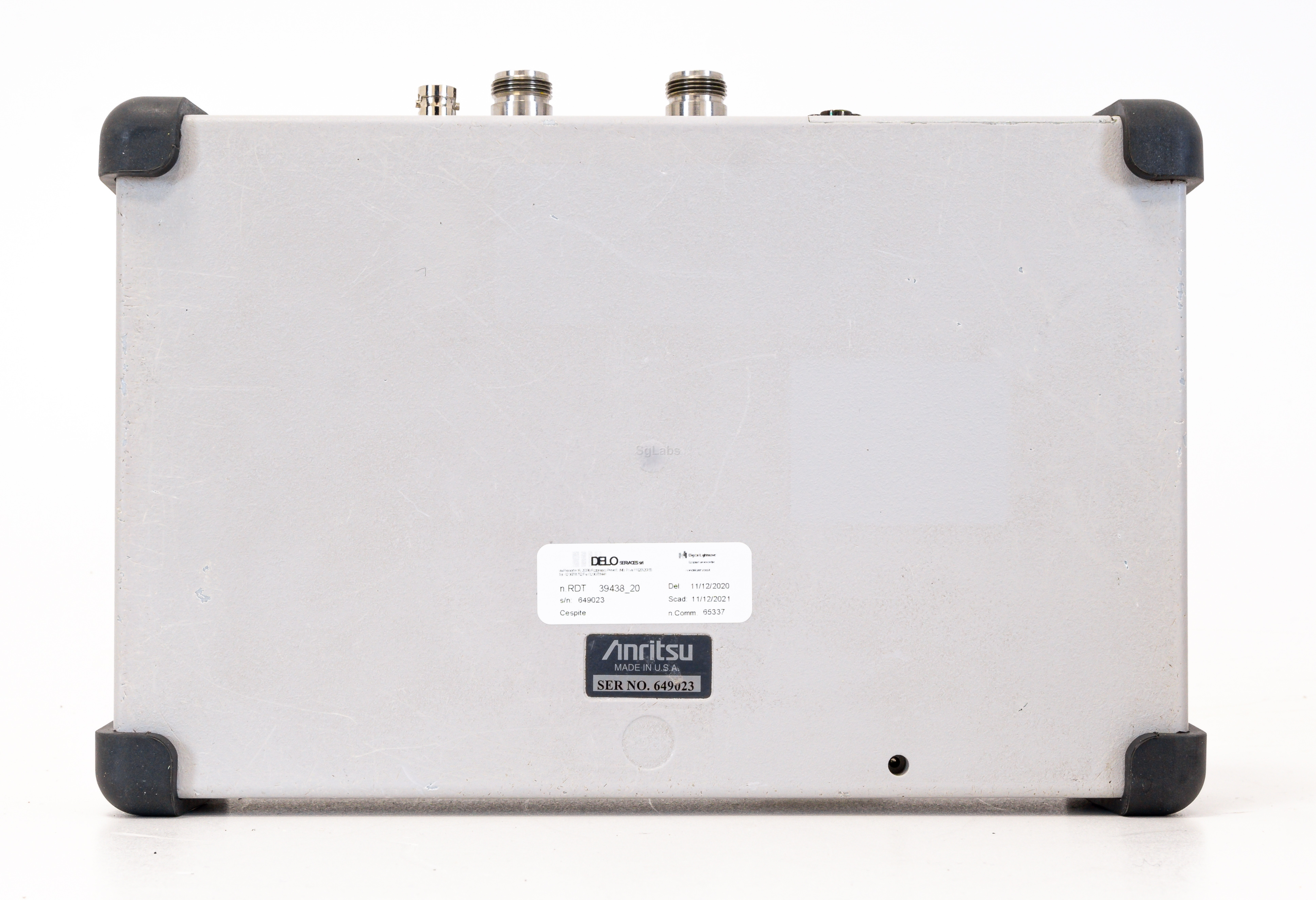

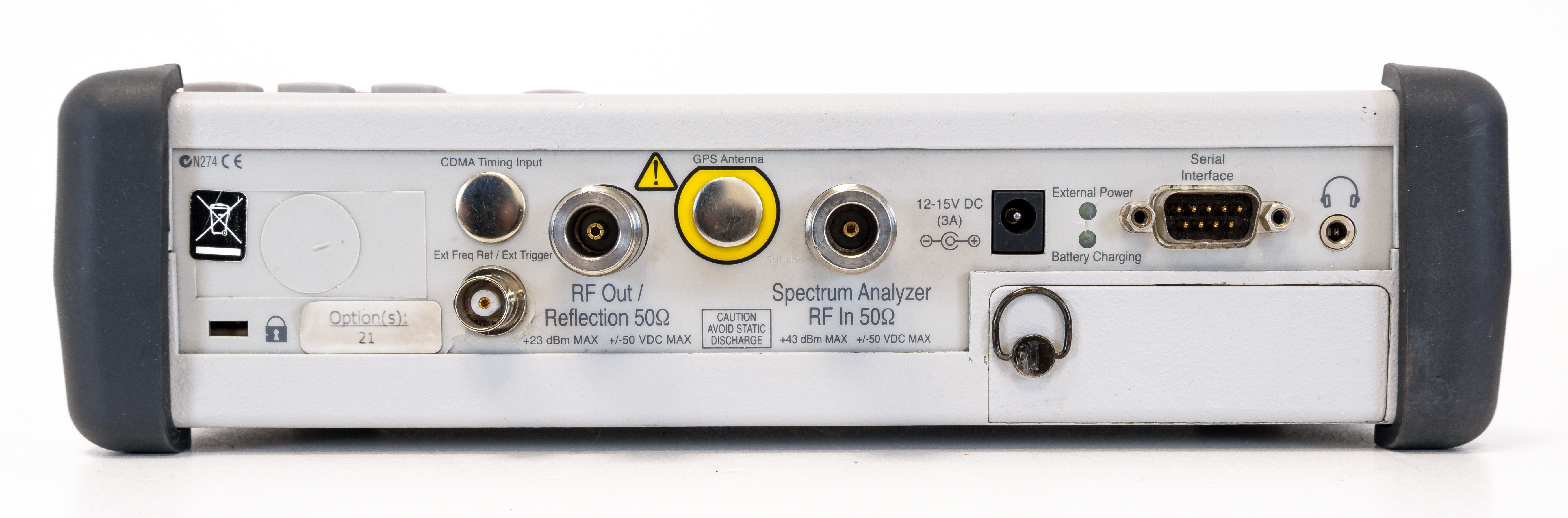

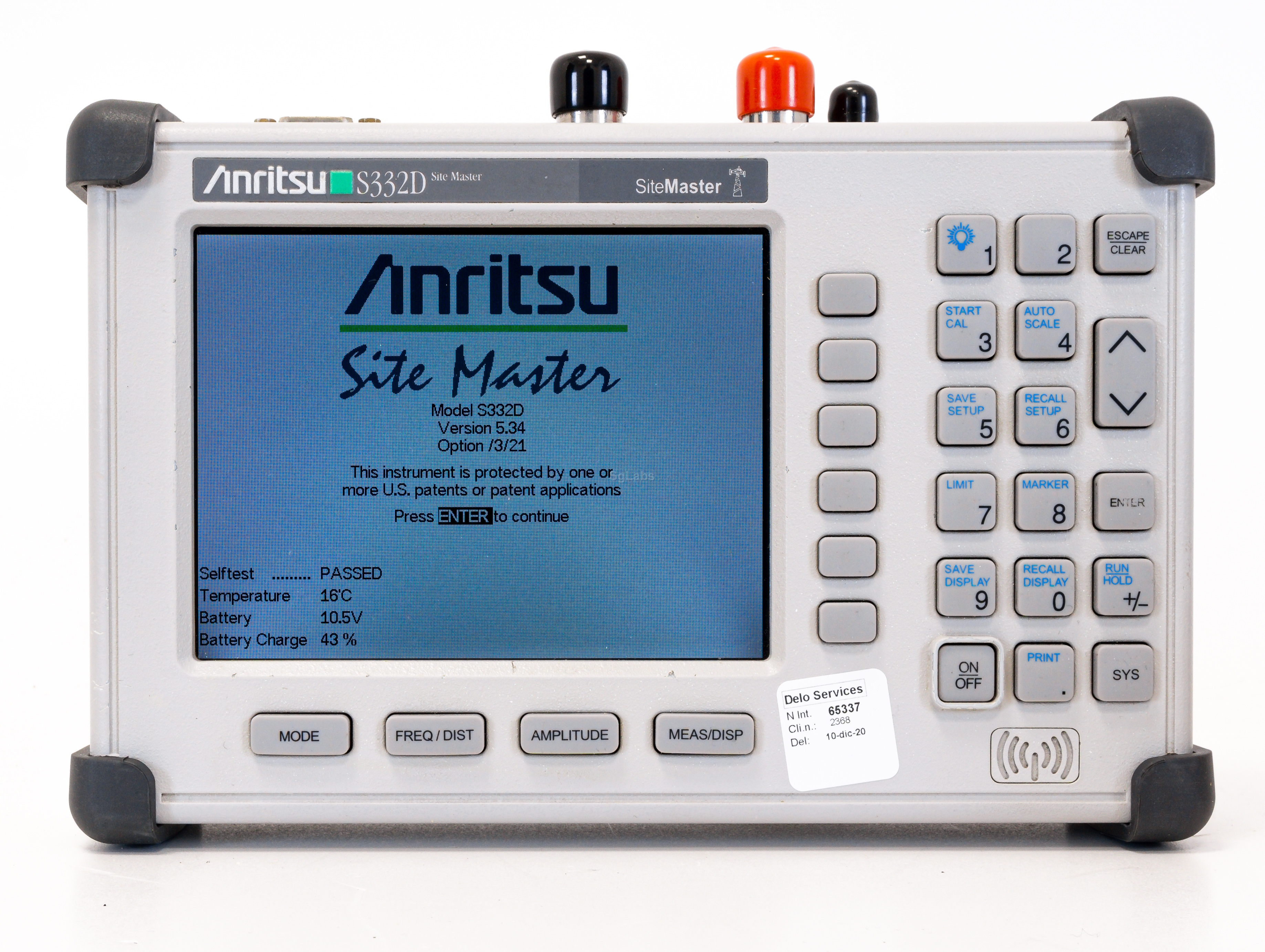

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The S332D cable and antenna analyzer features spectrum analysis capability and optional power meter capability in addition to Return Loss/ SWR (also known as VSWR, for Voltage Standing Wave Ratio) and Cable Loss measurements, as well as Distance to Fault (DTF) analysis using Frequency Domain Reflectometry (FDR). These capabilities give field engineers and technicians the ability to easily identify and solve RF system problems such as coverage, interference, and other path related signal problems. S332D spectrum analysis ranges from 100 kHz to 3 GHz with smart button measurements - Field Strength, Occupied Bandwidth (OBW), Channel Power, Adjacent Channel Power Ratio (ACPR), Interference Analysis and Carrier-to-Interference ratio (C/I).
  • Input impedance: 50 Ohm
    Frequency range 25 MHz - 4 GHz
    Dynamic range: 60 dB
    Internal memory saves up to 200 traces and 20 instrument configurations
    6 Markers
    Spectrum Analyzer function: 100 kHz - 3000 MHz
    RS-232 Interface
    High resolution color STN display for crisp display/ trace representation in indoor lighting conditions
    Frequency range: 3 MHz - 3 GHz
    Detection range: -80 dBm to +80 dBm
    Offset range: 0 to + 60 dB
    Accuracy: >= 10 MHz to 3 GHz: +/- 1 dB typ. (+/- 1.5 dBm max)
    VSWR: 1.5:1 typ.
    Input power max. without damage: +43 dBm without external attenuator
    Option 29 = Power Meter, internal
    Option 03 = Colour LCD
  • Max. Frequency: 4 GHZ
  • Min. Frequency: 25 MHz
  • Channels: 1
  • Source: internal
  • Test set: Trasmission Reflection
  • Interface: RS-232
