Anritsu (Wiltron), S251C

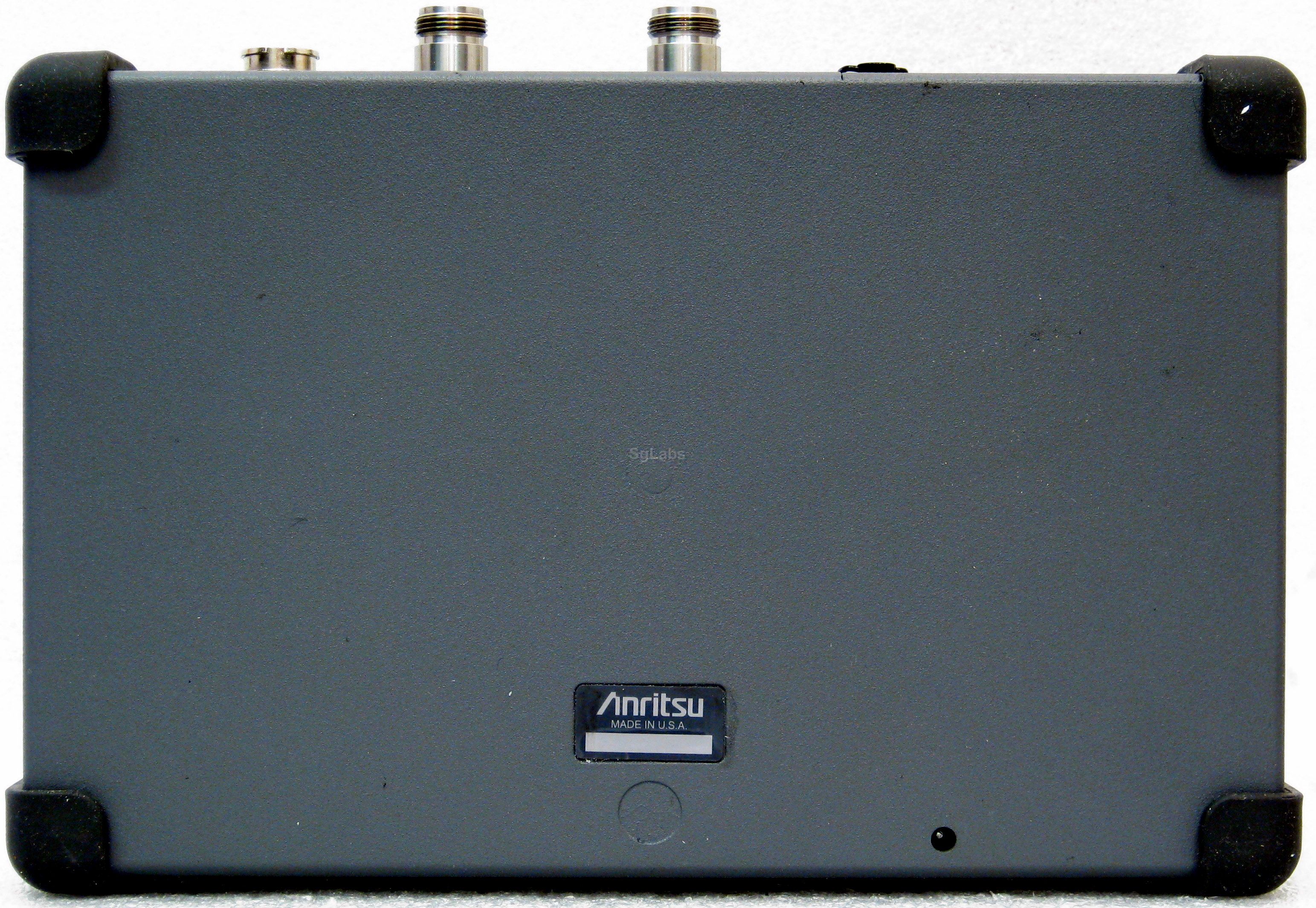

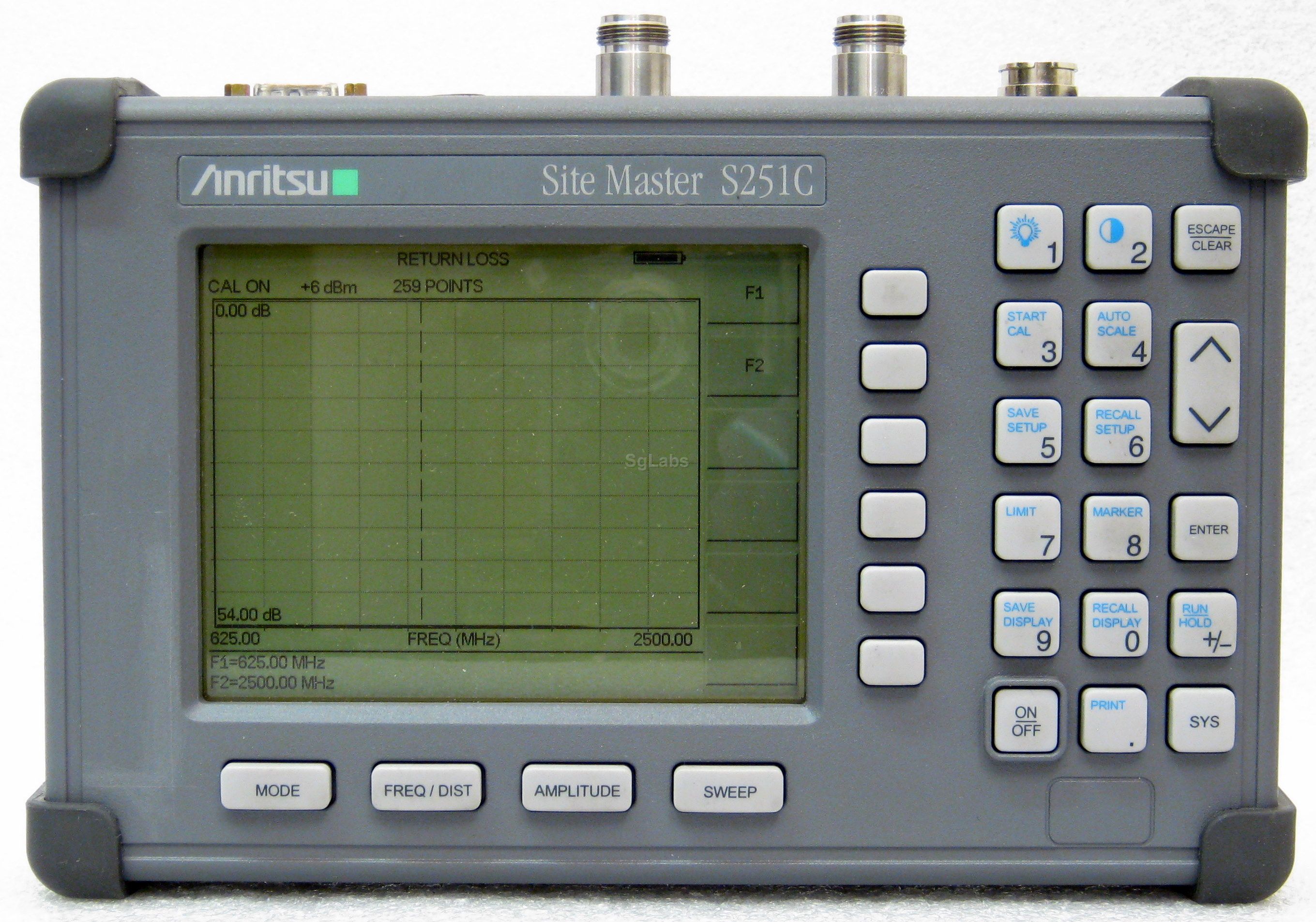

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

2-Port Cable and Antenna Analyzer for Tower Top and Duplex Applications Performance enhancing design trends such as high sector to-sector isolation, tower-mounted amplifiers and duplexed antennas add new complexities to site installation, deployment, maintenance and troubleshooting cables. To help simplify performance verification for these systems, the Site Master S251C Handheld Cable and Antenna Analyzer Model features a second test port for isolation, gain and insertion loss measurements.

Covering the 625 MHz-2500 MHz frequency band, the Site Master S251C is ideally suited for field technicians working in cellular, PCS/GSM and ISM applications.

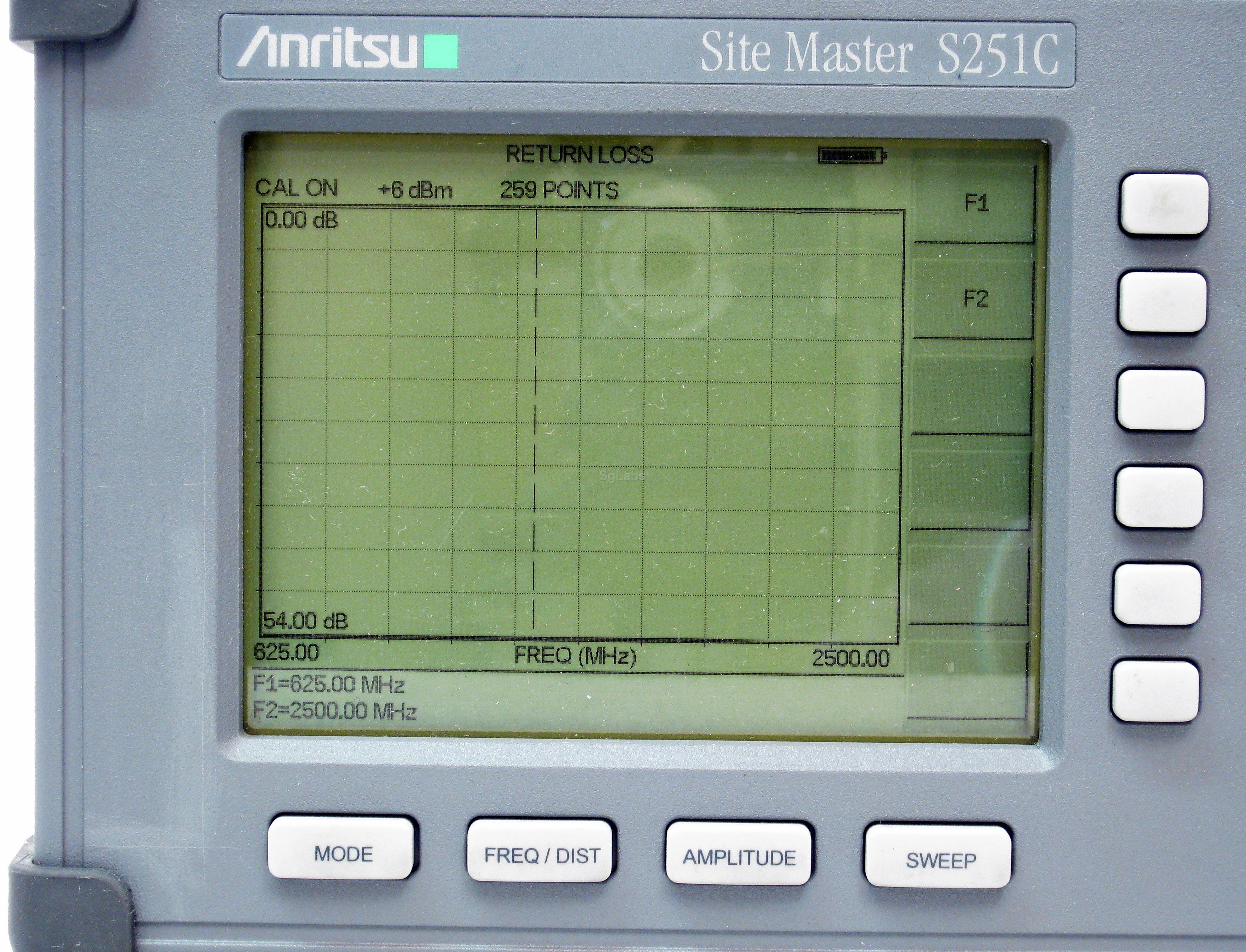

Measurement capability includes return loss, cable loss and distance-to-Fault (DTF) analysis using frequency domain reflectometry (FDR) technology. The Site Master S251C also functions as a VSWR (Voltage Standing Wave Ratio) power meter. A selectable +6 dBm or +30 dBm output and optional Bias Tee enables users to conveniently verify Tower Mounted Amplifier (TMA) gain before and after installation. The Site Master S251C's patented RF interference rejection feature and high dynamic range (>90 dB) enables the Site Master S251C to accurately measure antenna-to-antenna isolation in the presence of high RF activity. Data Analysis Software enables assessment of system trends, problems and performance in addition to professional report generation. An optional power monitor is available to make power measurements quickly and easily.

  • Frequency range 625 MHz - 2.5 GHz
  • Frequency Resolution 10 kHz
  • Output power range -30 or +6 dBm selectable
  • Imput power range -45 to 20 dBm

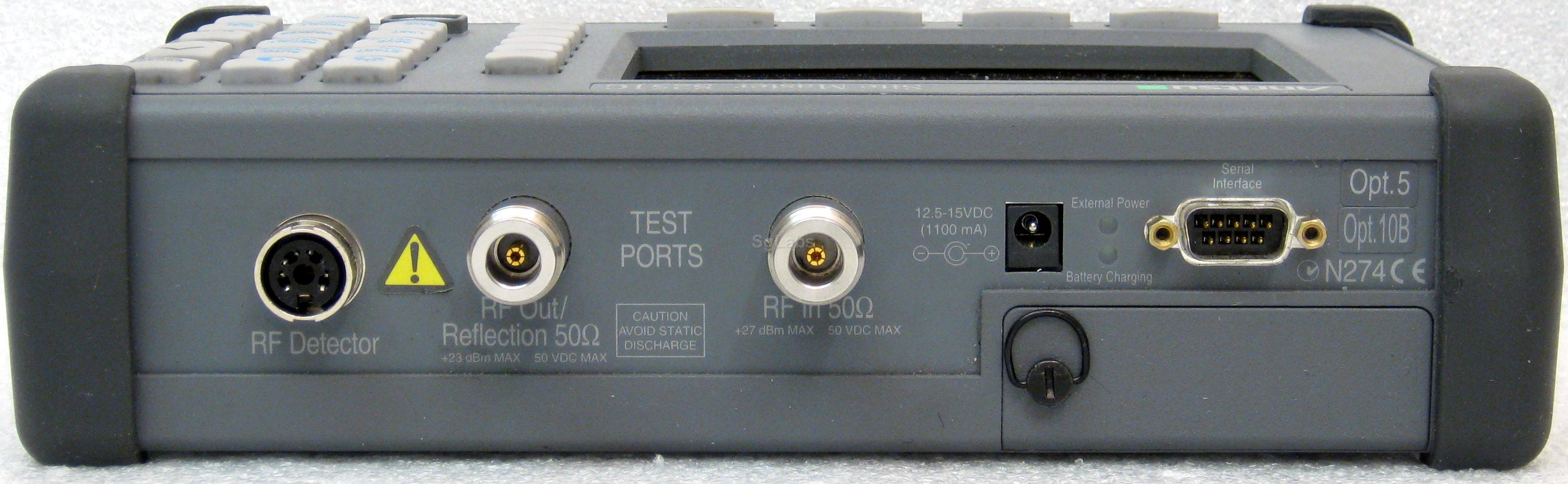

  • Maximum input +20 dBm (RF power detector), +22 dBm (f) test port
  • N(f) connectors
  • Porta RS232
Options description:
  • Opt.5: RF Power monitor
  • Opt.10B: Bias Tee
  • Connector: Nf
  • Max. Frequency: 2500 MHz
  • Min. Frequency: 625 MHz
  • Channels: 1
  • Source: internal
  • Interface: RS-232
Available for rent
Price per week € 260,00
