Anritsu, S331D

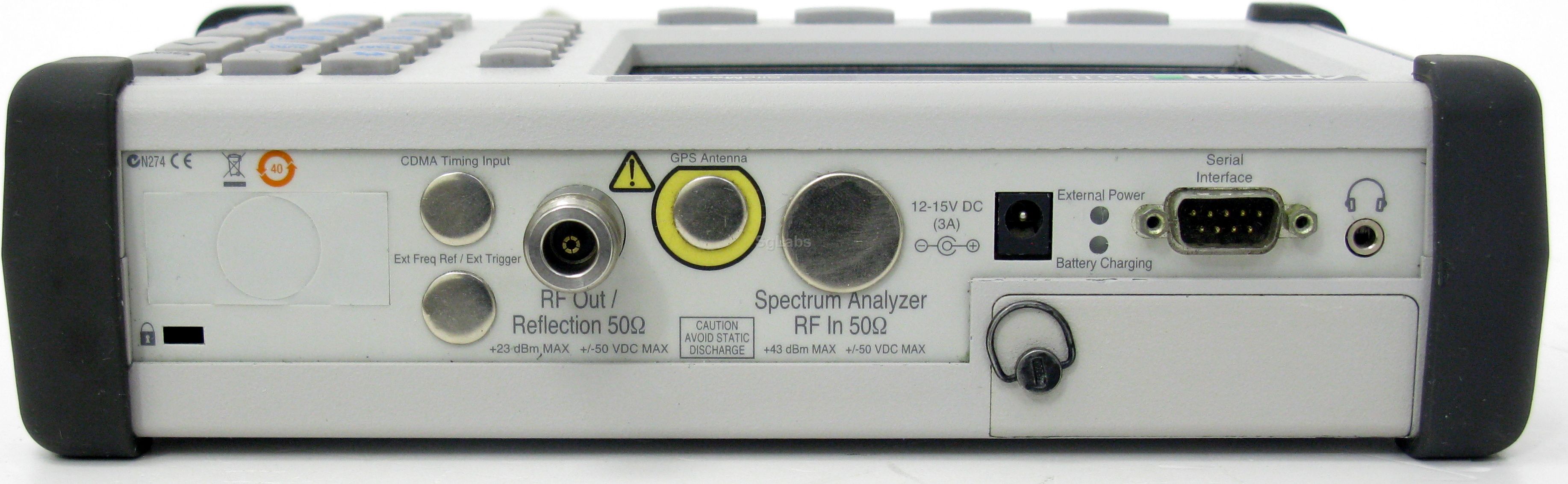

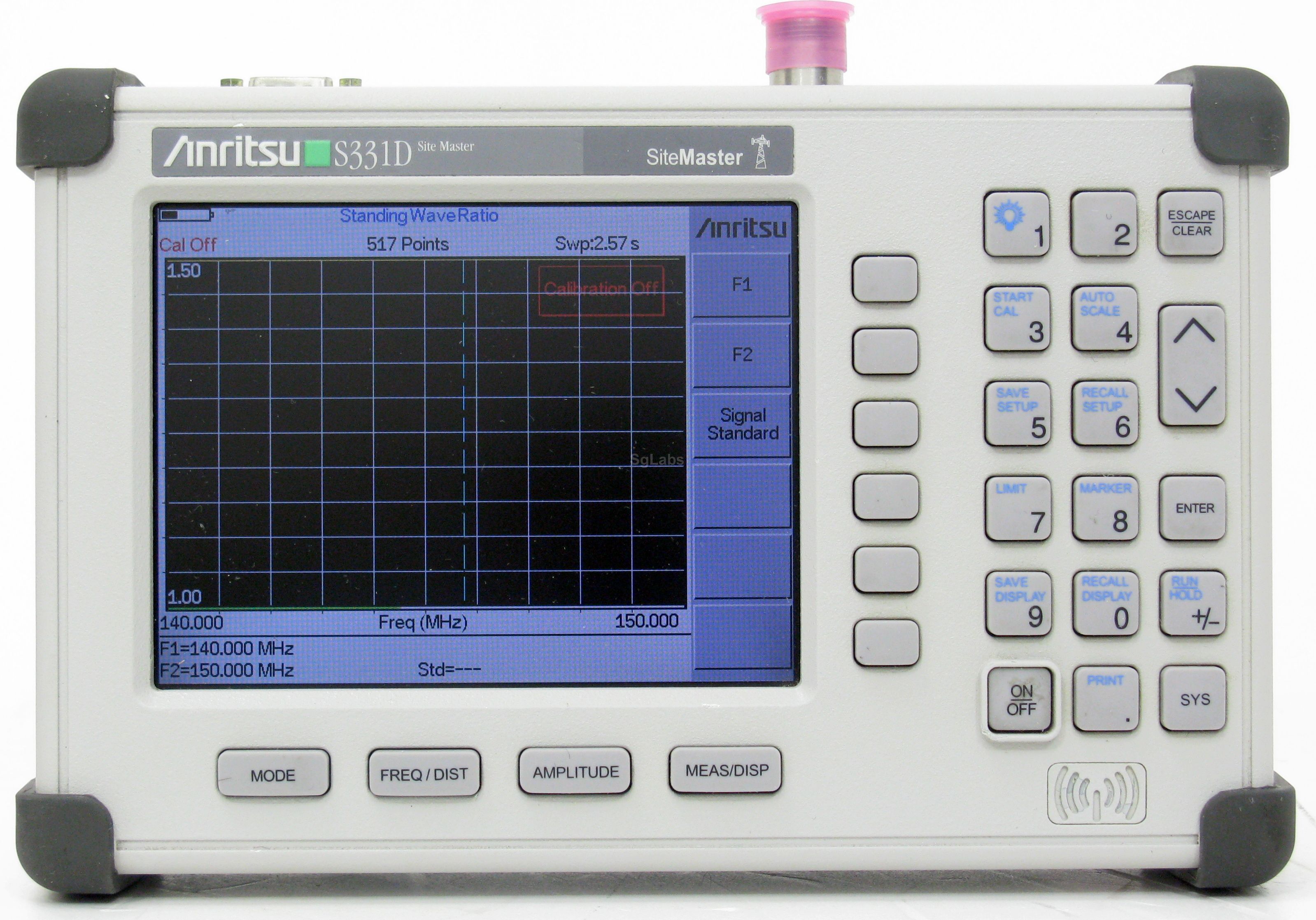

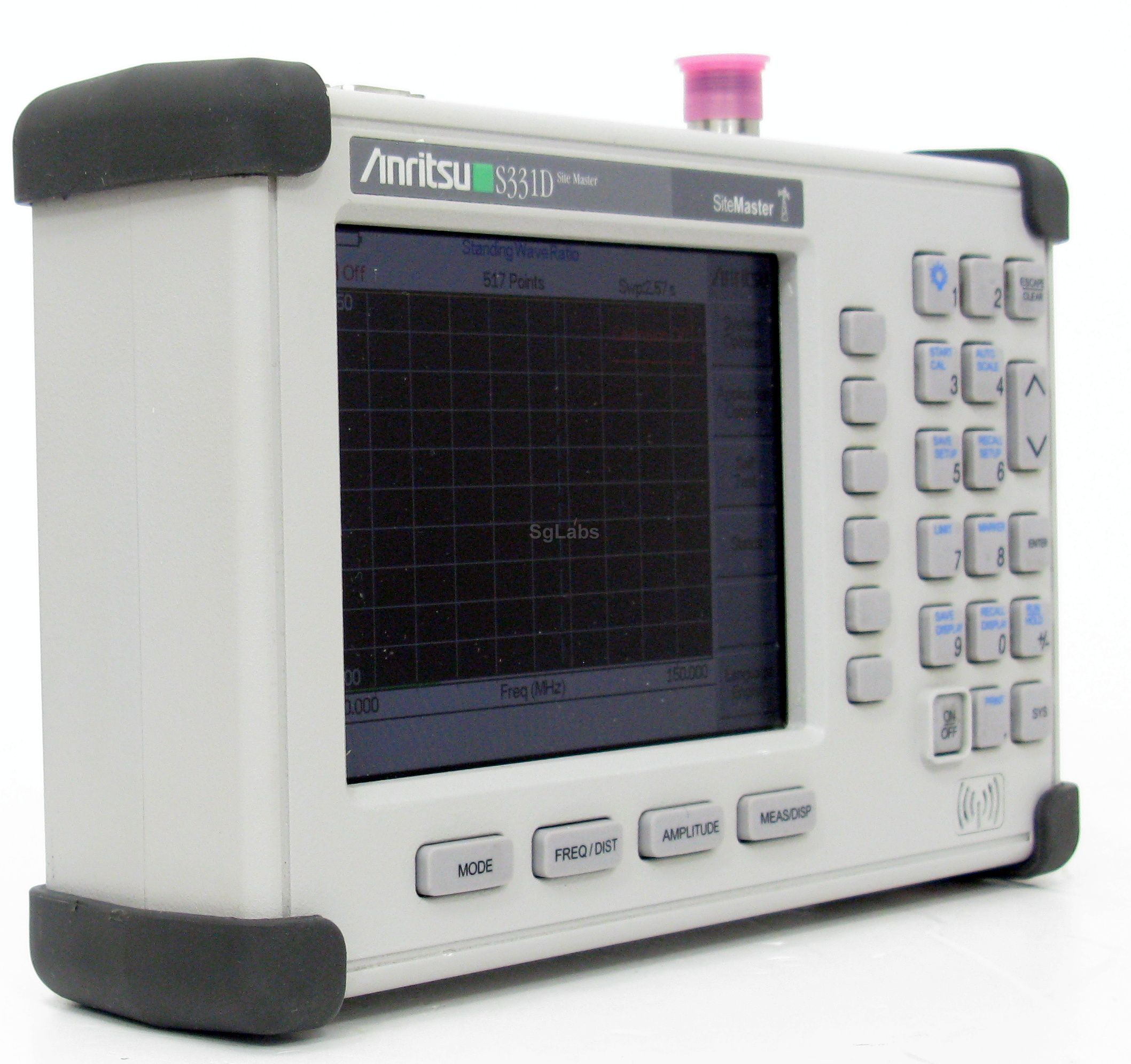

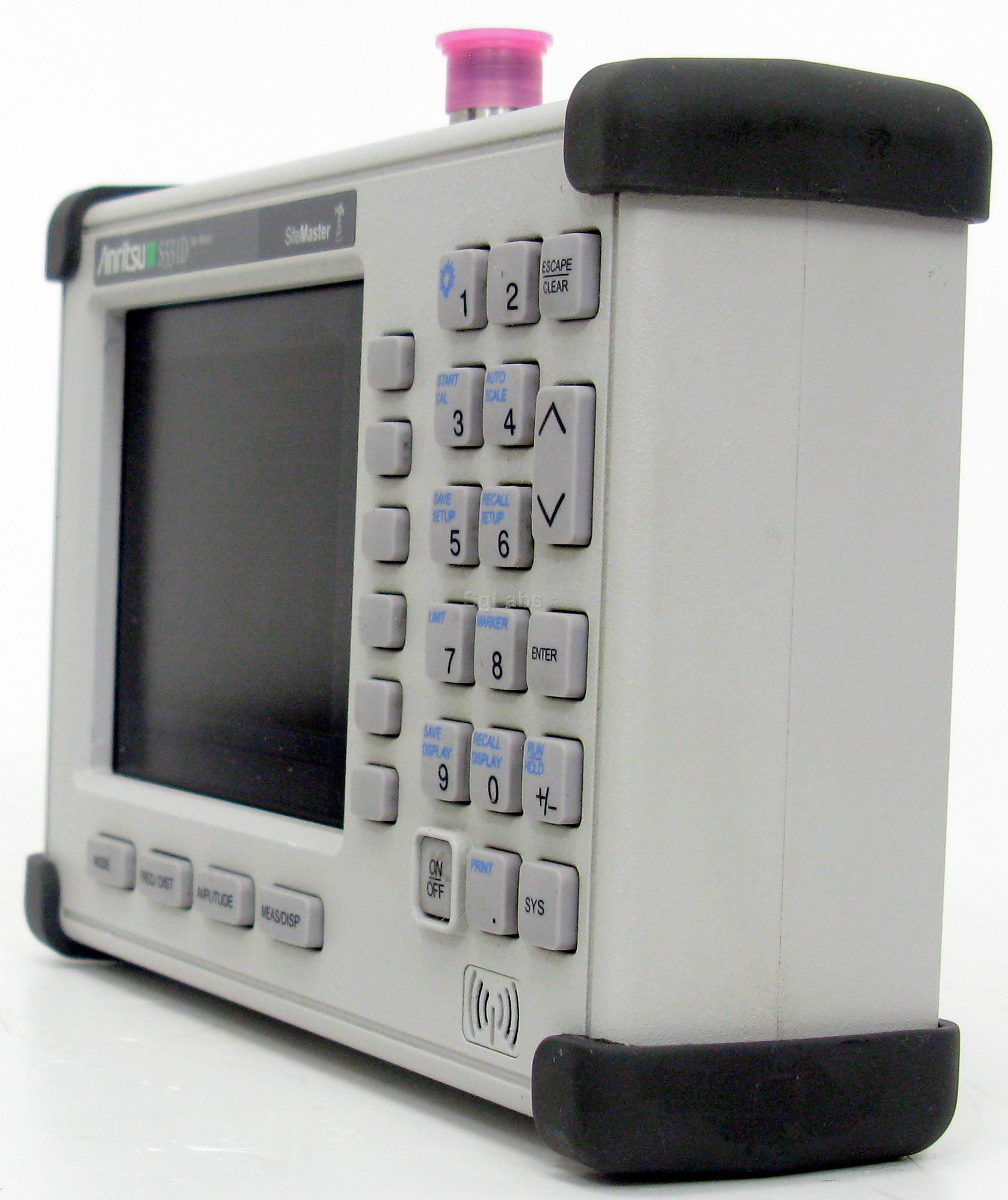

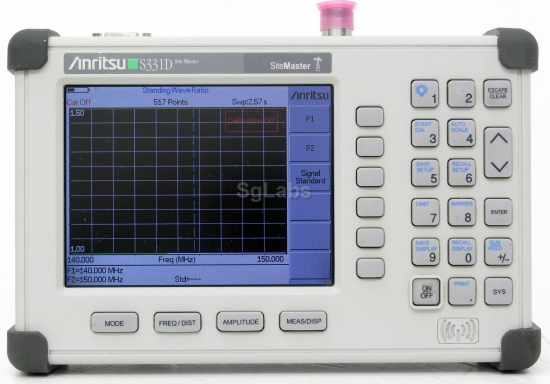

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Site Master Handheld Cable and Antenna Analyzer Model S331D covers the 25 MHz to 4000 MHz spectrum. The S331D is designed for installing, provisioning, maintaining, and troubleshooting wireless base station cable and antenna systems.
  • Frequency Range: 25 MHz to 4 GHz
  • Measurements: Return Loss / VSWR, Cable Loss, Distance-To-Fault (DTF), Optical DTF
  • Sweep Speed: 2.5 msec / data point
  • Accuracy: > 42 dB corrected directivity
  • Display: TFT color with adjustable backlight
  • Calibration: OSL, InstaCal, and FlexCal
  • RF Immunity: Performs accurate measurements in co-located cell sites
  • Signal Standard List / Cable Standard List: Quickly locates commonly used cables and frequency standards
  • Trace Overlay: Monitors changes with reference traces over time
  • Limit Lines: Single and Segmented Limit lines
  • Language Support: Chinese, English, French, German, Japanese, Spanish
  • Handheld Software Tools: Downloads traces, creates reports, compares traces, and renames files
  • Connector: N
  • Directivity: > 42 dB
  • Max. Frequency: 4 GHz
  • Min. Frequency: 25 MHz
  • Interface: RS232
