Anritsu MT8221B BTS Master high performance base station analyzer
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The BTS Master MT8221B is Anritsu's high performance base station analyzer. From the ground up it has been designed to support 4G standards and installed 2G/3G networks. The MT8221B's platform provides a 20 MHz demodulation capability to support LTE bandwidths from 1.4 to 20 MHz. It also features a 30 MHz Zero-Span IF Output for external demodulation of virtually any other wideband signal. In addition, a Vector Signal Generator option is available for comprehensive receiver testing capability with the flexibility to generate two modulated signals plus noise.

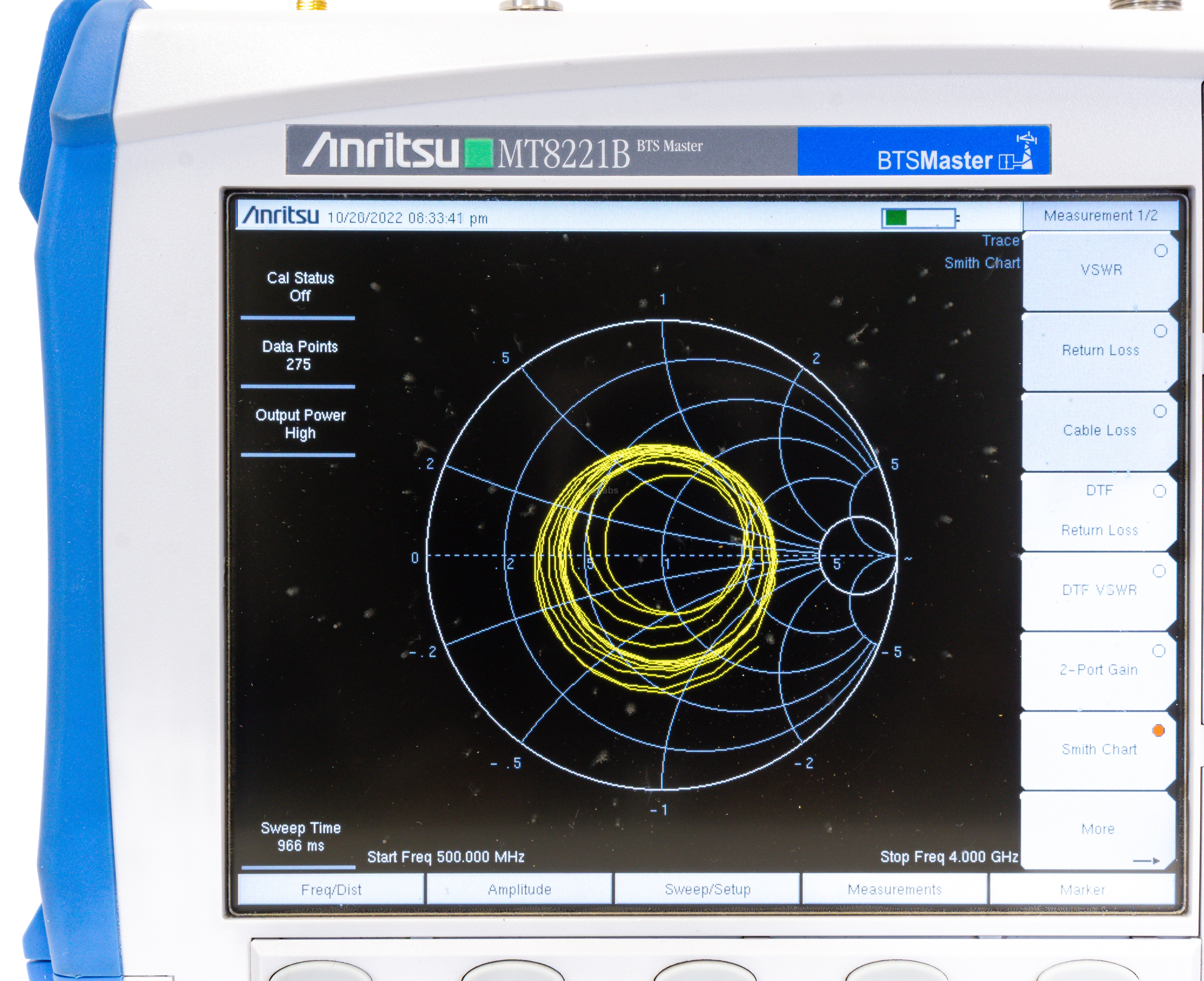

Cable and Antenna Analyzer
  • Frequency Range: 400 MHz - 4 GHz
  • Measurements: RL, VSWR, Cable Loss, DTF, Phase, Gain
  • 2-port Gain Measurement Uncertainty: < 0.45 dB
  • 2-port Dynamic Range: > 80 dB
  • RF Immunity: +17 dBm on-channel, +10 dBm on-frequency
  • Calibration: OSL and FlexCal™
  • Bias Tee: 32 V internal

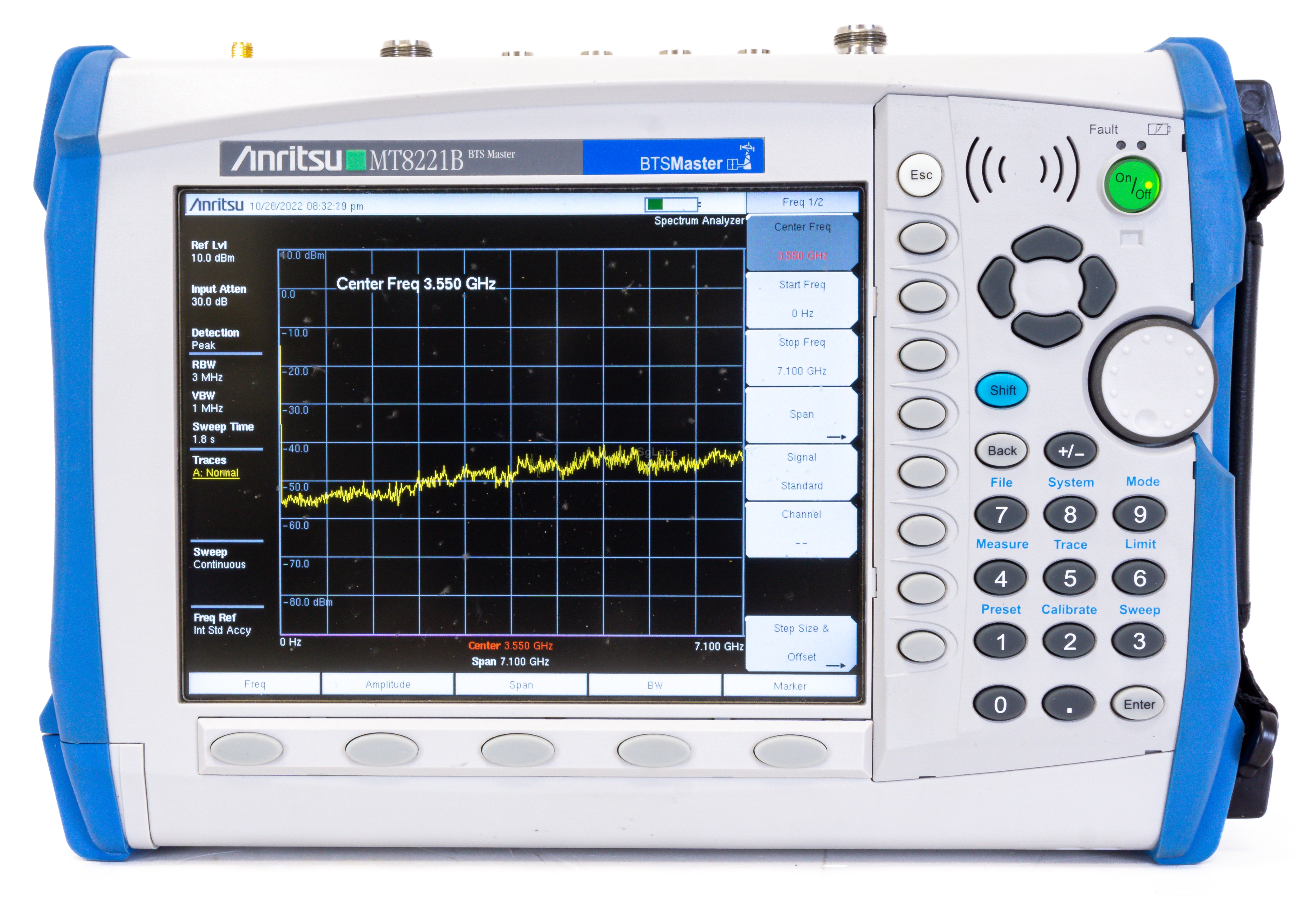

Spectrum and Interference Analyzer

  • Frquency Range: 150 kHz - 7.1 GHz
  • Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I
  • Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID
  • Dynamic Range: > 95 dB in 1 Hz RBW
  • DANL: -163 dBm in 1 Hz RBW
  • Phase Noise: -100 dBc/Hz @ 10 kHz offset
  • Frequency Accuracy: < ±25 ppb with GPS On
  • Connector: Nf
  • Demodulator: AM FM
  • Display: LCD color
  • Max. Frequency: 7.1 GHz
  • Min. Frequency: 150 kHz
  • Source: Interna
 € 2.800,00
