Anritsu MS2687B Spectrum analyzer 30 GHz

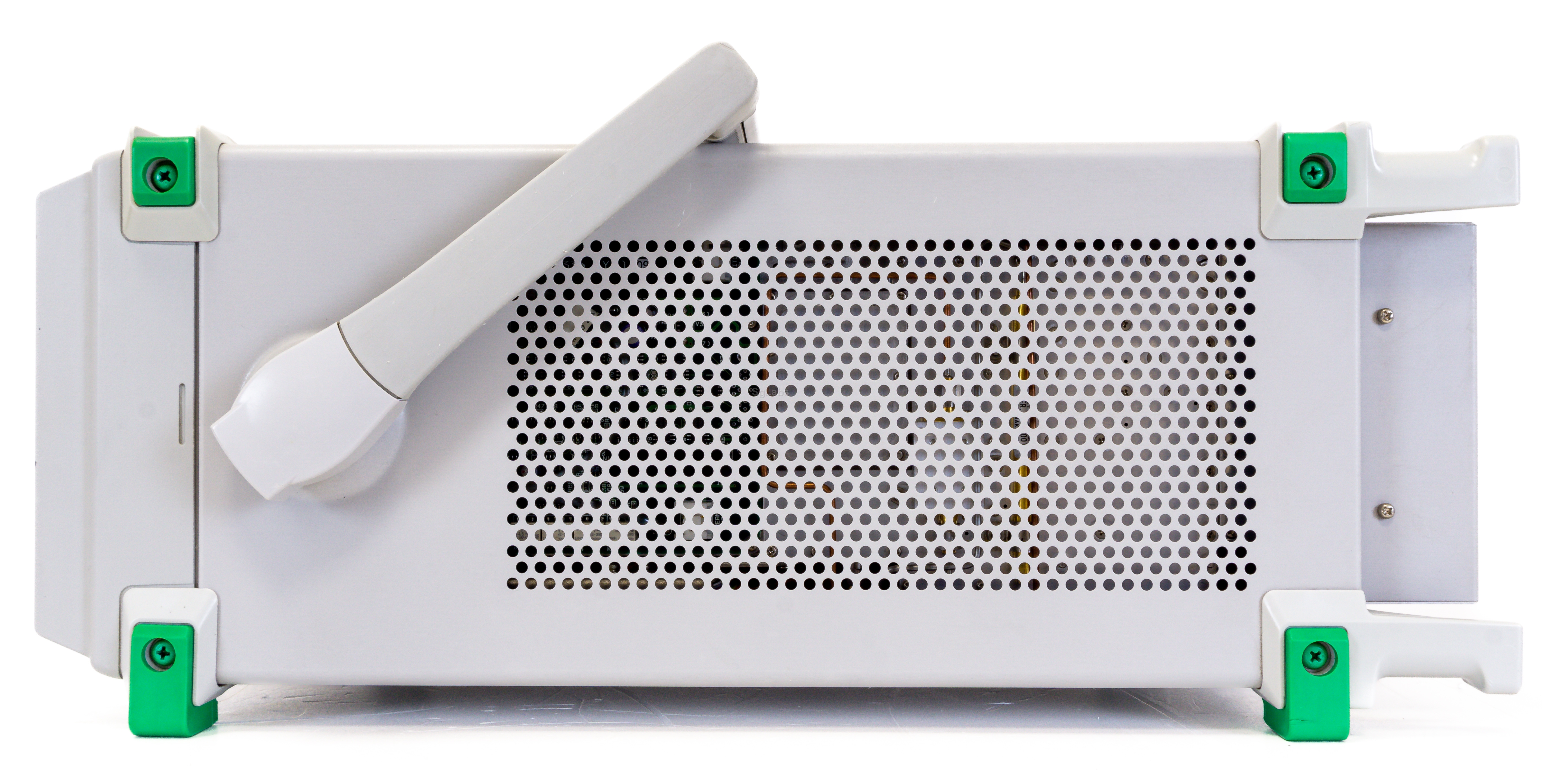

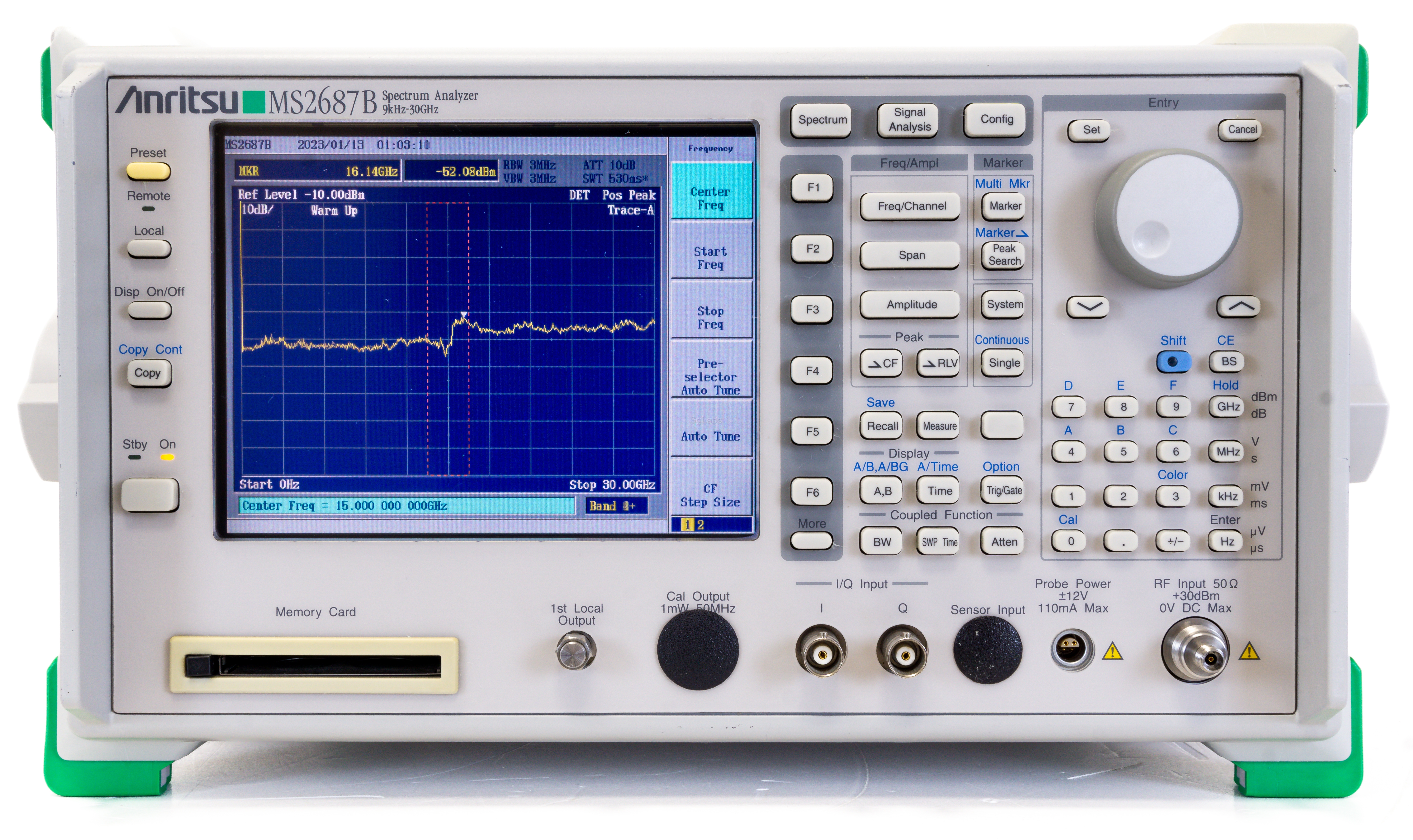

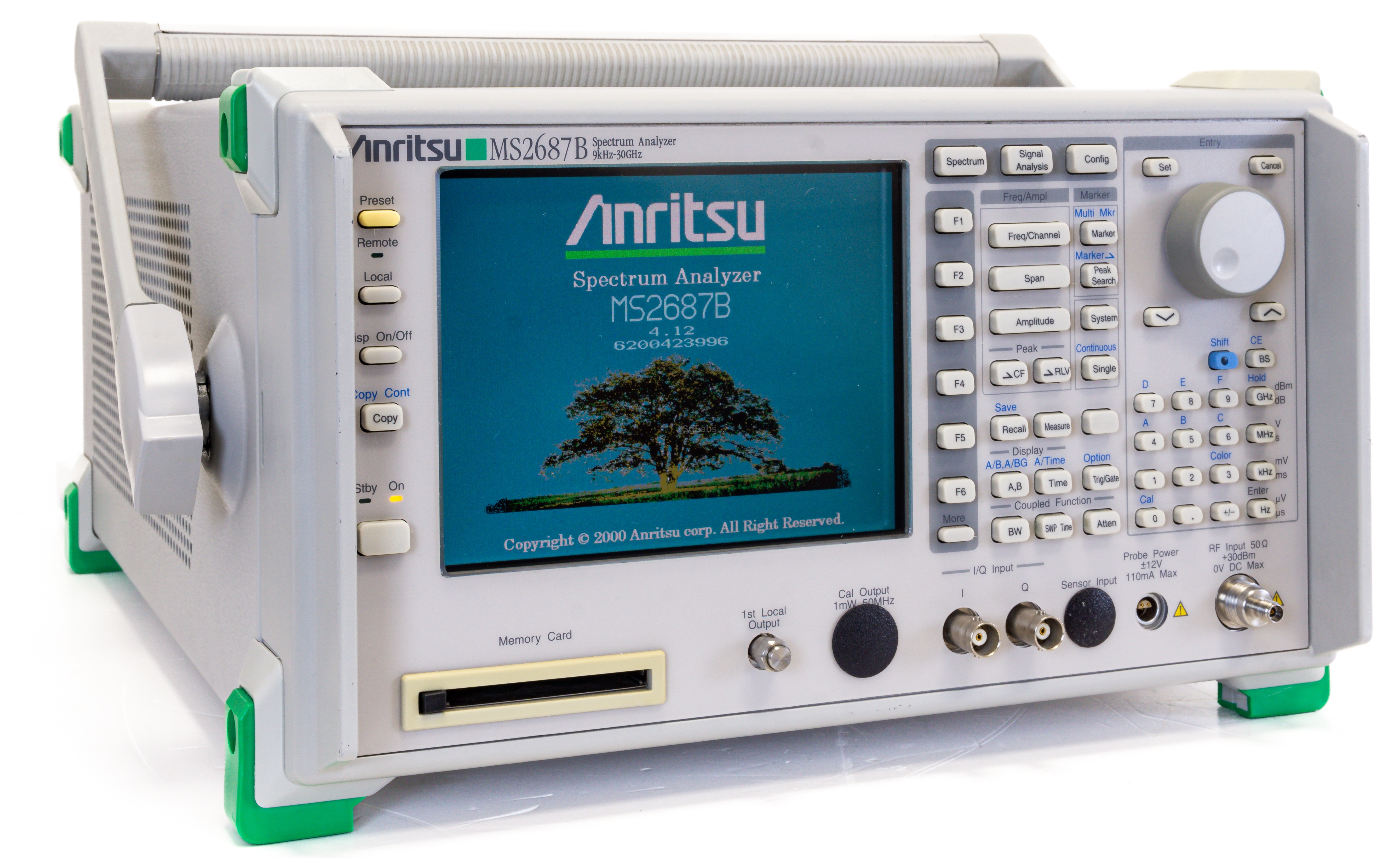

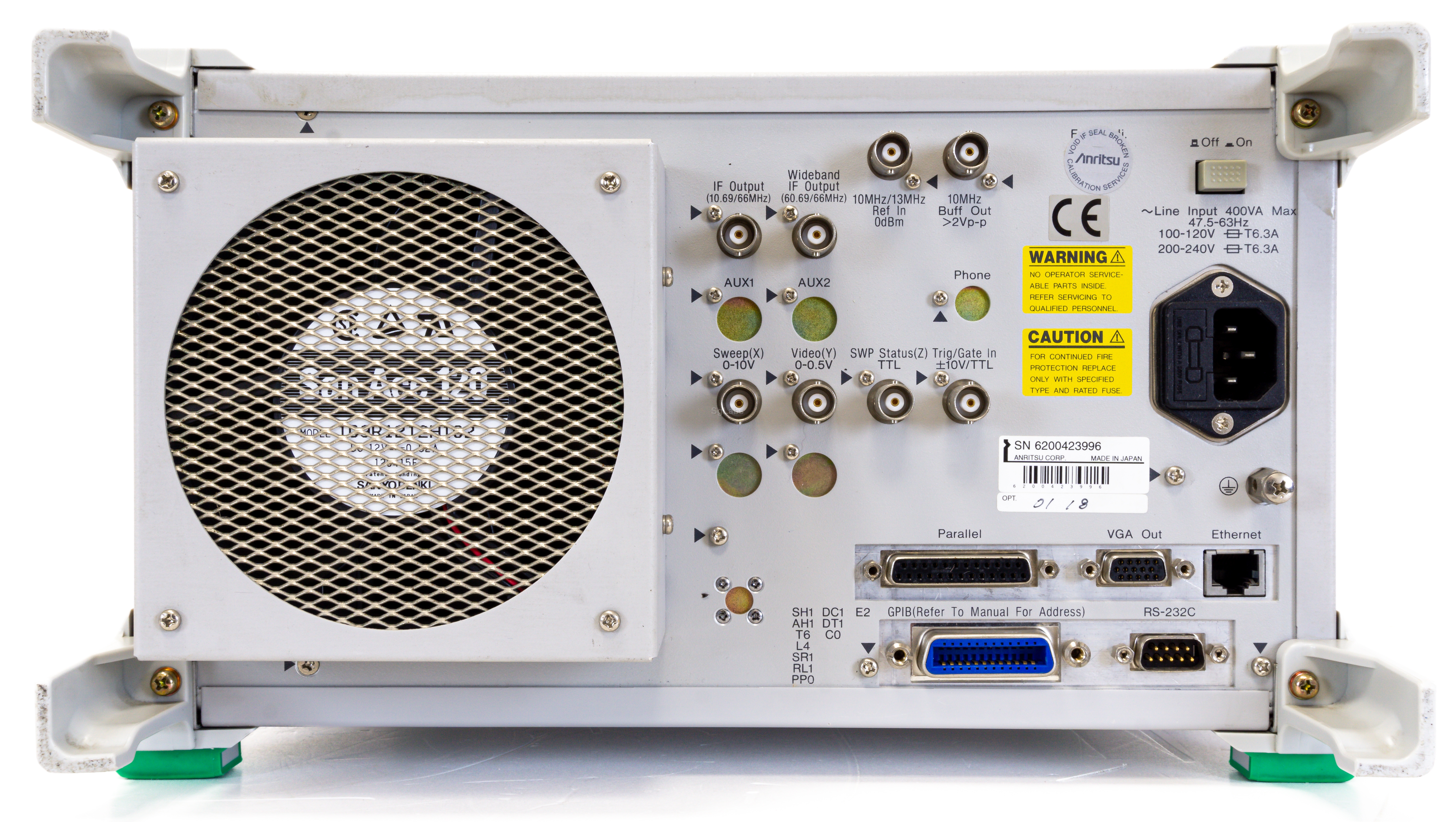

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The MS2687B is a 30 GHz Spectrum Analyzer from Anritsu. A spectrum analyzer measures the power of spectrums of known and unknown signals. Spectrum analyzers collect information such as the magnitude of an input signal compared to its frequency. As a frequency analyzer, spectrum analyzers’ main use is to document and analyze electrical input signals as well as spectral compositions of other signals.
Features
  • Frequency range: 9 kHz-30 GHz
  • Reference oscillator start-up characteristics: 5 x 10–8 or lower (standard); 1 x 10–9/7 min. or lower (option 05)
  • Span accuracy: ±1%
  • Fast data transmission speed (GPIB transmission speed: 120 kbytes/s)
  • Resolution bandwidth: 300 Hz to 3 MHz, 5 MHz, 10 MHz, 20 MHz; 1 Hz to 1 kHz (option 02, FFT); 10 Hz to 1 MHz (option 04)
  • Average noise level: ≤–146 dBm/Hz (1 MHz to 2.5 GHz)
  • Input attenuator: 0 to 70 dB (10 dB step)
  • Save/recall of set parameters: up to 12 into/from internal memory
  • Output of measurement results: BMP, CSV format or printer (ESC/P compatible model)
  • PC card interface: PC compatible Memory card (Memory card equipped as standard for 32 Mbytes or over)
  • Optional measurement software (sold separately) for high-speed modulation analysis (0.5 sec. with IEEE 802.11a)
  • Optional wide resolution bandwidth up to 20 MHz and narrow resolution bandwidth from 1 Hz
  • Optional power meter that measures up to 32 GHz
  • Optional rubidium reference oscillator for warm-up time of just 7 minutes
  • Display: LCD color
  • Max. Frequency: 30 GHz
  • Min. Frequency: 9 kHz
  • Min. Resolution: 1 Hz optional
